Description

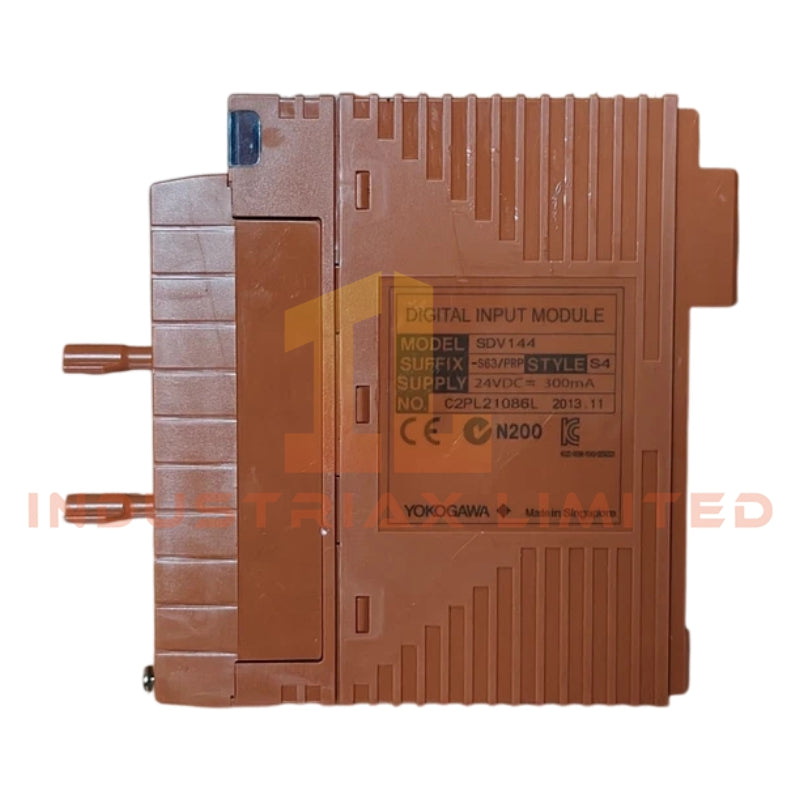

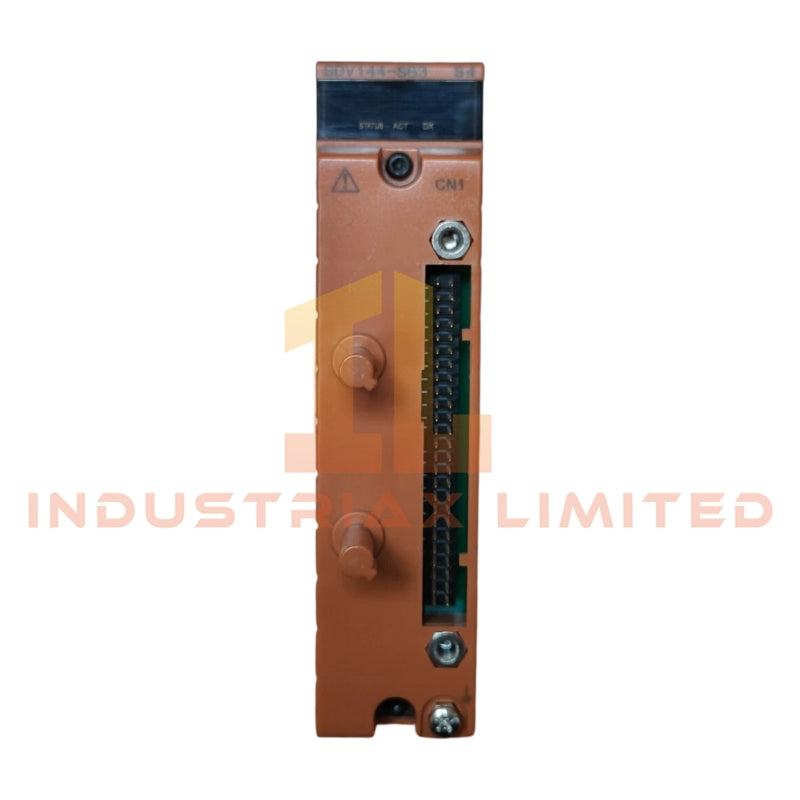

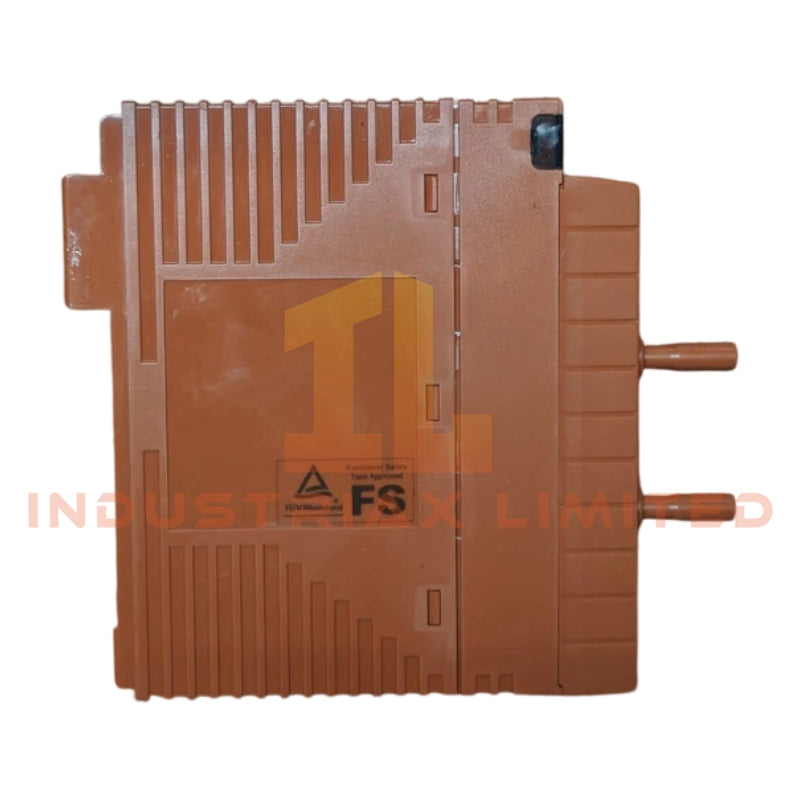

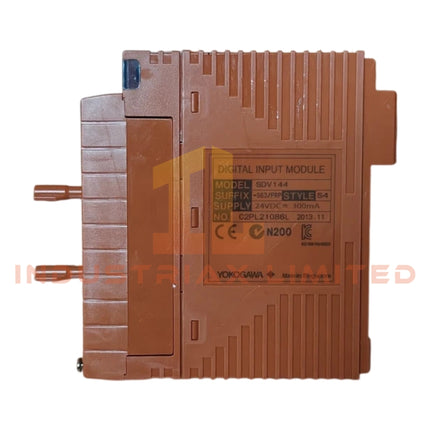

Yokogawa SDV144-S63 Digital Input Module
TheYokogawa SDV144-S63(SDV144Digital Input Module) operates as a dedicated hardware component for discrete signal acquisition within CENTUM-style DCS input subsystems. Configured for no-voltage contact detection, the SDV144-S63 converts 16-channel field contact states into system-level digital input data via isolated internal circuitry and 24 V DC external excitation.
Suffix Breakdown & Model Matrix
-
SDV144: Base model, 16-channel digital input module, 24 V DC contact input type
-
S: Standard type configuration
-
6: Signal cable interface adapter provided, no explosion protection
-
3: ISA G3 compliance, extended temperature rating -20 to 70 degC
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Yokogawa SDV144-S63 |
| Origin |
Japan |
| Weight |
0.41 kg |
| Dimensions |
Not specified |
| OperatingTemp |
-20 to 70 degC |
| PowerConsumption |
5 V DC: 290 mA max / 24 V DC: 140 mA max |
| Input Channels |
16 channels |
| Input Type |
No-voltage contact input |
| Input Current |
6 mA +/-20 percent (24 V DC excitation) |
| External Supply |
24 V DC +/-20 percent, 200 mA capacity |
| Input Response Time |
40 ms max |
| Isolation |
Signal-to-system 2 kV AC for 1 min |
| Max Input Voltage |
30 V DC |
Channel-to-Channel Isolation and Digital Input Conditioning (Yokogawa DCS Architecture)
The Yokogawa SDV144-S63 implements internal channel grouping with system-side isolation to suppress ground potential offsets and field return noise coupling in multi-drop contact input wiring. Each input channel is designed for dry-contact state detection with defined ON resistance threshold (1 kOhm max) and OFF leakage discrimination (100 kOhm min), enabling stable logic transition detection under industrial contact bounce conditions.
Signal conditioning is executed through opto-isolated front-end circuitry referenced to 24 V DC external excitation. The module maintains backplane separation between field-side input loops and control processor logic domain, reducing cross-channel electrical interference in dense I/O racks.
Frequently Asked Questions
Q1: Can the SDV144-S63 be hot-swapped under live system power?
A1: Hot-swap capability depends on the rack subsystem design. Electrically, input channels are isolated, but backplane removal under load may interrupt digital scan integrity.
Q2: What is the effect of input voltage exceeding 30 V DC?
A2: 30 V DC is the instantaneous maximum permissible input level. Exceeding this threshold risks input stage breakdown or long-term degradation of isolation components.
Q3: Does the module require external pull-up or pull-down resistors?
A3: No external resistors are required. Input conditioning is internally defined for dry-contact operation using 24 V DC excitation loop.
Field Installation Guidelines
-
Ensure 24 V DC excitation supply is within tolerance range before field wiring termination
-
Use shielded signal cable (AKB331 or equivalent) for multi-core digital input routing
-
Maintain separation between high-voltage power lines and digital input wiring harness
-
Ground shield at control cabinet side only to prevent ground loop current circulation
-
Verify contact resistance is within ON/OFF threshold limits prior to commissioning
-
Confirm module seating integrity in rack backplane to avoid intermittent scan loss
