Technical Overview

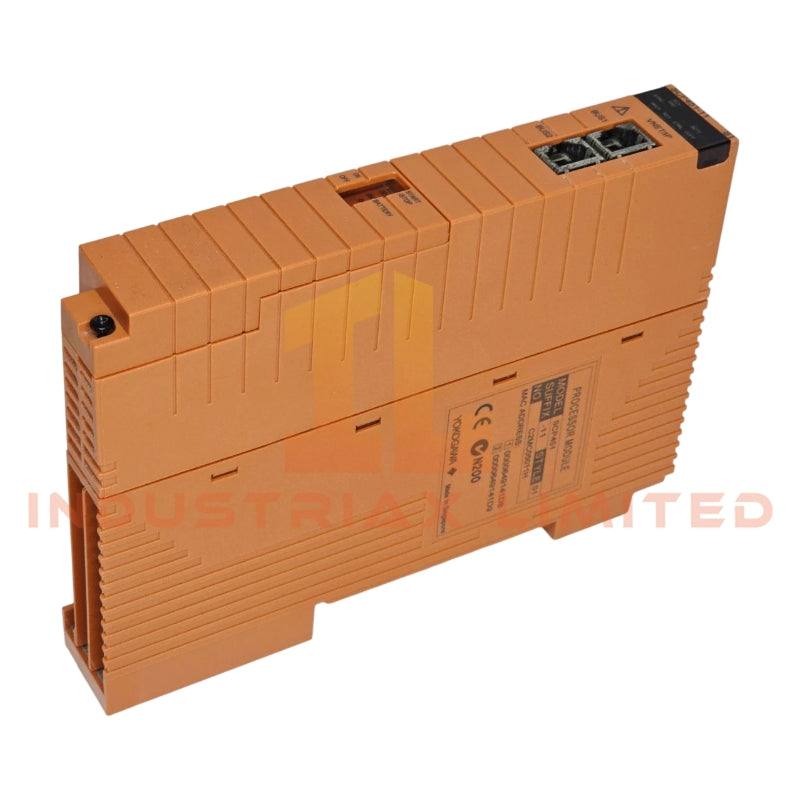

The SCP451-11-S1 (SCP451-11) is a high-availability processor module designed for the Yokogawa CENTUM VP Field Control Station (FCS). This unit acts as the primary computational engine for executing complex regulatory control and sequence logic. Built for mission-critical industrial environments, the module supports redundant configurations to eliminate single points of failure in the control layer. It facilitates high-speed data processing and ensures deterministic communication between I/O modules and the human-machine interface (HMI).
Technical Specifications
The following hardware specifications define the operational limits and functional capabilities of the SCP451-11 module:
-
Microprocessor: High-speed RISC Processor
-
Main Memory Capacity: 32 MB
-
Control Loop Capacity: Supports up to 200 blocks (depending on software licensing)
-
Interface Type: Vnet/IP for real-time control network synchronization
-
Current Consumption: 1.5 A at 5V DC
-
Redundancy Support: Dual-redundant configuration capable
-
Mounting: Fits into the AFV10D or AFV10S Field Control Unit slots
-
Communication Speed: 1 Gbps via Vnet/IP interface
-
Operating Temperature: 0 to 50 degrees Celsius
-
Humidity Limits: 5 to 95 percent RH (non-condensing)
Operational Capabilities
The SCP451-11-S1 is engineered to handle intensive data acquisition and process control tasks. It utilizes a dedicated real-time operating system to ensure that control cycles remain consistent even under high network traffic loads. The module features robust self-diagnostics that monitor CPU temperature, memory parity, and bus integrity in real-time, triggering an immediate failover to the standby partner in redundant setups if a fault is detected.
Application Use Cases
This processor module is typically deployed in large-scale process industries including:
-
Refinery and petrochemical distillation column control
-
Power plant boiler and steam turbine management
-
Chemical batch processing requiring high-precision timing
-
Upstream oil and gas offshore platform automation
FA
Does the SCP451-11 support hot-swapping?
Yes, when utilized in a dual-redundant configuration, a faulty SCP451-11 can be replaced without shutting down the Field Control Station, ensuring zero process interruption.
What is the difference between the S1 and S3 versions?
The S1 suffix generally denotes the specific hardware revision and compatibility with certain backplane versions of the CENTUM VP series. Always verify firmware compatibility with your existing system software (R5.01 or higher is typically required for this series).
