Description

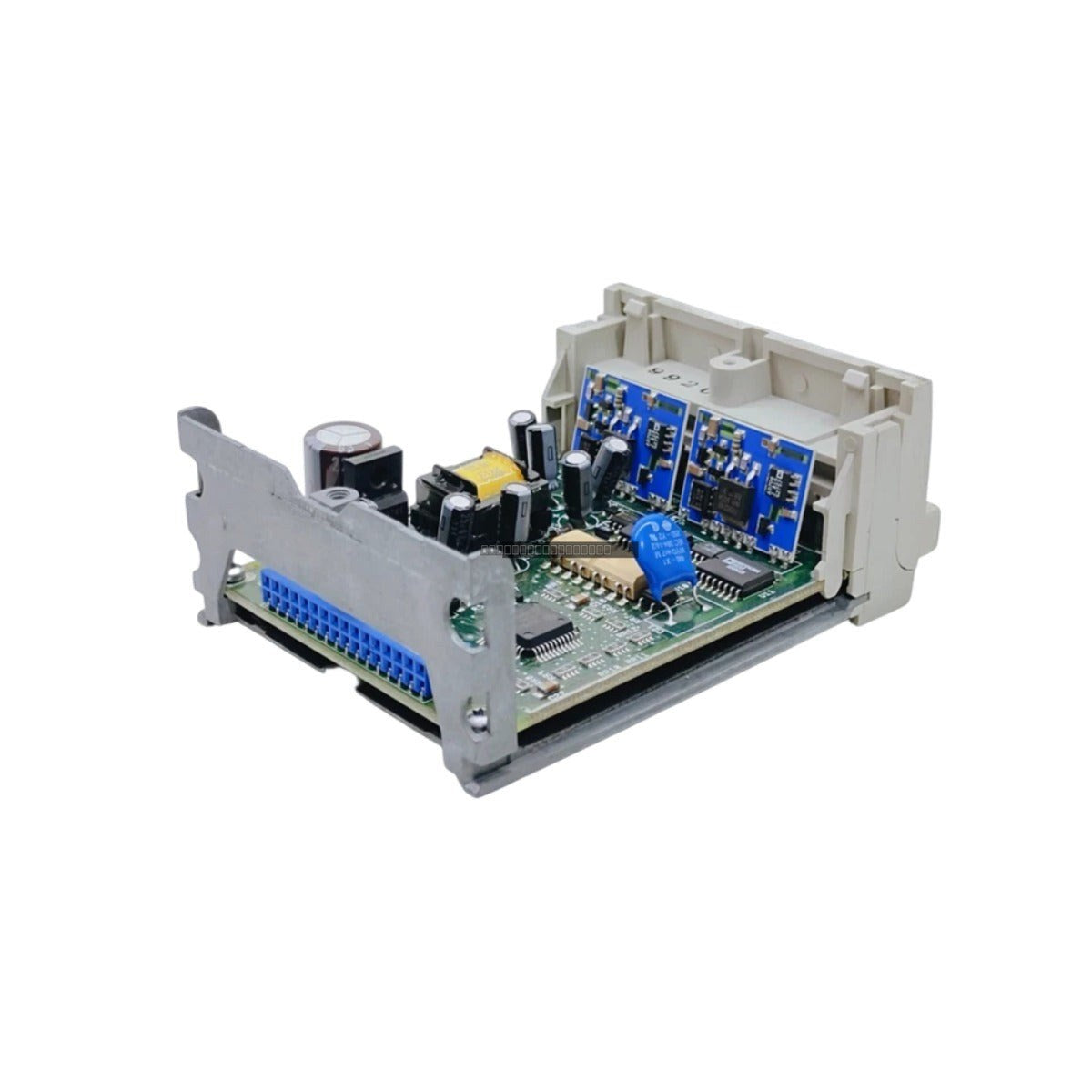

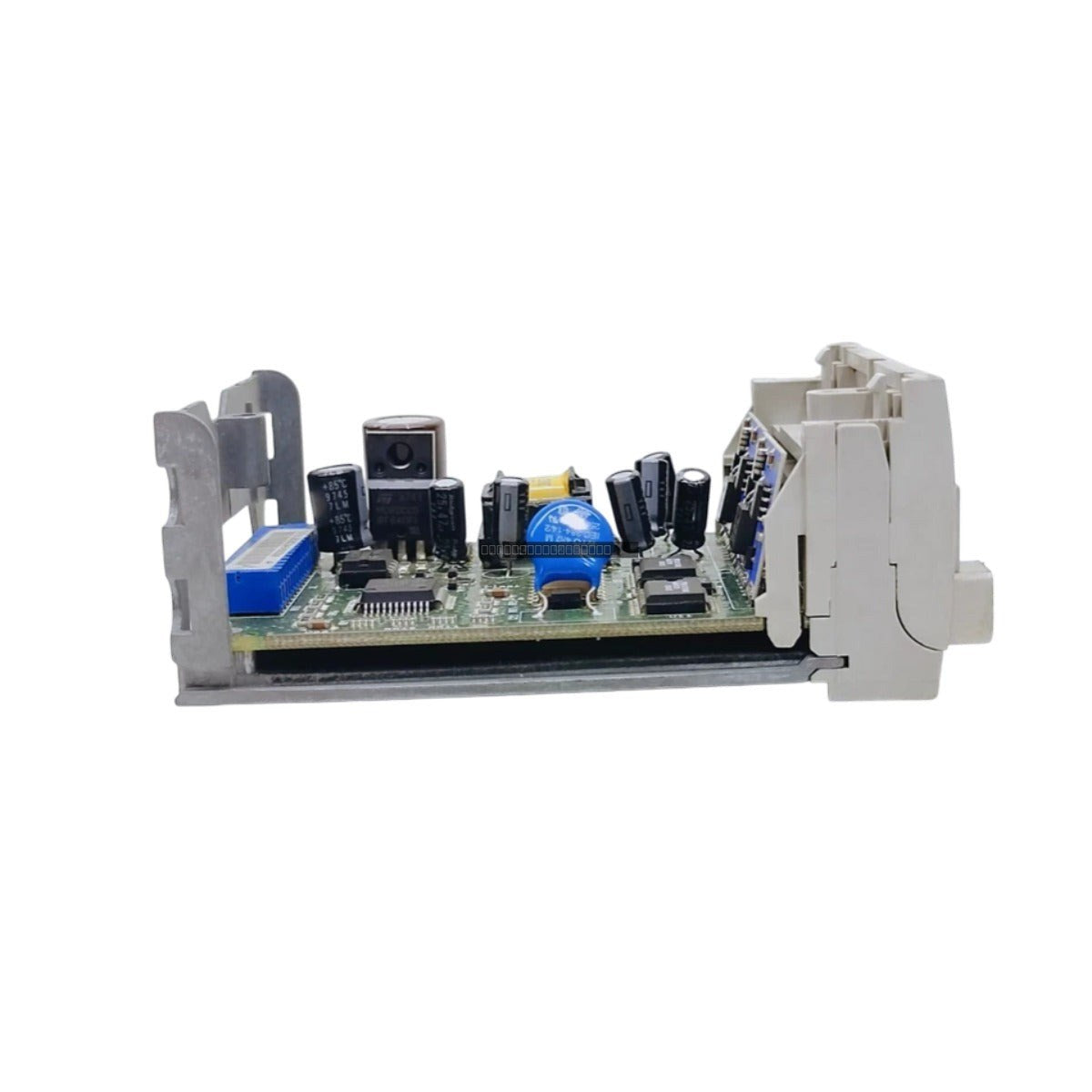

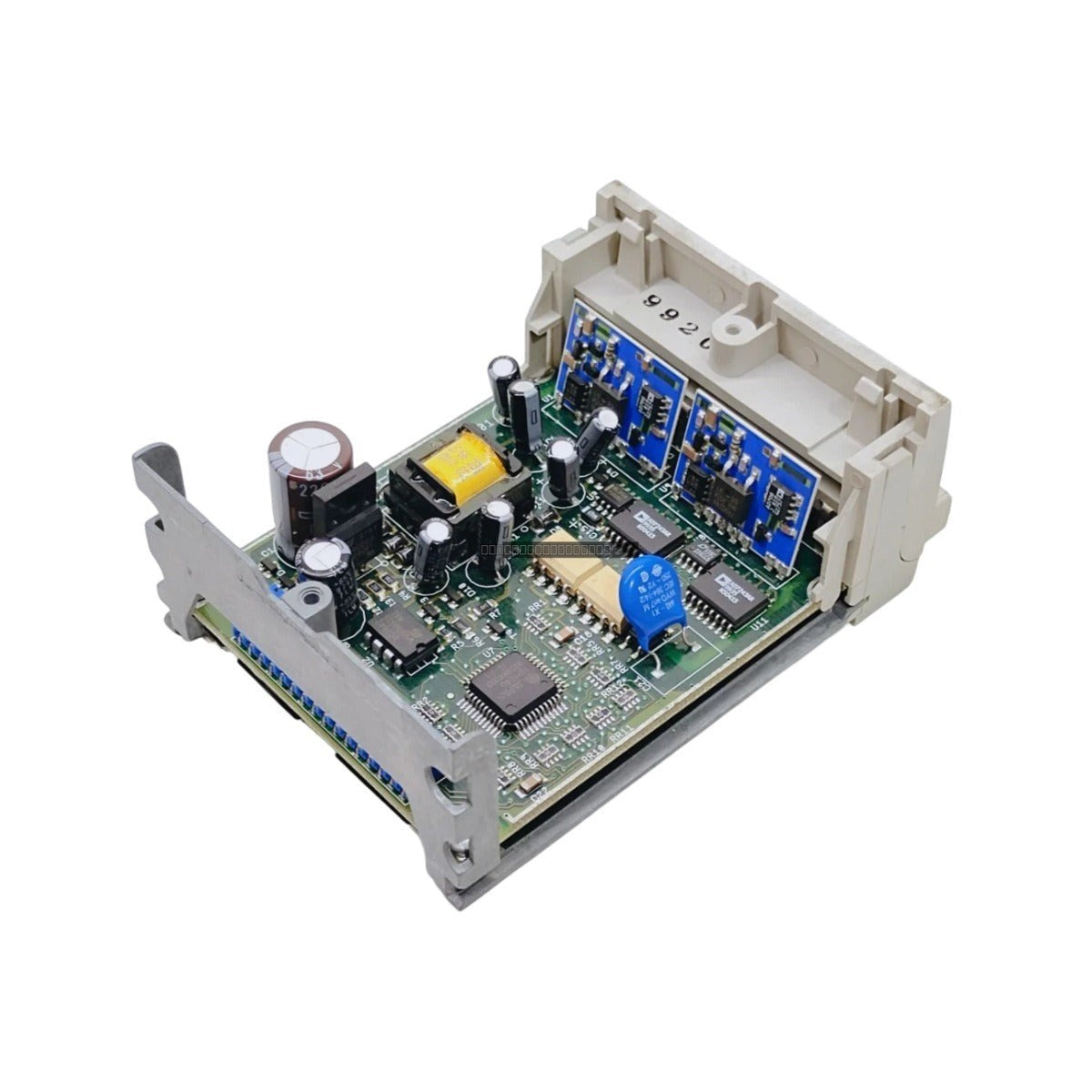

The Schneider TSXASZ200 is a high-performance analog output module designed to provide precise signal control within industrial automation environments. Engineered for integration with the RMS-TSG-TZ-C series PLC systems, this module facilitates reliable process management and scalable I/O expansion.
Features
- Equipped with 2 independent analog output channels for flexible signal control.
- Supports configurable output ranges including 0–10 V and 4–20 mA to accommodate various industrial actuators and instrumentation.
- Compact, modular design optimized for efficient space utilization in control panels and PLC racks.
- High-resolution 12-bit output for accurate process variable adjustment.
- Designed for stability and consistent performance in demanding industrial operating environments.
Applications
This module is suitable for a wide range of process control applications, including motor speed control, valve positioning, and interfacing with industrial drives or recorders that require standard analog signal inputs.
Technical Specifications
| Manufacturer |
Schneider Electric |
| Model |
TSXASZ200 |
| Series |
RMS-TSG-TZ-C |
| Number of Channels |
2 |
| Output Type |
Voltage / Current |
| Voltage Range |
0–10 V |
| Current Range |
4–20 mA |
| Resolution |
12-bit |
| Accuracy |
±0.5% |
| Response Time |
10 ms typical |
| Mounting Type |
DIN rail / PLC slot |
| Operating Temperature |
0 degC to 60 degC |
Installation Guidelines
- Ensure the PLC system is powered down before installing or removing the module to prevent electrical damage.
- Mount the module securely onto the designated DIN rail or within the appropriate PLC rack slot, ensuring proper alignment with the backplane connector.
- Use shielded twisted-pair cabling for analog signal connections to minimize electromagnetic interference (EMI).
- Maintain proper separation between analog signal wiring and high-voltage power cables.
- Verify that the operating environment remains within the specified temperature range of 0 degC to 60 degC to ensure long-term reliability.
FAQ
Q: What is the resolution of the TSXASZ200 module?
A: The module features a 12-bit resolution for its analog output channels.
Q: Can this module handle both voltage and current signals?
A: Yes, the TSXASZ200 supports both 0–10 V and 4–20 mA output signals, making it versatile for different control requirements.
