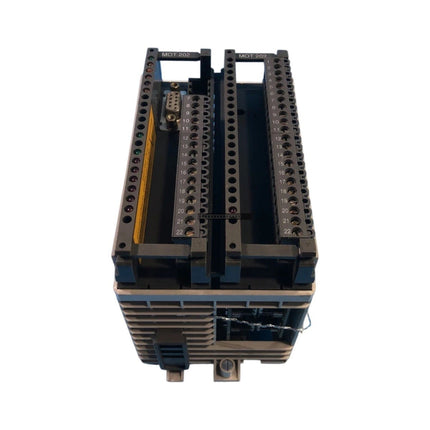

The Schneider Electric AS-BM0T-202 (M0T 202) is a specialized motion interface module designed for integration within the Telemecanique Modicon Compact Series automation platform. This module provides high-speed positioning and motion tracking capabilities, offloading complex trajectory calculations from the main CPU to ensure deterministic performance. By managing pulse-train generation and feedback loop evaluation at the hardware level, the AS-BM0T-202 minimizes latency and prevents axis drift in critical industrial applications, including servo-driven positioning, valve control, and mechanical axis monitoring.
Features
- Dual independent axis control channels for high-precision motion synchronization.
- Differential transceiver circuitry to mitigate common-mode electrical noise in industrial environments.
- Galvanic optical isolation between field-side I/O and the internal backplane bus to protect sensitive logic components.
- Hardware-level safety interrupt inputs for rapid response to mechanical limit triggers.
- Front-panel LED array for real-time diagnostics of channel status, phase registration, and system faults.
- High-speed processing capable of managing pulse-direction streams and analog velocity commands independently of the host scan cycle.
Applications
This module is engineered for demanding industrial environments where precise motion control is required. Typical installations include heavy-duty cranes in mining, thermal boiler valve positioning, hydrocarbon refining actuators, and high-speed material handling systems requiring rapid feedback loop processing.
Technical Specifications
| Model |
AS-BM0T-202 (M0T 202) |
| Brand |
Schneider Electric (Telemecanique) |
| Controlled Axes |
2 independent channels |
| Input Frequency |
Up to 200 kHz per channel (Phase A/B) |
| Encoder Compatibility |
5 VDC differential / 24 VDC single-ended incremental |
| Output Interface |
+/- 10 VDC analog velocity / Pulse-Direction |
| Backplane Power |
450 mA at 5 VDC |
| Isolation |
1000 VDC field to backplane |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Humidity |
5 to 95% non-condensing |
Installation Guidelines
- Ensure the system power is completely disconnected before inserting or removing the module from the Compact Series backplane.
- Mount the module in a location that allows for adequate airflow to maintain operating temperatures within the 0 to 60 deg C range.
- Use shielded twisted-pair cabling for all encoder and command signal connections to minimize EMI susceptibility.
- Properly ground the module chassis to the cabinet earth bus to ensure the effectiveness of the galvanic isolation and noise filtering.
- Verify that all field-side wiring is correctly landed on the front-mounted terminal block, ensuring that high-voltage lines are routed away from low-voltage signal paths.
FAQ
Does this module require external power for the encoders?
The module interfaces with both 5 VDC differential and 24 VDC single-ended encoders; ensure your encoder power supply matches the requirements of your specific field devices.
Can the AS-BM0T-202 handle analog velocity commands?
Yes, the module supports +/- 10 VDC analog velocity output commands, making it compatible with a wide range of industrial servo drives and proportional valves.
