Description

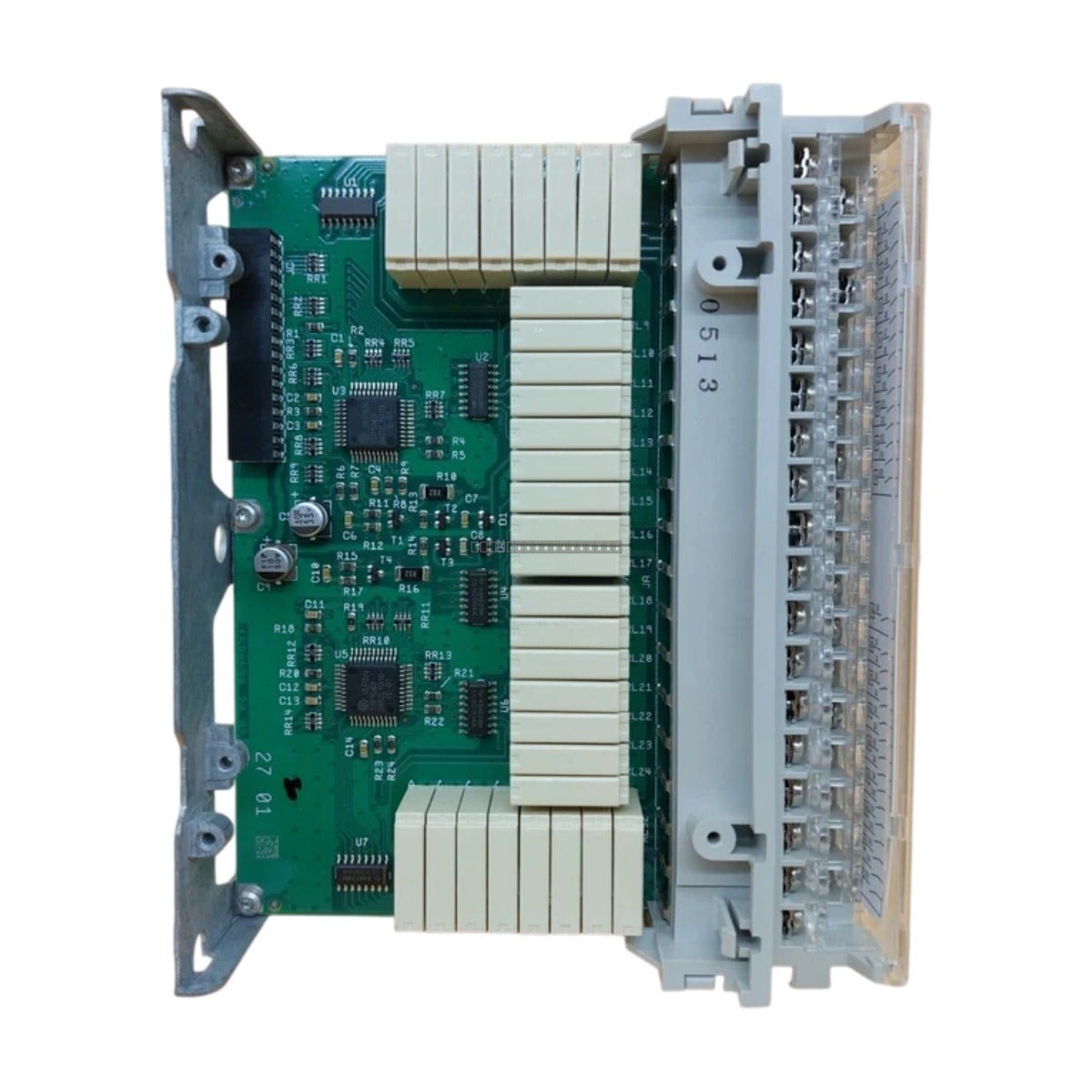

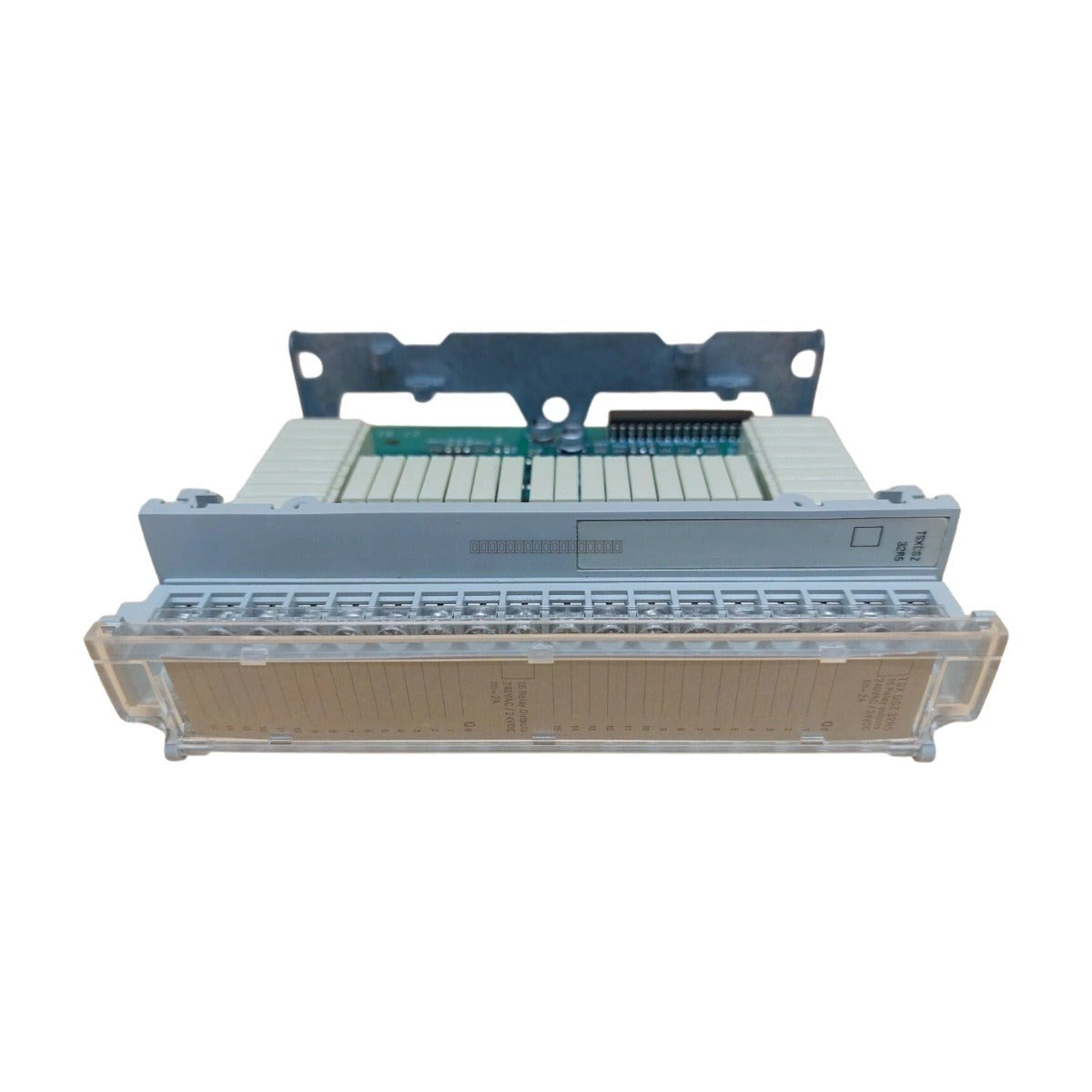

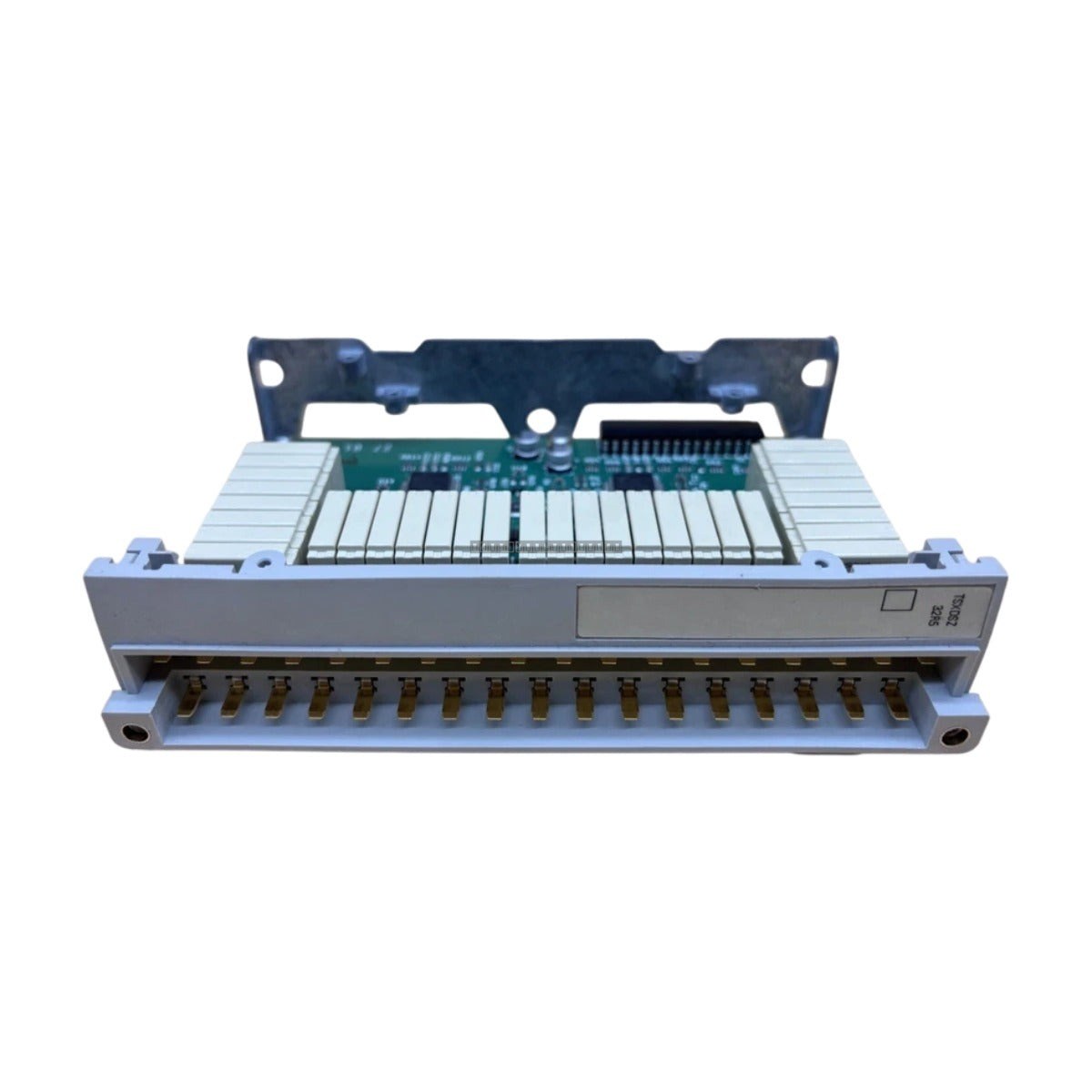

The Schneider Electric TSXDSZ32R5 is a relay output module designed for the Modicon TSX Micro PLC platform. This module provides 32 relay outputs, facilitating the interface between the PLC and external field devices. It is engineered to handle a wide range of switching voltages from 24 VAC to 240 VAC, making it suitable for diverse industrial control applications requiring isolated output switching.
Features
- 32-point relay output configuration.
- Supports switching voltages from 24 VAC to 240 VAC.
- Compact design for integration into TSX Micro rack systems.
- Robust isolation voltage of 1500 V for 1 second.
- Low power dissipation of 3.5 W during operation.
- Fast response time of less than 10 ms.
Technical Specifications
| Product Model |
TSXDSZ32R5 |
| Module Type |
Relay Output Module |
| Voltage Range |
24 - 240 VAC |
| Output Current |
1 A |
| Current Consumption |
175 mA |
| Power Dissipation |
3.5 W |
| Isolation Voltage |
1500 V (1 s) |
| Insulation Resistance |
>= 10 MOhm |
| Response Time |
< 10 ms |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical shock or damage to the backplane.
- Mount the module securely in the designated TSX Micro rack slot, ensuring the connector pins are properly aligned.
- Use appropriate wire gauges for the relay output terminals and ensure all connections are tightened to the specified torque.
- Maintain proper clearance around the module to allow for adequate ventilation and heat dissipation.
- Route signal wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to prevent signal noise.
- Handle the module using ESD-safe practices to prevent damage to internal electronic components.
FAQ
Is the TSXDSZ32R5 still in production?
No, this model was officially discontinued by the manufacturer in 2020. It is now primarily available through surplus or secondary market channels.
What is the primary function of this module?
The TSXDSZ32R5 serves as a relay output interface for the Modicon TSX Micro PLC, allowing the controller to switch external AC loads up to 240 VAC.
