Description

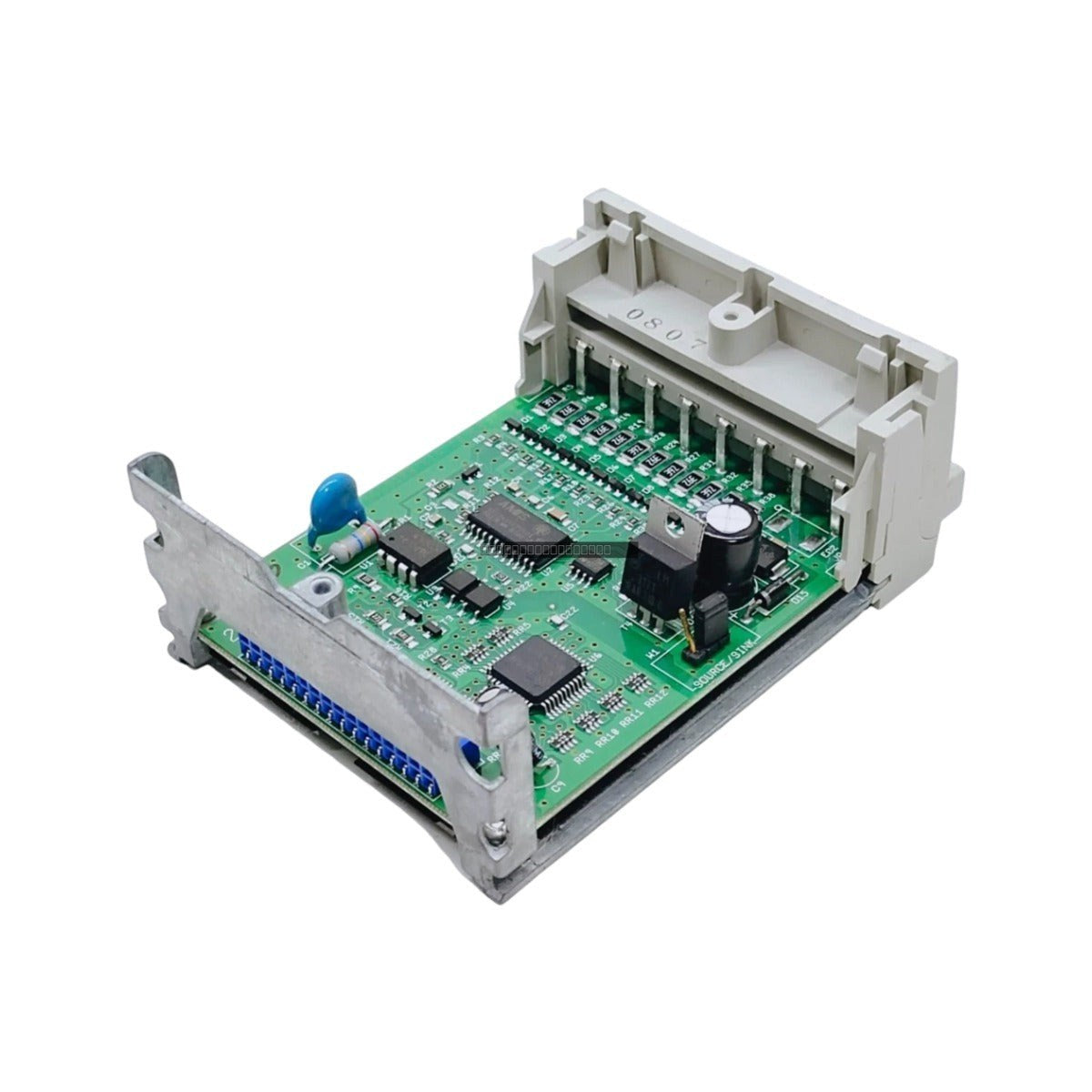

The Schneider Electric TSXDEZ12D2 is a high-performance discrete input module designed for the Modicon TSX Micro automation platform. This module provides 12 input channels, offering reliable signal acquisition for industrial control applications. It is engineered to support a variety of sensor types, including 2-wire and 3-wire proximity sensors, and is compatible with both PNP and NPN configurations.
Features
- 12 discrete input channels for versatile I/O expansion.
- Compatibility with 2-wire and 3-wire proximity sensors.
- Flexible input logic supporting both PNP and NPN sensor types.
- Optimized for integration within the Modicon TSX Micro architecture.
- Robust industrial design for consistent performance in control environments.
Applications
This module is typically utilized in manufacturing and process automation systems where discrete signal monitoring is required. It is commonly deployed in machine control, assembly line monitoring, and general PLC-based automation tasks requiring reliable sensor interfacing.
Technical Specifications
| Model |
TSXDEZ12D2 |
| Module Type |
Discrete Input Module |
| Input Count |
12 |
| Sensor Compatibility |
2/3 wire proximity sensors |
| Logic Compatibility |
PNP/NPN |
| Input Impedance |
2.4 kOhm |
| Manufacturer |
Schneider Electric |
Installation Guidelines
- Ensure the PLC system is powered down before installing or removing the module from the rack.
- Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
- Use shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise environments.
- Maintain proper grounding practices for the control cabinet to protect against electrical surges.
- Ensure adequate ventilation around the module to prevent overheating during continuous operation.
FAQ
What type of sensors can be connected to the TSXDEZ12D2?
This module supports standard 2-wire and 3-wire proximity sensors, accommodating both PNP and NPN signal types for broad application compatibility.
Is this module compatible with other Modicon series?
The TSXDEZ12D2 is specifically designed for the Modicon TSX Micro series. Please verify your specific controller model compatibility before installation.
