Description
Product Overview

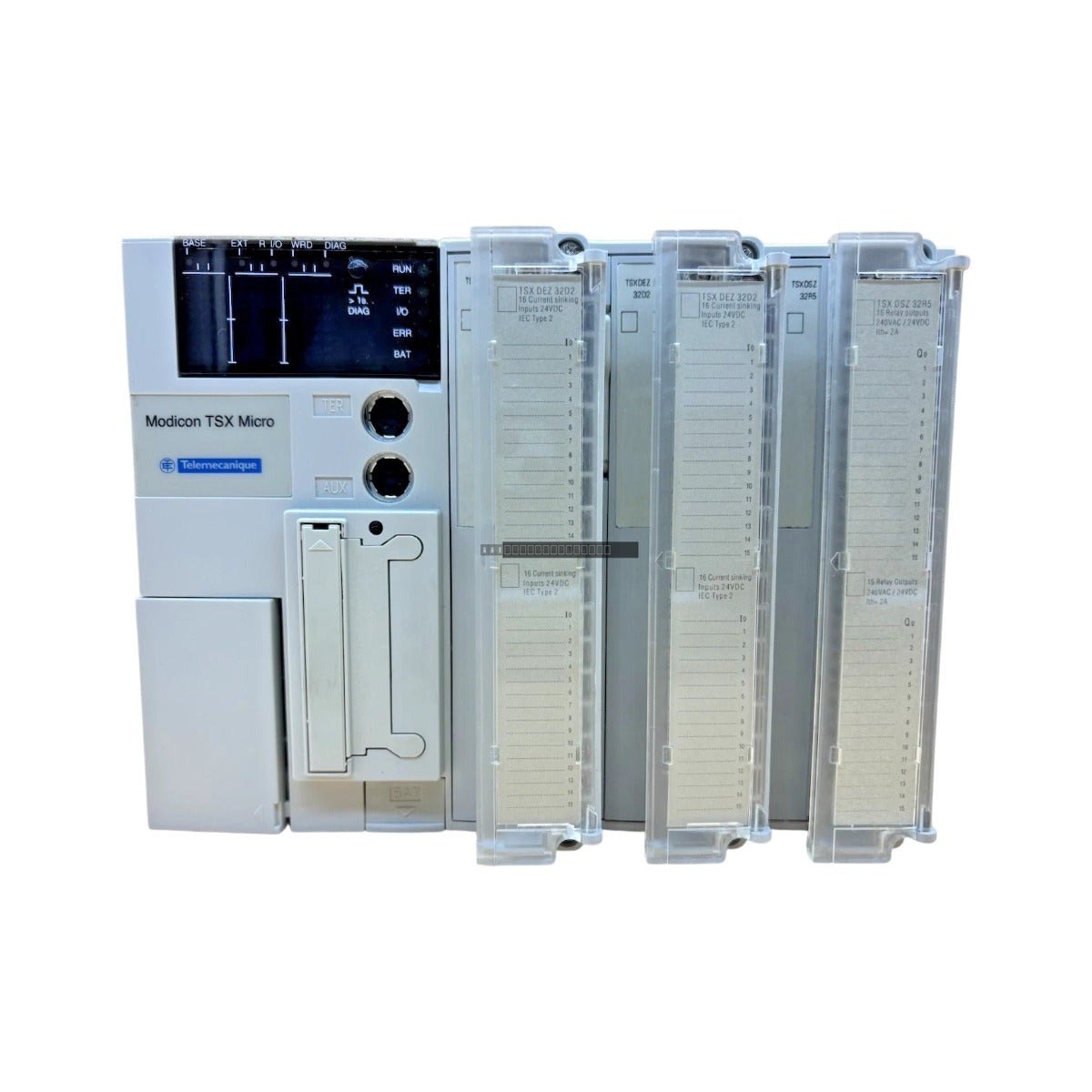

The Schneider Electric Modicon TSX3721DC is a robust programmable logic controller (PLC) unit designed for the Modicon Micro automation platform. This controller is engineered to provide reliable, scalable control for small to medium-sized industrial machinery and process automation tasks. It features integrated processing capabilities and flexible I/O configurations, making it a dependable choice for applications requiring consistent performance in demanding environments.
Features
- High-performance processing architecture for efficient execution of logic sequences.
- Designed for seamless integration into the Modicon Micro series ecosystem.
- Supports modular expansion to adapt to varying control requirements.
- Integrated communication ports for connectivity with field devices and supervisory systems.
- Compact hardware footprint optimized for space-constrained control cabinets.
Applications
The TSX3721DC is suitable for diverse industrial sectors, including material handling, packaging machinery, water treatment, and light manufacturing control systems. Its architecture is specifically optimized for tasks requiring precise timing and reliable input/output management.
Installation Guidelines
- Ensure the controller is mounted vertically on a standard DIN rail to facilitate proper natural convection cooling.
- Maintain adequate clearance around the unit to prevent thermal buildup during operation.
- Use shielded cables for all signal wiring to minimize electromagnetic interference (EMI) in high-noise industrial settings.
- Verify that the power supply matches the rated input voltage before energizing the module.
- Always disconnect power from the backplane before inserting or removing the controller to prevent electrical damage.
- Ensure a low-impedance ground connection is established to the chassis to maintain signal integrity and safety.
FAQ
What is the primary function of the TSX3721DC?
The TSX3721DC serves as a central controller for the Modicon Micro PLC system, managing logic execution, I/O monitoring, and control tasks for industrial automation processes.
Is this controller compatible with other Modicon Micro modules?
Yes, the TSX3721DC is designed to operate within the Modicon Micro architecture and supports expansion with compatible I/O modules from the same series.
What should I do if the module displays a fault status?
First, check the physical connections and ensure the power supply is stable. Consult the Modicon Micro system manual to interpret the specific LED diagnostic codes displayed on the front panel of the unit.
