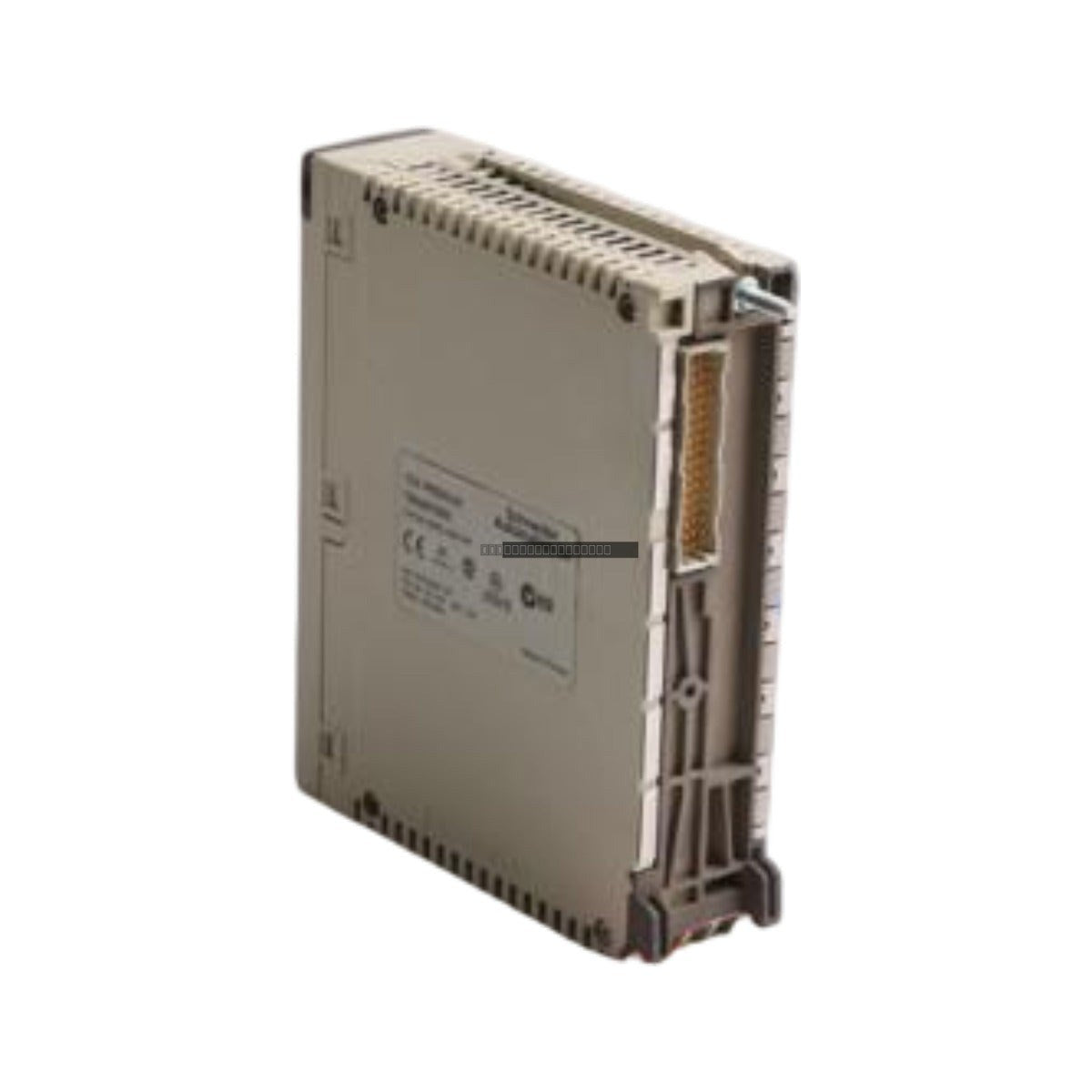

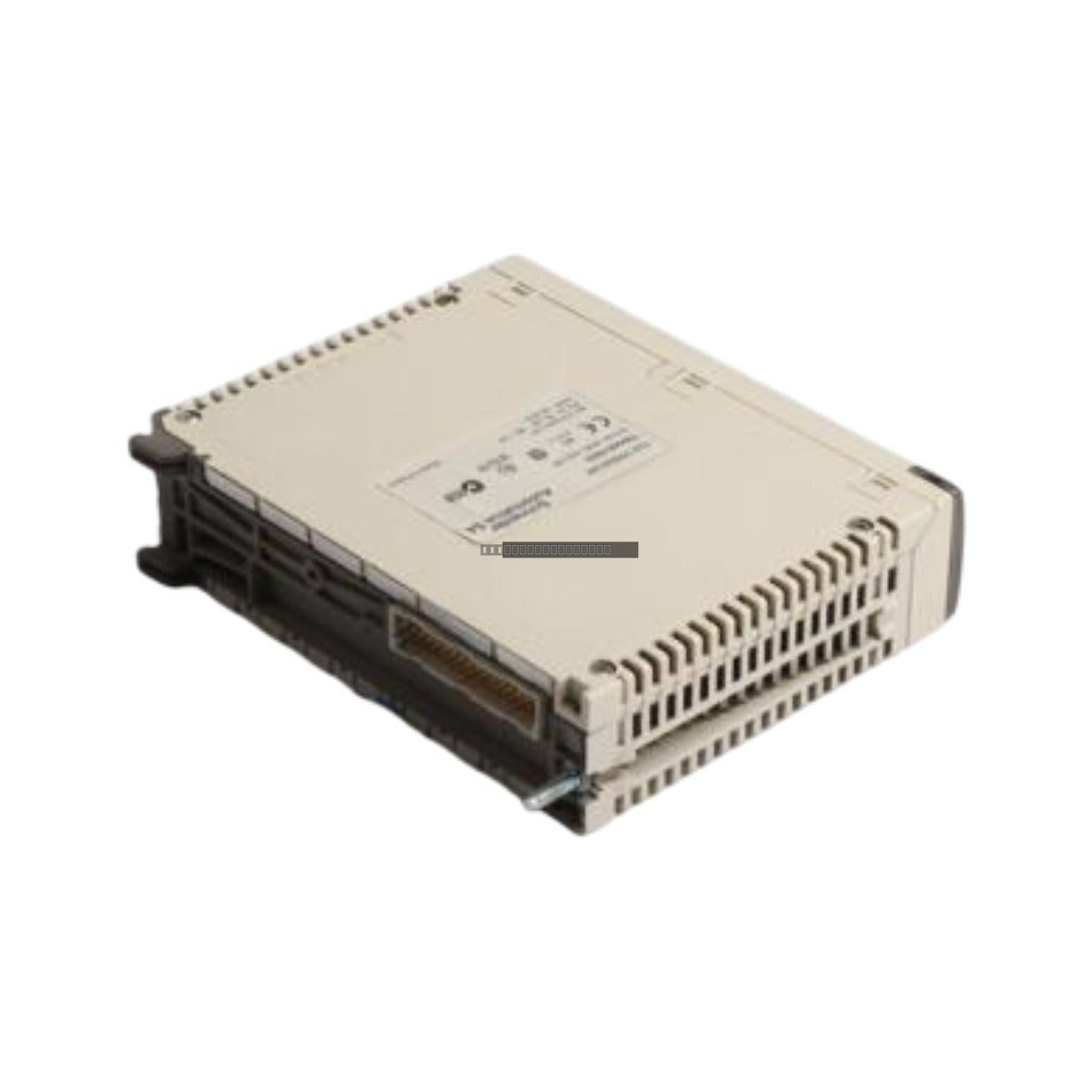

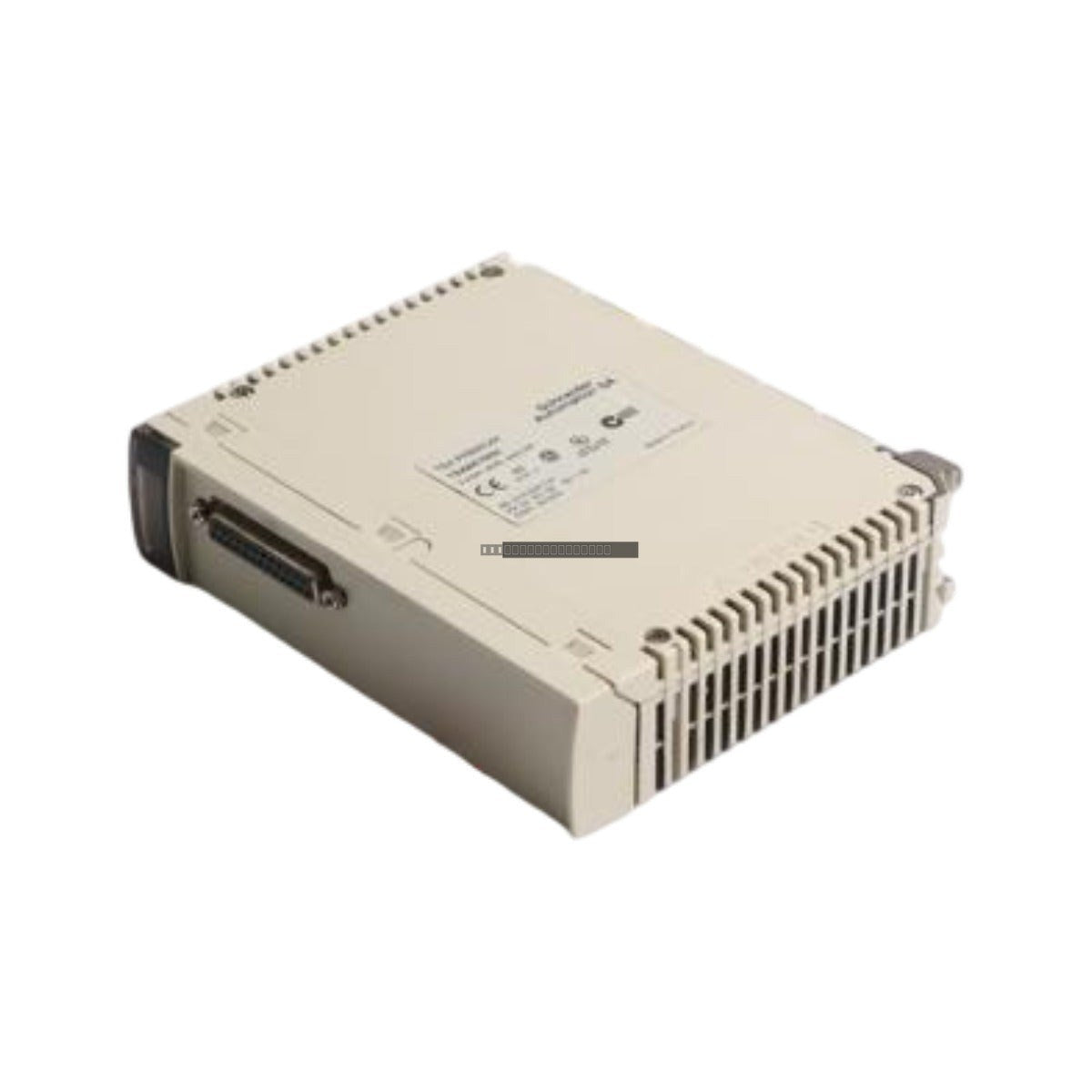

The Schneider Electric TSXP57153 (often identified as TSXP57153M) is a high-performance processor module designed for the Modicon Premium automation platform. This single-format PLC processor is engineered to handle complex control logic, managing both discrete and analog I/O requirements across various industrial environments. By providing stable execution of control programs, this module helps maintain high operational availability in demanding sectors such as automotive assembly, water treatment, and material handling.
Features
- Optimized for the Modicon Premium rack system, occupying a single slot.
- Equipped with 32 kWords of internal RAM for reliable program storage and data handling.
- Supports programming and configuration via Schneider PL7 Junior or PL7 Pro software environments.
- Front-mounted LED indicators allow for immediate visual diagnostics of system status, communication links, and potential hardware faults.
- Robust design capable of operating in standard industrial temperature ranges, ensuring consistent performance in harsh environments.
Applications
This processor module is widely utilized in industrial automation systems where deterministic control is required. Typical applications include managing complex sequences in manufacturing lines, controlling analog feedback loops in process plants, and serving as the central intelligence for distributed I/O architectures.
Technical Specifications
| Model |
TSXP57153 |
| Brand |
Schneider Electric |
| Memory |
32 kWords (Internal RAM) |
| Software |
PL7 Junior / PL7 Pro |
| Power Requirements |
5 VDC, 330 mA (via rack bus) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-25 to 70 deg C |
| Form Factor |
Single Slot |
Installation Guidelines
- Ensure the rack is powered down before inserting or removing the processor module to prevent electrical damage.
- Slide the module into the designated slot on the Modicon Premium rack, ensuring the rear connector is properly aligned with the backplane bus.
- Secure the module using the integrated locking mechanisms on the front panel.
- Maintain adequate ventilation around the rack to adhere to the 0-60 deg C operating temperature range.
- Avoid installing the module in areas with extreme vibration or high levels of conductive dust.
FAQ
What software is required to program the TSXP57153?
This processor is compatible with Schneider Electric PL7 Junior or PL7 Pro software platforms.
How is the module powered?
The module draws its power directly from the rack bus at 5 VDC with a consumption of 330 mA.
Does this module support peer-to-peer communication?
Yes, it is designed for integration into industrial networks, facilitating deterministic data exchange with other controllers and I/O modules.
