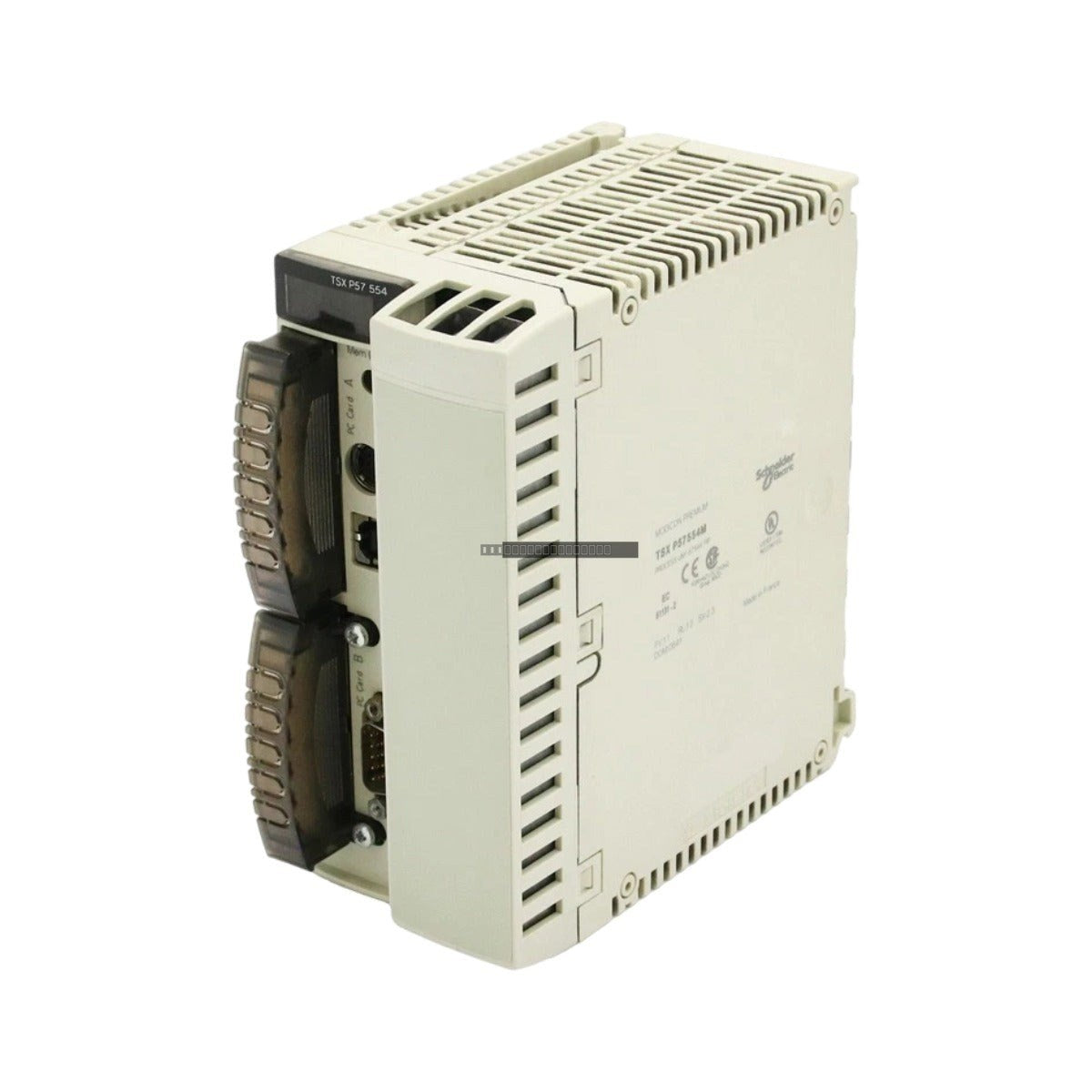

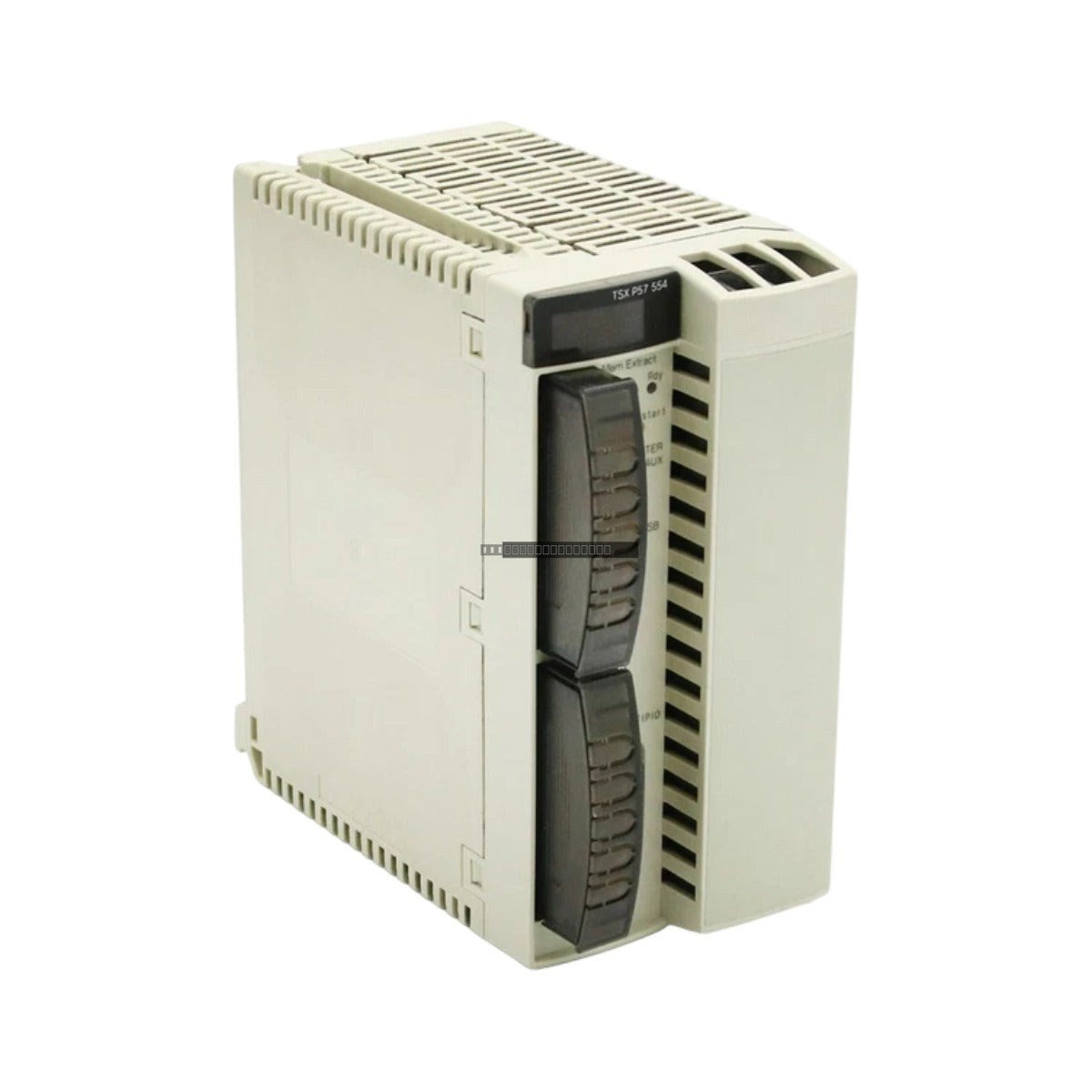

The Schneider Electric TSXP57554M is a high-performance, double-format central processing unit designed for the Modicon Premium automation platform. This processor is engineered to manage demanding industrial control tasks, providing robust computational capabilities for large-scale applications such as power generation, petrochemical processing, and heavy mining infrastructure. By integrating advanced memory management and high-speed background synchronization, the TSXP57554M ensures minimal cycle latency and enhanced stability for complex control loops.
Features

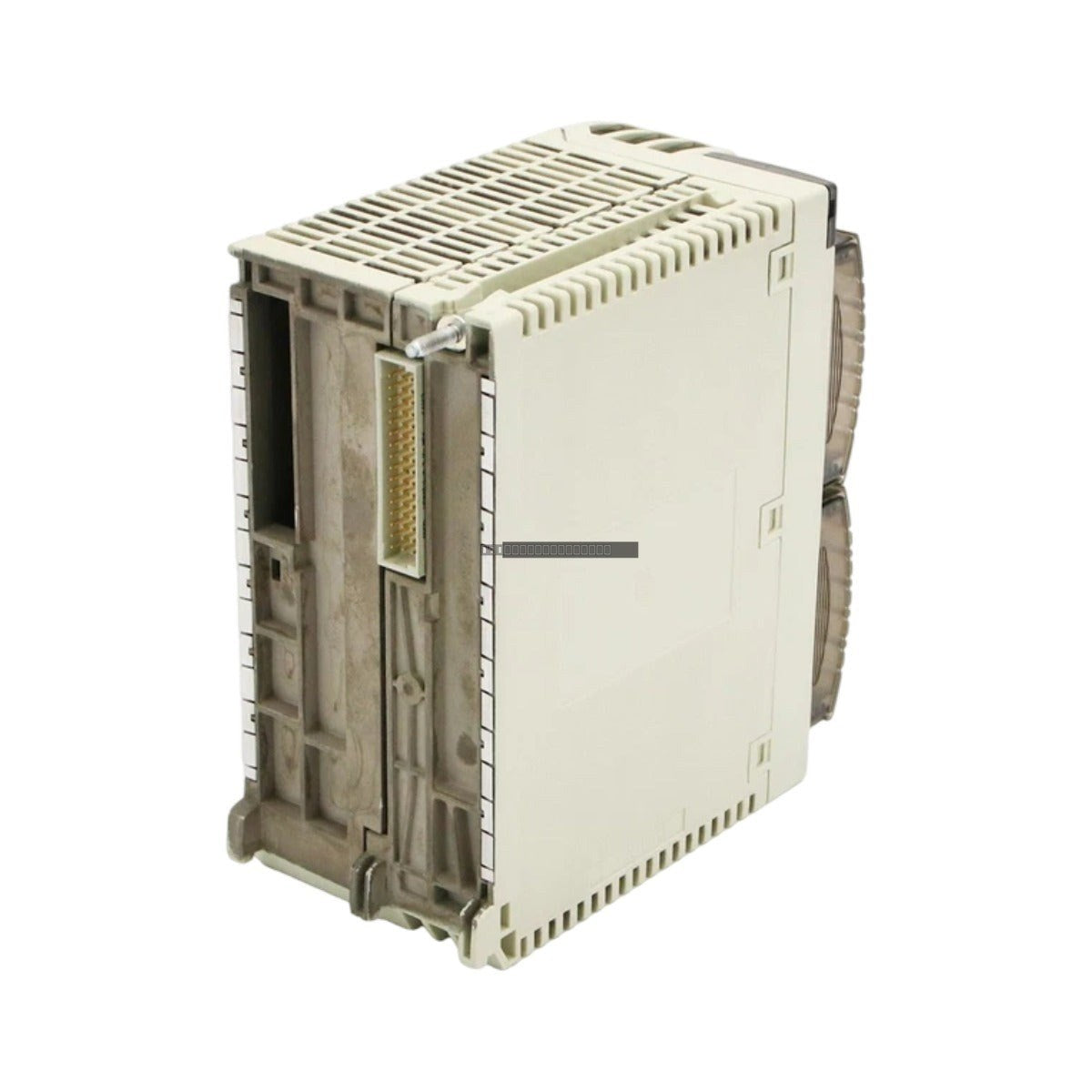

- Dual-slot form factor designed for seamless integration into TSX RKY series backplanes.
- Integrated 10/100 Mbps Ethernet TCP/IP port for deterministic industrial networking.
- Dedicated multi-protocol serial terminal port supporting Uni-Telway and Modbus communication.
- Two PCMCIA slots for flexible memory expansion or additional co-processor modules.
- High-density I/O support, capable of managing up to 2048 discrete and 512 analog channels.
- Optimized for low-jitter boolean execution to ensure precise control timing.
Technical Specifications
| Model |
TSXP57554M |
| Brand |
Schneider Electric |
| Internal RAM |
1024K Words |
| Power Consumption |
1650 mA at 5 VDC |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-25 to 70 deg C |
| Humidity |
10 to 95% non-condensing |
Installation Guidelines
- Ensure the rack is powered down before inserting or removing the CPU module to prevent electrical damage.
- Align the module carefully with the TSX RKY backplane guide rails to avoid bending pins.
- Secure the module using the integrated locking mechanisms to ensure a reliable connection to the backplane bus.
- Maintain adequate clearance around the module to allow for proper thermal dissipation during operation.
- Use shielded communication cables for Ethernet and serial ports to minimize EMI interference in noisy industrial environments.
- Handle with standard ESD precautions to protect internal circuitry from static discharge.
FAQ
What is the primary function of the PCMCIA slots on this CPU? The two PCMCIA slots are designed for memory expansion using flash memory cards or for adding auxiliary network communication interfaces like Fipio or Modbus Plus.
Is this CPU suitable for high-speed I/O applications? Yes, the TSXP57554M is optimized for high-density I/O structures and provides fast synchronous cycles, making it suitable for time-critical control logic.
