Description
Product Overview

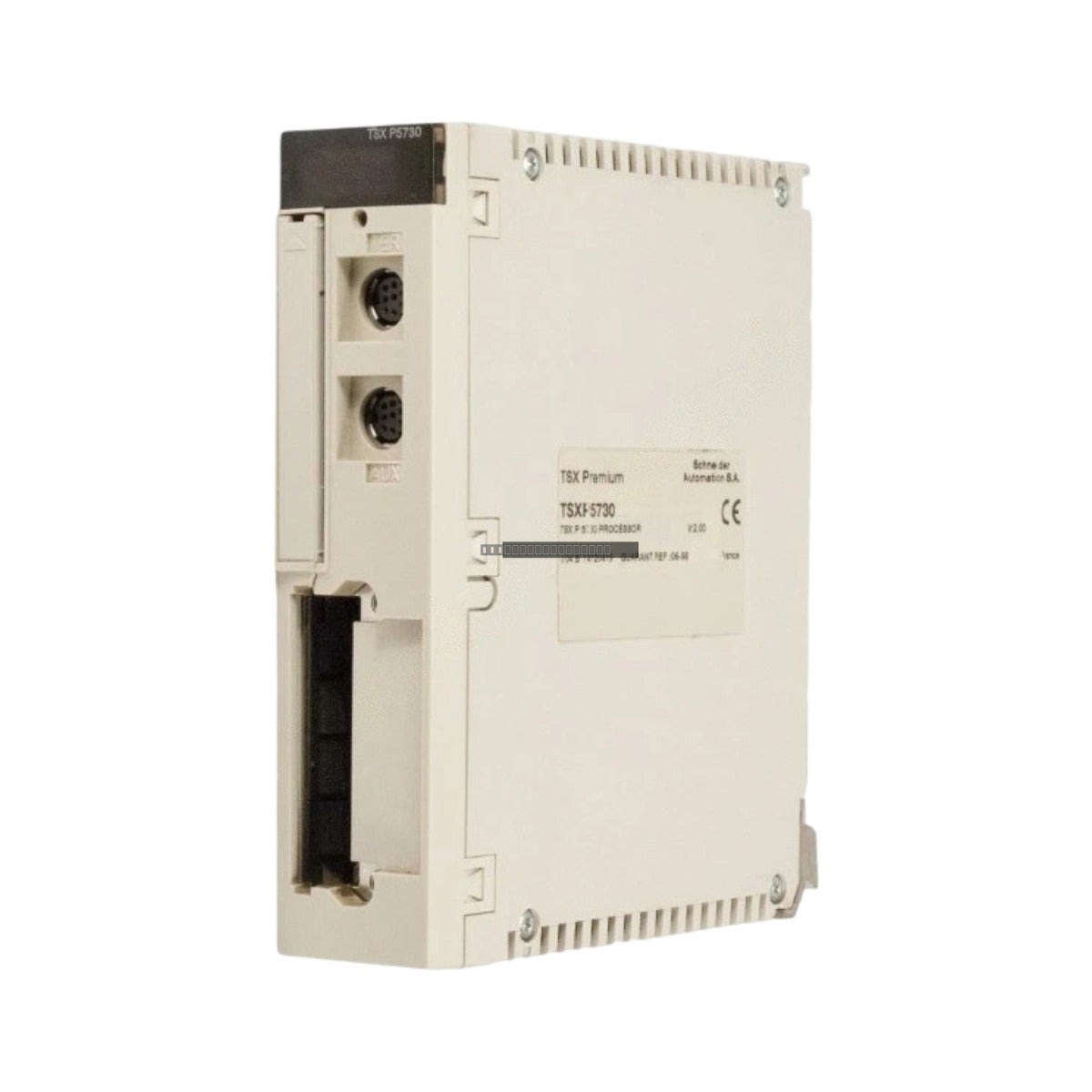

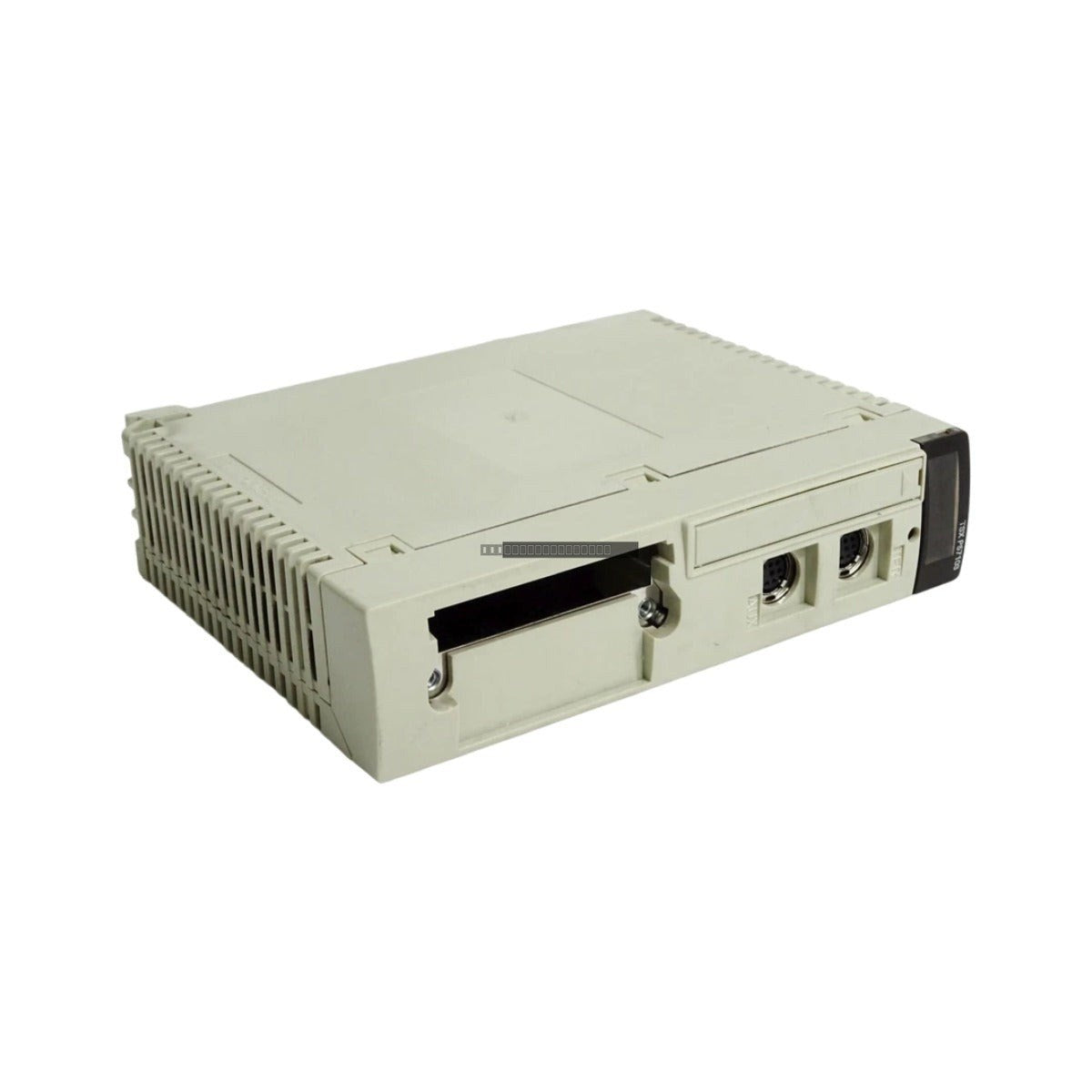

The TSXP5730 serves as a robust central processing unit within the Schneider Electric Modicon Premium automation platform. Designed for high-performance industrial control, this processor manages complex logic execution, register mapping, and high-speed cycle times required for demanding process control environments. It acts as the primary intelligence hub for distributed I/O architectures, ensuring stable performance in applications ranging from water treatment facilities to heavy industrial manufacturing and energy production.
Features
- Advanced microprocessor architecture for high-speed logic and floating-point operations.
- Integrated memory management with support for PCMCIA expansion cards for extended data logging and program storage.
- On-board diagnostic LEDs for real-time monitoring of processor status, memory health, and communication bus traffic.
- Native support for industrial communication protocols, including Uni-Telway and Modbus, facilitating seamless integration with field devices.
- Engineered for high-reliability operation in harsh industrial conditions with robust backplane mounting.
Applications
The TSXP5730 is widely utilized in large-scale infrastructure and manufacturing sectors, including:
- Thermal and hydroelectric power generation control.
- Petroleum and chemical refinery process management.
- Municipal water and wastewater treatment automation.
- Continuous mining and material processing lines.
Technical Specifications
| Model |
TSXP5730 |
| Brand |
Schneider Electric |
| Series |
Modicon Premium |
| Processor Type |
PLC CPU |
| Memory Expansion |
1 x PCMCIA Slot |
| Internal RAM |
48 kWords |
| Communication Ports |
Mini-DIN (Uni-Telway / Modbus) |
| Power Supply |
5 VDC, 1.55 A (via backplane) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-25 to 70 deg C |
Installation Guidelines
- Ensure the PLC backplane is powered down before installing or removing the processor module to prevent electrical damage.
- Slide the module carefully into the designated rack slot, ensuring the backplane connectors are fully seated and aligned.
- Maintain proper ventilation in the control cabinet to ensure ambient temperatures remain within the 0 to 60 deg C operating range.
- Use shielded communication cables for fieldbus connections to minimize EMI interference, ensuring the shield is properly bonded to the cabinet ground.
- Perform a system check via the diagnostic LEDs after installation to verify successful initialization and communication status.
FAQ
Is this module compatible with existing Modicon Premium racks? Yes, the TSXP5730 is designed specifically for the Modicon Premium backplane architecture.
Can I expand the memory capacity of this unit? Yes, the module features a dedicated PCMCIA slot on the front panel that supports memory expansion cards for increased data and program storage.
What communication protocols are supported natively? The unit supports standard Uni-Telway and Modbus protocols via its integrated Mini-DIN interface.
