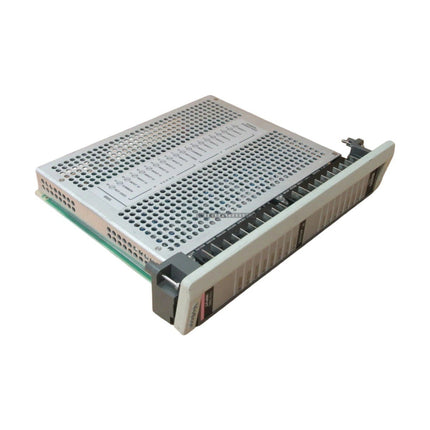

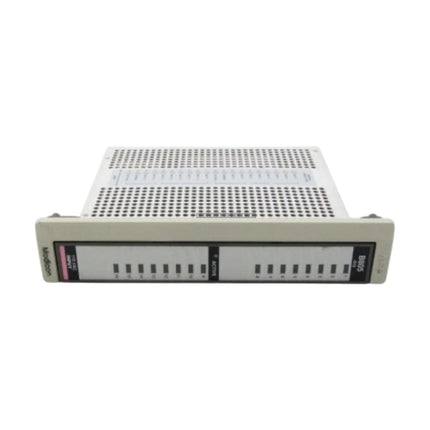

The Schneider Electric Modicon Quantum AS-B805-016 is a 16-point AC input module designed for use within the Modicon Quantum automation platform. This module is engineered to interface field-level 115VAC signals with the PLC system, providing reliable status monitoring for industrial applications. Please note that this specific model has been discontinued by the manufacturer.
Features
- 16-point input density for efficient I/O configuration.
- Designed for 115VAC signal voltage levels.
- Compatible with standard Modicon Quantum backplane architectures.
- Robust construction suitable for demanding industrial environments.
Technical Specifications
| Model |
AS-B805-016 |
| Manufacturer |
Schneider Electric |
| Module Type |
AC Input Module |
| Input Points |
16 |
| Voltage Rating |
115VAC |
| Status |
Discontinued |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
- Verify that the module is properly seated in the Quantum backplane slot and that the locking mechanism is engaged.
- Use appropriate shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise environments.
- Ensure adequate ventilation in the control cabinet to maintain operating temperatures within specified limits.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQ
What is the primary function of the AS-B805-016?
The AS-B805-016 is a discrete input module used to detect 115VAC signals from field devices and transmit that data to the Modicon Quantum controller for processing.
Is this module still in production?
No, the AS-B805-016 has been discontinued by Schneider Electric. We provide these units as refurbished or surplus stock to support legacy systems.
