Description
Description

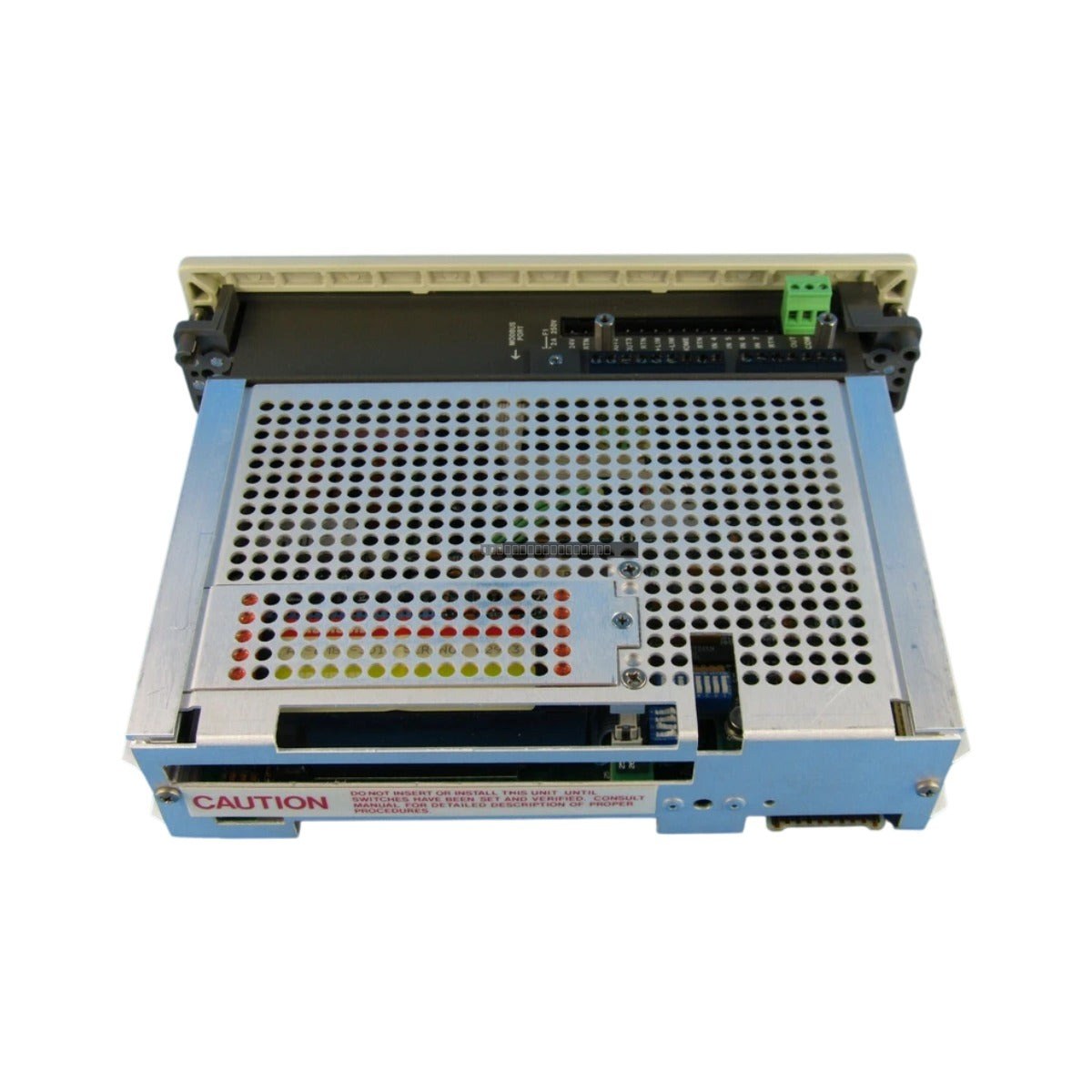

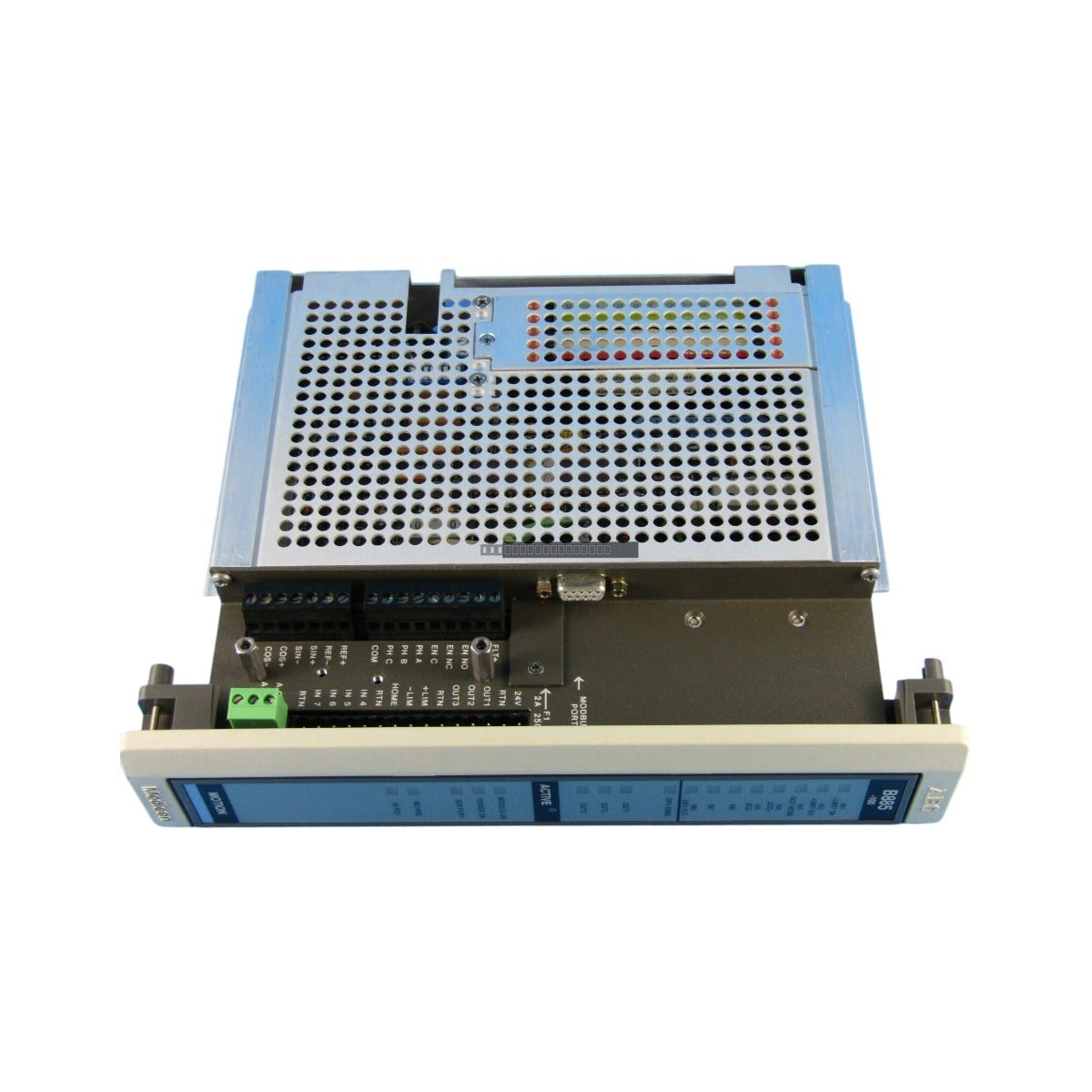

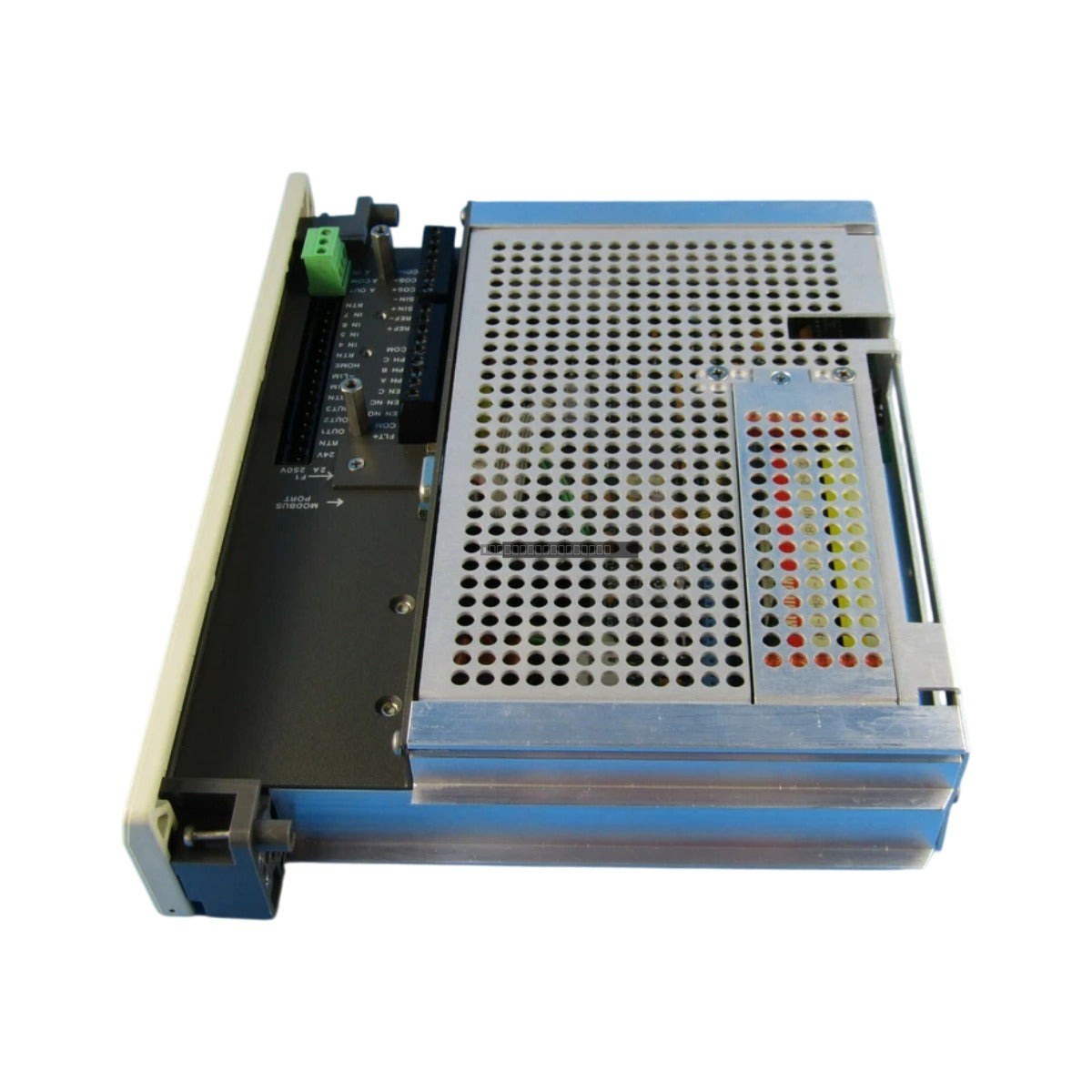

The Schneider Electric ASB885100 is a specialized diagnostic module engineered for the Modicon 800 Series I/O backplane architecture. Designed to facilitate robust system maintenance, this unit performs hardware loop validation and structural diagnostic isolation. It is particularly effective for high-availability industrial environments, including power generation, petrochemical processing, and mining, where rapid identification of signal path issues is essential for minimizing downtime.
Features
- Performs hardware-based loop validation and diagnostic isolation within the 800 Series chassis.
- Simulates fixed internal network parameters and electrical variables to verify signal path integrity.
- Reduces maintenance overhead by allowing for slot routing register checks without requiring full system reconfiguration.
- Features solid-state trace circuitry to execute background verification routines across the backplane bus matrix.
- Includes on-board status indicators for real-time monitoring of bus continuity, data integrity, and logic power stability.
- Designed for seamless integration with host CPU firmware via standard configuration parameters.
Applications
This diagnostic module is intended for use in critical control systems where signal path tracing and hardware verification are required to maintain high operational availability. It is suitable for deployment in:
- Petrochemical refining facilities
- Coal-fired power generation plants
- Underground mining control systems
- Large-scale industrial automation backplanes requiring frequent loop debugging
Technical Specifications
| Model |
ASB885100 (AS-B885-100) |
| Brand |
Schneider Electric |
| Power Consumption |
300 mA at 5 VDC |
| Slot Allocation |
1 standard 800 Series slot |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Relative Humidity |
5 to 95% non-condensing |
| Dielectric Insulation |
1500 VAC bus-to-slot |
| Protection Rating |
IP20 |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the 800 Series chassis.
- Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to protect sensitive internal components.
- Verify that the slot is clear of debris and that the module is fully seated within the backplane connector to ensure proper bus contact.
- Ensure the module is installed in an environment that complies with the specified operating temperature and humidity ranges.
- Configure hardware jumpers and software registers according to your specific system requirements before initiating full-scale diagnostic routines.
FAQ
What is the primary function of the ASB885100 module?
The module is designed to perform structural diagnostic isolation and hardware loop validation, allowing users to verify signal integrity and troubleshoot backplane connections without needing to reconfigure the entire system.
Does this module require external power?
No, the module draws its power directly from the 800 Series chassis rail (300 mA at 5 VDC).
Can this module be used in harsh environments?
Yes, it is designed for demanding industrial landscapes, provided the ambient temperature and humidity remain within the specified operational limits.
