Description

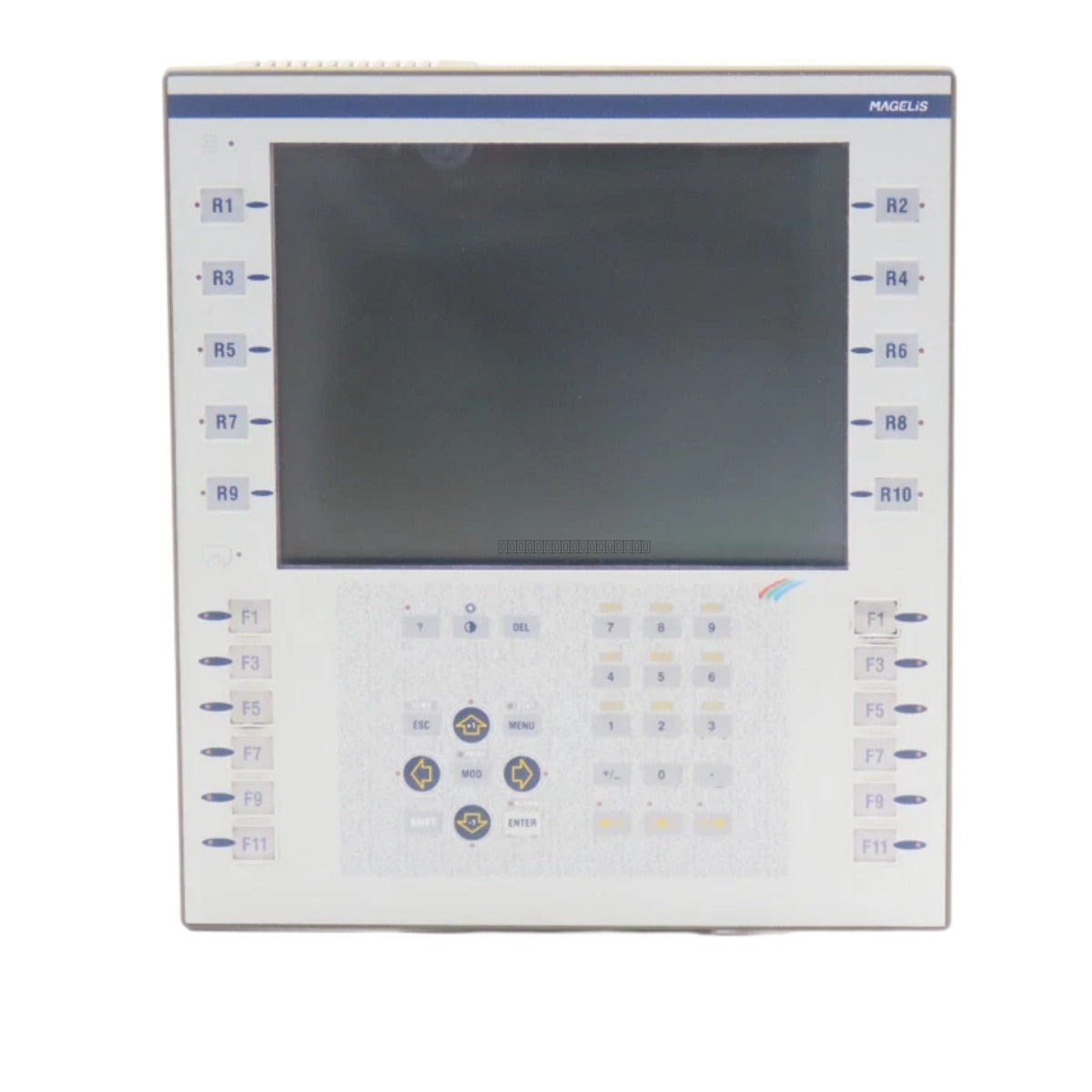

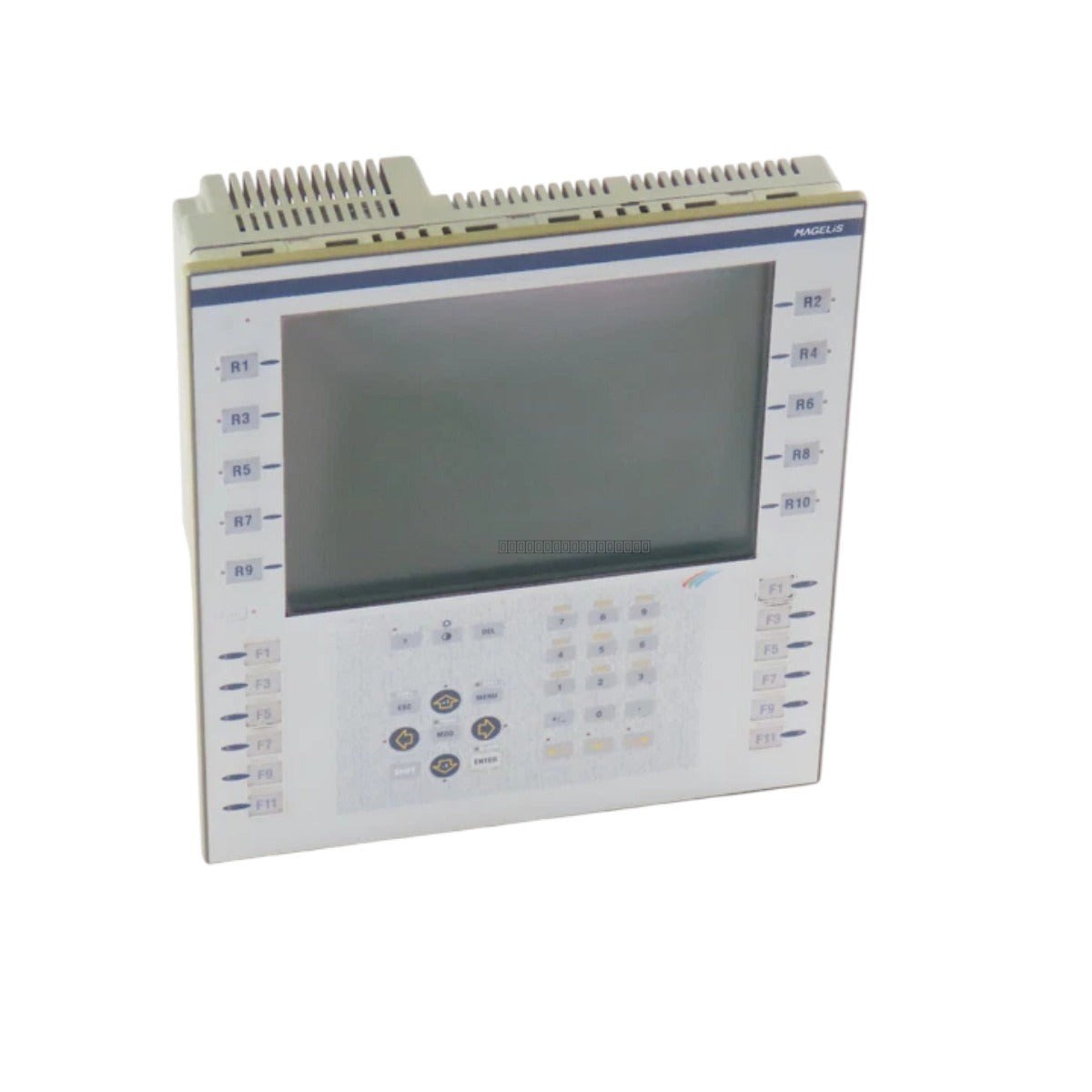

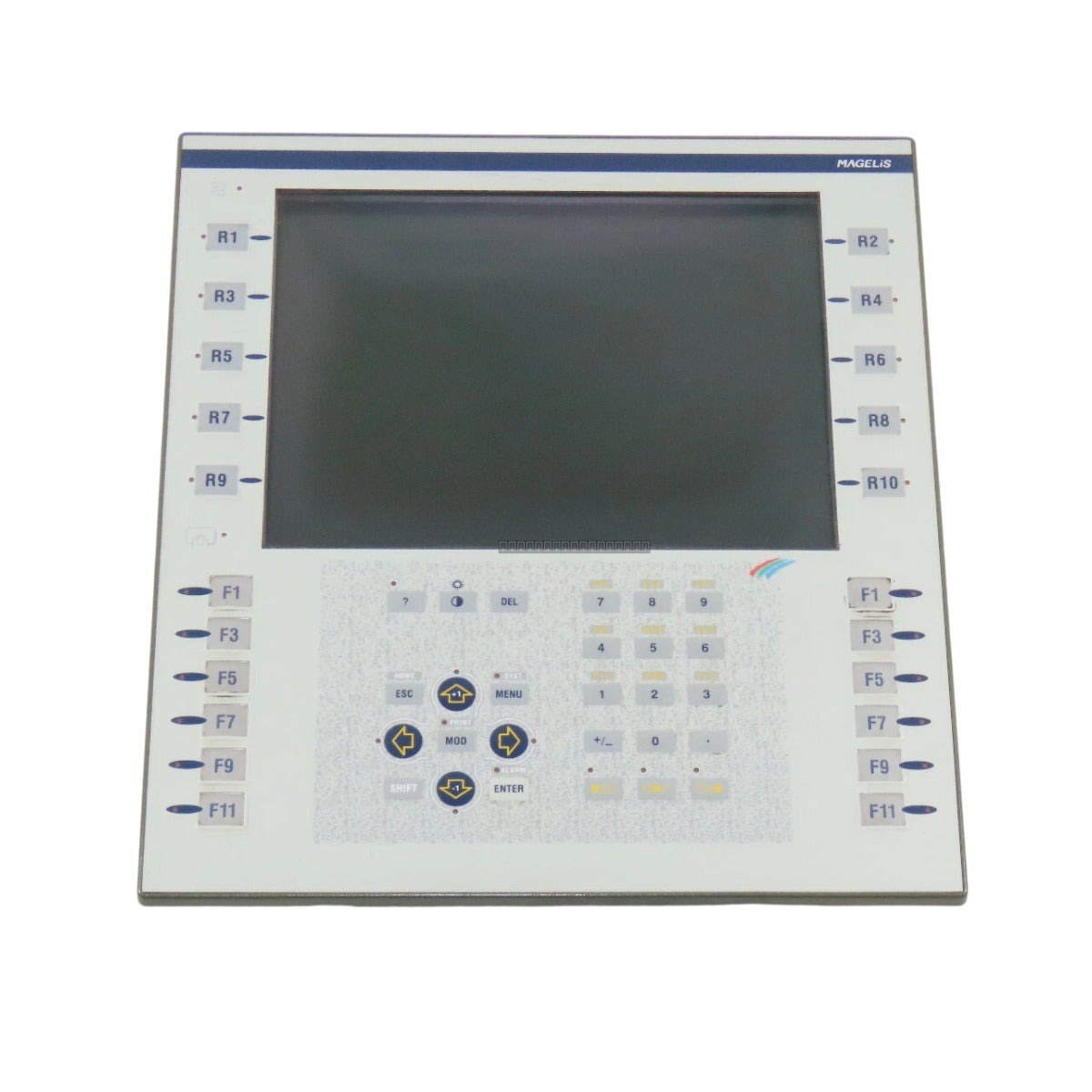

The Schneider Electric XBT F024110 is an operator interface panel designed for industrial automation environments. This terminal serves as a human-machine interface (HMI), allowing operators to monitor system processes, adjust parameters, and interact with connected programmable logic controllers (PLCs) or other control equipment. It is engineered for reliability in demanding industrial settings, providing clear visual feedback and input capabilities for machine control and data acquisition.
Features
- Robust design suitable for industrial panel mounting.
- Clear interface for real-time process monitoring and control.
- Compatible with Schneider Electric automation ecosystems.
- Reliable communication for efficient operator-to-machine interaction.
Applications
This operator interface panel is typically utilized in manufacturing, process control, and infrastructure automation. It is commonly deployed in applications such as machine tool control, assembly line monitoring, and general industrial automation systems where local operator intervention is required.
Technical Specifications
| Product Model |
XBT F024110 |
| Manufacturer |
Schneider Electric |
| Product Type |
Operator Interface Panel |
| Weight |
2.7 kg |
Installation Guidelines
- Ensure the panel cutout dimensions are verified against the official installation manual before mounting.
- Mount the unit in a clean, dry environment protected from excessive dust, moisture, and vibration.
- Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating.
- Use shielded communication cables to minimize electromagnetic interference (EMI) from high-voltage equipment.
- Always disconnect power before performing any wiring or maintenance on the interface panel.
- Ensure the unit is properly grounded according to local electrical codes to prevent electrical noise and potential damage.
FAQ
What is the primary function of the XBT F024110?
The XBT F024110 acts as an HMI (Human-Machine Interface), enabling operators to communicate with, monitor, and control industrial automation equipment.
Is this unit suitable for harsh environments?
While designed for industrial use, it should be installed within an appropriate enclosure (such as an IP-rated cabinet) if the environment contains high levels of dust, moisture, or corrosive gases.
What should I do if the screen becomes unresponsive?
First, verify the power supply connections and ensure the unit is receiving the correct voltage. If the issue persists, check the communication cables for damage or loose connections before contacting technical support.
