Description
Schneider Electric Modicon Premium TSXSCYCM6030 Modicon Cable

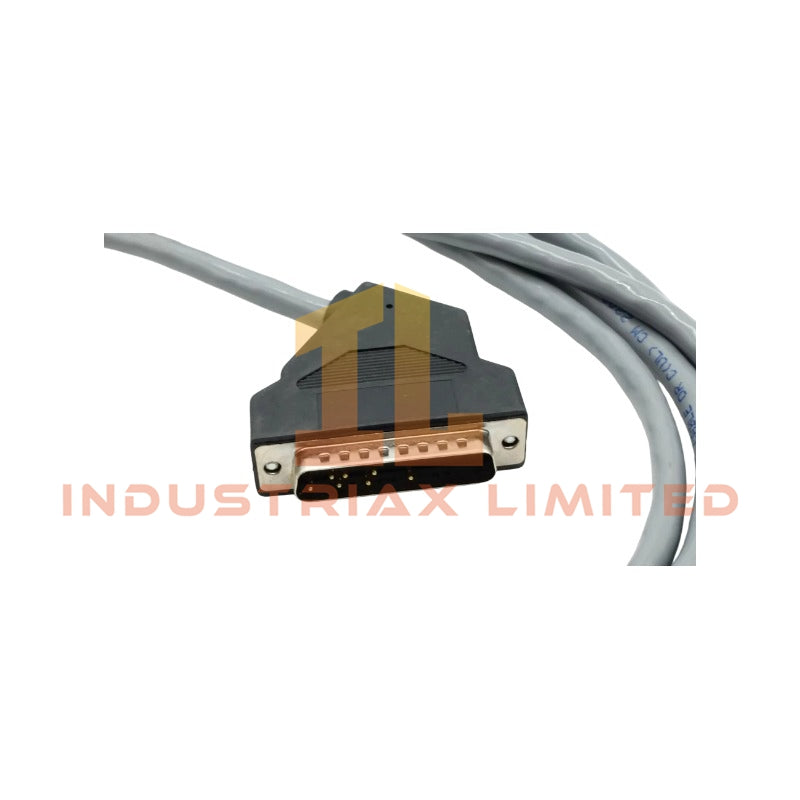

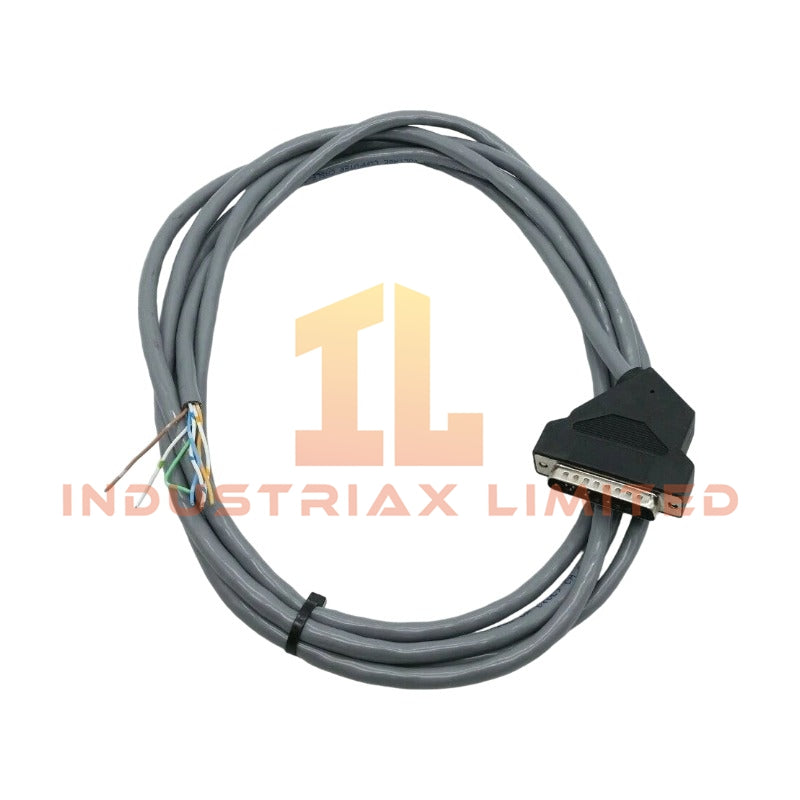

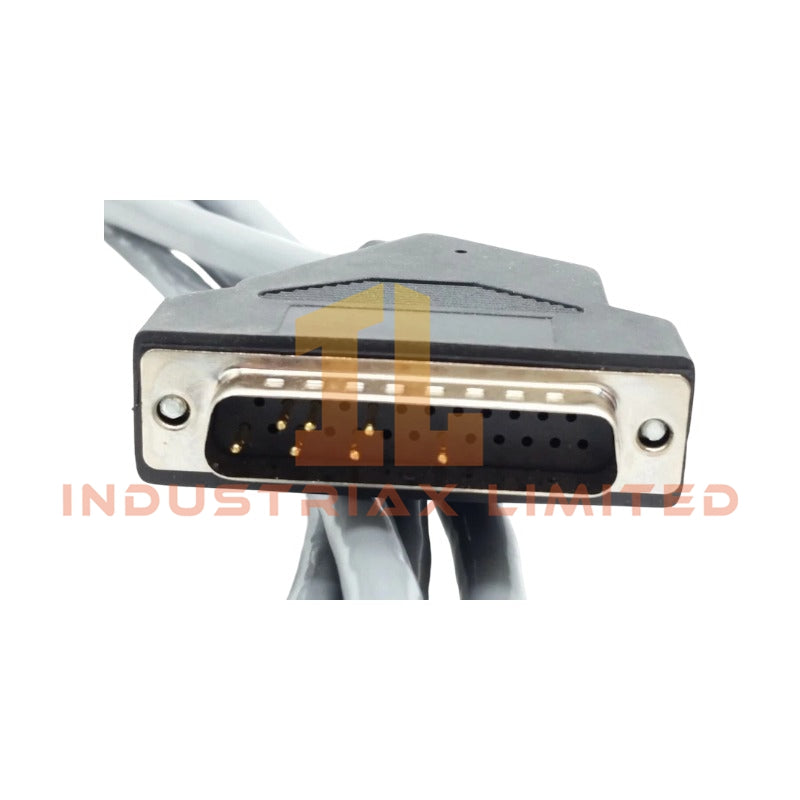

The Schneider Electric TSXSCYCM6030, also cataloged as the TSXSCYCM6030 Modicon Cable, serves as a dedicated hardware interconnect for isolated RS422/RS485 Modbus character-mode communication across Modicon PLC serial interfaces. The assembly provides fixed physical layer routing between PLC module SUB-D 25 interface and remote junction termination via flying leads.
Suffix Breakdown & Model Matrix
TSXSCYCM6030 is a single-order hardware identifier without documented sub-variant suffix segmentation. No internal functional suffix decomposition is defined by the manufacturer for this part number.
PLC Communication Interface Electrical Characteristics
Configured within Schneider Electric Modicon serial architecture, the TSXSCYCM6030 implements differential RS422/RS485 signaling with galvanic separation between PLC module interface and field termination point. Within PLC serial communication stacks, deterministic Modbus character-mode transmission relies on stable line impedance matching and controlled signal return paths across twisted differential pairs. Integration behavior is aligned with industrial control bus timing constraints typical of Modicon serial communication backplanes, including noise rejection under high EMI environments and compatibility with legacy firmware serial drivers.
Frequently Asked Questions
Q: Does the TSXSCYCM6030 support hot-swap insertion on active RS485 networks? A: No. The cable is a passive physical layer component. Insertion or removal under live RS485 bias conditions can induce transient line reflections and should be avoided.
Q: Is termination resistance integrated within the cable assembly? A: No termination resistors are embedded in the TSXSCYCM6030. External line termination must be implemented at the RS485/RS422 network endpoints.
Q: Can the flying leads side be directly grounded at the junction box? A: Shield termination and grounding must follow system-level EMC design. The cable itself does not define grounding topology.
Field Installation Guidelines
Ensure differential pair continuity is preserved from SUB-D 25 interface to flying lead termination without cross-pair inversion. Maintain controlled bending radius along the 3 m cable run to prevent impedance discontinuities. Shield continuity should be preserved across connector transitions and terminated according to Modicon RS485 network grounding strategy. Avoid routing parallel to high-voltage switching conductors to reduce induced common-mode noise on RS422/485 differential lines.
