Description
Overview

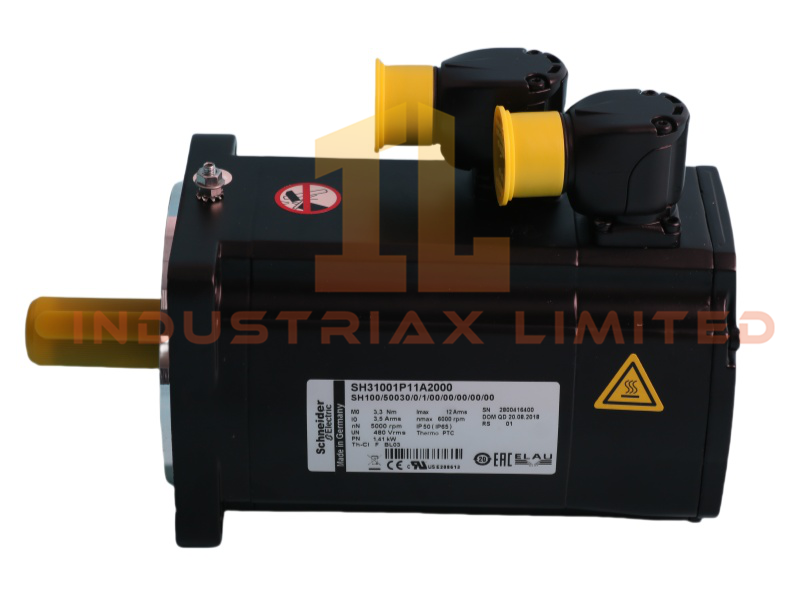

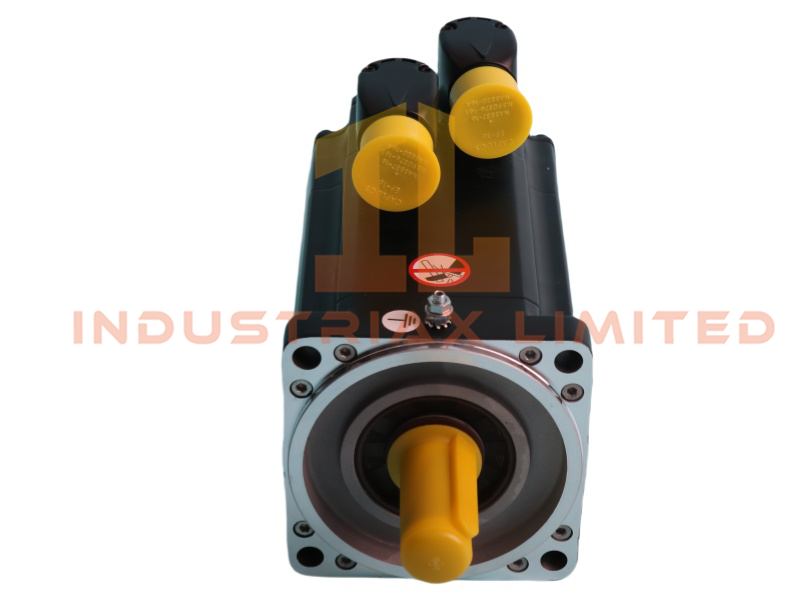

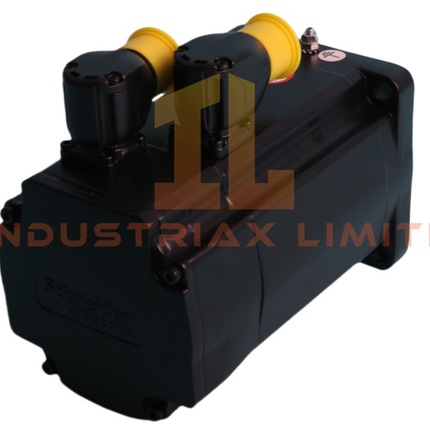

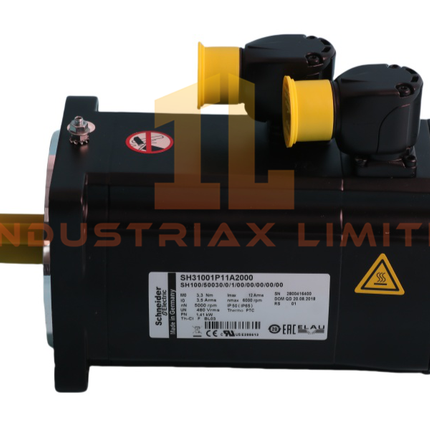

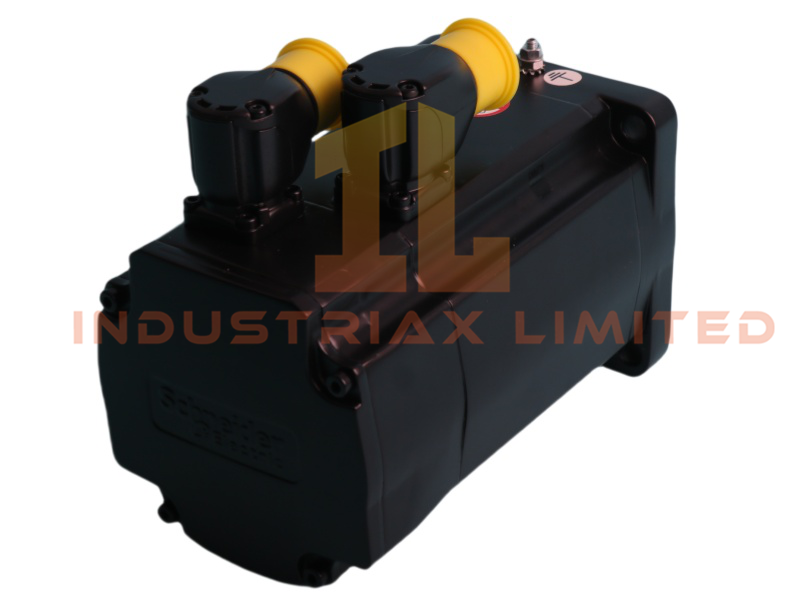

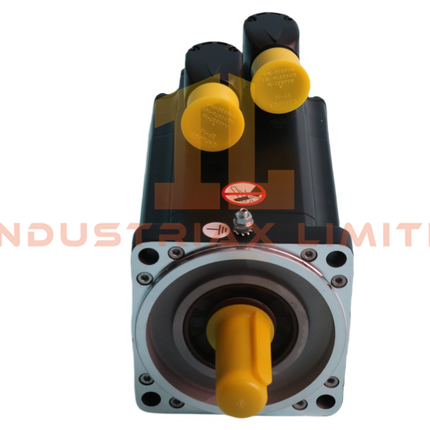

The SH31001P11A2000 Servo Motor from Schneider Electric offers high-performance motion control for industrial automation. It belongs to the Lexium 52 series and integrates seamlessly with PacDrive 3 platforms. This compact motor measures 168.5mm in length and weighs 4.3kg, with a flange mount diameter of 100mm. The SH31001P11A2000 supports a wide voltage range from 115V to 480V AC, making it suitable for diverse power systems. Its 4-pole design delivers 1190W continuous power and reaches speeds up to 6000 RPM. The integrated Hiperface® encoder provides 128-period resolution for precise single-turn feedback, ensuring accurate speed and position control. The SH31001P11A2000 features a 19×40mm parallel key shaft and rotatable right-angle connectors for flexible installation. Dual IP54/IP65 ratings protect the motor in harsh environments, while natural convection cooling eliminates the need for external fans.
Technical Specifications
| Specification |
Detail |
| Model Number |
SH31001P11A2000 |
| Manufacturer |
Schneider Electric |
| Product Range |
Lexium 52 Series |
| System Type |
PLC |
| Dimensions |
24.2 × 12.6 × 10.5 cm |
| Motor Length |
168.5 mm |
| Weight |
4.3 kg |
| Rated Power |
1190W |
| Max Speed |
6000 RPM |
| Voltage Range |
115–480V AC |
| Torque Constant |
0.84 N·m/A |
| Back EMF Constant |
60 V/krpm |
| Stall Current |
3.5A (12A peak) |
| Encoder Type |
Hiperface®, 128-period |
| Shaft Size |
19 × 40 mm |
| Mounting Flange |
100 mm |
| Centering Collar |
95 mm |
| Cooling Method |
Natural Convection |
| Protection Rating |
IP54/IP65 |
| Interface |
Ethernet Router |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
France |
| Discontinued Status |
Active |
Features & Benefits
-
SH31001P11A2000 delivers high-speed, high-torque motion control for dynamic applications.
-
Integrated encoder ensures precise feedback for speed and position accuracy.
-
Dual IP ratings protect against dust, moisture, and industrial wear.
-
Rotatable connectors and flange mount simplify installation in tight spaces.
-
Maintenance-free design supports long-term reliability and reduced downtime.
