Description

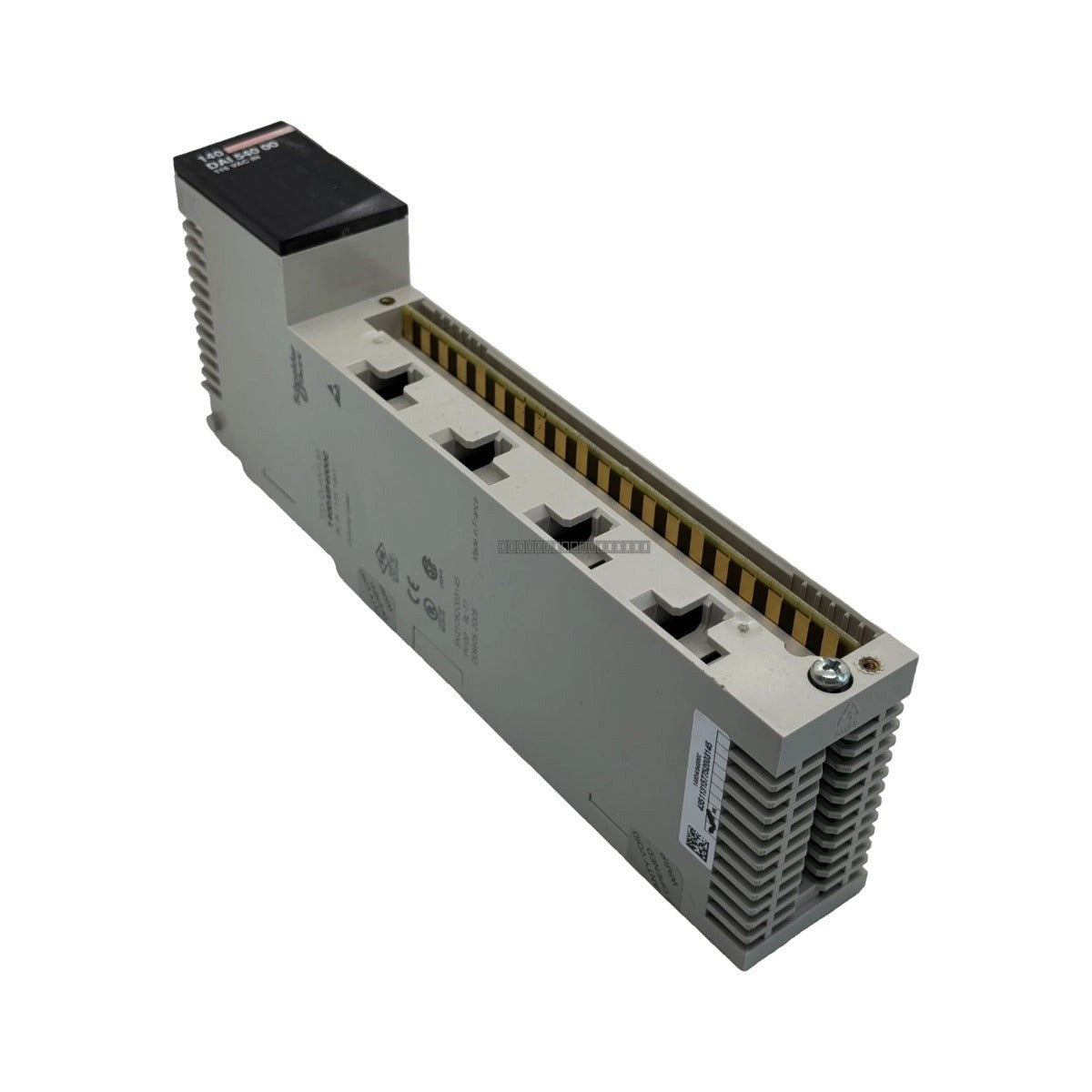

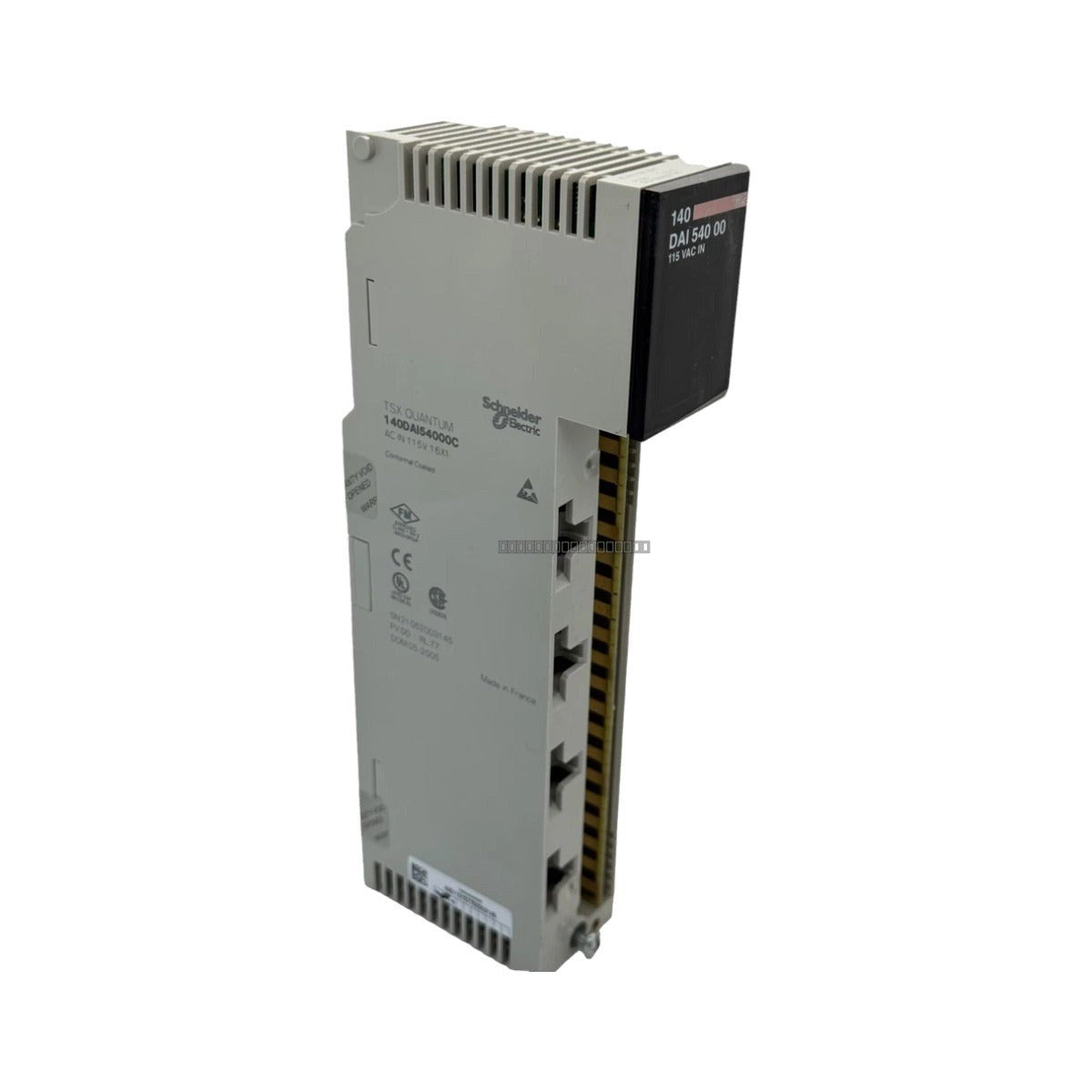

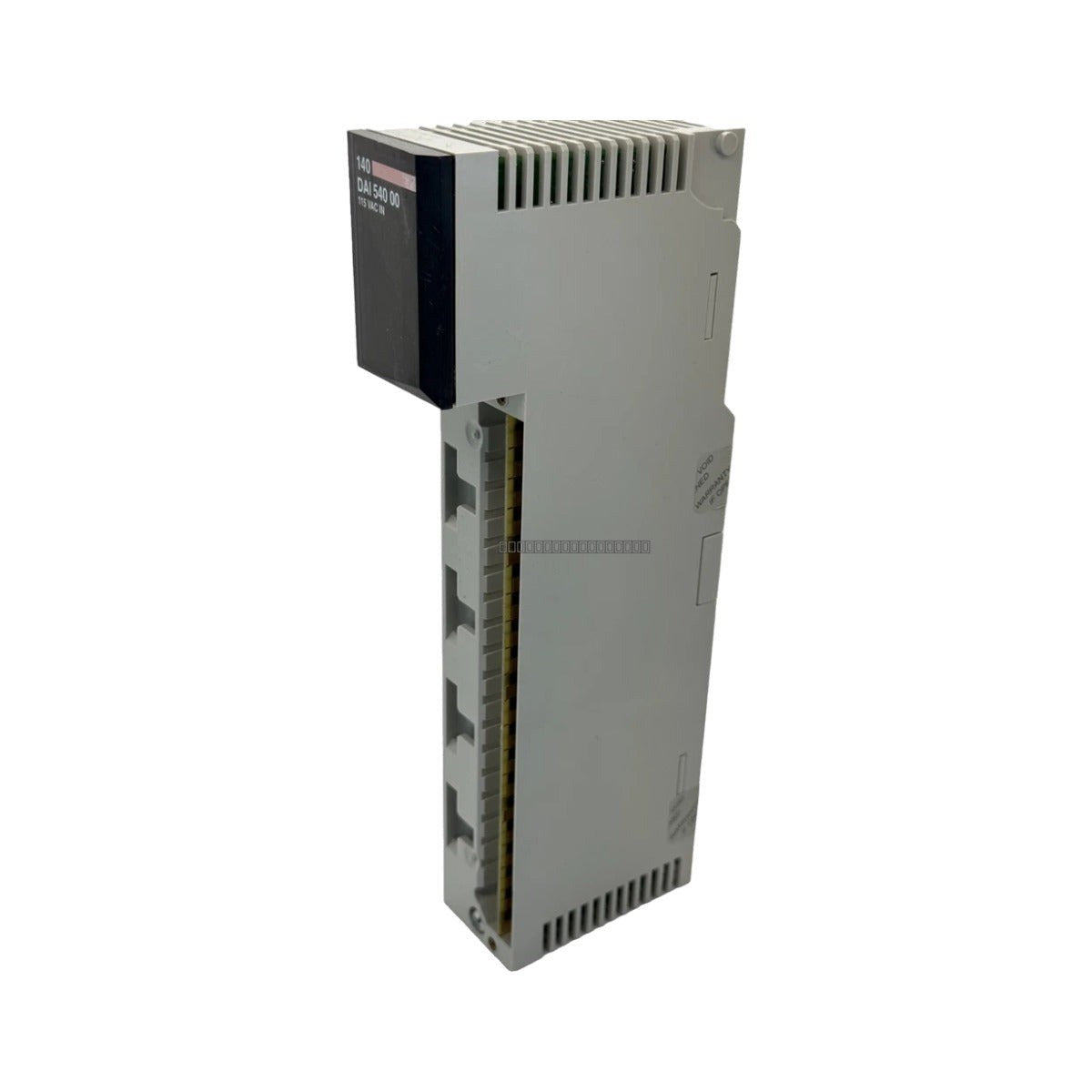

Schneider Electric 140DAI54000C Modicon Quantum Discrete Input Module
The Schneider Electric 140DAI54000C is a high-performance discrete input module designed for the Modicon Quantum automation platform. This module is engineered to execute direct physical electrical voltage sensing and digital state translation, making it suitable for demanding process infrastructure environments such as petrochemical refining, heavy mineral mining, and thermal power plant substations. The unit features conformal coating to protect against corrosive atmospheres and airborne contaminants, while providing robust optical isolation to safeguard central processing sub-systems from high-voltage AC surges.
Features
- 16-channel discrete input sensing for 115 VAC signals.
- Organized into 4 independent isolated groups of 4 channels each for flexible wiring configurations.
- Integrated optocoupler-based galvanic isolation between field-side terminations and internal logic.
- Conformal coating for enhanced durability in harsh industrial environments.
- Built-in line-frequency filtration to reject electromagnetic noise and contact bounce.
- Supports hot-swapping within the Modicon Quantum backplane for maintenance without system downtime.
Applications
This module is designed for industrial applications requiring reliable AC signal monitoring, including:
- Monitoring of AC-powered limit switches, proximity sensors, and auxiliary contacts.
- Integration into distributed control systems (DCS) or PLC-based automation architectures.
- Substation grid monitoring and control.
- Process automation in environments with high levels of electromagnetic interference.
Technical Specifications
| Model |
140DAI54000C |
| Brand |
Schneider Electric |
| Input Voltage Nominal |
115 VAC |
| Input Voltage Range |
85 to 132 VAC |
| Number of Channels |
16 (4 groups of 4) |
| Network Frequency |
47 to 63 Hz |
| Power Consumption |
180 mA max at +5 VDC |
| Dielectric Isolation |
1780 V AC (1 minute) |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
-
Field Wiring: Route 115 VAC signal lines through dedicated, shielded wire trays. Maintain physical separation between AC input conductors and low-voltage DC communication or analog signal paths to prevent inductive cross-talk.
-
ESD Handling: Always utilize an electrostatic discharge (ESD) wrist strap when handling the module to protect the conformal coating and sensitive surface-mounted components.
-
Module Seating: Ensure the 40-pin removable terminal block is securely engaged into the front housing, verifying that the mechanical locking latch is fully seated to maintain contact integrity under vibration.
-
Safety: While the module supports hot-swapping, ensure all local site safety protocols regarding electrical maintenance are followed before performing any wiring changes.
FAQ
Q: Does the 140DAI54000C input module permit hot-swap procedures inside an active Modicon Quantum backplane?
A: Yes. The Modicon Quantum chassis topology supports live hot-swap functionality, allowing removal and insertion of the 140DAI54000C card under active power without interrupting ongoing logic processing or affecting adjacent I/O modules.
Q: How are the 16 input channels electrically grouped on the front termination block?
A: The 16 input points are split into 4 independent isolated groups containing 4 channels each. Each group features its own isolated return terminal, allowing the module to reference different AC voltage sources or phases across a single module interface.
