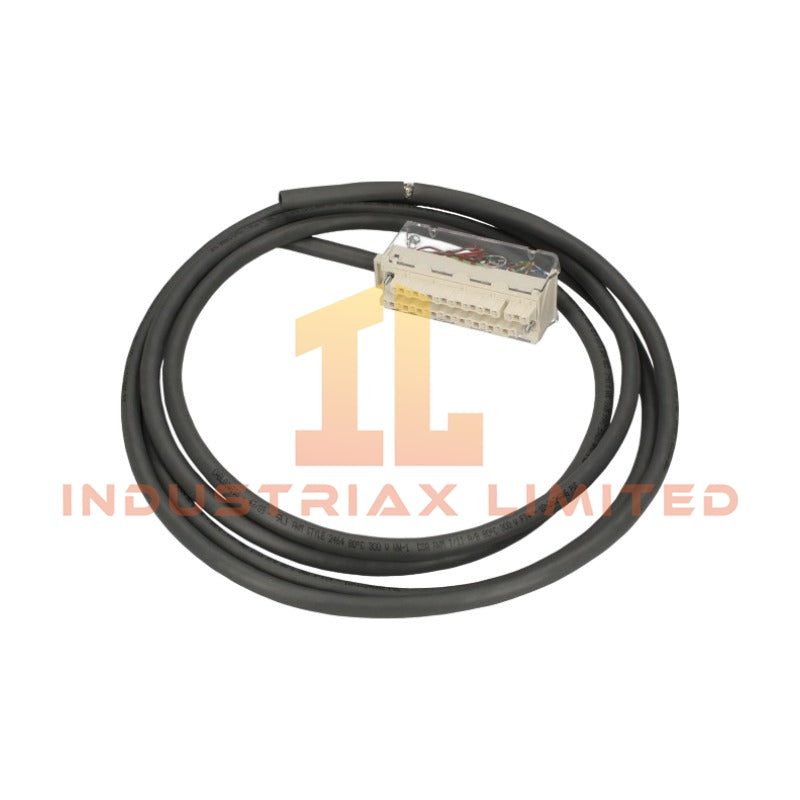

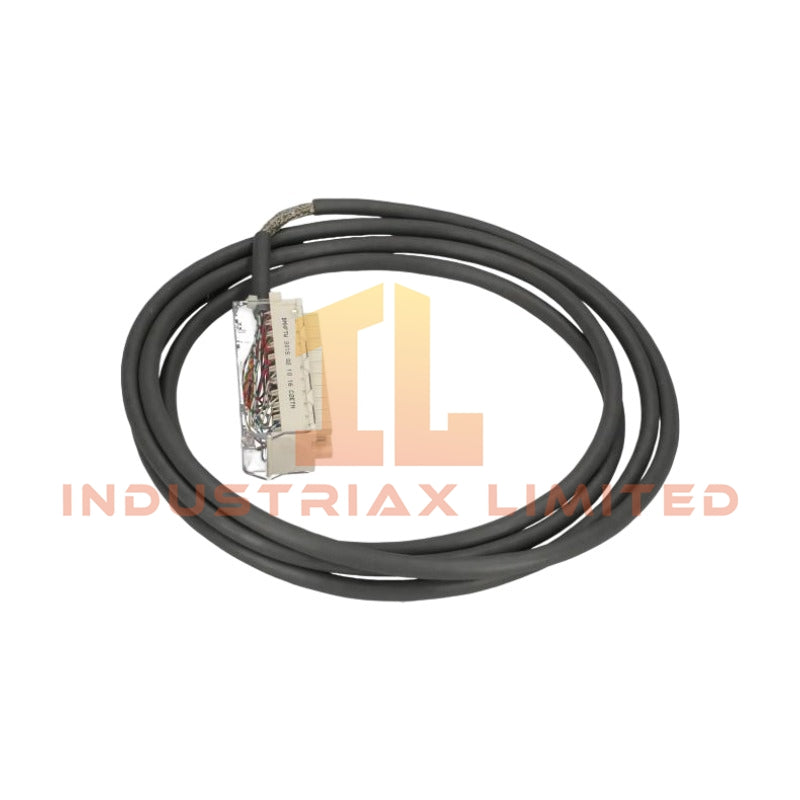

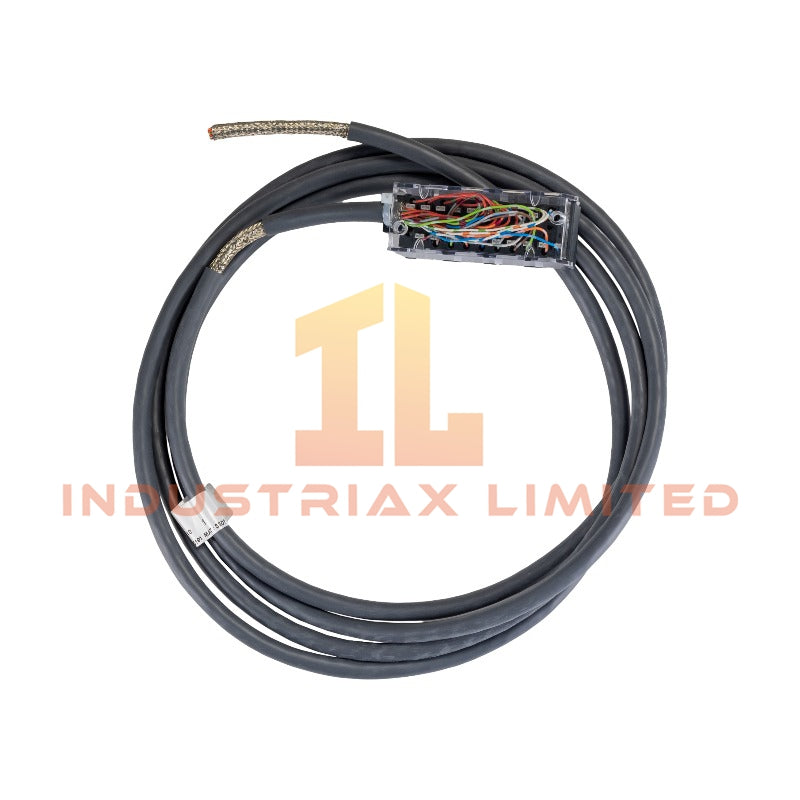

Schneider Electric BMXFTW301S Modicon X80 Shielded Cord Set

The Schneider Electric BMXFTW301S, also cataloged as the BMXFTW301S shielded cord set, operates as a dedicated hardware component for field signal wiring between Modicon X80 I/O modules and external field devices within the Modicon X80 automation platform.

Hardware Specifications

Parameter	Specification
Model	BMXFTW301S
Brand	Schneider Electric
Product Series	Modicon X80
Product Type	Shielded Cord Set
Compatible Modules	BMXAMO0210, BMXAMM0600, BMXAMI0410
Electrical Connection	One 20-way removable terminal block (module side), one free end with color-coded flying leads
Cable Length	3 m
Shielding	Shielded cable
Weight	0.47 kg
Package Weight	466 g (single unit)
Dimensions	Package: 25 cm x 25 cm x 4 cm
Operating Temp	Not specified
Power Consumption	Not applicable (passive wiring accessory)
Packing Unit	1 piece

Modicon X80 Backplane Integration

The BMXFTW301S interfaces directly with compatible Modicon X80 analog modules through the removable 20-way terminal connection. As a passive wiring accessory, the cord set does not participate in backplane bus communication or firmware functions. Electrical characteristics and deterministic network behavior remain dependent on the connected Modicon X80 module and controller. Installation does not require firmware compatibility management because the cable contains no active electronic components.

Frequently Asked Questions

Q: Does the BMXFTW301S require firmware compatibility with the PLC?
A: No. The cord set is a passive wiring accessory without programmable electronics or firmware.

Q: Can the cable shielding be left unconnected?
A: Shield termination should follow the installation practice specified for the control cabinet and connected module to maintain intended electromagnetic shielding performance.

Q: Is the cord set interchangeable with all Modicon X80 modules?
A: No. Compatibility is specified for BMXAMO0210, BMXAMM0600, and BMXAMI0410 modules.

Field Installation Guidelines

• Verify module compatibility before installation.
• Tighten the removable terminal block according to the module installation instructions.
• Route the shielded cable separately from high-power motor and inverter wiring where practical.
• Maintain the cable bend radius recommended for industrial control wiring to prevent conductor damage.
• Terminate the cable shield according to the system grounding practice used within the control cabinet.
• Confirm conductor identification using the color-coded flying leads before field termination.

Specifications

• Brand: Schneider Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
