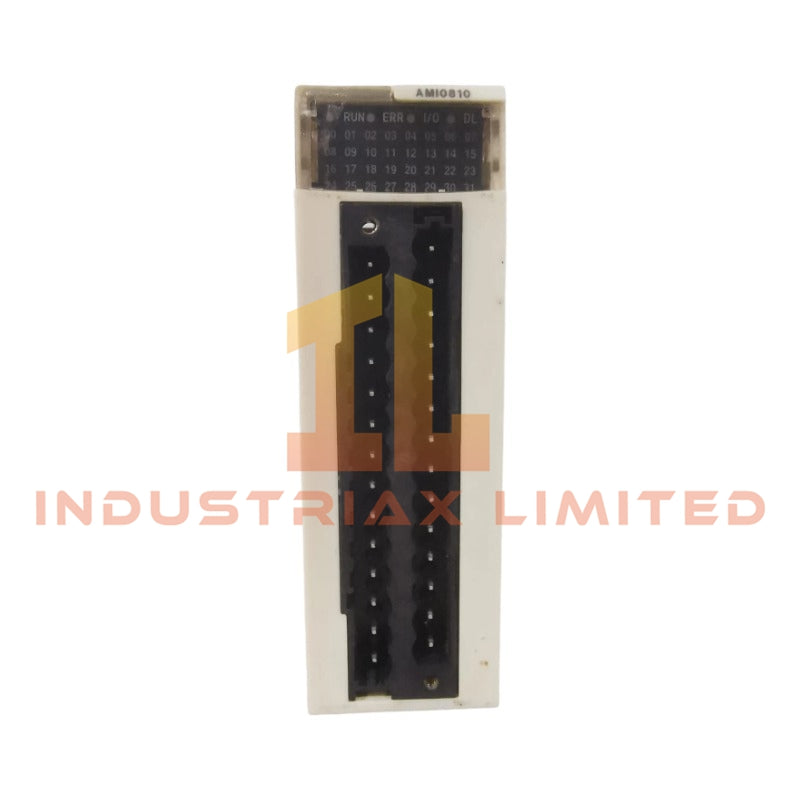

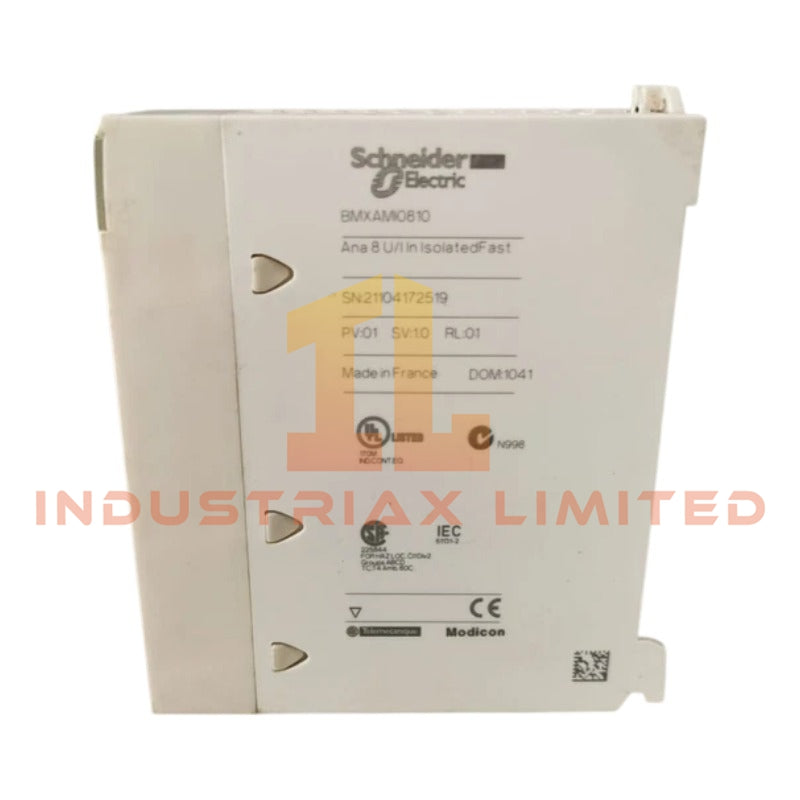

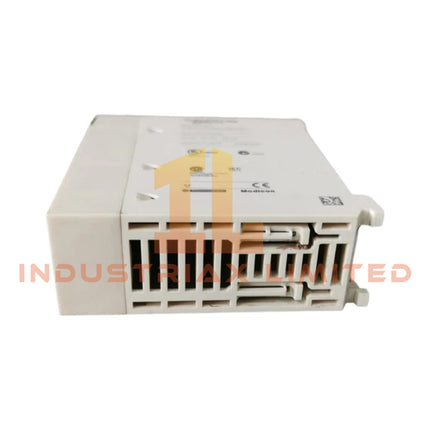

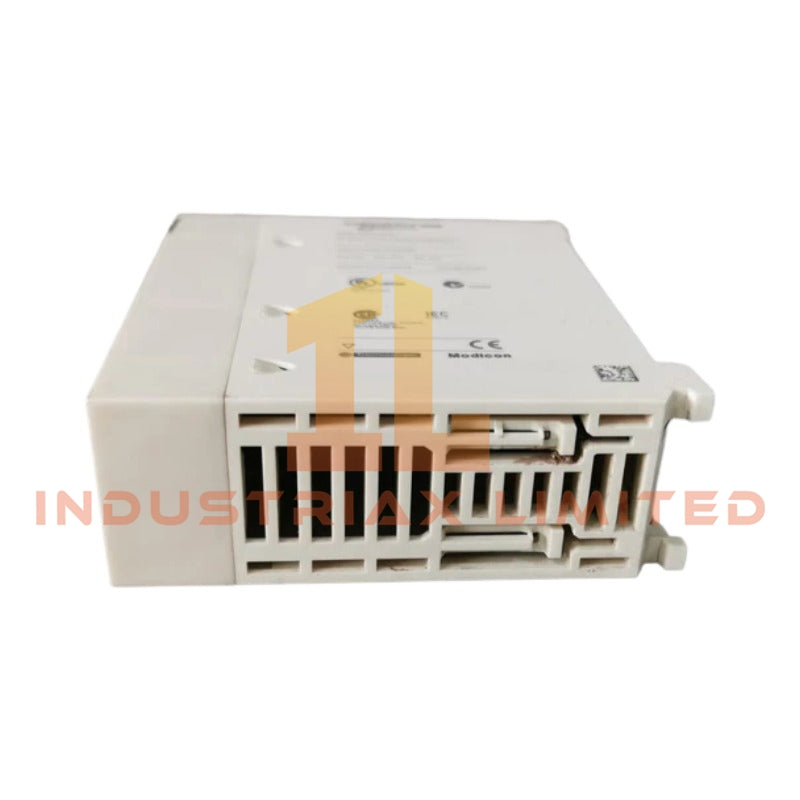

Schneider Electric BMXAMI0810 Analog Input Module
Configured for multi-range analog signal acquisition in Modicon M340 backplane architectures, the Schneider Electric BMXAMI0810 (BMXAMI0810 analog input module) provides direct physical/electrical execution for conditioned voltage and current measurement within PLC I/O subsystems. The module supports isolated 8-channel acquisition with mixed voltage and current input compatibility and deterministic backplane transfer behavior.
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Schneider Electric BMXAMI0810 |
| Analog Input Channels |
8 isolated inputs |
| Input Types |
0-20 mA, 4-20 mA, +/- 20 mA, 0-10 V, 0-5 V, +/- 10 V, +/- 5 V, 1-5 V |
| Input Resolution |
16-bit ADC, 15-bit + sign |
| Input Impedance |
10 MOhm |
| Internal Conversion Resistor |
250 Ohm |
| Accuracy |
0.1 percent, 15 ppm per degC |
| Filtering |
First-order digital filtering |
| Fast Cycle Time |
1 ms + 1 ms x number of active channels |
| Nominal Cycle Time |
9 ms for 8 channels |
| Input Isolation |
Channel-to-channel isolated architecture |
| Overload Limits |
Up to +/- 30 mA or +/- 30 V depending on input type |
PLC Backplane Signal Processing Characteristics
The BMXAMI0810 module integrates into the Modicon M340 backplane communication structure, where sampled analog data is digitized through a 16-bit conversion stage and transferred via deterministic internal bus cycles. Channel scanning is sequenced with a time-sliced acquisition model, enabling predictable latency scaling based on active channel count.
The isolation topology ensures separation between field wiring and internal logic domain, reducing coupling effects during multi-channel simultaneous sampling. Mixed-mode voltage and current acquisition is handled through internal scaling paths, including a precision 250 Ohm conversion resistor path for current loop translation into voltage domain prior to ADC conversion.
Frequently Asked Questions
Q: Can individual channels be configured for different input ranges simultaneously?
A: Yes. Each channel supports independent configuration across supported voltage and current input ranges, subject to module configuration within the PLC engineering environment.
Q: What is the impact of channel count on acquisition cycle time?
A: Fast cycle time increases linearly as 1 ms per additional active channel plus a 1 ms base overhead, affecting total scan latency.
Q: Is the module electrically isolated between channels?
A: Yes. The architecture provides isolated input structure to reduce cross-channel electrical interaction during simultaneous sampling.
Field Installation Guidelines
Field wiring shall maintain separation between analog input conductors and power or high-frequency switching lines. Shielded twisted pair cabling is required for current loop and low-level voltage signals, with shield termination performed at a single reference ground point.
Ensure that input scaling configuration matches field transmitter output type (0-20 mA, 4-20 mA, or voltage-based sources) prior to commissioning. Overvoltage and overcurrent limits must be respected according to declared input protection thresholds to avoid ADC front-end stress.
Backplane insertion must be performed with power removed from the rack to ensure connector alignment integrity and avoid transient backfeed into the module logic domain.
