Description

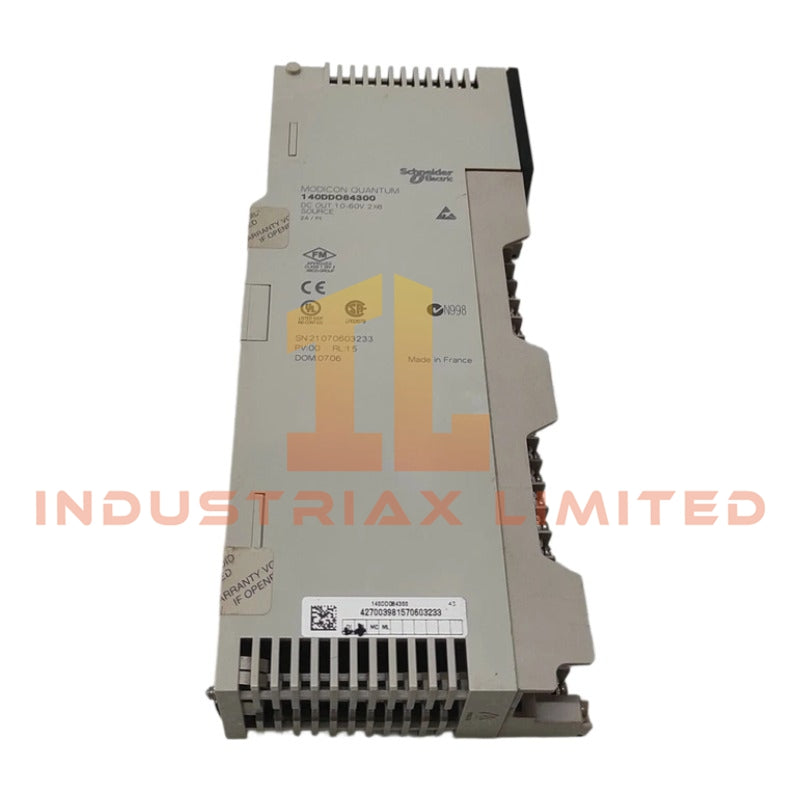

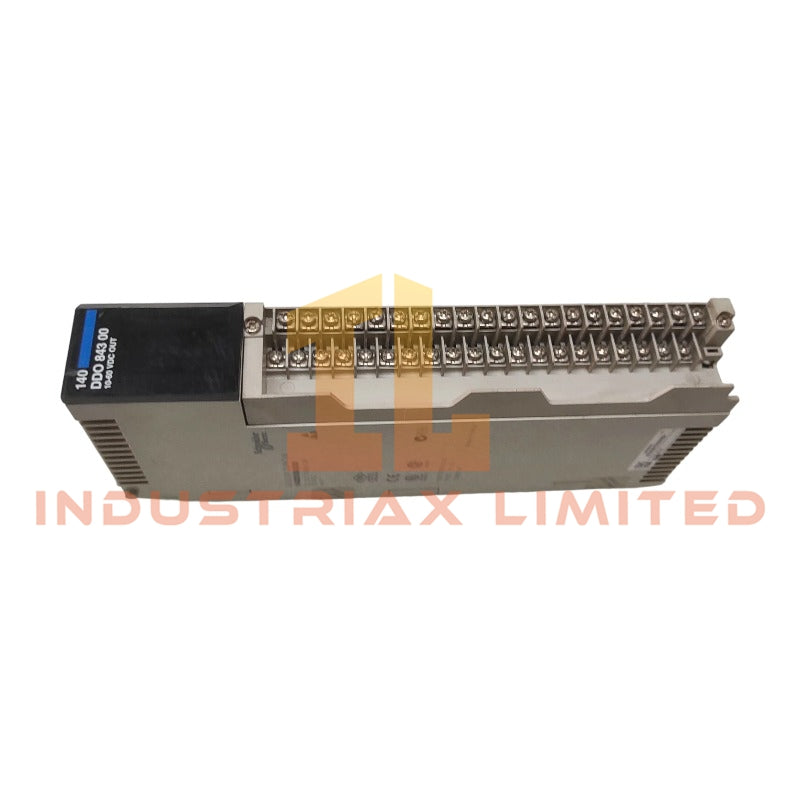

Schneider Electric 140DDO84300 Modicon Quantum Discrete Output Module

The Schneider Electric 140DDO84300, also cataloged as the 140DDO84300 DC discrete output module, operates as a dedicated hardware component for switching DC loads within Modicon Quantum automation platforms.

HardwareSpecifications

Parameter	Specification
ModelBrand	Schneider Electric
Origin	France
PowerConsumption	1 W + (1 V x total module load current)
DiscreteOutputNumber	16
OutputGroups	2 groups of 8
DiscreteOutputLogic	Positive logic (source)
OutputVoltageRange	10…60 V DC
OutputVoltageLimits	10.2…72 V
AbsoluteMaximumVoltage	72 V permanent
MaximumVoltageDrop	<1 V at 2 A
MaximumLoadCurrent	12 A per module, 6 A per group
SurgeCurrent	7.5 A for 50 s
ResponseTime	<=1 ms (0→1 and 1→0)
MaximumLeakageCurrent	1 mA at 60 V
LoadInductance	H = 0.5 / (I² x switching frequency)
FuseRating	2 A per point, 8 A per group
IsolationChannelsBus	2500 Vrms DC for 1 min
IsolationGroups	700 Vrms DC for 1 min
LocalSignalling	1 green LED (bus active), 1 red LED (fault), 16 green LEDs (output status)
BusCurrentRequirement	160 mA
ProtectionType	Internal output protection via 8 A fuse per group
Marking	CE

Industrial Control Features

The module supports high-speed backplane bus communication compatible with Modicon Quantum PLCs. Deterministic Profinet and Ethernet/IP network integration ensures precise timing for output switching. Firmware flash operations are supported via the backplane with full verification to maintain module consistency. Channel-to-channel isolation between output groups minimizes electrical interference and enhances system reliability during simultaneous load switching.

Frequently Asked Questions

Q: Can this module support hot-swapping in a live system?
A: Hot-swap operations are not recommended. Module replacement should be performed with the PLC powered down to avoid bus transients.

Q: What is the maximum total current for simultaneous switching of all outputs?
A: The total module current must not exceed 12 A. Each group is limited to 6 A, and individual points are limited to 2 A unless fused appropriately.

Q: Are firmware updates backward-compatible?
A: Yes, firmware updates through the Quantum backplane preserve compatibility with existing system configurations and communication protocols.

Field Installation Guidelines

• Mount module on a Modicon Quantum rack, ensuring proper alignment with the backplane connectors.
• Verify fuse placement before energizing; each group must have the correct 8 A fuse installed.
• Route output wiring separately from high-voltage AC lines to reduce induced transients.
• Ensure shielded cables are grounded at one end to maintain signal integrity.
• Maintain minimum spacing from heat-generating modules to prevent thermal stress.

Specifications

• Brand: Schneider Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
