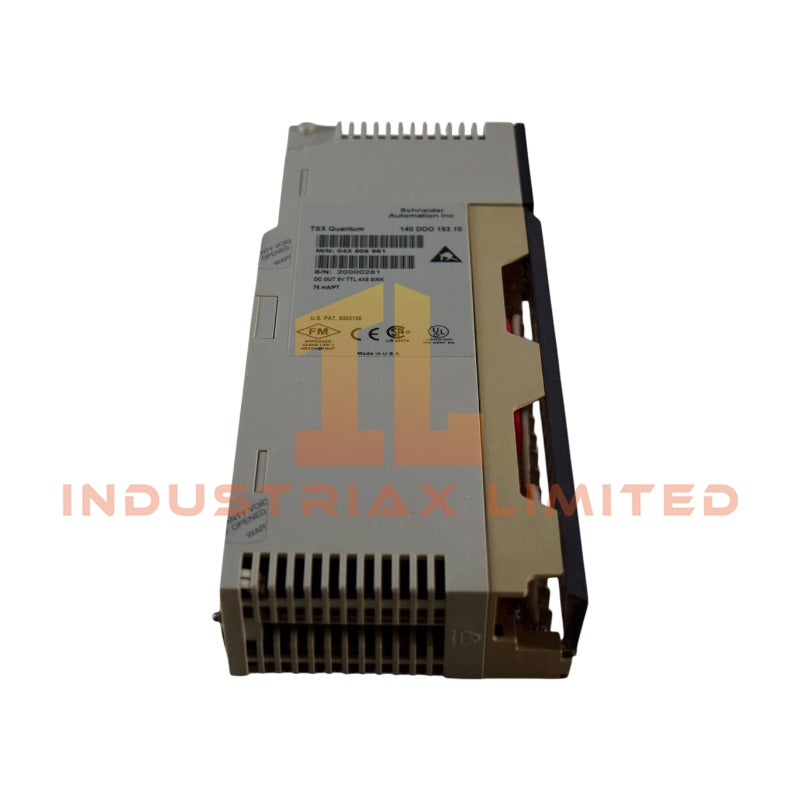

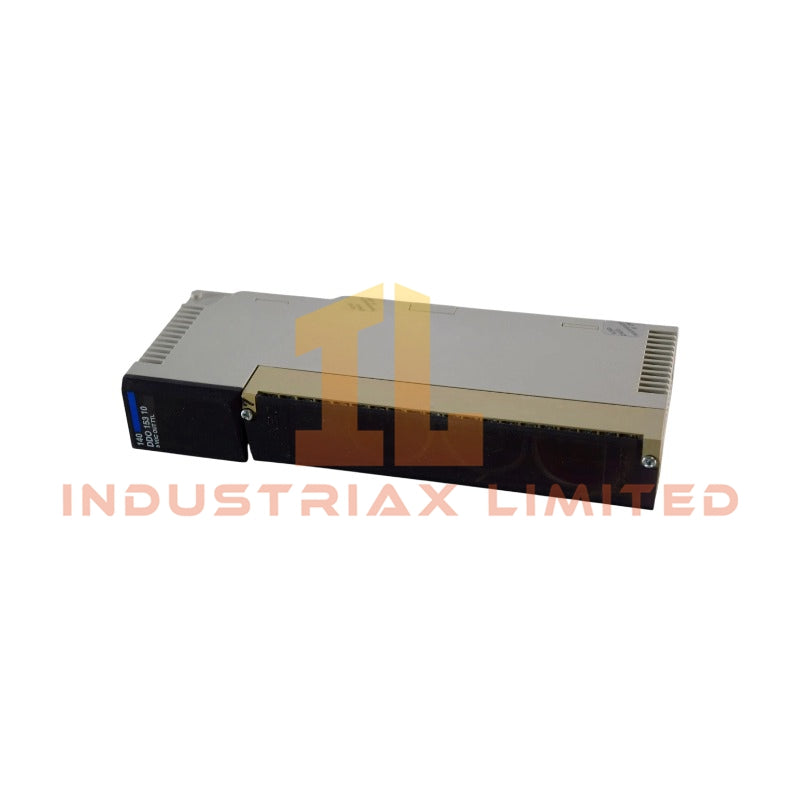

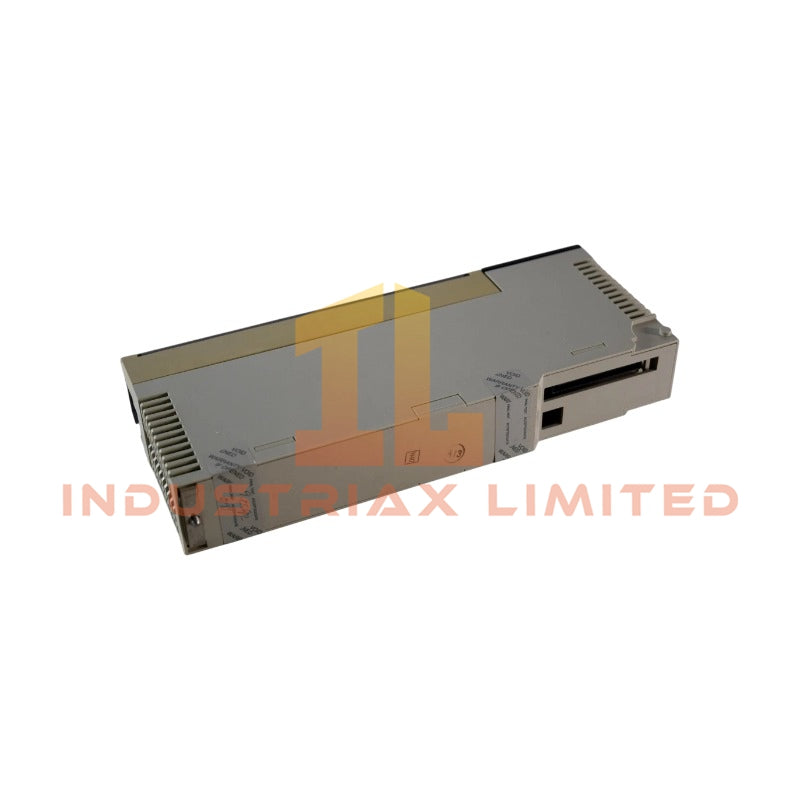

Schneider Electric 140DDO15310 Modicon Quantum TTL Discrete Output Module

The Schneider Electric 140DDO15310, also cataloged as the 140DDO15310 TTL Discrete Output Module, operates as a dedicated hardware component for 5 VDC TTL discrete output switching within the Modicon Quantum automation platform. The module provides 32 positive (sink) TTL output channels organized into four isolated groups for direct field signal execution through the Quantum backplane.

Hardware Specifications

Parameter	Specification
Model	140DDO15310
Brand	Schneider Electric
Product Series	Modicon Quantum
Product Type	TTL Discrete Output Module
Origin	Not specified
Discrete Outputs	32 TTL outputs
Output Grouping	4 groups of 8 channels
Output Type	Positive (sink), TTL
Rated Output Voltage	5 V DC
Supply Voltage	4 to 5.5 V DC
Voltage State 1	<= 0.2 V guaranteed
Addressing Requirement	2 output words
Maximum Load Current	<= 75 mA per point; <= 600 mA per group; <= 2.4 A per module
Internal Pull-up Resistor	440 Ohm
Response Time	<= 250 us (0 to 1 and 1 to 0, resistive load)
Absolute Maximum Output	15 V DC decaying pulse for 0.0013 s
Surge Current	750 A, 0.5 ms between each point
Protection	Internal fuse, transient voltage suppression
Fault Indication	Blown fuse, loss of field power
Local Indicators	32 green output LEDs, 1 red fault LED, 1 green Active LED
Isolation	500 Vrms between groups for 1 minute
Bus Current Requirement	350 mA
Supply Current	0.4 A
Current Consumption	2800 mA at 5 V DC
Power Consumption	4 W
Dimensions	Not specified
Weight	0.45 kg
Operating Temp	0 to 60 degC
Storage Temp	-40 to 85 degC
Relative Humidity	95 % non-condensing
Operating Altitude	<= 5000 m
Certifications	CE, C-Tick, FM Class 1 Division 2, GOST, RMRS
Standards	CSA C22.2 No. 142, UL 508

Backplane Communication and I/O Density

The module exchanges output data through the Modicon Quantum backplane using a two-output-word addressing structure. Thirty-two TTL output channels are integrated within a standard Quantum module format while maintaining group isolation of 500 Vrms. Status reporting is provided through dedicated output LEDs together with Active and Fault indicators for module diagnostics.

Frequently Asked Questions

Q: Does the module support hot swapping during operation?
A: The supplied technical data does not specify hot-swap capability. Installation and removal should follow the procedures defined for the Modicon Quantum platform and system maintenance practices.

Q: How are the output channels electrically organized?
A: The module contains 32 TTL sink outputs divided into four independent groups of eight channels, with isolation rated at 500 Vrms between groups for one minute.

Q: What protection mechanisms are integrated on the outputs?
A: Each module incorporates internal fuse protection, transient voltage suppression, and diagnostic indication for blown fuse and field power loss.

Field Installation Guidelines

• Verify that the system supply voltage remains within 4 to 5.5 V DC before energizing the module.
• Observe the specified current limits for each output point, group, and the complete module to prevent overload.
• Separate field output wiring from high-energy power conductors to minimize electrical interference.
• Ensure the protective earth and cabinet grounding system are correctly connected before commissioning.
• Confirm correct seating of the module in the Quantum backplane and verify Active and output status LEDs during startup.
• Replace blown fuses only after the source of the overload or wiring fault has been identified and corrected.
