Description

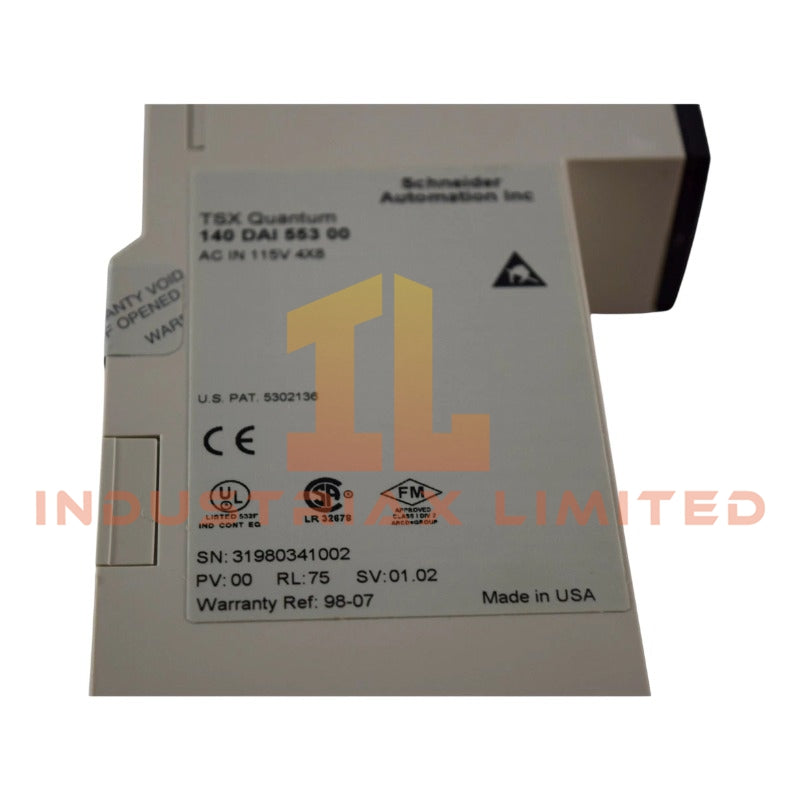

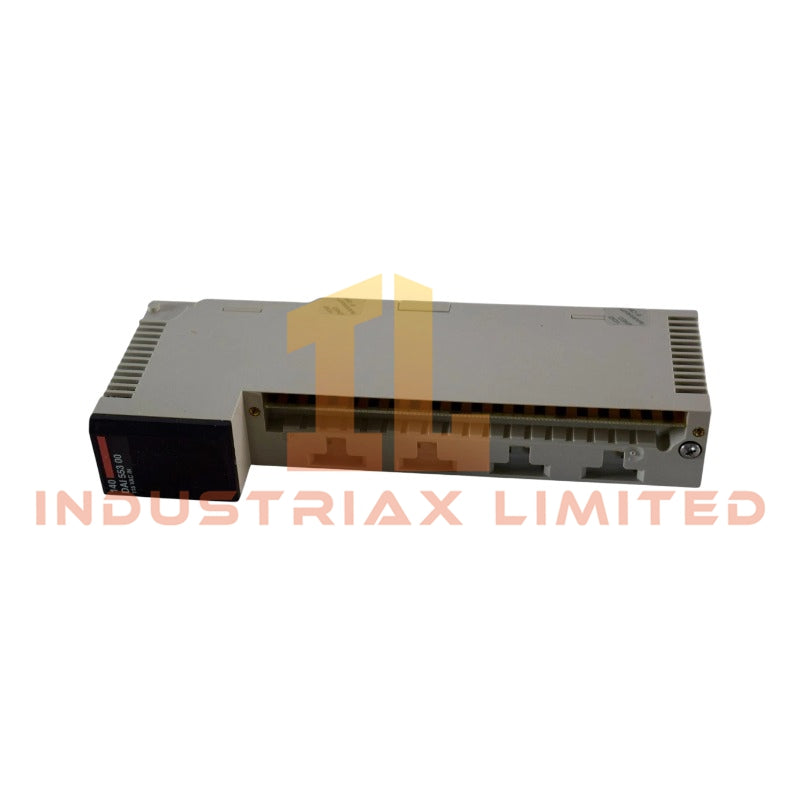

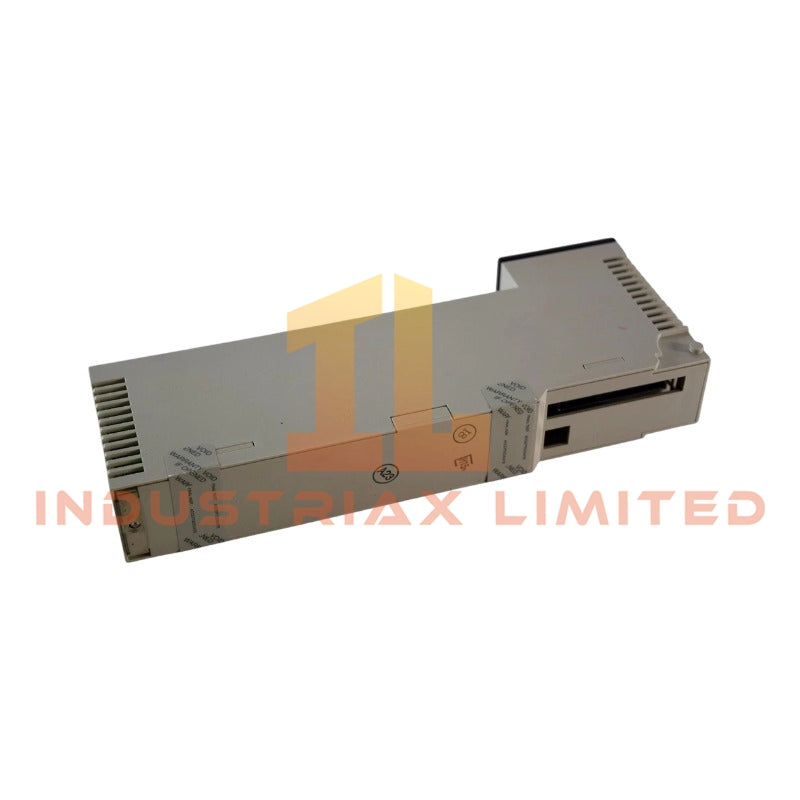

Schneider Electric 140DAI55300 Modicon Quantum Discrete Input Module
Configured for high-voltage digital acquisition in the Modicon Quantum automation platform, the Schneider Electric 140DAI55300 (base model 140DAI553) provides direct physical/electrical execution of 32-channel 115 V AC discrete input sensing into the backplane bus.
Hardware Specifications
Parameter
Specification
Brand
Schneider Electric
Origin
France
Weight
0.33 kg
Dimensions
Standard Quantum module format
Operating Temp
0...60 degC
Power Consumption
<= 10.9 W
Discrete Input Number
32
Input Voltage
115 V AC
Input Current
<= 13.2 mA @ 47...53 Hz; <= 11.1 mA @ 57...63 Hz
Guaranteed State 1 Voltage
85...132 V AC @ 47...53 Hz; 79...132 V AC @ 57...63 Hz
200 V for 1 cycle; 156 V for 10 s; 132 V continuous
Response Time
7.3...12.3 ms On-Off; 4.9...0.75 ms x line cycle Off-On
Isolation
1780 Vrms group-to-group & group-to-bus for 1 min
Bus Current Requirement
250 mA
Indicators
32 green LEDs (input status), 1 red LED (external fault), 1 green LED (bus active)
Certifications
CUL, FM Class 1 Div 2, CSA C22.2 No 142, UL 508
Backplane Bus Communication Velocity Licensing
The 140DAI55300 interfaces with the Quantum backplane via a parallel data bus governed by firmware flash compatibility constraints. Module addressing consumes two input words, requiring precise allocation in the controller memory map. Firmware revisions must match the licensing profile of the installed CPU to ensure deterministic scan updates without introducing propagation delays in high-speed logic execution.
Frequently Asked Questions
Q: Can the 140DAI55300 be hot-swapped while the Quantum rack is powered?
A: Hot-swap capability depends strictly on the host rack’s power supply and CPU firmware version. Verify the CPU supports live insertion before attempting removal or replacement under load.
Q: What is the maximum backplane current load imposed by this module?
A: The module draws up to 250 mA from the backplane bus at rated conditions. Ensure total rack consumption does not exceed the power supply rating.
Q: Does this module support mixed AC frequencies in different channel groups?
A: No. All inputs must operate within the same configured frequency range (47...53 Hz or 57...63 Hz). Mixed frequency operation is not supported.
Field Installation Guidelines
Mount the module on a standard 35 mm DIN rail or directly into a Quantum rack slot. Ensure all field wiring uses shielded twisted pair cabling, with the shield terminated to earth ground at the panel entry only. Maintain separation of at least 75 mm between AC input wiring and low-voltage signal cables to prevent inductive coupling. Torque terminal screws to the manufacturer’s specified value (typically 0.5…0.6 N·m). Confirm proper grounding of the rack chassis before applying power.
