Description

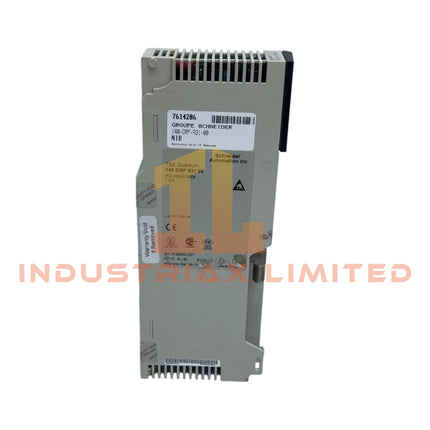

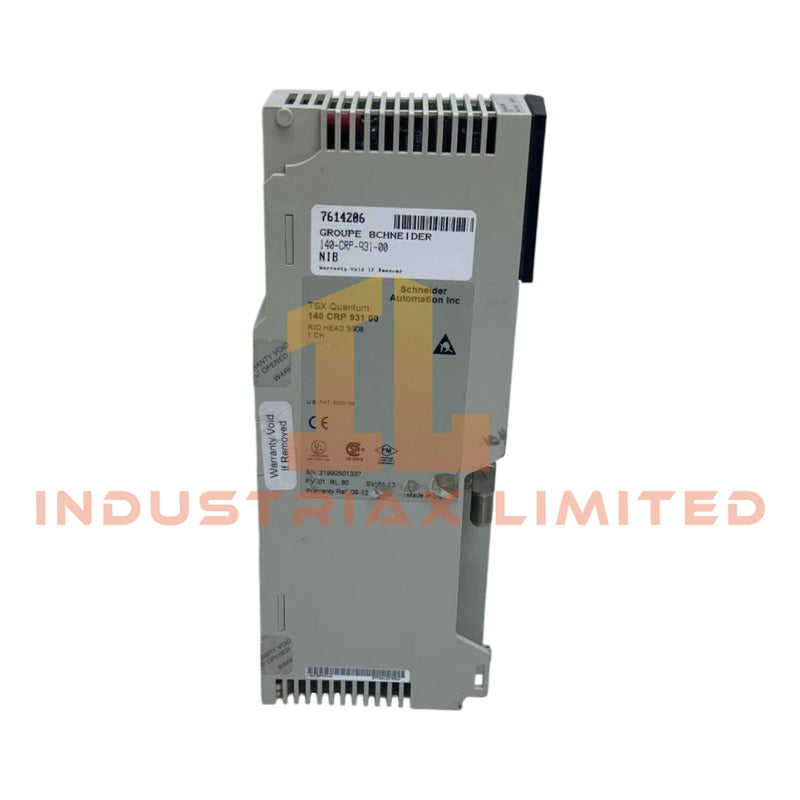

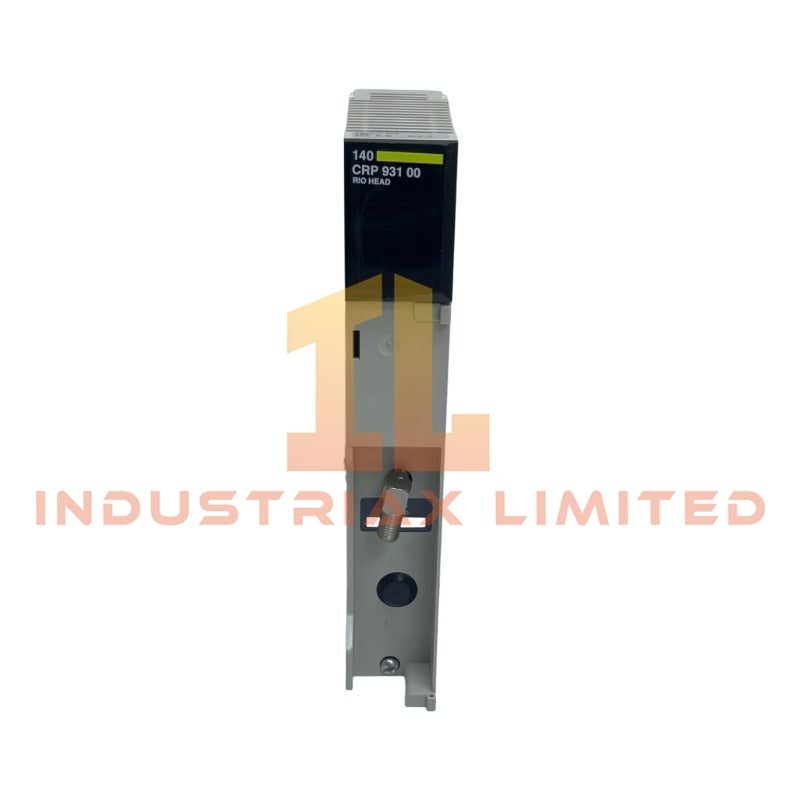

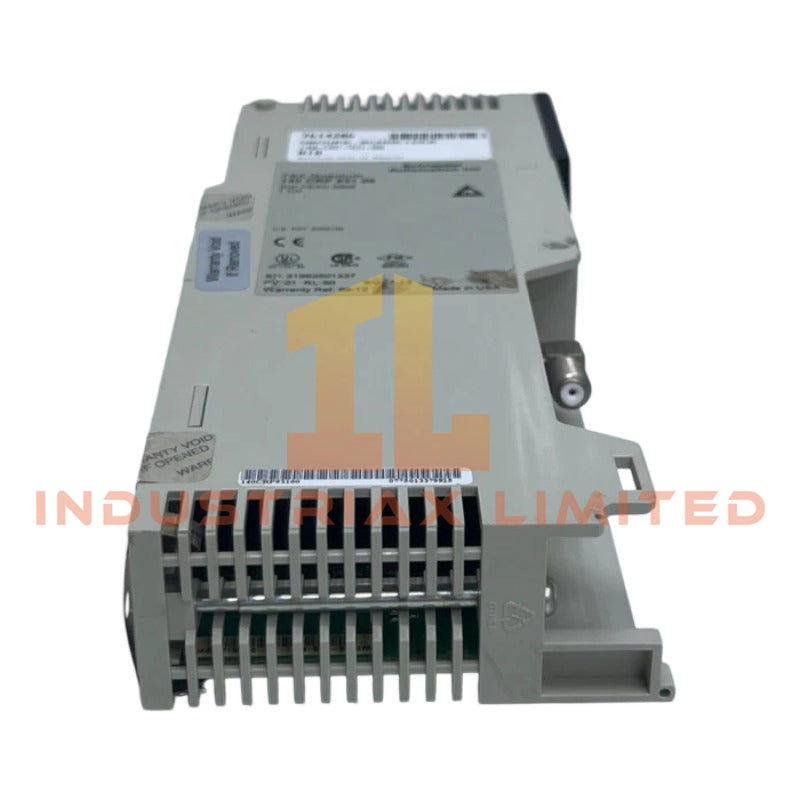

Schneider Electric 140CRP93100 RIO Head-End Adaptor Module

Configured for remote I/O head-end aggregation in Modicon Quantum backplane/RIO network, the Schneider Electric 140CRP93100 (140CRP93100 RIO head-end adaptor module) provides direct physical/electrical execution of coaxial-based RIO communication interfacing for distributed Quantum and Symax I/O drops within Modicon Quantum automation platform environments.

Suffix Breakdown & Model Matrix

Model 140CRP93100 is a fixed configuration RIO head-end adaptor module. No documented structured suffix segmentation (functional parameters embedded at catalog level).

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric 140CRP93100
Dimensions	Standard Quantum module format (exact mechanical drawing not specified)
OperatingTemp	0 to 60 degC
PowerConsumption	3 W (1 channel)
Backplane Current	600 mA (1 channel)
Transmission Medium	75 Ohm coaxial cable
Data Rate	1544 Mbit/s
Network Capacity	<= 31 drops per network
I/O Capacity	64 I / 64 O words per drop
Isolation Voltage	500 V DC (center conductor to ground)
Relative Humidity	95 percent non-condensing
Storage Temperature	-40 to 85 degC

Schneider Electric PLC/DCS Backplane & Deterministic Network Characteristics

The 140CRP93100 integrates into the Quantum backplane communication layer where cyclic determinism is maintained through synchronized scan exchange between CPU rack and RIO head-end module. Backplane bus communication velocity is governed by deterministic scan scheduling, ensuring consistent update windows for distributed I/O mapping across up to 31 remote drops.

Profinet/EtherNet/IP style deterministic network behavior is not native to this module; instead, RIO coaxial transport uses fixed-frame timing with collision-free token-like arbitration. Firmware compatibility is tied to Quantum rack controller revisions, where I/O density scaling is constrained by head-end memory allocation and drop table indexing limits.

Frequently Asked Questions

Q: Can the module support hot-swap replacement in an energized Quantum rack?
A: The module is not designed for live coaxial disconnect under load. Removal typically requires system shutdown or controlled rack power isolation to avoid RIO link desynchronization.

Q: What is the limiting factor for maximum drops on the RIO network?
A: The limit of 31 drops is enforced by head-end addressing space and cyclic scan table allocation, not by coaxial signal amplitude.

Q: Does signal attenuation affect I/O integrity over long coaxial runs?
A: Yes. Coaxial loss impacts signal margin; however, the module provides 35 dB dynamic range and 75 Ohm impedance matching to maintain valid frame recovery.

Field Installation Guidelines

• Use only 75 Ohm impedance-matched coaxial cable with controlled shielding continuity.
• Maintain single-point shield grounding at designated panel earth reference to avoid ground loop injection.
• Avoid tight bending radius violations on F-type elbow connector interface to prevent impedance discontinuities.
• Verify center conductor isolation before energizing backplane to confirm 500 V DC isolation integrity.
• Ensure drop addressing does not exceed 31 nodes to prevent RIO table overflow conditions.

Specifications

• Brand: Schneider Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
