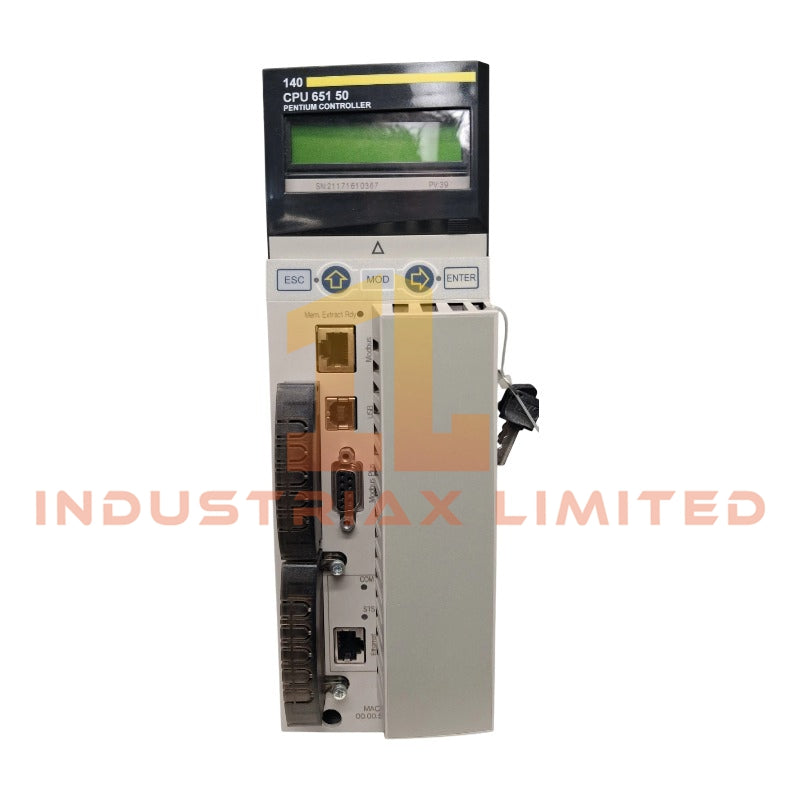

Schneider Electric 140CPU65150 Modicon Quantum Unity Processor

Configured for deterministic execution of PLC scan cycles in Modicon Quantum automation platform backplane architecture, the 140CPU65150 (140CPU65150 Unity processor) provides direct CPU-level processing and communication handling for distributed I/O and remote rack synchronization within Quantum chassis systems.

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric 140CPU65150
Origin	France / EU manufacturing lineage (Quantum platform)
OperatingTemp	Industrial standard PLC module range (exact limits not provided)
CPU Clock Frequency	166 MHz
Memory	768 kB
Local Rack Capacity	Up to 2 racks
Slot Configuration	10 / 16 / 2 / 4 / 6 slots (rack dependent configuration)
Distributed I/O	Up to 63 stations per network
Remote I/O	Up to 31 stations
Discrete I/O Capacity	8000 inputs / 8000 outputs (distributed), 31744 inputs / 31744 outputs (remote)
Analog I/O Capacity	500 inputs / 500 outputs (distributed), 1984 inputs / 1984 outputs (remote)
Integrated Interfaces	Ethernet TCP/IP, Modbus, Modbus Plus, USB

Backplane Bus Communication and Firmware Execution Model

The 140CPU65150 executes cyclic task scheduling through Quantum backplane arbitration, where memory exchange between CPU and I/O modules is synchronized via deterministic scan intervals. Firmware execution supports multi-interface routing across Modbus, Modbus Plus, and Ethernet TCP/IP stacks, enabling parallel handling of process data and diagnostic frames. Backplane throughput is governed by slot addressing density and rack segmentation rules, with firmware compatibility tied to Unity processor runtime image alignment.

Frequently Asked Questions

Q: Can the 140CPU65150 support hot-swapping of I/O modules?
A: Hot-swap capability depends on rack configuration and module type. CPU operation continues during limited module replacement, but backplane re-enumeration is required for full synchronization.

Q: What is the effect of adding distributed I/O stations on scan cycle time?
A: Increasing distributed stations introduces additional communication overhead on network arbitration layers, impacting cyclic scan time proportional to station count and protocol load.

Q: Does firmware mismatch affect backplane communication stability?
A: Yes. Firmware version mismatch between Unity processor and module firmware may result in partial enumeration failure or restricted communication mapping.

Field Installation Guidelines

The 140CPU65150 shall be installed on a grounded Quantum backplane with controlled torque insertion to avoid slot connector deformation. Shielded communication cables must maintain single-point grounding at cabinet earth reference to prevent differential noise across Modbus and Ethernet segments.

Backplane slots must remain within rated configuration limits (maximum rack slot population as defined by chassis type). Excessive slot loading can introduce signal propagation delay and backplane arbitration latency.

Ethernet and Modbus cabling shall be physically separated from high-voltage conductors to minimize inductive coupling. Maintain minimum bend radius according to industrial Ethernet cabling standards.

Firmware upload operations should be executed under stable DC supply conditions with uninterrupted backplane power to avoid memory corruption during flash cycles.

Specifications

• Brand: Schneider Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
