Description

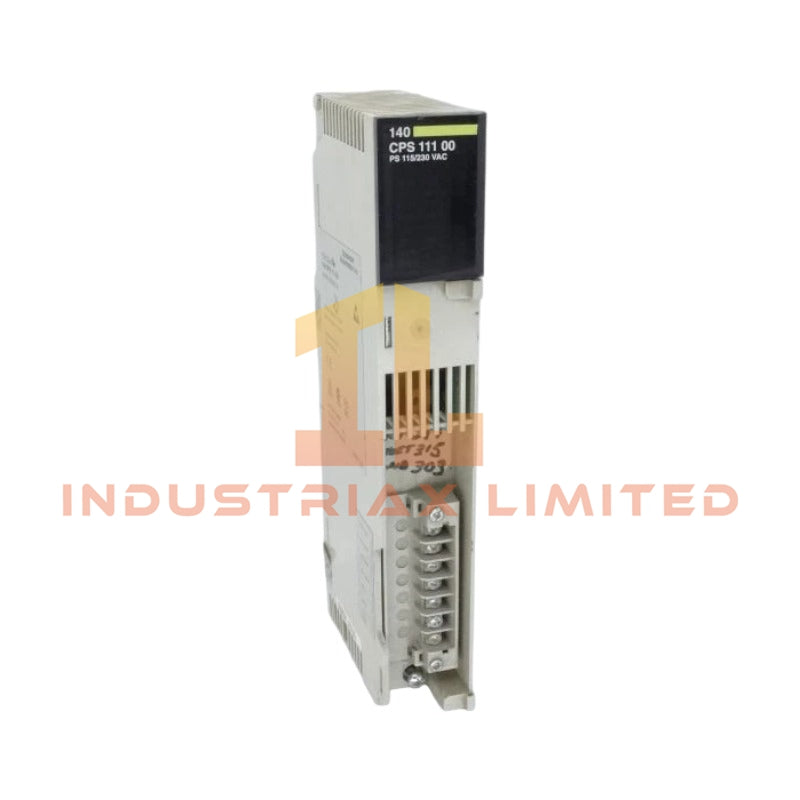

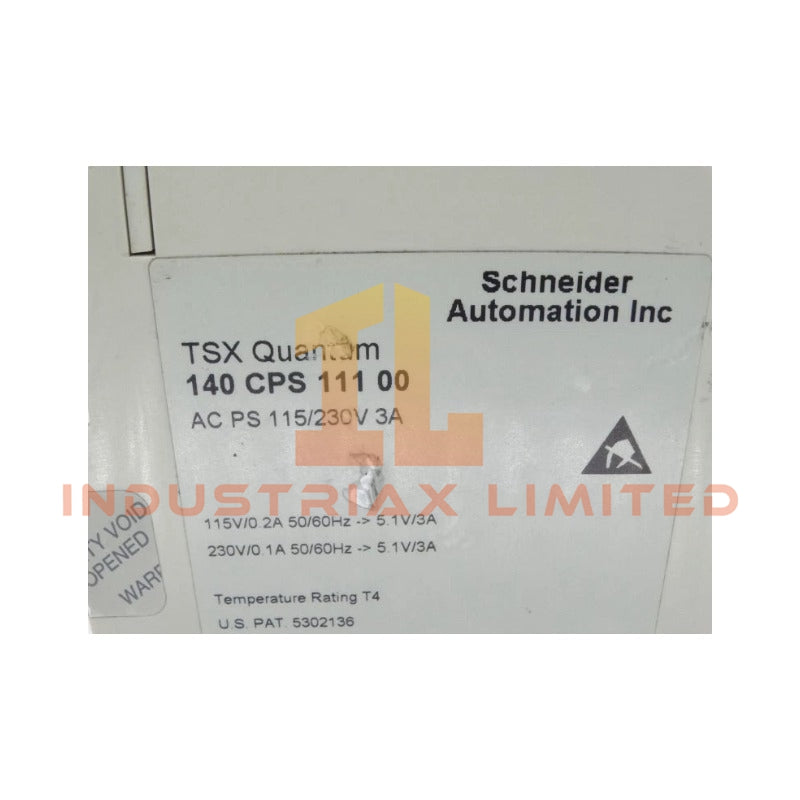

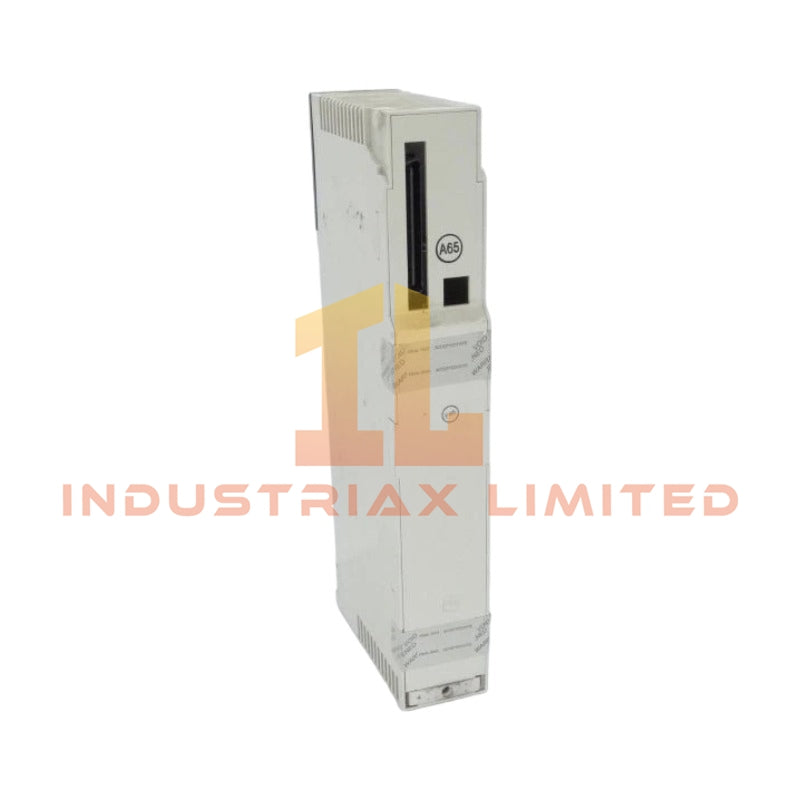

Schneider Electric 140CPS11100 Modicon Quantum Power Supply Module

The Schneider Electric 140CPS11100, also cataloged as the 140CPS11100 Power Supply Module, operates as a dedicated hardware component for AC-to-backplane DC power conversion within the Modicon Quantum automation platform. It provides regulated 5.1 V DC output to the system backplane from a wide-range AC input supply.

Configured for controlled power conversion in Modicon Quantum chassis, the Schneider Electric 140CPS11100 (140CPS11100 Power Supply Module) provides direct electrical execution of system-level DC distribution, including inrush-limited startup and internal protection for overload and overvoltage conditions.

Suffix Breakdown & Model Matrix

No official manufacturer-published suffix decomposition or functional segmentation of 140CPS11100 is provided in the supplied technical data. The model is treated as a single fixed-order power supply assembly within the Modicon Quantum series.

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric 140CPS11100
Origin	France
Weight	0.65 kg
Dimensions	Not specified in provided data
OperatingTemp	0 to 60 degC
PowerConsumption	2 + (3 x Iout) W, Iout in A
Input Voltage	120 to 230 V AC (100 to 276 V, 47 to 63 Hz)
Output Voltage	5.1 V DC
Output Current	3 A
Rated Power	50 VA
Inrush Current	10 A at 230 V, 20 A at 115 V
Protection	Internal overvoltage and overload protection
Fuse Rating	1.5 A slow-blow

Modicon Quantum Backplane Power Distribution Characteristics

The 140CPS11100 interfaces with the Modicon Quantum backplane architecture, where deterministic power distribution timing is aligned with module insertion sequencing and bus energization behavior. Backplane voltage stabilization is maintained through regulated 5.1 V DC output with internal protection logic preventing propagation of overcurrent events across adjacent rack modules.

The module supports firmware-independent power delivery, where system backplane load scaling is governed by cumulative Iout demand rather than software-controlled regulation. Electrical isolation and internal protection circuits ensure stable operation under variable rack loading conditions.

Frequently Asked Questions

Q: Can the 140CPS11100 be hot-swapped under load conditions?
A: Hot-swap behavior depends on chassis design. Electrically, removal interrupts backplane 5.1 V DC distribution; system shutdown sequencing is required to avoid transient collapse.

Q: How is backplane current loading calculated for this module?
A: Backplane loading is determined by output current demand, defined as Iout up to 3 A, with power dissipation following 2 + (3 x Iout) W.

Q: Does the module support firmware-based power regulation adjustment?
A: No firmware-controlled regulation is implemented; output is fixed hardware-regulated at 5.1 V DC.

Field Installation Guidelines

Ensure AC input is isolated prior to installation or removal. Verify that input voltage remains within 100 to 276 V AC range at 47 to 63 Hz before energization.

Install the module into the designated Modicon Quantum rack slot with full seating on the backplane connector to ensure stable DC distribution. Maintain proper grounding of the chassis to minimize electromagnetic interference across the power rails.

Avoid routing high-current or high-frequency signal cabling directly adjacent to the power supply module to reduce coupling into the backplane supply path.

Specifications

• Brand: Schneider Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
