Description

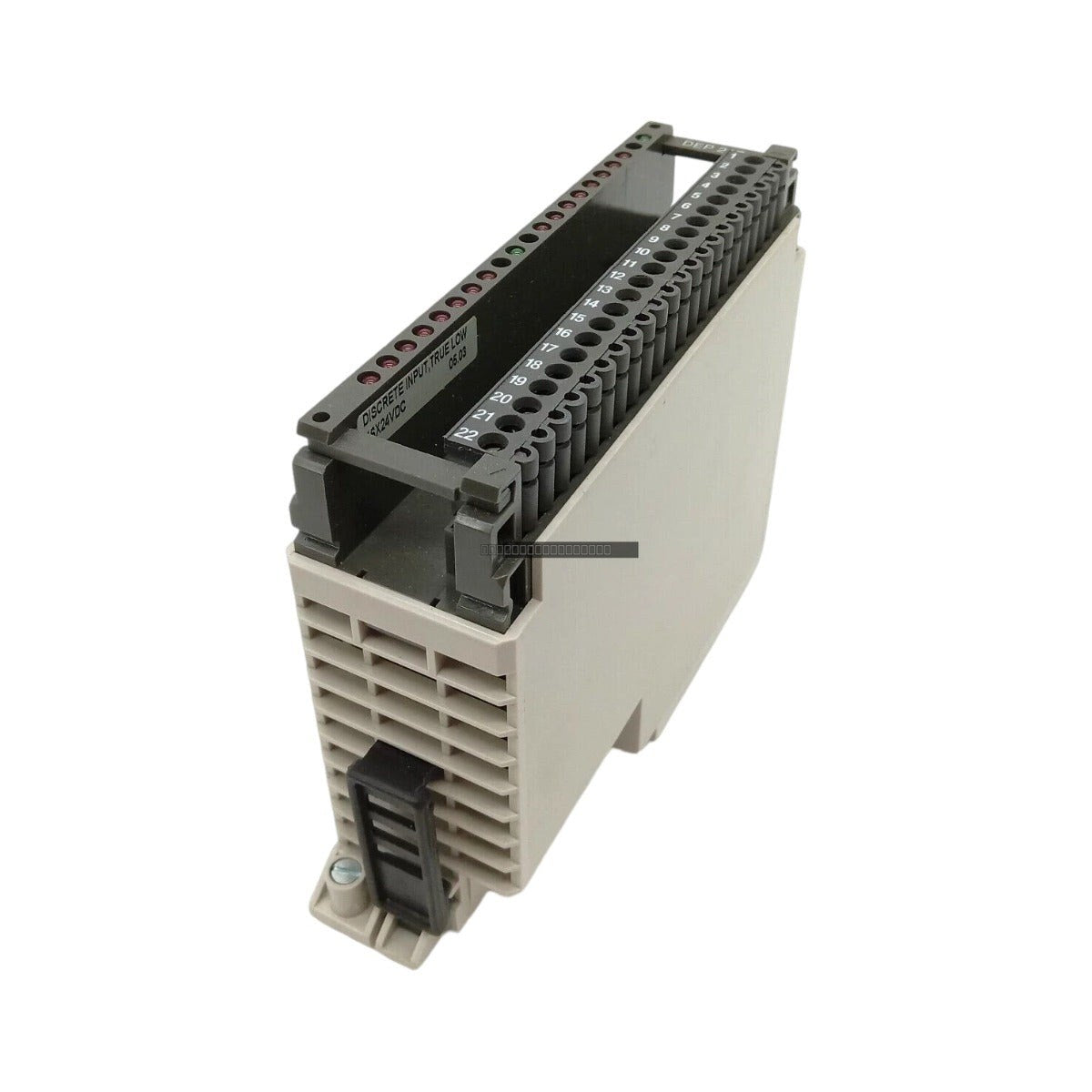

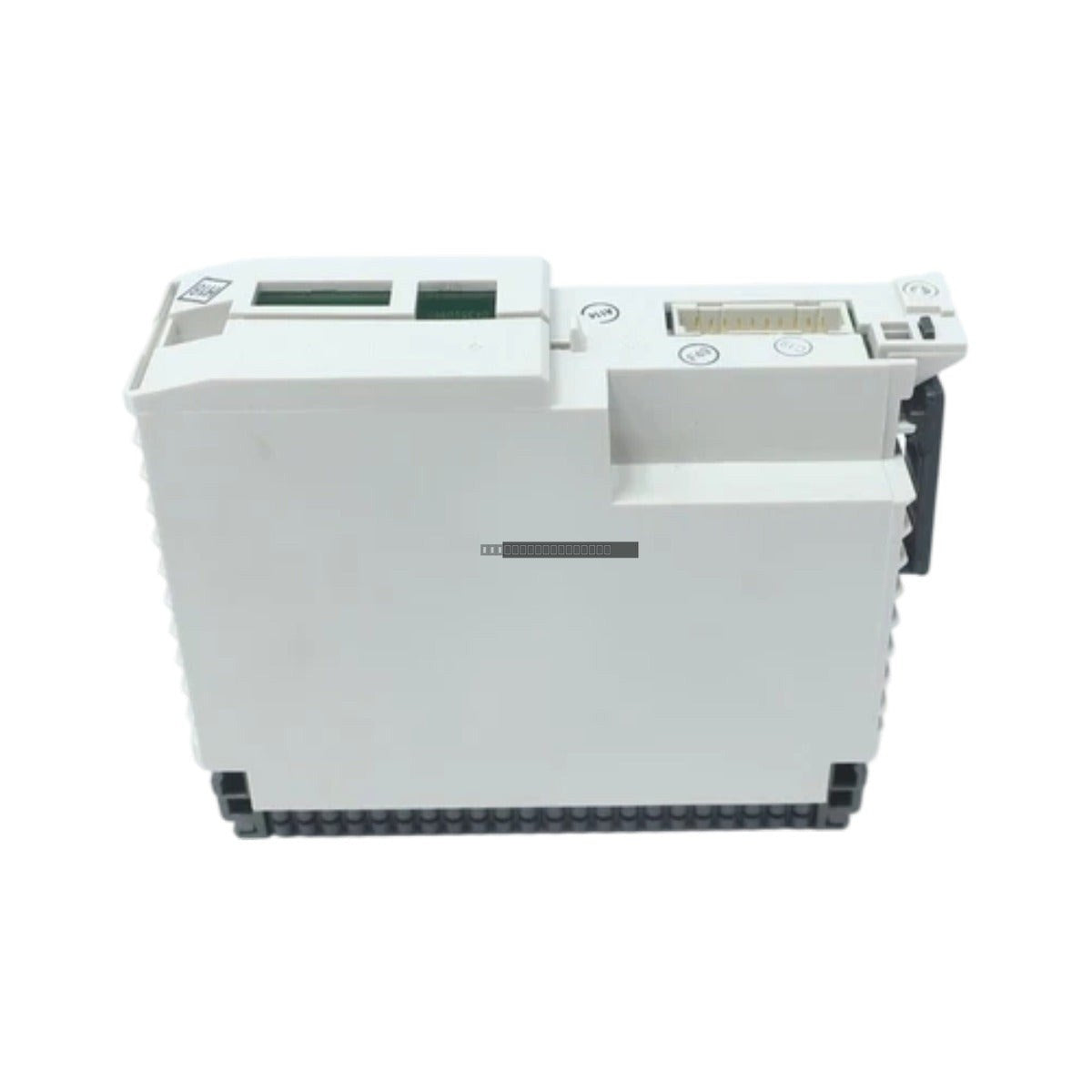

The Schneider Electric ASBDEP217 is a high-density digital input module designed for the Modicon 800 Series control architecture. This module provides reliable discrete state sensing for industrial applications, including thermal power generation, hydrocarbon processing, and heavy-duty mining. It is engineered to monitor up to 16 independent 24 VDC field input loops, ensuring deterministic signal tracking and high immunity to electromagnetic interference in demanding environments.
Features
- 16-channel discrete input capacity for high-density signal monitoring.
- Galvanic isolation via optocoupler arrays to protect internal backplane circuitry from field-side surges.
- Integrated signal debounce filtering to eliminate contact chatter and prevent false state transitions.

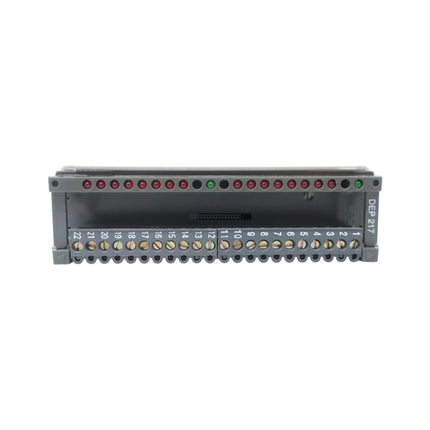

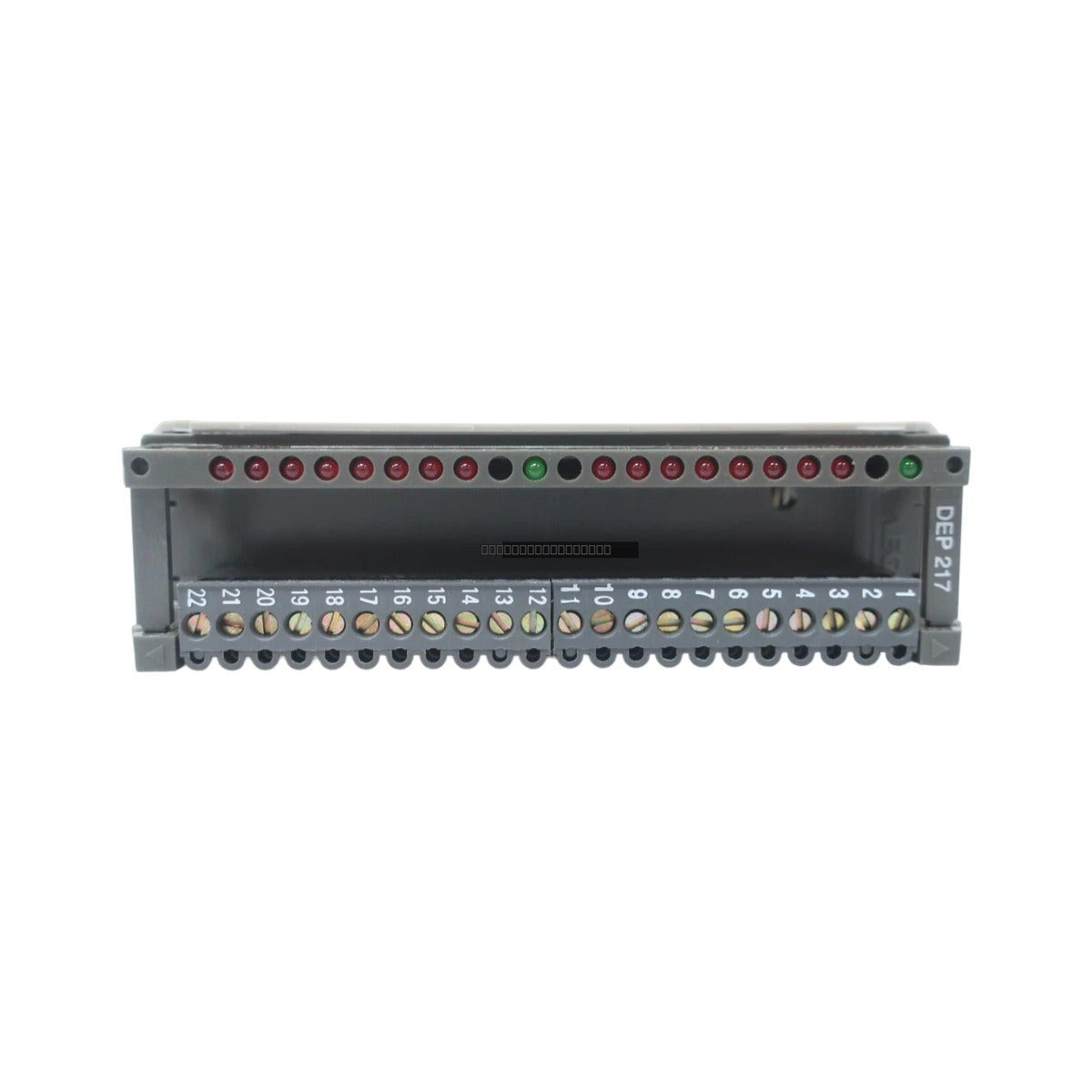

- Front-mounted LED status indicators for real-time visual monitoring of input states.
- Robust design suitable for operation in harsh industrial temperature ranges.
Applications
This module is typically deployed in large-scale automation systems requiring precise monitoring of discrete field devices such as limit switches, proximity sensors, and relay contacts. It is well-suited for use in process control environments where signal integrity is critical to preventing production downtime.
Technical Specifications
| Model |
ASBDEP217 |
| Input Channels |
16 |
| Nominal Input Voltage |
24 VDC |
| Input Voltage Range |
20 to 30 VDC |
| ON-State Threshold |
> 15 VDC |
| OFF-State Threshold |
< 5 VDC |
| Input Impedance |
3.3 kOhm |
| Isolation |
1500 VAC (Channel-to-Bus) |
| Power Consumption |
200 mA @ 5 VDC (from backplane) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Humidity |
5 to 95% (non-condensing) |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the rack.
- Use shielded cabling for field inputs to minimize EMI/RFI interference in high-noise environments.
- Verify that the terminal block is securely seated to ensure proper electrical contact.
- Maintain adequate ventilation around the chassis to ensure the module operates within its specified temperature range.
- Handle with standard ESD precautions to prevent damage to sensitive internal components.
FAQ
What is the primary function of the ASBDEP217?
The ASBDEP217 is a digital input module used to interface 16 discrete 24 VDC field signals into the Modicon 800 Series controller bus.
Does this module require external power for the inputs?
The module monitors 24 VDC field signals; the internal logic is powered by the 5 VDC supply provided by the chassis backplane.
