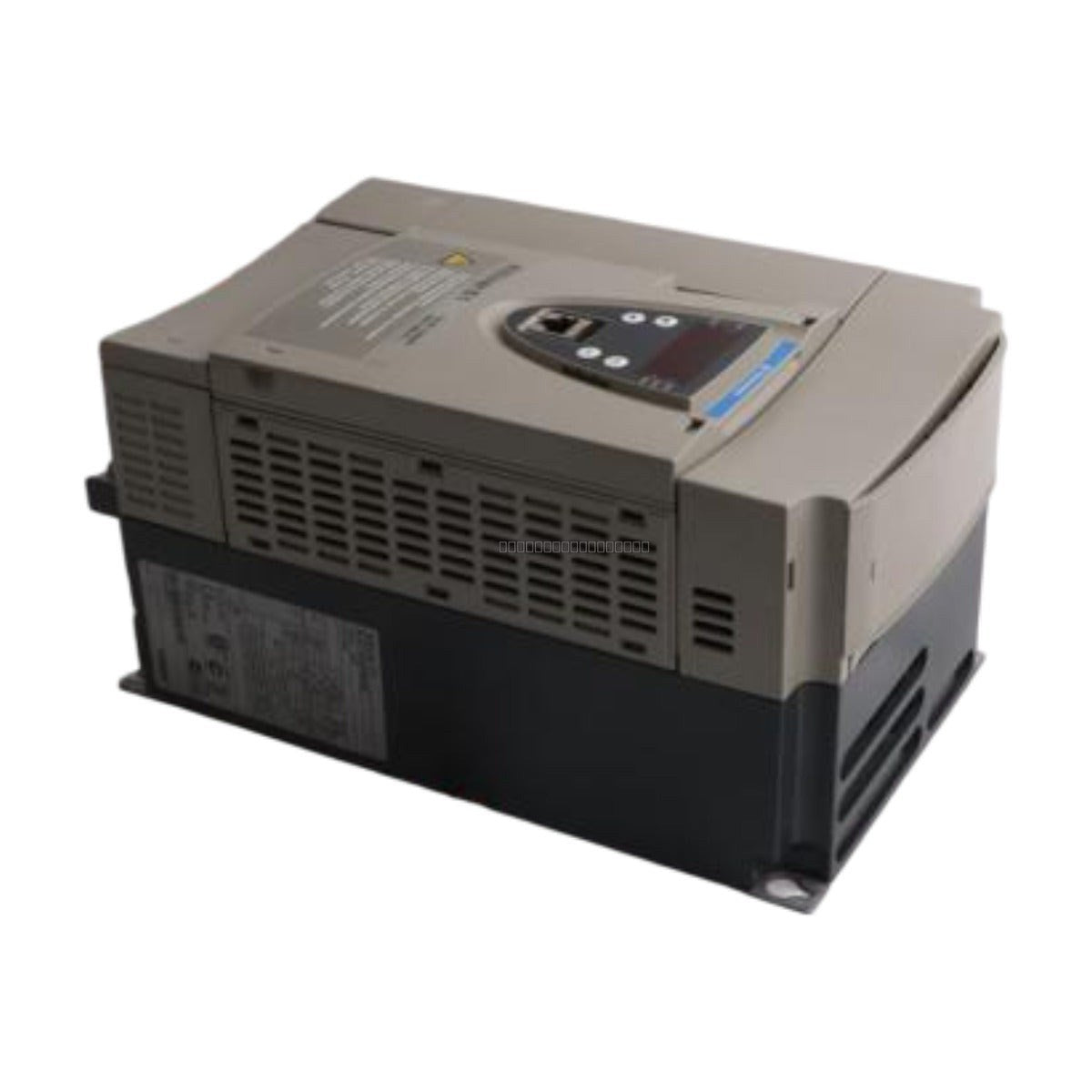

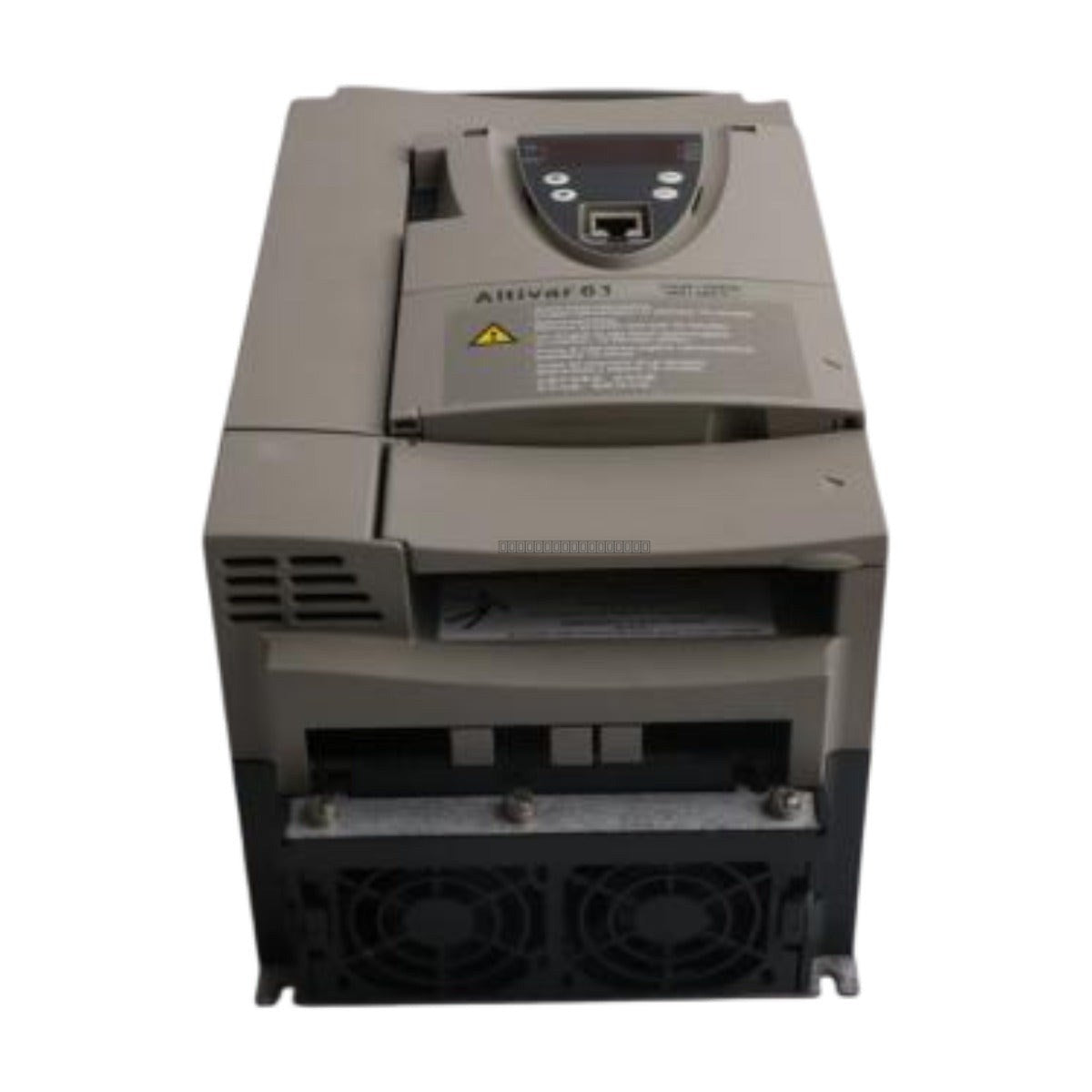

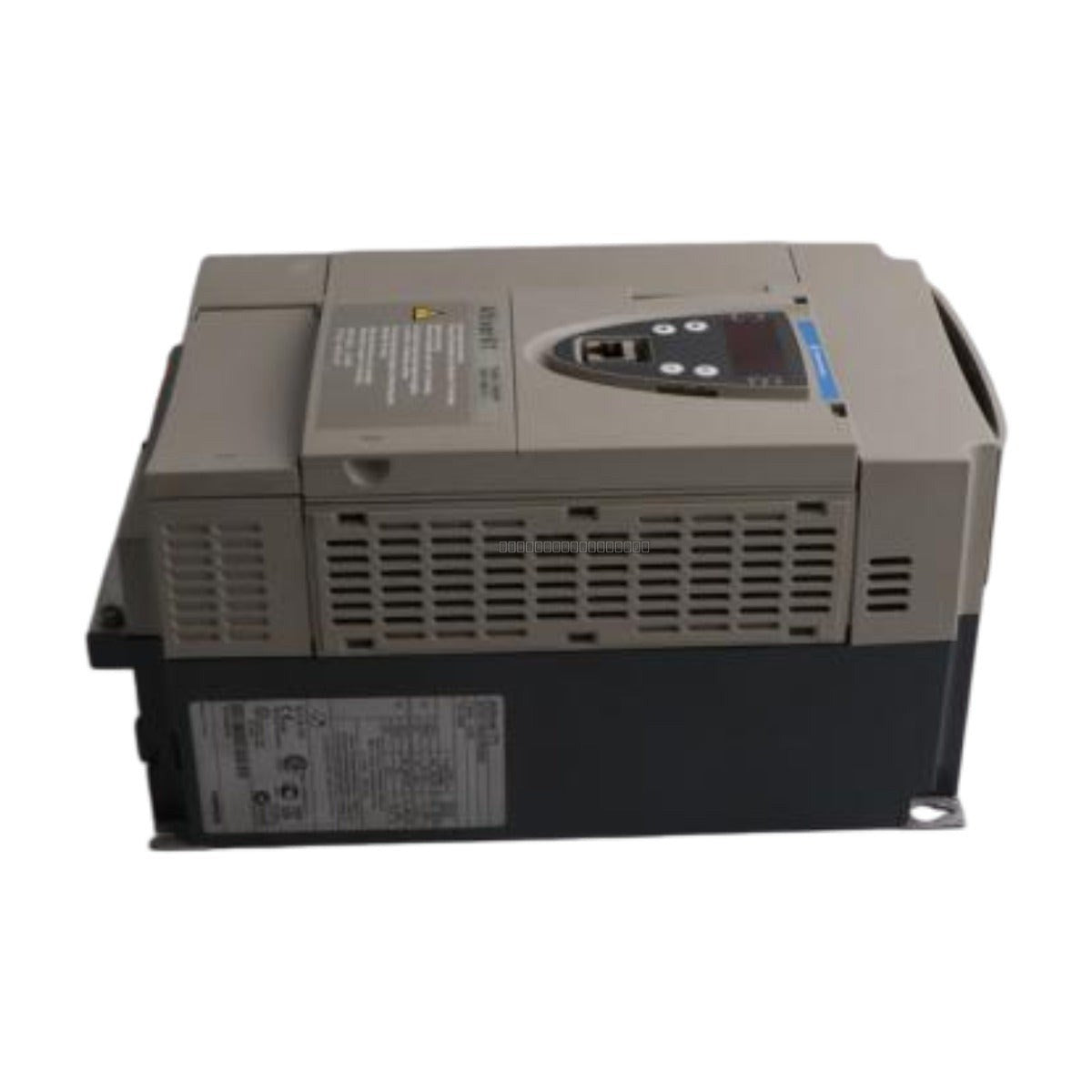

The Schneider Altivar 61 ATV61HD37N4 is a high-performance variable speed drive (VSD) designed for three-phase asynchronous motors. Engineered for industrial fluid management, this drive is widely utilized in HVAC, pumping, and ventilation applications across sectors such as oil and gas, power generation, and mining. It features advanced motor control algorithms to optimize energy efficiency while reducing mechanical stress on drive trains, thereby extending the lifespan of connected equipment.
Features
- Supports motor power ratings of 37 kW (50 hp) for normal duty and 30 kW (40 hp) for heavy duty.
- Integrated Class A EMC filters for conducted and radiated interference suppression.
- Supports multiple control profiles including V/f (2-point, 5-point, or quadratic) and flux vector control.
- Built-in Modbus and CANopen communication protocols with expansion capabilities for Profibus DP, DeviceNet, and Ethernet/IP.
- Comprehensive protection suite including thermal monitoring, surge suppression, and phase-to-phase short circuit protection.
- Modular architecture allowing for easy integration of I/O expansion cards.
Applications
The ATV61HD37N4 is specifically optimized for applications requiring precise torque control and energy management, including centrifugal pumps, industrial fans, compressors, and HVAC air handling units.
Technical Specifications
| Model |
ATV61HD37N4 |
| Input Voltage |
380 to 480 VAC (3-Phase) |
| Network Frequency |
50/60 Hz |
| Continuous Output Current |
74 A at 380 V |
| Transient Current |
81.4 A for 60 s |
| Output Frequency |
0.1 to 500 Hz |
| Operating Temperature |
-10 to +50 deg C (up to 60 deg C with derating) |
| Storage Temperature |
-25 to +70 deg C |
| Protection Rating |
IP 20 |
Installation Guidelines
- Ensure adequate ventilation; the drive utilizes forced convection cooling and requires clearance for airflow.
- Mount the drive vertically on a flat, vibration-free surface.
- Use shielded cables for motor connections to comply with EMC requirements and minimize noise.
- Verify that the line voltage matches the drive input rating (380-480 VAC) before applying power.
- Always disconnect power and wait for the internal capacitors to discharge (refer to the status LED) before performing maintenance or wiring changes.
- Ensure proper grounding of the drive chassis to the main plant earth bus to prevent electrical hazards.
Compliance and Certifications
The ATV61HD37N4 meets international standards including CE, UL, CSA, C-Tick, GOST, and NOM.
FAQ
Can this drive be used with Profibus? Yes, the ATV61HD37N4 supports optional communication modules, including Profibus DP, to integrate into existing industrial networks.
What is the maximum operating temperature? The drive operates between -10 and +50 deg C. Operation up to +60 deg C is possible with appropriate power derating.
