Description
Description

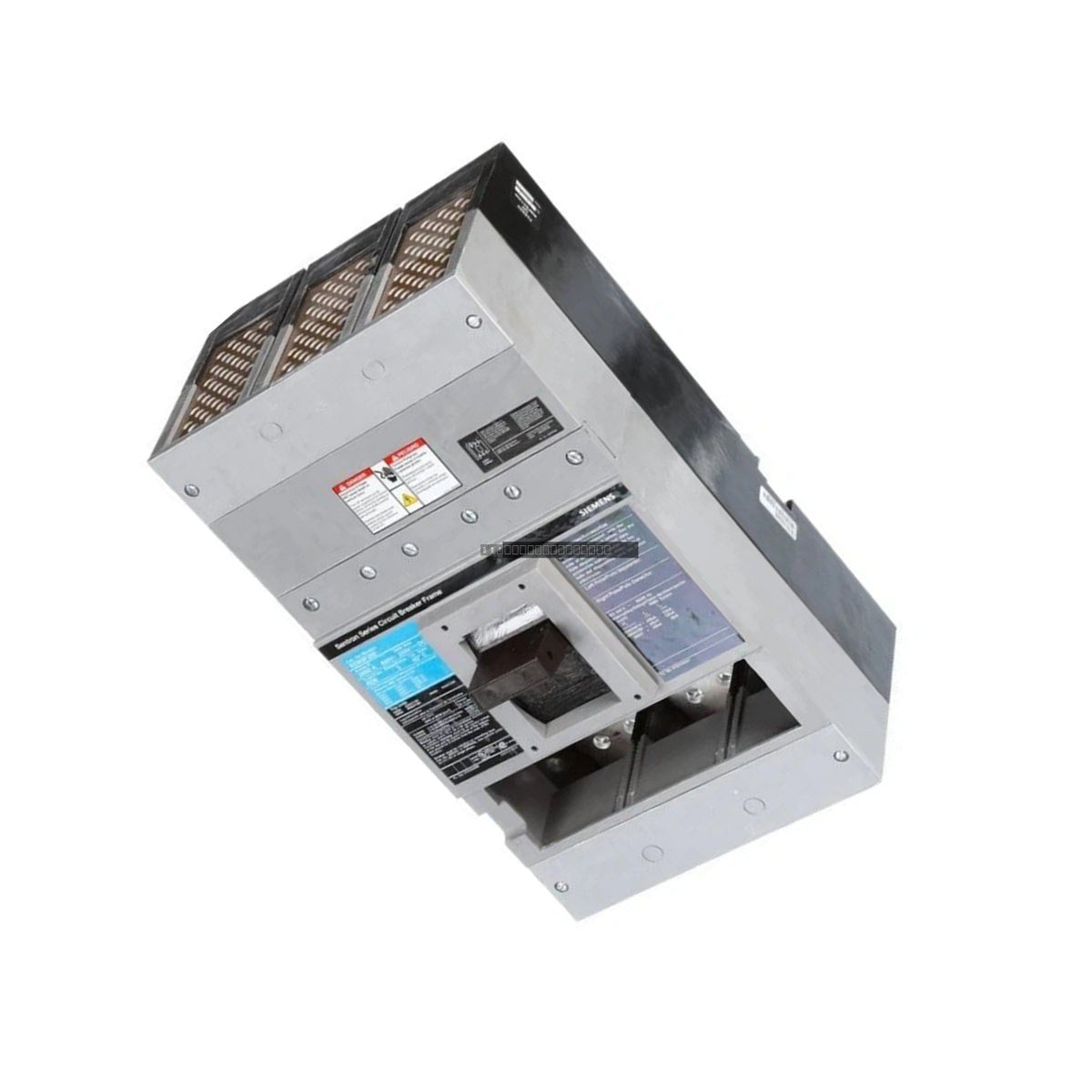

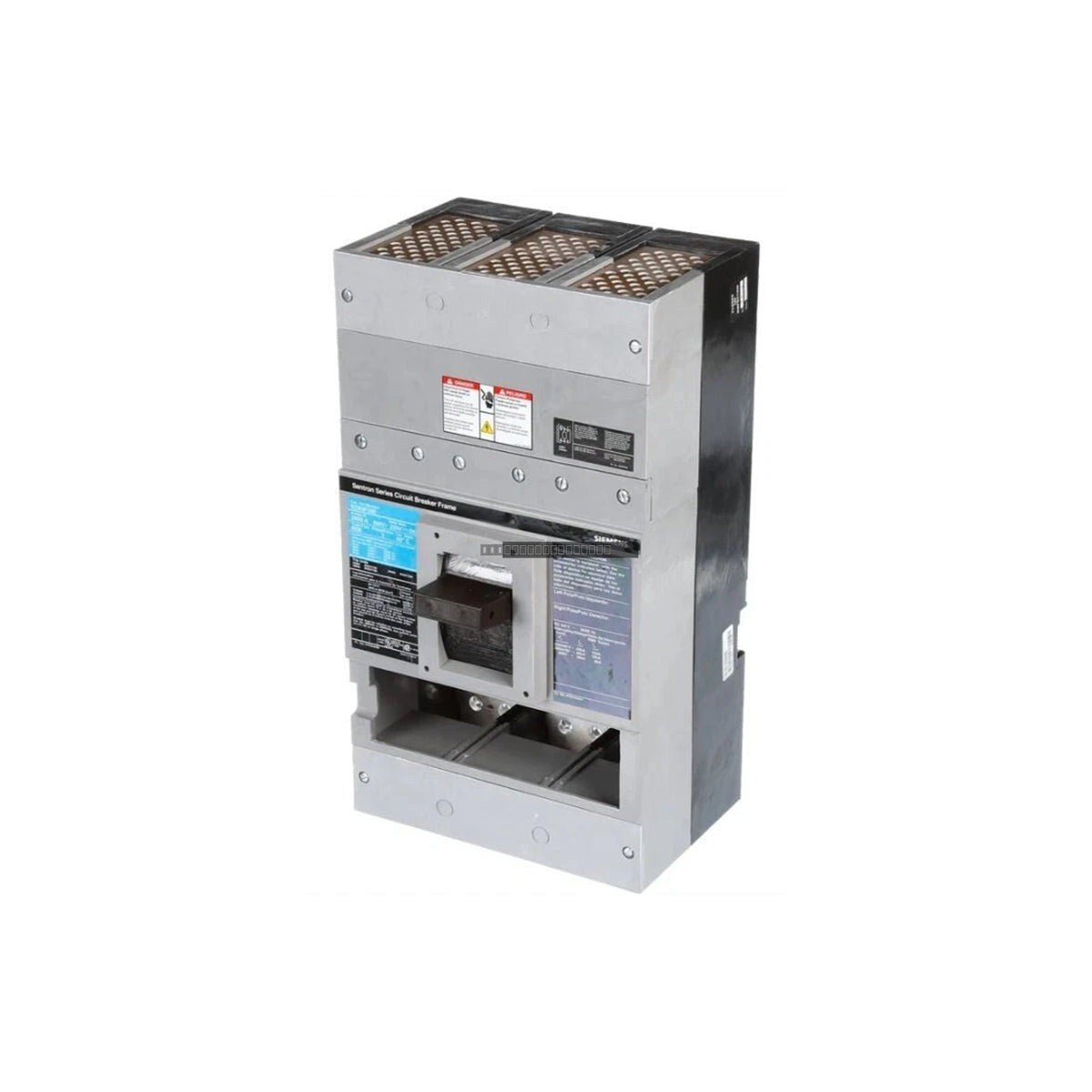

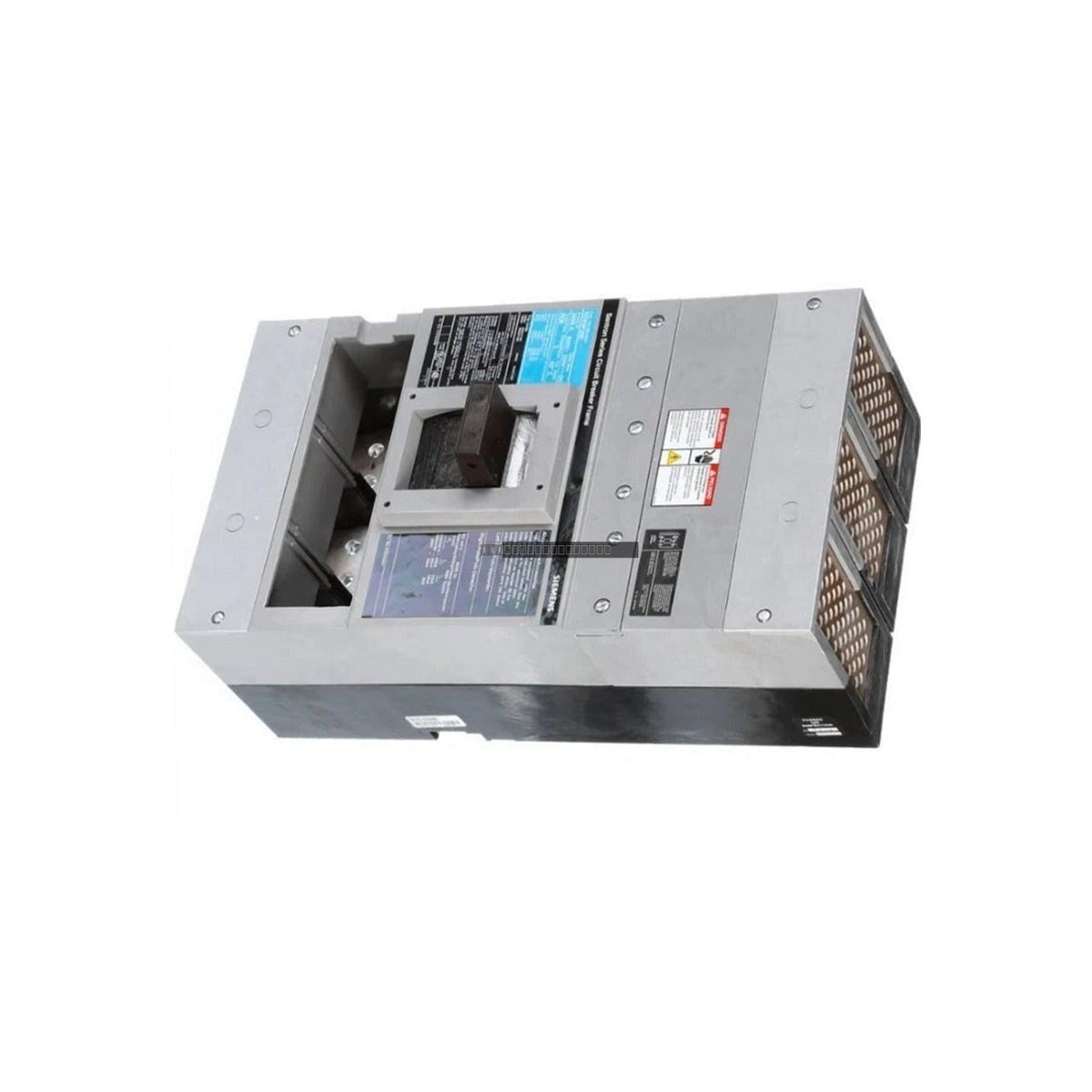

The Siemens RD63F200 is a robust frame assembly designed for the RD6 circuit breaker series. This component provides the structural foundation and mechanical support required for 3-pole configurations, engineered to handle high-capacity electrical distribution demands. It is built to meet the rigorous standards expected of Siemens industrial power equipment, ensuring reliable integration within your existing switchgear or distribution panel.
Features
- Designed specifically for RD6 series breakers
- 3-pole configuration support
- Rated for 600V applications
- Supports high-current capacity up to 2000A
- Constructed for industrial durability and structural integrity
Technical Specifications
| Model |
RD63F200 |
| Manufacturer |
Siemens |
| Configuration |
3-Pole |
| Voltage Rating |
600V |
| Current Rating |
2000A |
| Tariff Code |
8536200020 |
Installation Guidelines
- Ensure all power is disconnected from the electrical enclosure before attempting to install or replace the frame assembly.
- Verify that the mounting surface is clean, level, and capable of supporting the weight of the frame and the associated breaker components.
- Use appropriate torque tools when securing the frame to the enclosure to prevent mechanical stress.
- Ensure all internal busbar connections are properly aligned and torqued to manufacturer specifications to prevent overheating.
- Follow standard industrial safety protocols for handling heavy electrical components, including the use of proper lifting equipment.
FAQ
What is the primary function of the RD63F200?
The RD63F200 serves as the structural frame for a 3-pole RD6 series circuit breaker, providing the necessary housing and mounting interface for the breaker mechanism.
Is this frame compatible with other Siemens breaker series?
This model is specifically engineered for the RD6 series. Please verify your specific breaker model and frame requirements before installation to ensure compatibility.
