Description

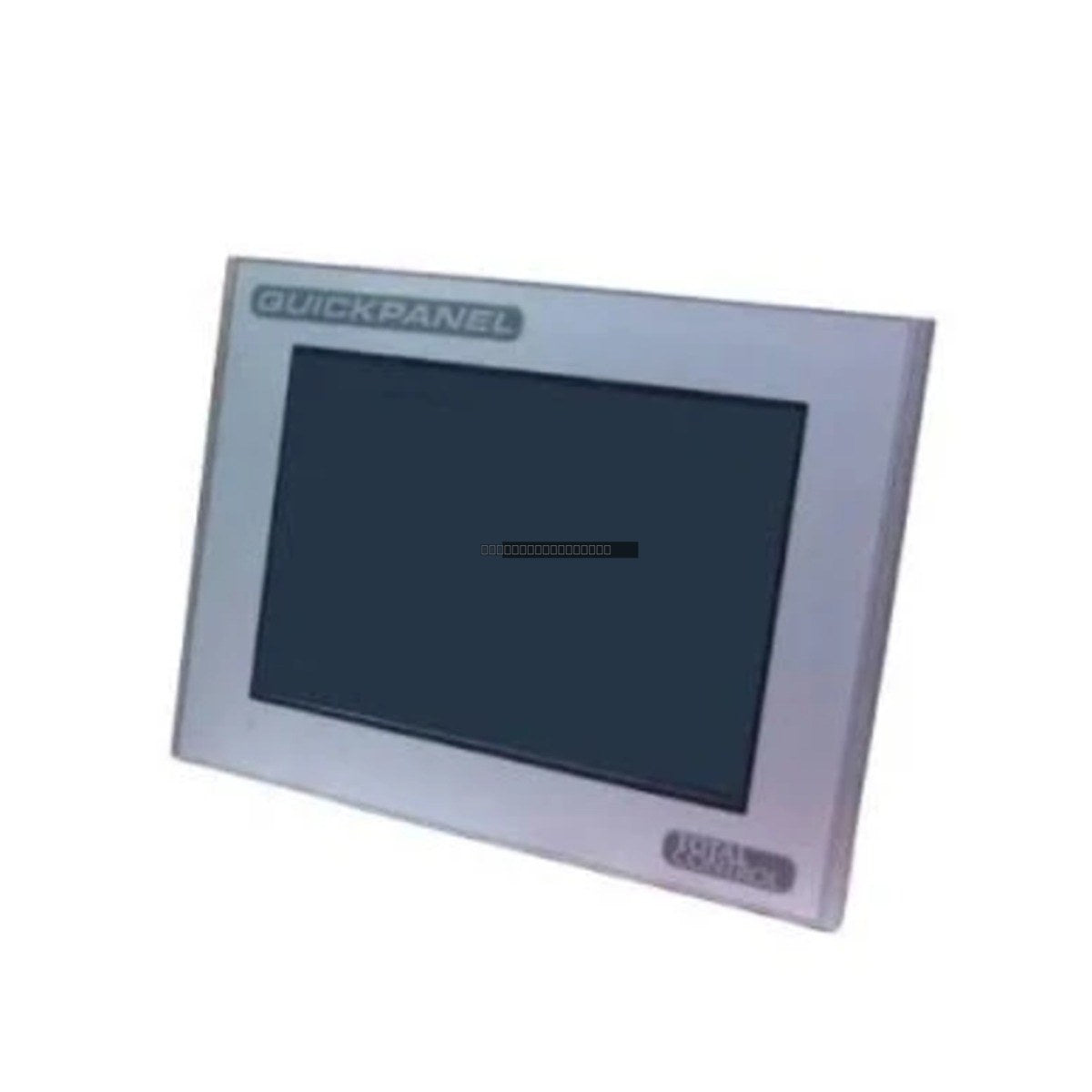

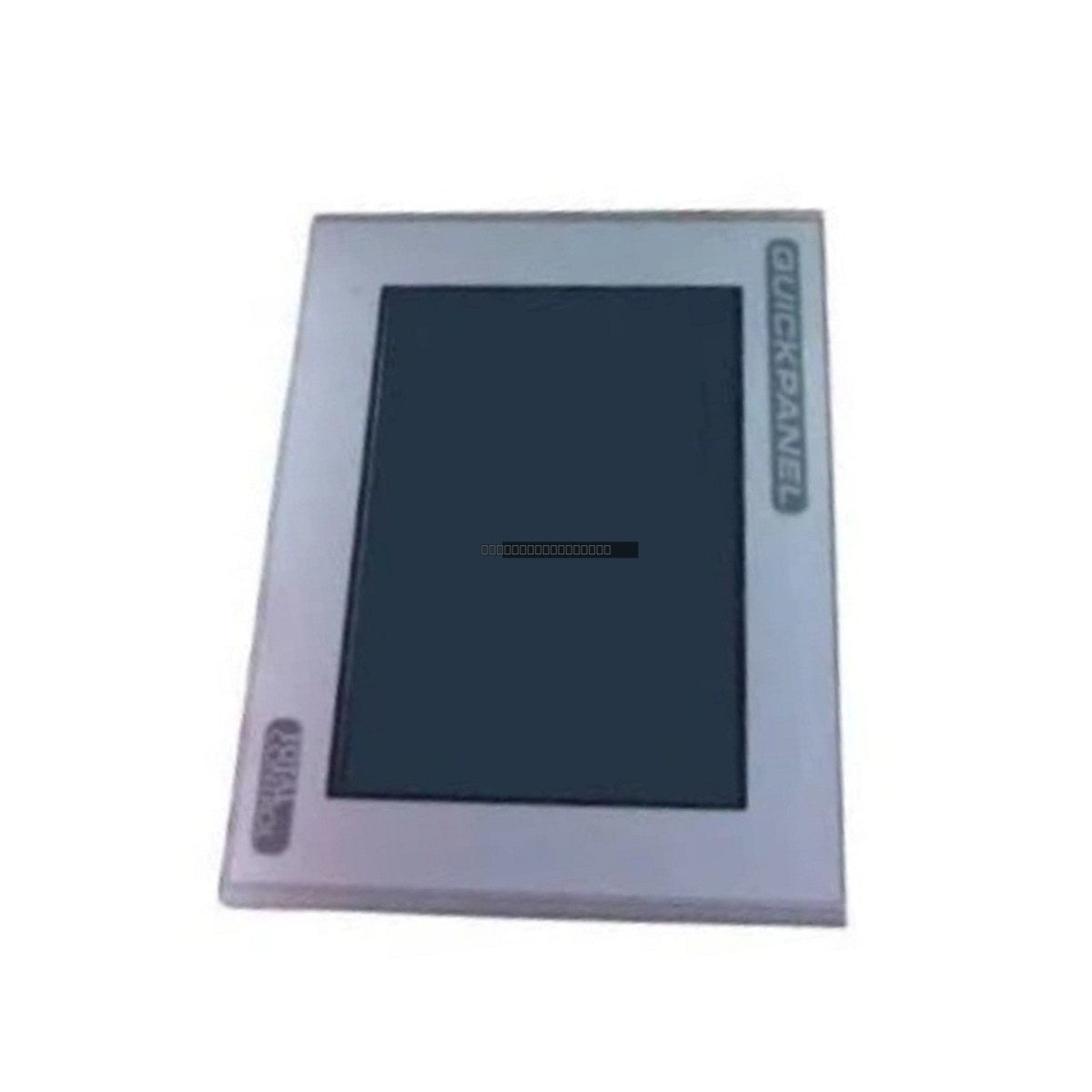

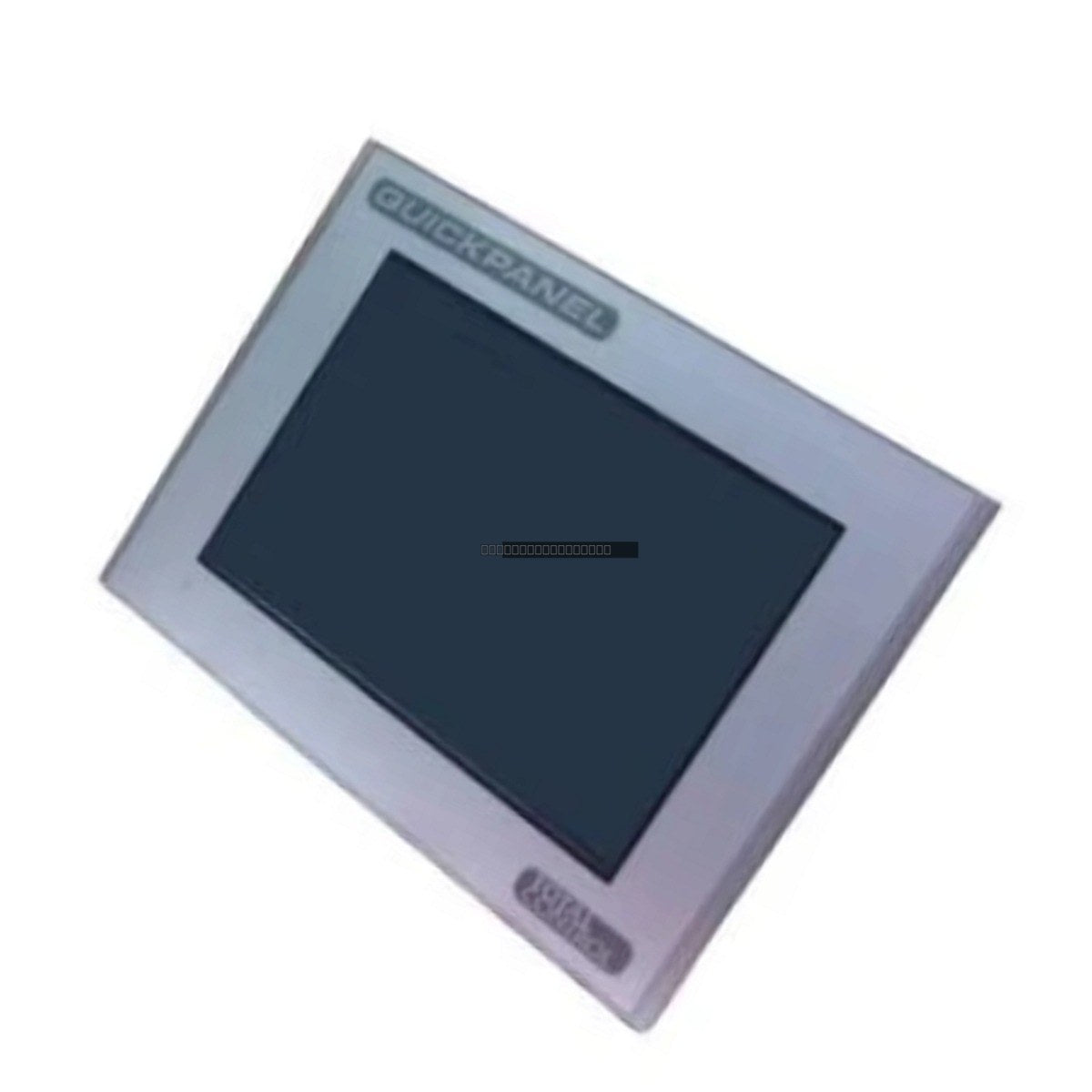

The GE Fanuc QPK-CTDE-0000 is a compact, high-performance Human Machine Interface (HMI) unit from the QuickPanel Jr. series. Designed for demanding industrial environments, this device provides a reliable digital alternative to traditional mechanical control panels. By utilizing a responsive 5.7-inch TFT color display, it allows operators to manage machine functions through a software-defined interface, significantly reducing the mechanical wear and maintenance requirements associated with physical push-buttons and status indicators.
Features
- 5.7-inch TFT color LCD screen for clear visualization of process data.
- 2 MB Flash EPROM memory for robust application storage and graphic configuration.
- Integrated 10BaseT Ethernet port for seamless network connectivity.
- CompactFlash slot provided for external data storage and configuration management.
- IP65 and NEMA 4X/12 rated front panel, ensuring protection against dust and water ingress in harsh industrial settings.
- Dedicated serial and download ports for efficient peripheral communication and system updates.
Applications
This HMI is specifically engineered for original equipment manufacturers (OEMs) and compact machine control applications. It is well-suited for integration into manufacturing plants and processing facilities where space is limited and reliable, long-term operation is required.
Technical Specifications
| Model |
QPK-CTDE-0000 |
| Manufacturer |
GE Fanuc |
| Series |
QuickPanel Jr. |
| Display |
5.7 inch TFT Color LCD |
| Input Voltage |
24 VDC |
| Operating Temperature |
0 to 50 degC |
| Humidity |
10 to 90 percent (non-condensing) |
| Ingress Protection |
IP65 / NEMA Type 4X/12 |
| Memory |
2 MB Flash EPROM |
| Connectivity |
Serial Port, Download Port, CompactFlash, 10BaseT Ethernet |
Installation Guidelines
- Ensure the panel cutout meets the manufacturer's specified dimensions for a secure IP65 seal.
- Verify that the power supply provides a stable 24 VDC input before connecting the unit.
- Use shielded communication cables for Ethernet and serial connections to minimize electromagnetic interference (EMI).
- Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating within the enclosure.
- Handle the unit with care during installation to avoid damaging the touch-sensitive display surface.
- Always disconnect power before performing any wiring or maintenance tasks on the device.
FAQ
What is the primary function of the QPK-CTDE-0000?
It serves as a graphical HMI for industrial machine control, allowing operators to interact with PLC systems via a touch-screen interface instead of physical buttons.
Is the unit suitable for washdown environments?
Yes, the front panel is rated IP65 and NEMA 4X/12, providing protection against dust and water spray when properly installed in a compatible enclosure.
