Description

Product Description

Overview

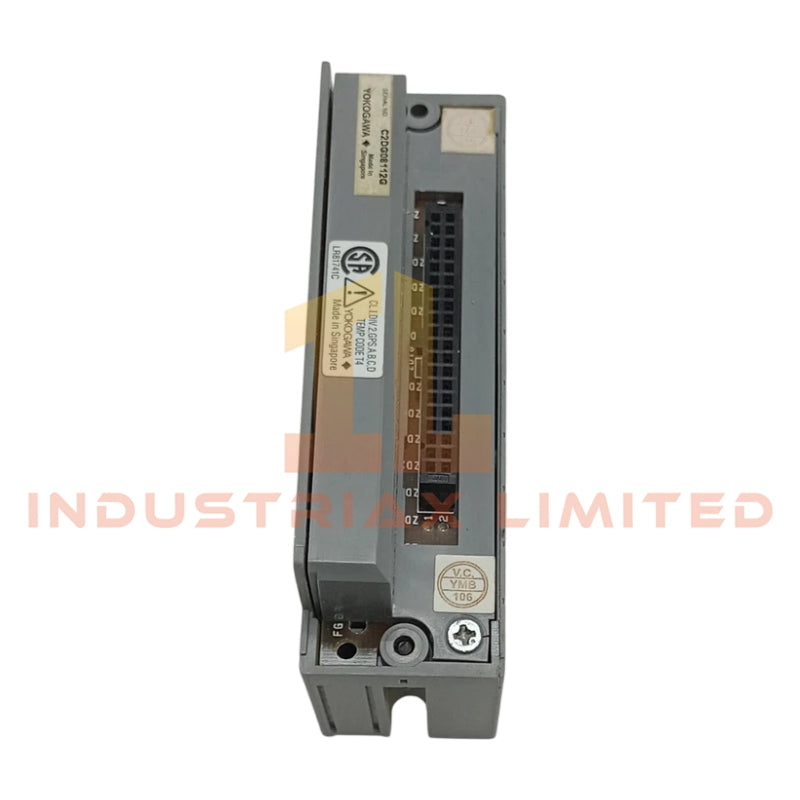

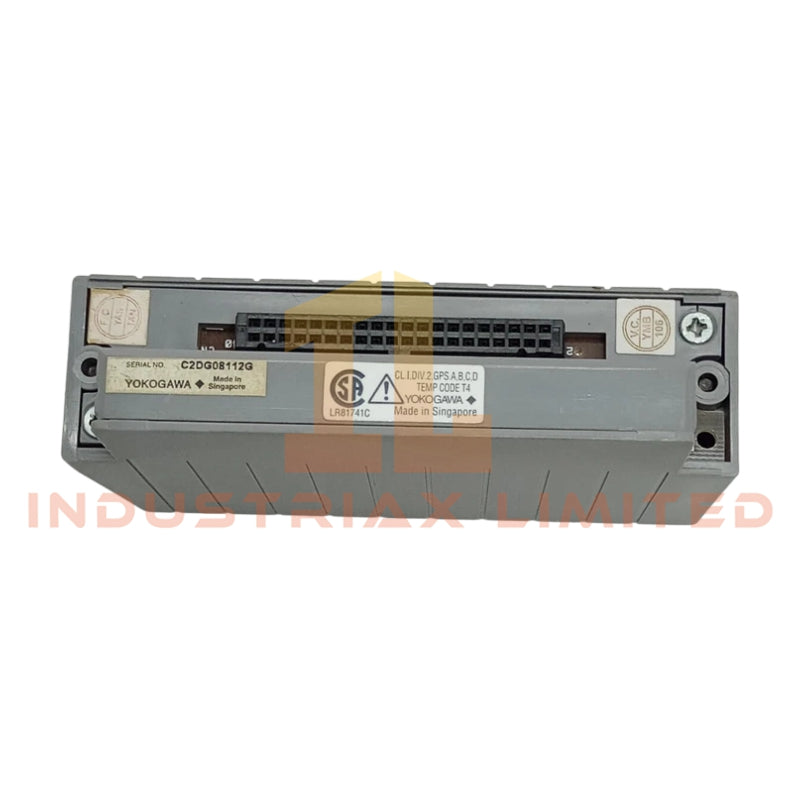

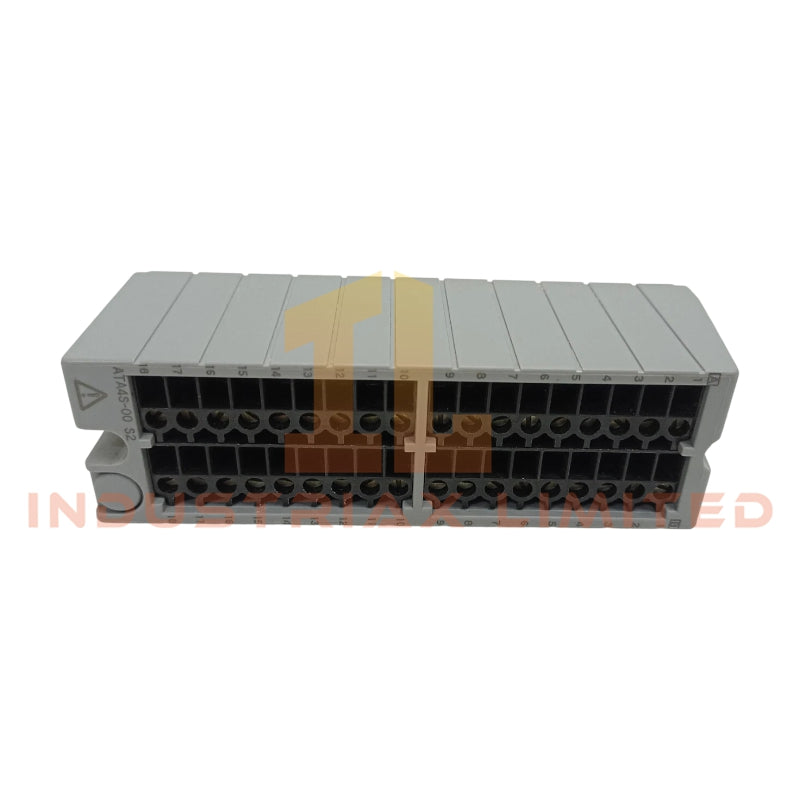

The ATA4S-00S2 from Yokogawa is a robust pressure clamp terminal block designed for seamless signal connection in automation systems. It provides reliable interfacing for both analog and digital inputs, ensuring stable communication between field devices and control units.

Technical Specifications

• Model Number: ATA4S-00S2

• Manufacturer: Yokogawa

• Product Type: Pressure Clamp Terminal Block

• Number of Channels: 16

• Supported Signals: Analog and digital

• Current Rating: 10 A

• Voltage Rating: 24 VDC

• Connection Type: Pressure clamp

• Operating Temperature: -20 to 70 C

• Dimensions (LxWxH): 100 mm x 50 mm x 30 mm

• Weight: 0.5 kg

• Mounting: DIN rail compatible

Applications
The ATA4S-00S2 is ideal for industrial control panels, automation cabinets, and distributed I/O systems. It is suitable for signal aggregation, secure wiring, and simplifying field-to-control system connectivity.

FAQ
Q: Can this terminal block handle both analog and digital signals simultaneously?
A: Yes, the ATA4S-00S2 is engineered to support mixed signal types on separate channels.

Q: What is the recommended wiring method?
A: Use standard copper conductors with insulation stripping according to the 10 A current rating. Pressure clamp terminals provide secure and vibration-resistant connections.

Q: Are there similar models for comparison?
A: Yokogawa offers ATA4S-00S1 for lower channel counts and ATA4S-00S3 for higher voltage applications, with similar pressure clamp functionality.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
