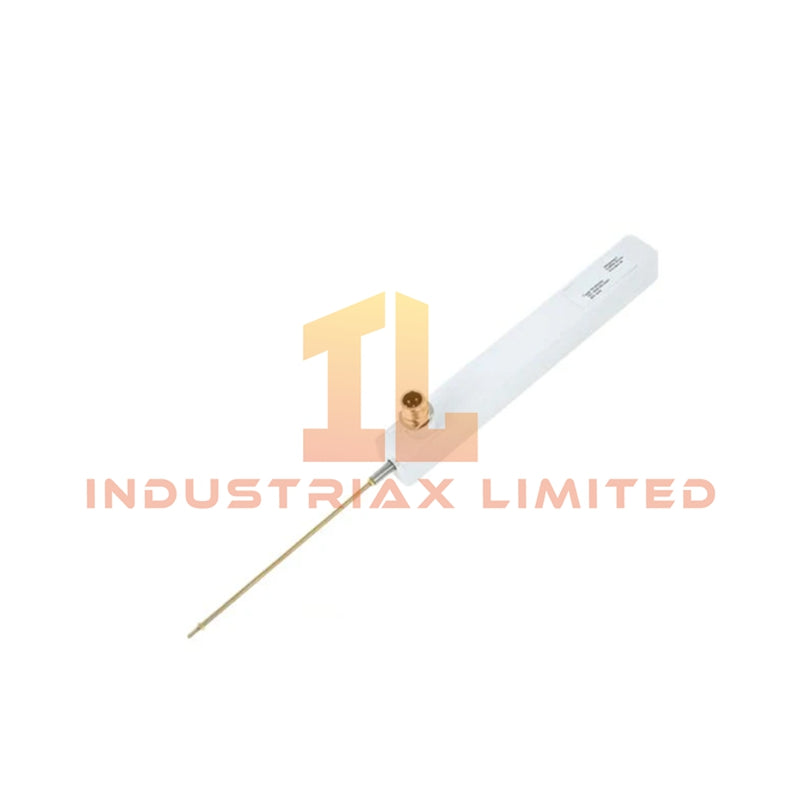

The PR9350/04 is a high-precision LVDT (Linear Variable Differential Transformer) sensor engineered for critical turbomachinery applications, including steam, gas, and hydro turbines, compressors, pumps, and fans. Built to operate under extreme environmental conditions, this sensor provides accurate measurement of radial and axial shaft displacement, position, and eccentricity.
Key Features
-
Rugged and durable design suitable for harsh operating conditions
-
High-accuracy displacement measurement with minimal linearity error
-
Easy integration into existing systems with standard connectors and solenoid plunger accessories
-
Reliable performance in continuous and demanding turbomachinery operations
Technical Specifications
| Parameter |
Specification |
| Measurement Range |
±50 mm |
| Sensitivity |
270 mV/V |
| Linearity Error |
2.5% |
| Operating Temperature |
-20 to 100°C (-4 to 212°F) |
| Temperature Error |
<3% |
| Supply Voltage |
5 Vrms |
| Carrier Frequency |
3–5 kHz |
| Capacitance |
250 pF (per winding) |
| Sensor Type |
LVDT (Linear Variable Differential Transformer) |
| Accessories |

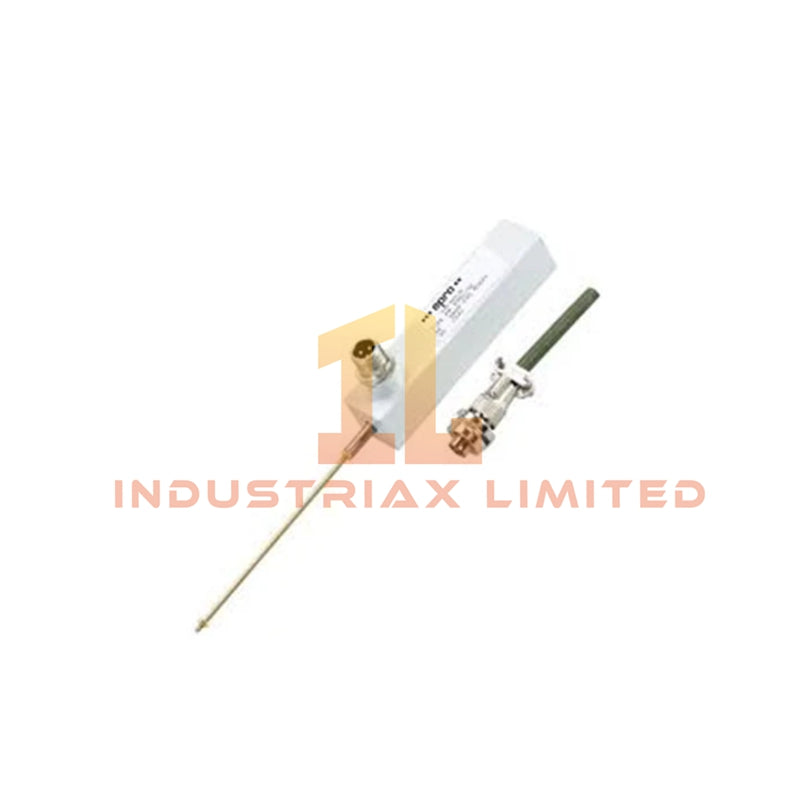

Solenoid plunger with M3 threaded rod, Cannon CA06COME10SL3S44 connector |
Applications
Ideal for monitoring and measuring dynamic shaft behavior in turbines, pumps, compressors, and industrial fans where precision and durability are essential. Its performance ensures reliable operation in both high-temperature and high-vibration environments.
FAQ
Q: Can the PR9350/04 sensor operate in temperatures below -20°C?
A: The recommended operating range is -20 to 100°C. Operation outside this range may affect sensor accuracy.
Q: What is the main difference between PR9350/04 and PR9350/06?
A: The PR9350/06 supports a larger displacement range of ±75 mm with slightly higher sensitivity (310 mV/V) and better linearity (2.0%), making it suitable for applications requiring extended measurement travel.
