Description
Product Description
Overview

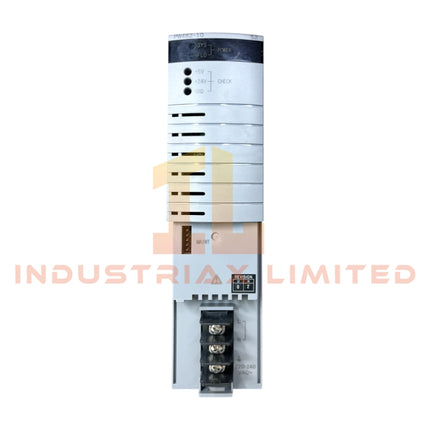

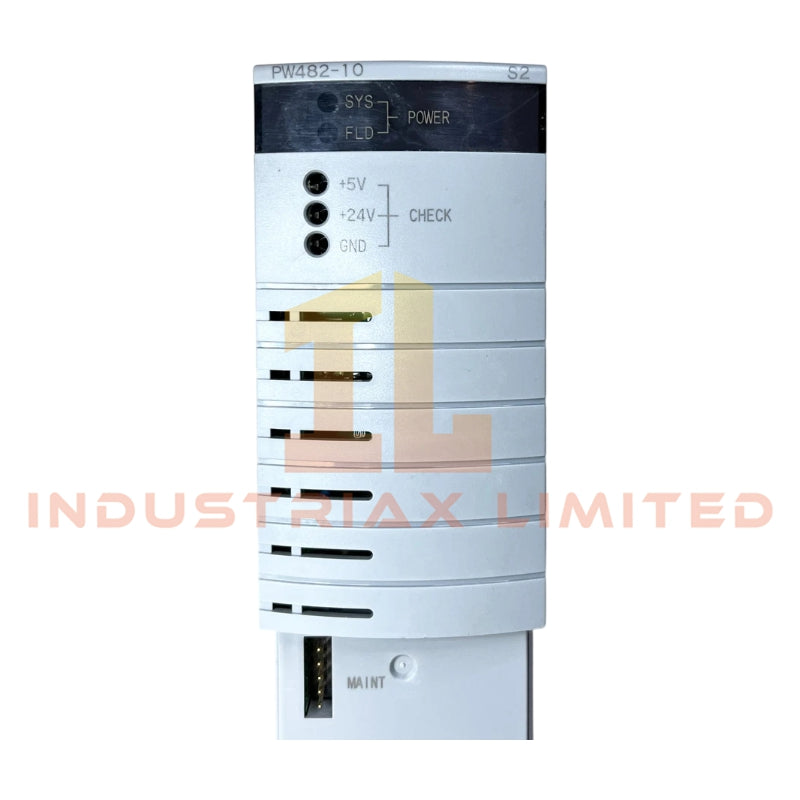

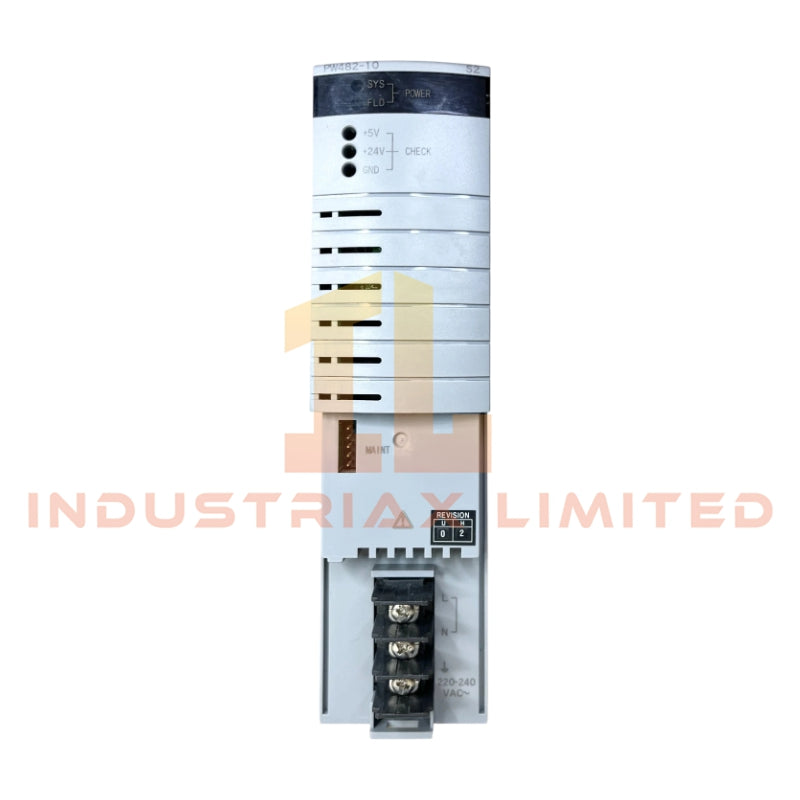

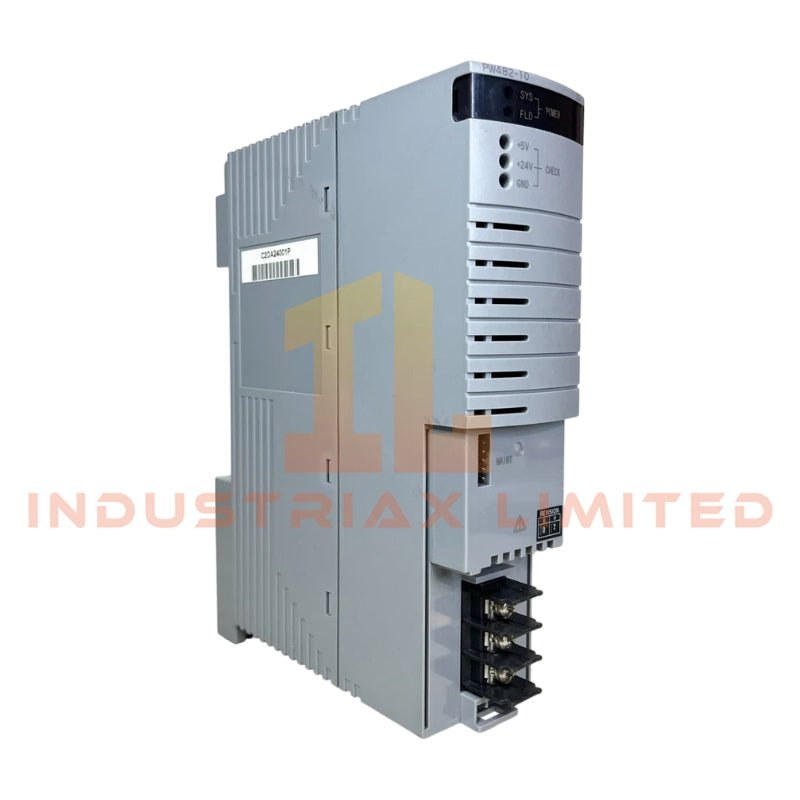

The PW482-10 power supply module by Yokogawa provides stable, high-efficiency DC power for critical industrial systems. It supports both high-power and low-power output configurations, allowing flexible deployment in Field Control Units, Node Units, and Bus Repeater Units. Designed for continuous operation under a wide range of environmental conditions, this module ensures reliable performance and protection against electrical faults.
Technical Specifications
| Parameter |
Specification |
| Model |
PW482-10 |
| Manufacturer |
Yokogawa |
| Condition |
Brand New, in stock |
| Input Voltage |
100-120 V AC or 220-240 V AC depending on model |
| Frequency |
50/60 Hz |
| Output Voltage |
High-power: +12 V DC and +24 V DC |
|
Low-power: +24 V DC |
| Output Current |
High-power: 40 A at 12 V DC (480 W total) |
|
Low-power: unspecified, likely lower current rating |
| Operating Temperature |
-20°C to +70°C |
| Dimensions |
5.1 cm × 20.3 cm × 15.2 cm (2.0 × 8.0 × 6.0 inches) |
| Weight |
Approximately 0.9 kg (1 lb 16 oz) |
| Features |
Overload protection, short-circuit protection, wide temperature range |
| Type of Power Supply |
Industrial input power supply module |
| Mounting |
Compatible with Yokogawa control units and racks |
Applications
The PW482-10 module is suitable for:
-
Field Control Units (FCU)
-
FIO Node Units
-
Optical ESB Bus Repeater Units
-
Systems requiring both high-power and low-power DC output
FAQ
Q: Does the PW482-10 support multiple input voltages?
A: Yes, it can operate on both 100-120 V AC and 220-240 V AC, depending on the installed version.
Q: What is the maximum output power?
A: The high-power configuration provides 480 W at 12 V DC. Low-power versions have lower output.
Q: Is the module protected against faults?
A: Yes, it includes overload and short-circuit protection.
Comparison with Similar Models
-
PW481: Supports lower AC input voltage with smaller output power
-
PW482-10: High-power DC output with dual voltage options and wide operating temperature
-
PW484: DC input module designed for specialized low-voltage applications
