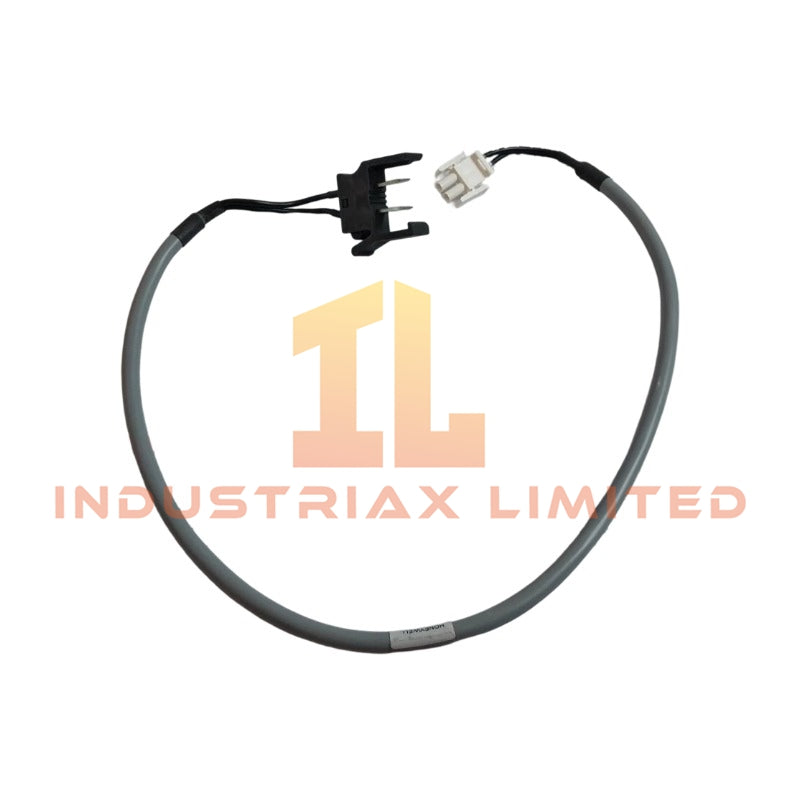

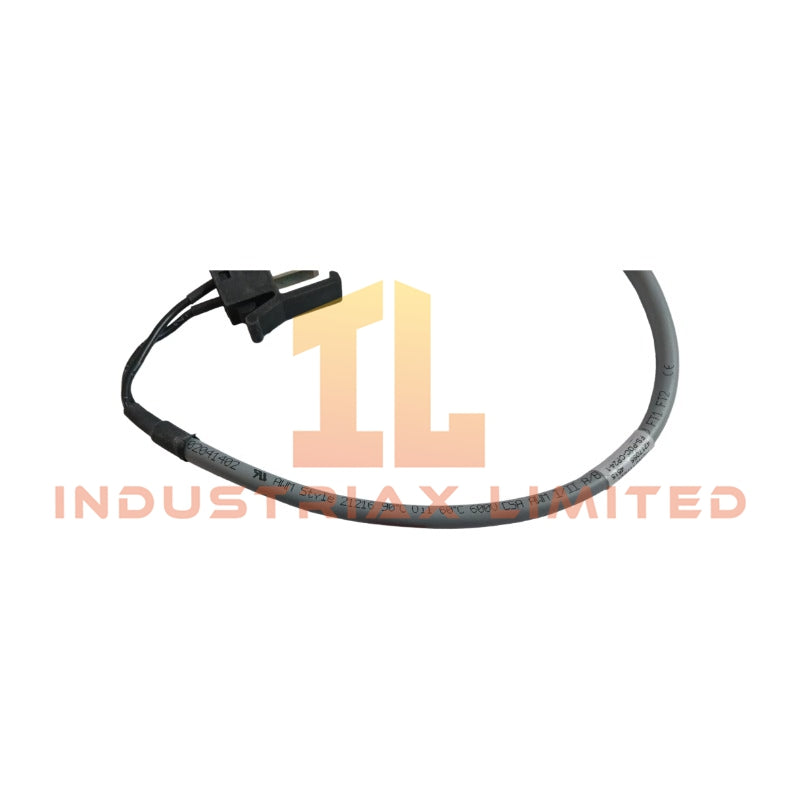

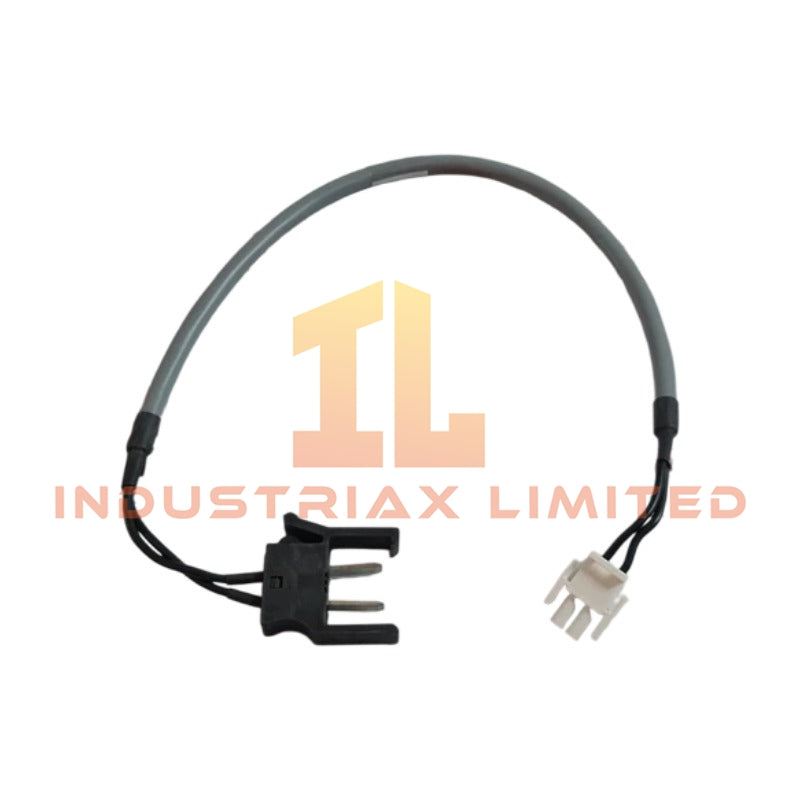

Honeywell FS-PDC-MB24-1P Power Distribution Cable

Configured for 24 VDC power transfer in Honeywell Safety Manager systems, the Honeywell FS-PDC-MB24-1P (FS-PDC-MB24-1P Power Distribution Cable) provides direct electrical connection between the FS-MB-0001 main power rail and 24 VDC distribution components.

Hardware Specifications

Parameter	Specification
Model	FS-PDC-MB24-1P
Brand	Honeywell
Product Type	Power Distribution Cable
Origin	USA
Weight	0.55 kg
Dimensions	30.8 x 12.1 x 5.5 cm
Operating Temp	-20 to +70 deg C
Voltage Rating	24 VDC +/-20 %
Current Rating	Typically 5-10 A
Continuous Current Rating	1 A
Cable Length	145 cm
Conductor Type	CC600 2 x 6 mm2 cable construction
Conductor Size	2 x 6 mm2 (AWG 10)
Main Rail Connector	D-TAB-200-STR 2-pole Squeeze-To-Release connector
Board Side Connector	Weidmuller BVZ 7.62HP/02F SN keyed header
Keying Type	Weidmuller BV/SV7.62HP KO 24 VDC keying
Tariff Code	8537101190

Safety Manager Power Distribution Interface

The FS-PDC-MB24-1P transfers 24 VDC power from the Honeywell FS-MB-0001 main power rail to power distribution boards and field termination assemblies. The cable uses a 2-pole power connection design to maintain correct polarity during installation.

Furthermore, the keyed Weidmuller connector on the FTA or board side prevents incorrect insertion. The mechanical keying arrangement supports controlled 24 VDC power routing inside Safety Manager cabinet assemblies.

The cable construction uses CC600 2 x 6 mm2 conductors, which provide the required current carrying capability for cabinet-level power distribution. The 145 cm cable length supports standard control cabinet layouts while maintaining direct connection between power rails and connected assemblies.

Frequently Asked Questions

Q: What power interface does the FS-PDC-MB24-1P connect to?
A: The FS-PDC-MB24-1P connects the FS-MB-0001 main power rail to Honeywell 24 VDC power distribution boards and compatible FTA assemblies.

Q: Does the FS-PDC-MB24-1P include polarity protection?
A: Yes. The cable uses a keyed Weidmuller connector system to prevent incorrect polarity connection during installation.

Q: What conductor construction does the FS-PDC-MB24-1P use?
A: The cable uses CC600 2 x 6 mm2 conductors with industrial insulation for 24 VDC cabinet power distribution applications.

Field Installation Guidelines

Install the FS-PDC-MB24-1P between the designated FS-MB-0001 power rail connection point and the approved 24 VDC distribution interface.

Before installation, verify that the cabinet power source is isolated and confirm connector keying alignment. Do not force the keyed connector into the mating socket because incorrect mechanical alignment can damage the connection interface.

Route the cable away from high-voltage AC wiring, high-frequency switching devices, and sources of electromagnetic interference. Maintain proper cable separation and secure the cable using standard cabinet routing methods.

Inspect conductor insulation, connector locking features, and mechanical strain points before energizing the 24 VDC distribution circuit. Confirm correct polarity and continuity after installation.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
