Description

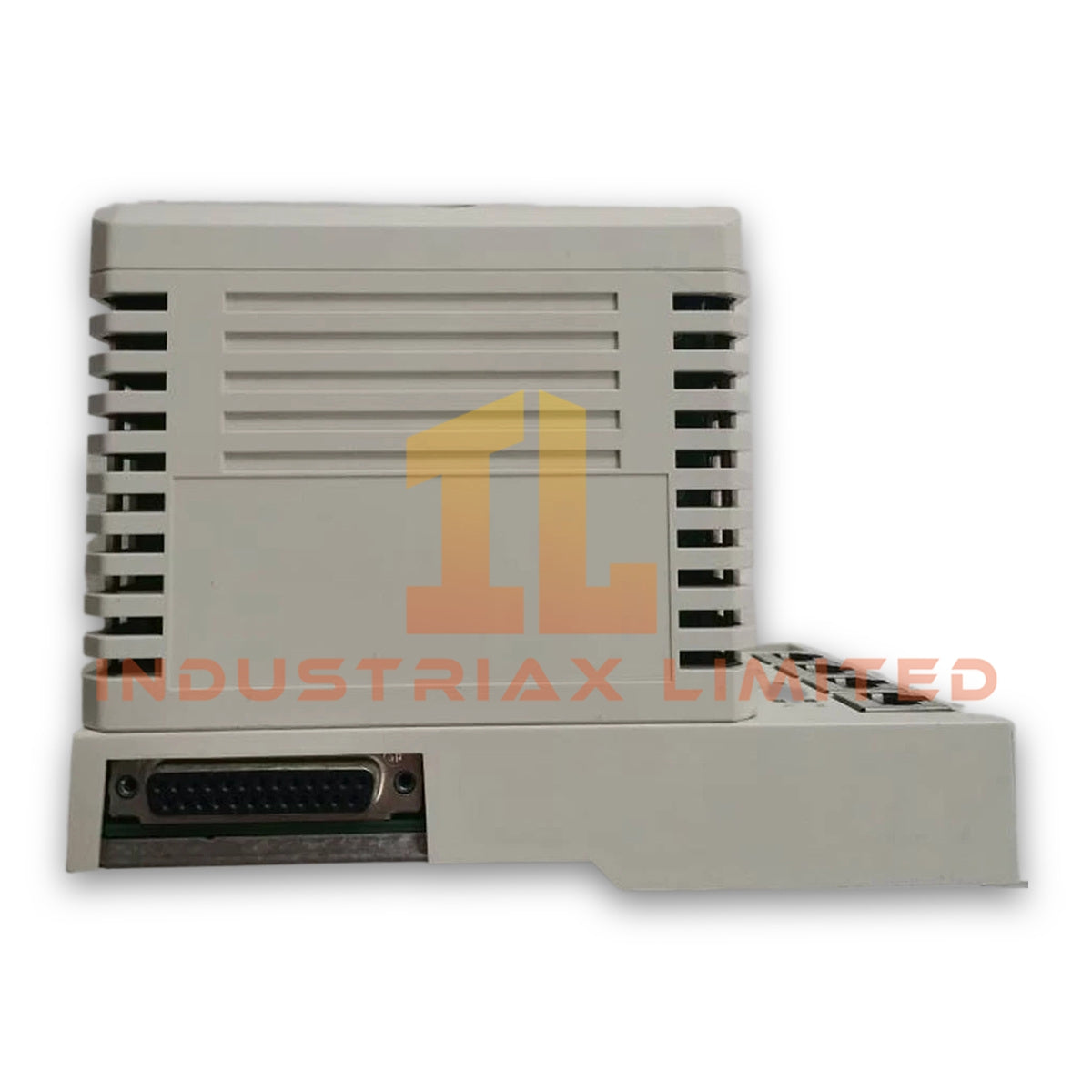

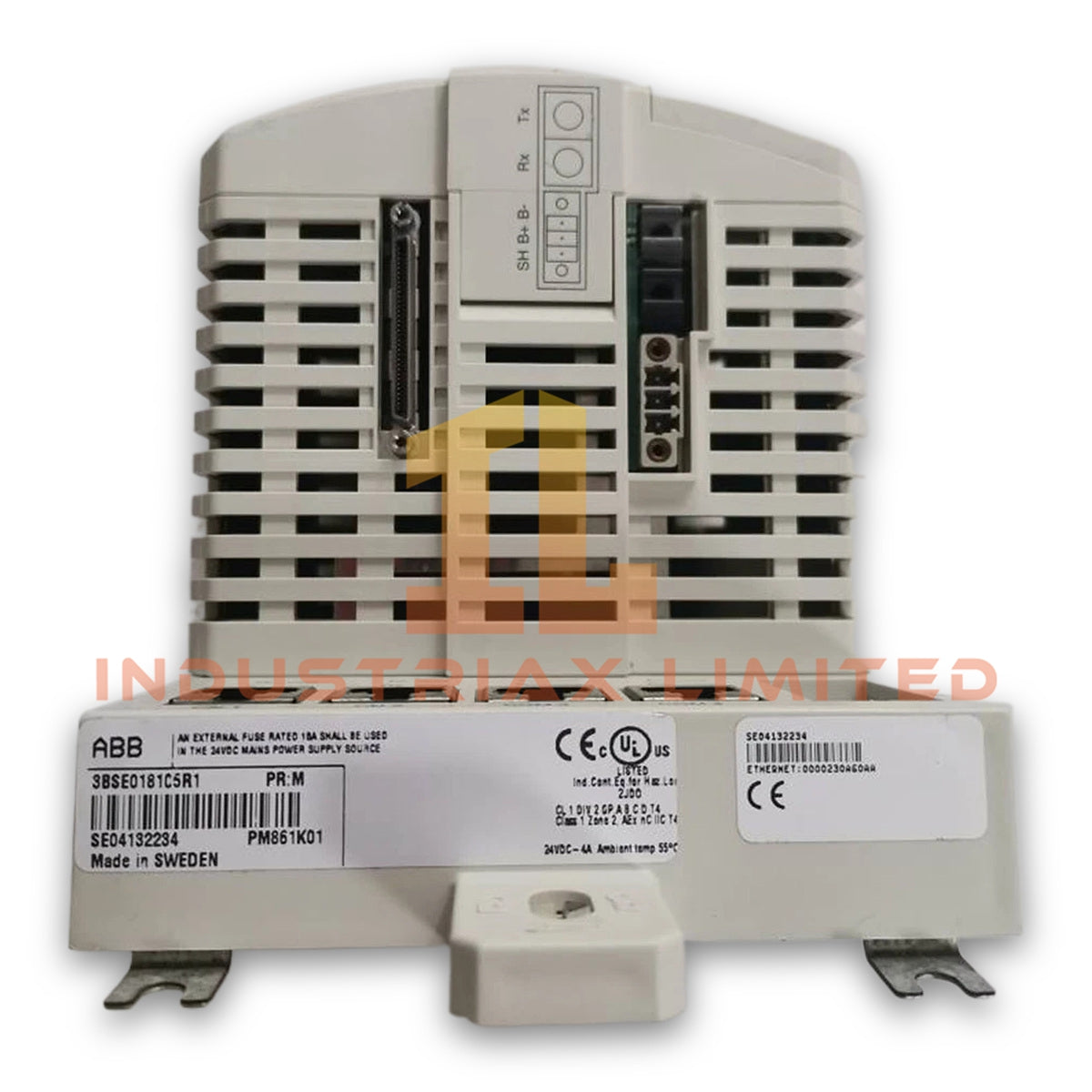

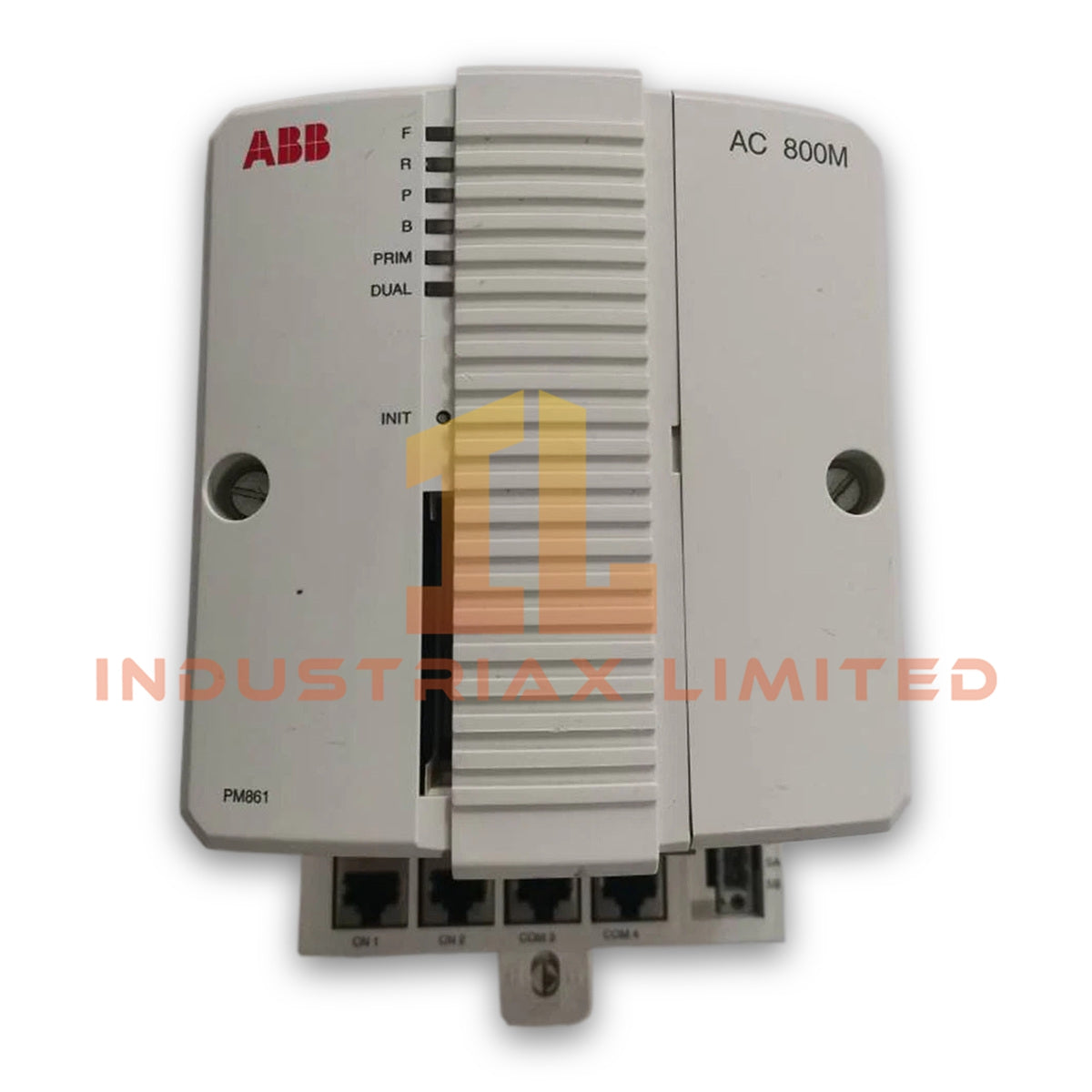

ABB PM861K01 Processor Unit

The ABB PM861K01 3BSE018105R1, also cataloged as the PM861K01 Processor Unit, operates as a dedicated hardware component for control execution, communication management, and application processing within the ABB AC 800M controller platform.

Hardware Specifications

Parameter	Specification
Model	PM861K01 3BSE018105R1
Brand	ABB
Product Type	Processor Unit
Controller Platform	ABB AC 800M
Processor Type	MPC8240
RAM	16 MB volatile memory
Flash Memory	8 MB non-volatile memory
Execution Performance	Basic instruction execution time approximately 0.2 ms
Communication Ports	2 x Ethernet ports, 2 x RS-232C serial ports
I/O Interface	ABB ModuleBus interface for S800 I/O systems
Redundancy Support	Supports CPU redundancy with compatible redundancy configuration
Power Supply	24 VDC system power via controller baseplate
Protection Class	IP20
Weight	Approx. 0.7 kg
Dimensions	Standard AC 800M module format
Origin	Sweden

Industrial Control Bus and Firmware Compatibility

The PM861K01 uses the ABB AC 800M controller architecture to execute application logic and exchange process data through the controller communication infrastructure. Furthermore, the processor unit manages ModuleBus communication with S800 I/O modules and supports firmware compatibility control during system configuration.

The unit provides Ethernet-based communication channels for controller networking and MMS communication. In addition, the RS-232C interfaces support engineering tools, serial devices, and legacy communication connections.

Frequently Asked Questions

Q: Does the PM861K01 support ABB S800 I/O modules directly?
A: Yes. The PM861K01 communicates with ABB S800 I/O systems through the AC 800M ModuleBus interface.

Q: Can the PM861K01 operate in a redundant controller configuration?
A: Yes. The processor unit supports CPU redundancy when installed with compatible redundancy hardware and configured system software.

Q: What memory resources are available in the PM861K01?
A: The module contains 16 MB RAM for application execution and 8 MB flash memory for firmware and non-volatile storage.

Field Installation Guidelines

• Install the PM861K01 in an ABB AC 800M controller assembly using the specified mounting base and mechanical locking system.
• Verify that the 24 VDC system power connection matches the controller power requirements before energizing the module.
• Ensure Ethernet communication cables follow industrial wiring practices and maintain separation from high-voltage power conductors.
• Connect protective grounding according to the cabinet grounding design and maintain proper shielding for communication cables.
• Confirm firmware compatibility between the processor unit, engineering tools, and connected I/O modules before commissioning.
• Inspect ModuleBus connections for correct seating before applying system power.

Specifications

• Brand: ABB

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
