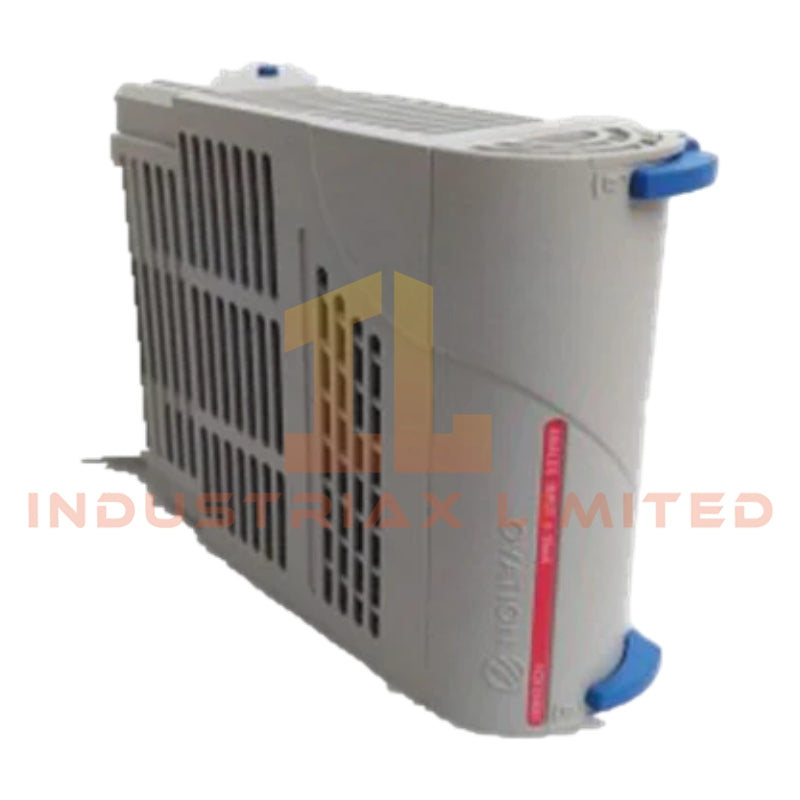

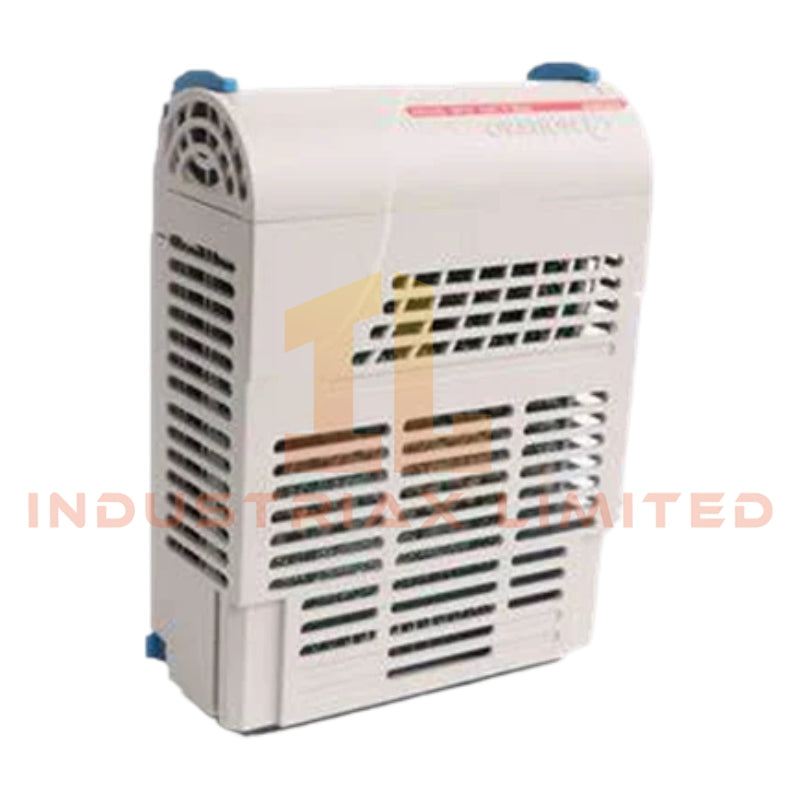

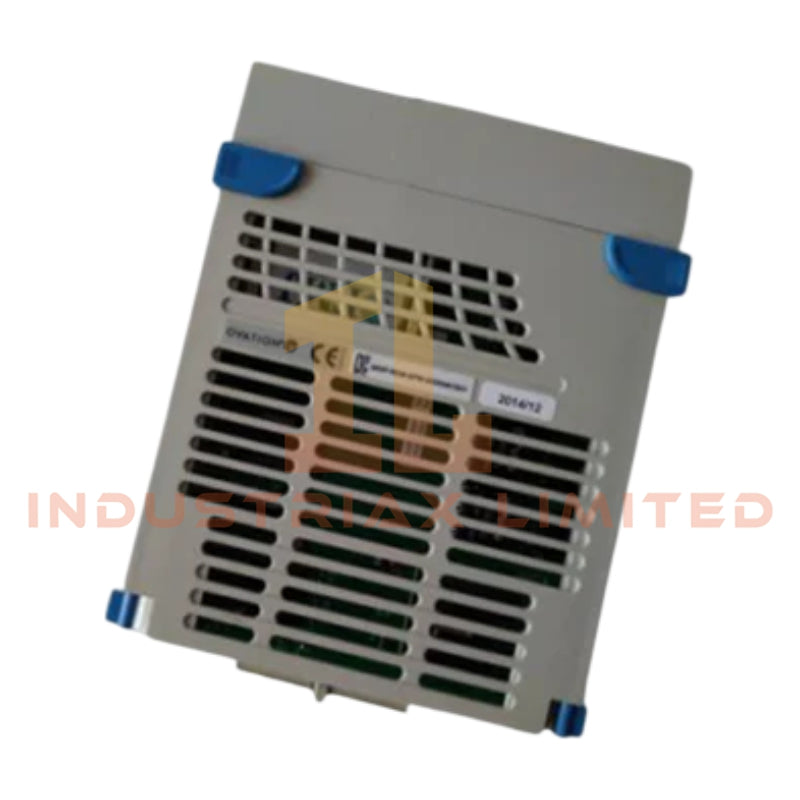

The Ovation32 Digital Output Module (Model 5X00500G01) is a high-performance 32-channel output device for the Ovation Distributed Control System (DCS). Engineered for reliability and flexibility, it efficiently manages digital control signals while ensuring system safety and integrity.
Key Features
-
32 Current Sourcing Outputs: Each channel can source up to 500 mA, with a maximum cumulative output current of 2 A.
-
Positive 24 VDC Load Switching: Enables direct control of external devices such as relays and actuators.
-
Field Power Source: Operates using cabinet auxiliary 24 VDC power, reducing dependency on external power supplies.
-
Galvanic Isolation: Provides ±1000 VDC isolation between field devices and logic circuitry, enhancing system robustness.
-
Hot-Swap Capable: Allows module replacement without shutting down the entire control system.
-
Field Power Detection: Continuously monitors field voltage availability to prevent unexpected operation errors.
-
Embedded Electronic ID: Stores module metadata including type, group, serial number, and revision for easy identification.
-
Configurable Software Timeout: Customizes communication timeouts and defines output reset or latch behavior.
-
Inductive Kick Protection: Safeguards the module against voltage spikes from inductive loads.
Technical Specifications
| Specification |
Details |
| Channels |
32 Digital Output |
| Output Type |
Current Sourcing |
| Maximum Output per Channel |
500 mA |
| Total Maximum Output |
2 A |
| Load Voltage |
24 VDC |
| Isolation Voltage |
±1000 VDC (Field-to-Logic) |
| Power Supply |
Cabinet 24 VDC Auxiliary |
| Hot-Swap Support |
Yes |
| Embedded ID |
Module type, group, serial, revision |
| Inductive Protection |
Yes |
| Communication Timeout |
Configurable via software |
Applications
The Ovation32 Digital Output Module is ideal for controlling relays, actuators, and other digital loads in power plants, chemical processing, and other critical DCS environments where reliability and system uptime are essential.
