Description

Product Description

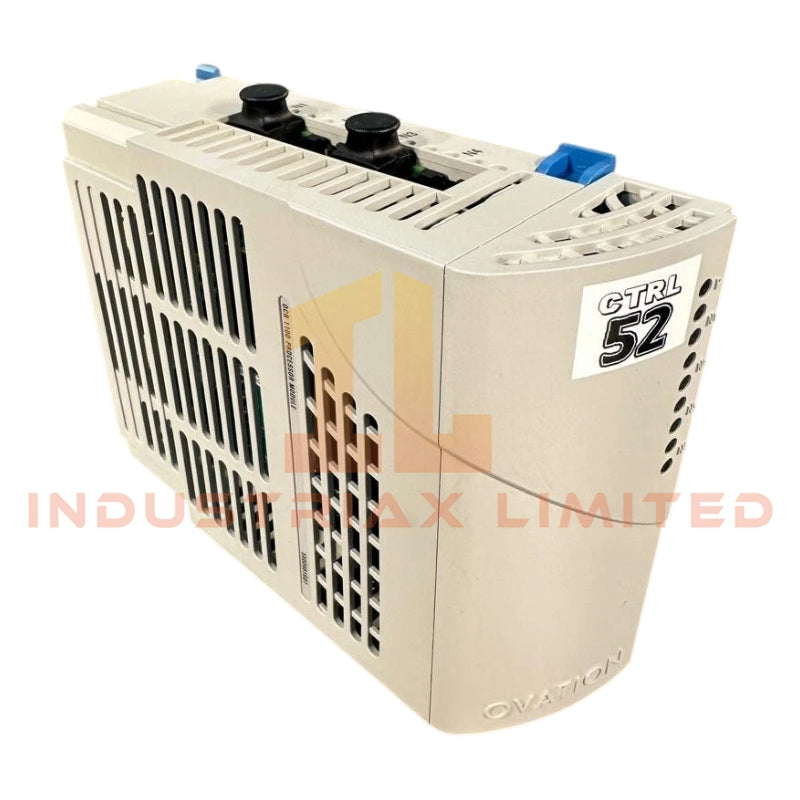

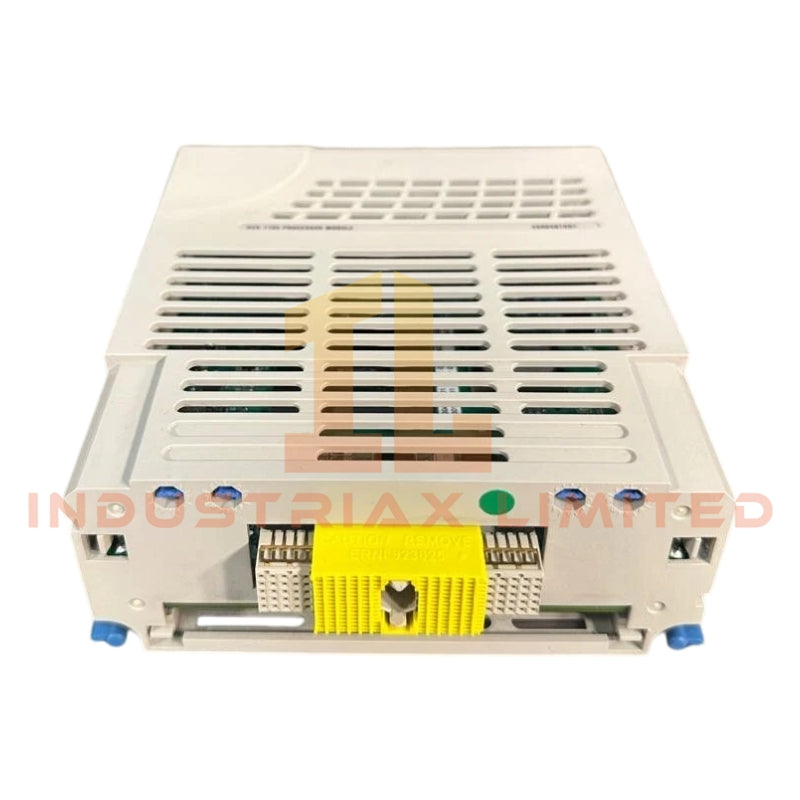

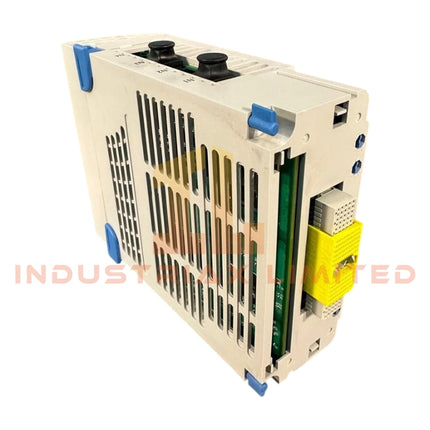

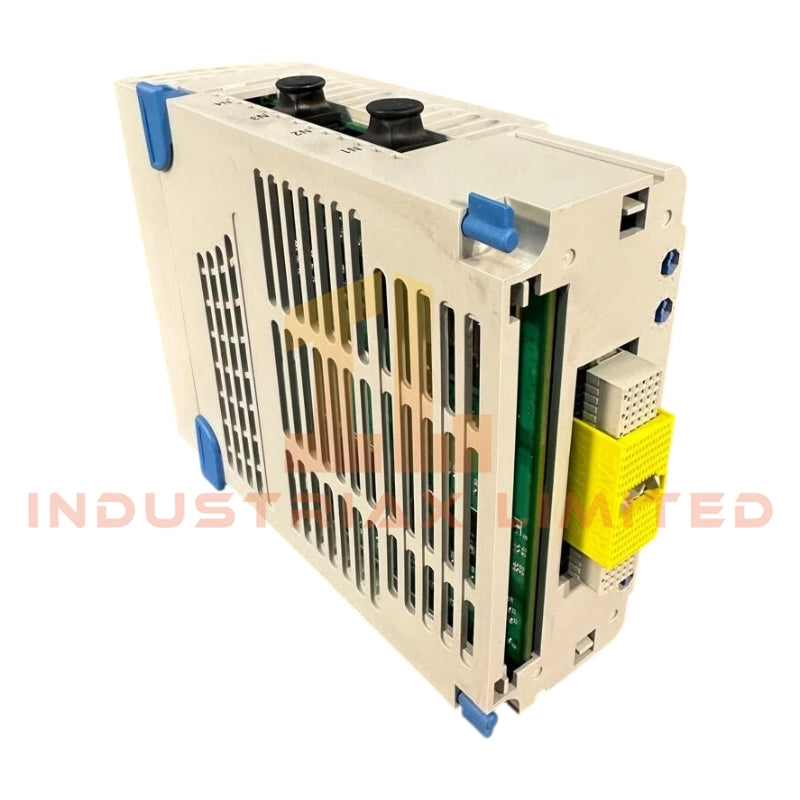

The Ovation 5X00481G01 is a critical processing unit for the Ovation distributed control system (DCS), designed for reliable operation in demanding industrial environments. It serves as the oCR1100 Controller Atom CPU Module, providing precise control and communication capabilities across power generation, oil and gas, and water and wastewater treatment applications.

Technical Specifications

Processor and Memory

• Processor: Intel Atom E6400

• Clock Speed: 1.2 GHz

• RAM: 1 GB DDR2 SDRAM

• Storage: 4 GB solid-state drive

Operating System

• Windows Embedded Standard 7

Connectivity

• Ethernet: 2 ports (10/100/1000 Mbps)

• USB: 2 ports

• Serial: 1 RS-232 port

Environmental and Mechanical Parameters

• Operating Temperature: -40°C to 70°C (-40°F to 158°F)

• Storage Temperature: -55°C to 85°C (-67°F to 185°F)

• Humidity: 0% to 95% non-condensing

• Vibration Resistance: 5–35 Hz, 0.8 mm peak-to-peak

• Shock Resistance: 15 g, 11 ms half-sine

Applications

• Centralized control for power plants

• Automation in oil and gas production and refining

• Water treatment and wastewater management

• Integration with other Ovation modules for real-time monitoring

FAQ

Q: Can the 5X00481G01 module be used in extreme temperature conditions?
A: Yes, it is rated for operation from -40°C to 70°C and can withstand storage temperatures down to -55°C.

Q: How many network connections are supported?
A: This module provides 2 Ethernet ports, allowing redundancy and reliable communication.

Q: What operating system is installed?
A: Windows Embedded Standard 7 comes pre-installed, ensuring compatibility with Ovation software.

Q: Are there similar modules with higher performance?
A: The oCR1200 series offers enhanced CPU speed and memory for high-demand applications.

Specifications

• Brand: EMERSON

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
