Description
Product Overview

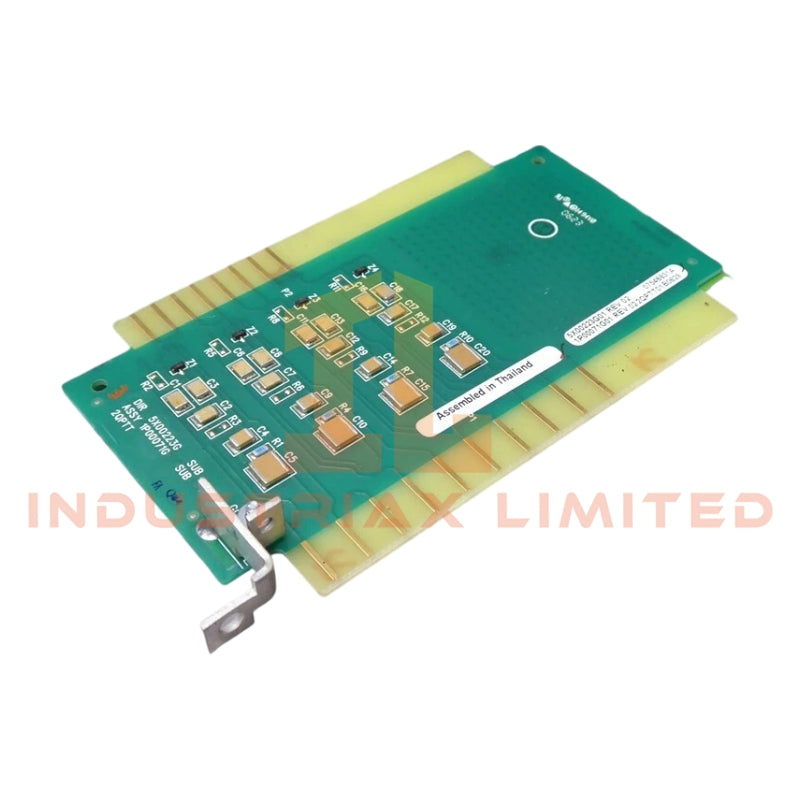

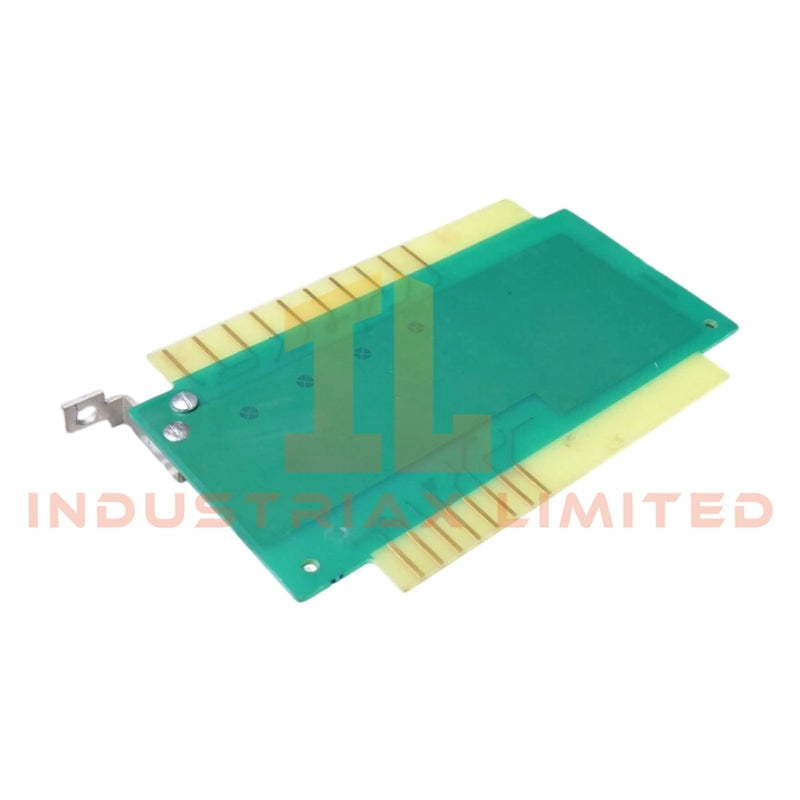

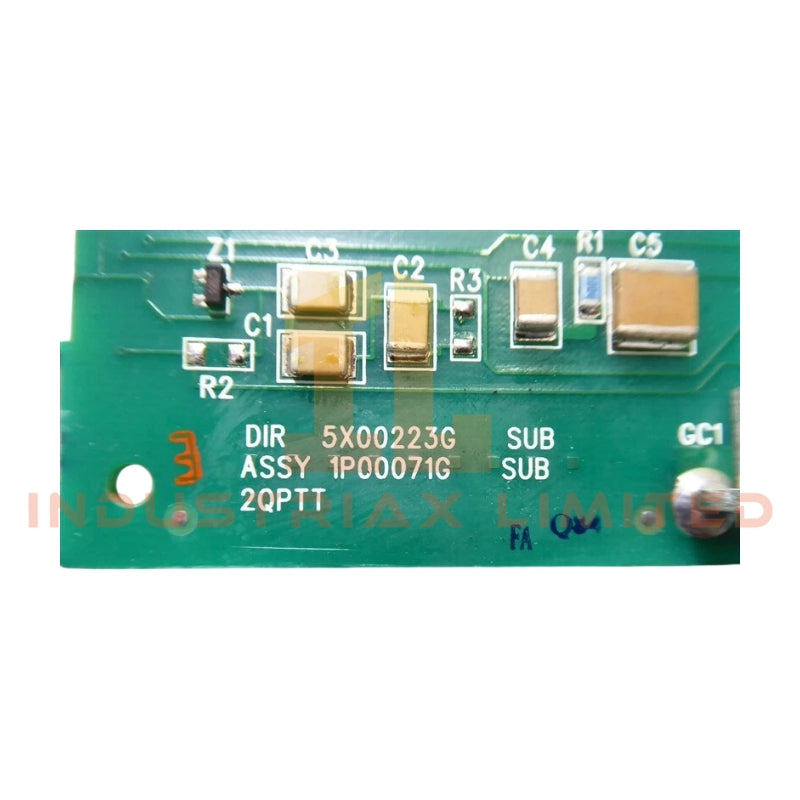

The 5X00223G01 serves as a high-performance digital output interface within the Emerson Ovation distributed control system (DCS). Engineered for precision and reliability, this module facilitates the transmission of discrete control signals from the controller to critical field instrumentation. It is specifically designed to drive loads such as interposing relays, solenoid valves, and visual indicators. By utilizing a high-side sourced transistor architecture, the 5X00223G01 ensures stable switching performance while maintaining robust electrical isolation between the field circuitry and the logic backplane.
Technical Specifications
The following data outlines the electrical and environmental performance limits for the 5X00223G01 (P/N: 5X00223G01):
-
Channel Density: 16 Independent Output Channels
-
Output Circuitry: Sourced Transistor (High-Side Switching)
-
Nominal Operating Voltage: 24VDC
-
Maximum Voltage Drop (On-State): 1.0V at maximum rated load
-
Channel Current Rating: 0.5A maximum per channel
-
Module Aggregate Current: 4.0A total maximum across all channels
-
Leakage Current (Off-State): Less than 10 microamps
-
Switching Latency: 10 milliseconds or less
-
Galvanic Isolation: 500VAC (Tested channel-to-channel and channel-to-backplane)
-
Operating Temperature Range: -40 to +70 degrees Celsius
-
Storage Temperature Range: -40 to +85 degrees Celsius
-
Humidity Tolerance: 5% to 95% RH (Non-condensing)
-
Diagnostic Indicators: Individual channel status LEDs and module health indicators
Operational Capabilities
-
Hot-Swap Functionality: The 5X00223G01 supports live removal and insertion, allowing for module replacement without interrupting the power supply to the remaining I/O rack or shutting down the controller.
-
Noise Mitigation: Advanced opto-isolation protects internal logic from field-side electrical transients and electromagnetic interference (EMI).
-
Protection Circuitry: The module includes internal clamping to manage inductive flyback voltage when driving solenoid coils or relay mirrors.
Common Applications
-
Sequential control of pneumatic or hydraulic solenoid valves.
-
Interfacing with Motor Control Centers (MCC) via interposing relays.
-
Driving local HMI status lamps and audible alarms.
-
Safety interlocking logic in power generation and water treatment facilities.
Frequently Asked Questions
What is the difference between this module and a dry contact output?
The 5X00223G01 is a solid-state sourced transistor module, meaning it provides 24VDC directly to the load. A dry contact module acts only as a switch and requires an external power source to be wired in series with the contact.
Does this module require a specific terminal block?
Yes, for proper field wiring and signal integrity, this module should be paired with the standard Ovation I/O base or the specific redundancy-supporting terminal assembly recommended for the G01 series.
