Description
Product Description

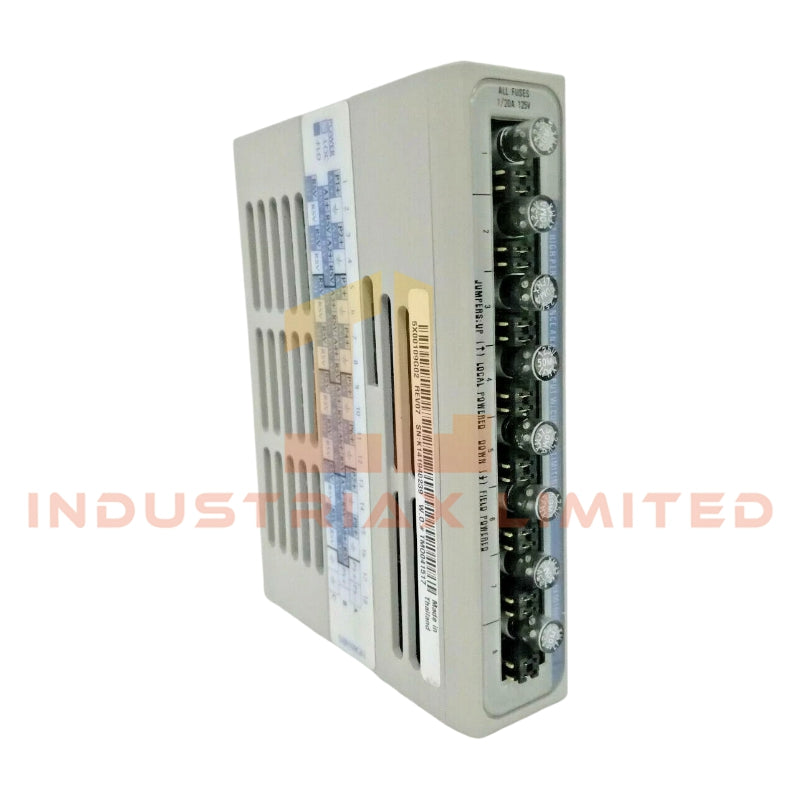

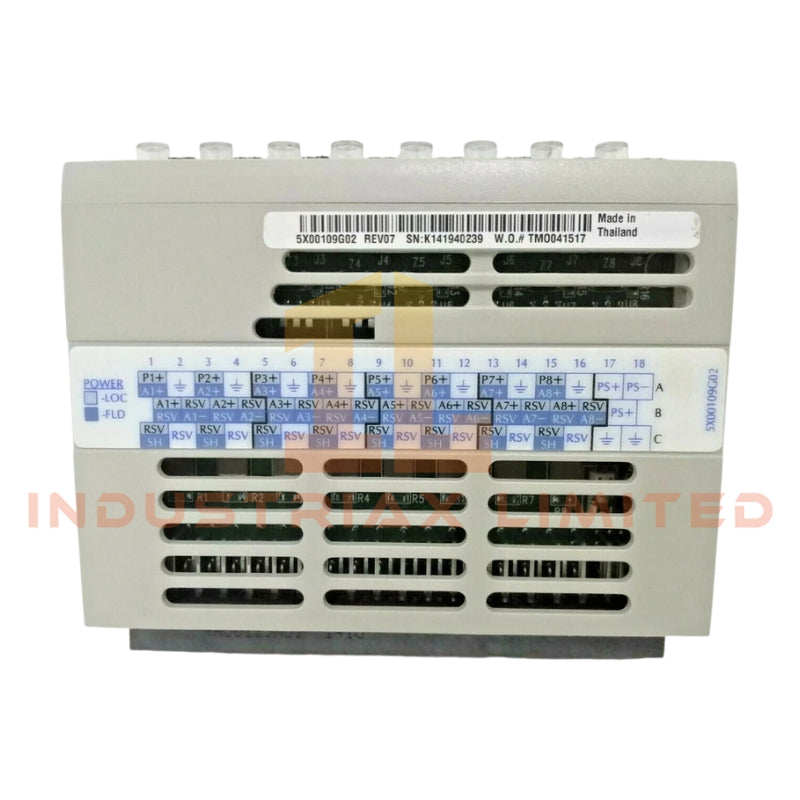

The Ovation 5X00109G02 is an advanced analog input module designed for high-performance control applications. It provides eight individually configurable input channels with fused protection and user-accessible jumpers, allowing each channel to operate with either field-powered or locally powered transmitters. The module incorporates active current limiting in two-wire mode, enhancing safety and signal integrity.
Compatibility
Technical Specifications
Signal and Channels
-
Input Signal Range: 4–20 mA
-
Number of Channels: 8
-
Channel Configuration: Field-powered or local-powered selectable via jumpers
-
Current Limiting: Active in two-wire mode
Electronics Modules
Environmental and Performance Features
-
High-performance design for accurate signal acquisition
-
Fused protection for each channel to prevent damage from electrical faults
-
Easy jumper access for flexible configuration
-
Stable operation under standard industrial conditions
Applications
-
Process monitoring in power generation, oil and gas, and water treatment plants
-
Integration with Ovation DCS for precise analog input processing
-
Systems requiring high reliability and individually configurable channels
FAQ
Q: How many channels does the 5X00109G02 module support?
A: This module supports eight input channels, each independently configurable.
Q: Can it operate with both field-powered and locally powered transmitters?
A: Yes, each channel can be individually set for either mode using user-accessible jumpers.
Q: Is it compatible with older Ovation releases?
A: It works with Ovation 3.4.0 and later, or 3.3.1 with patch OVA331063 installed.
Q: What safety features are included?
A: Each input channel includes fused protection, and two-wire mode features active current limiting.
Q: How does this module compare to 5X00109G01?
A: The 5X00109G02 provides the same functionality but includes updated compatibility with newer Ovation software releases and improved channel current limiting.
