Product Description
Overview

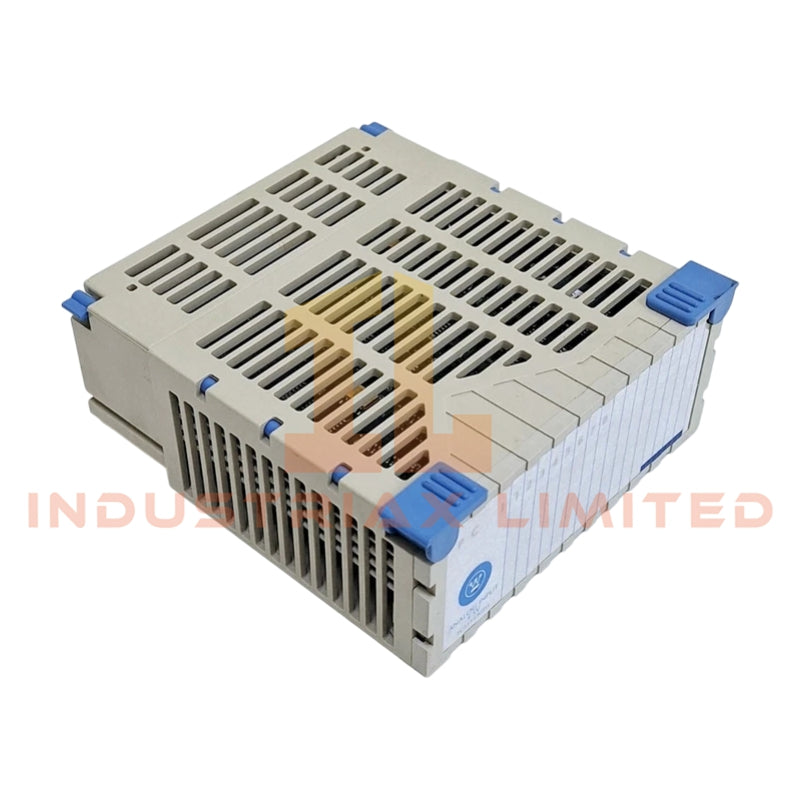

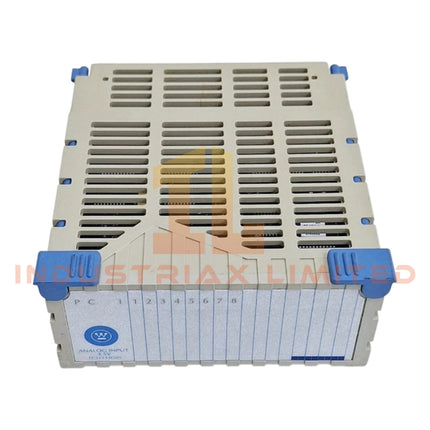

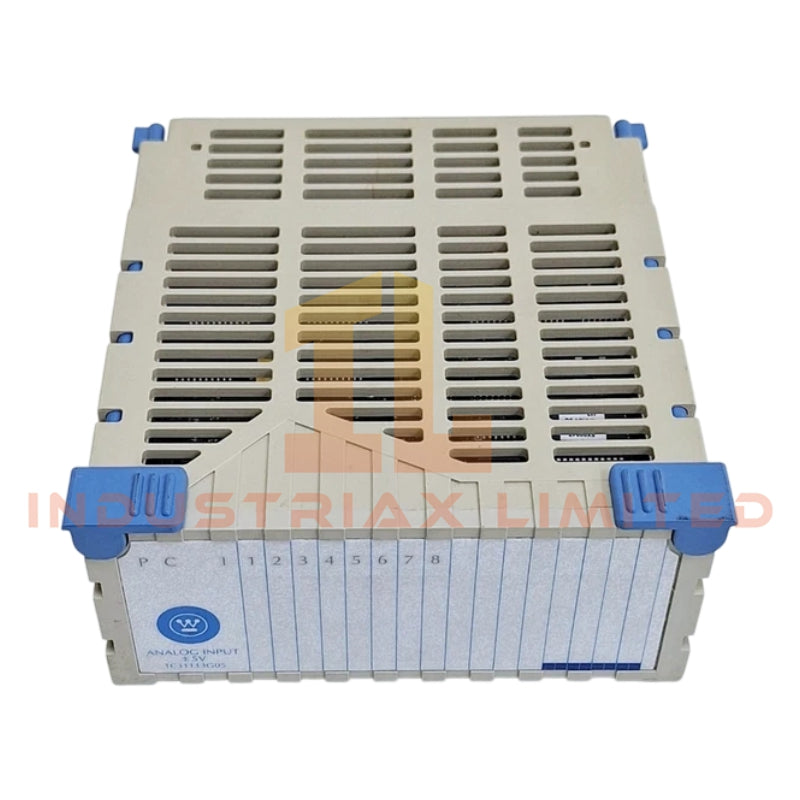

The Ovation 1C31113G05 is a high-precision analog input module designed to capture voltage and current signals in control systems. Supporting ±5 V input range with 13-bit resolution, it ensures accurate data acquisition for complex automation applications. The module can also be configured for 0-20 mA or 4-20 mA field-powered input, allowing flexible integration into diverse system architectures.
Key Features
-
Model & Part Number: 1C31113G05
-
Functionality: Analog Input Module for voltage and current signals
-
Voltage Input Range: ±5 V
-
Current Input: Configurable for 0-20 mA or 4-20 mA (field-powered)
-
Resolution: 13-bit
-
Field Power Options: Selectable via I/O Builder
-
Manufacturer: Ovation
Applications
The module is suitable for applications requiring high-fidelity analog signal processing, including:
-
Distributed control systems (DCS)
-
Process monitoring and instrumentation
-
Multi-channel data acquisition systems
-
Safety-critical control loops
FAQ
Q: Can this module operate with both voltage and current signals simultaneously?
A: The 1C31113G05 supports configurable input modes, but only one mode (voltage or current) can be active per channel at a time.
Q: What is the maximum number of channels supported?
A: Each module provides eight analog input channels.
Q: Are there alternative Ovation modules for higher resolution or wider voltage range?
A: Yes, models such as 1C31114G0 offer 16-bit resolution, and 1C31115G0 supports ±10 V input.
Technical Specifications Table
| Specification |
Details |
| Part Number |
1C31113G05 |
| Module Type |
Analog Input Module |
| Input Voltage Range |
±5 V |
| Input Current Range |
0-20 mA or 4-20 mA (field-powered) |
| Resolution |
13-bit |
| Channels |
8 |
| Configuration Tool |
I/O Builder |
| Manufacturer |
Ovation |
