Description
Product Description
Overview

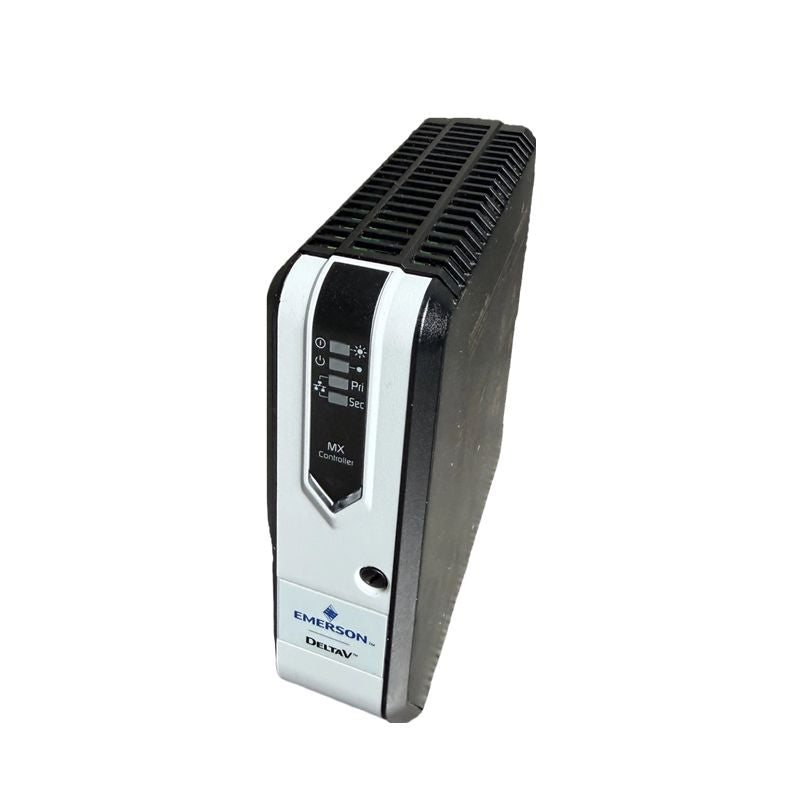

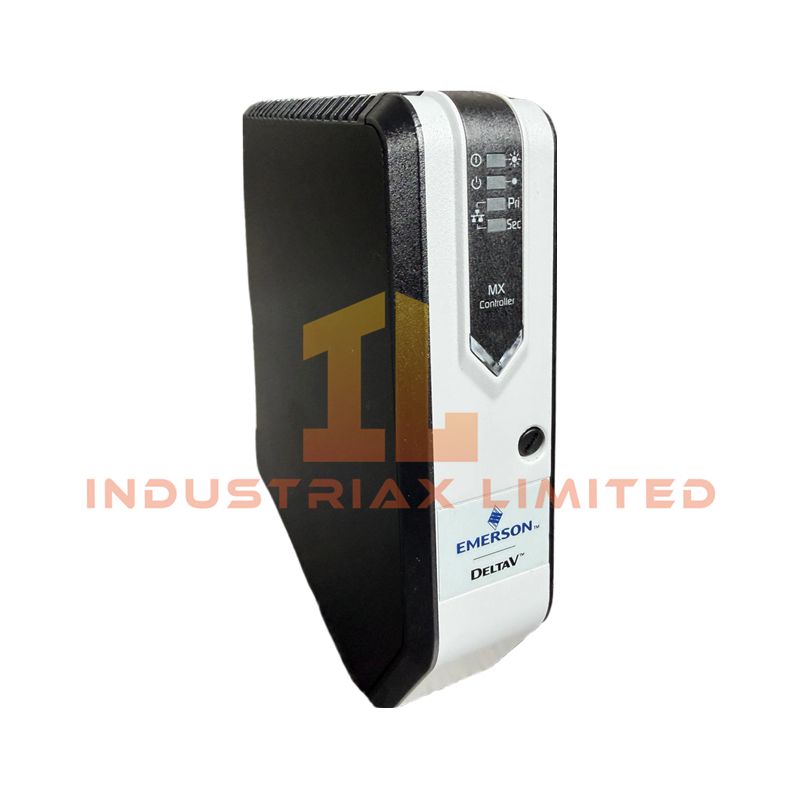

The KJ2005X1-BA2 is a DeltaV series MX Controller designed for process control applications in hazardous environments. This module is certified for installation in Zone 2 / Division 2 hazardous areas and complies with multiple international explosion-proof standards. Its rugged design ensures reliable operation under extreme temperatures, vibration, and humidity conditions.
Technical Specifications Table
| Parameter |
Specification |
| Model |
KJ2005X1-BA2 |
| Power Supply |
+5 VDC, 1.4 A |
| Operating Temperature |
-40°C to +60°C |
| Shock |
10g, half-sine, 11 ms |
| Vibration |
1 mm (2–13.2 Hz), 0.7g (13.2–150 Hz) |
| Airborne Contaminants |
ISA-S71.04 Class G3 |
| Relative Humidity |
5–95%, non-condensing |
| Explosion Proof Certification |
II 3G Ex ec IIC Gc, AEx/Ex ec IIC Gc, Class I Div 2 GP A,B,C,D |
| Key Standards |
FM19ATEX0173U, IECEx FMG 19.0019U, FM21UKEX0017U, FM17CA0145U, FM17US0286U |
Installation and Maintenance Notes
-
Do not install or remove the module in hazardous areas while powered
-
No user-serviceable parts; disassembly is prohibited
-
No calibration required
-
Reference Documents: 12P2046 “DeltaV™ Scalable Process System Zone 2 Installation Instructions” and “DeltaV™ M-Series Hardware Installation and Reference Manual”
Application Scenarios
Ideal for chemical, pharmaceutical, energy, and other industrial process environments requiring explosion-proof and high-reliability control.
FAQ
Q: Does this module require periodic calibration?
A: No, the module is factory-calibrated and maintenance-free.
Q: Can the module be replaced while powered in a hazardous area?
A: No, it can only be inserted or removed in a verified non-hazardous area.
Q: Can the module operate in high-humidity conditions?
A: Yes, it supports 5–95% relative humidity, provided condensation is avoided.
Q: Are there similar models available?
A: Consider DeltaV MX series KJ2005X2 or KJ2005X3 for similar functionality with different interface options.
