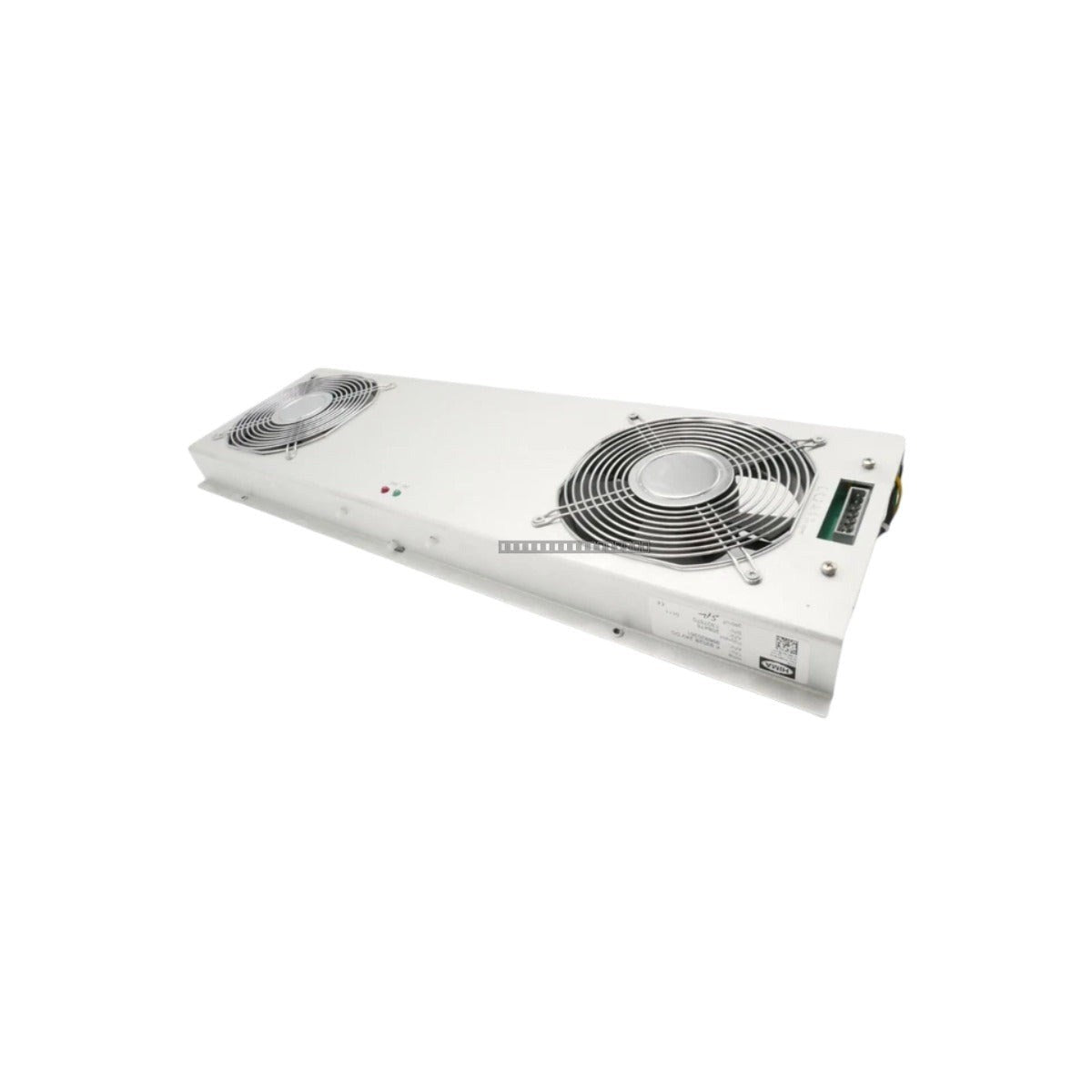

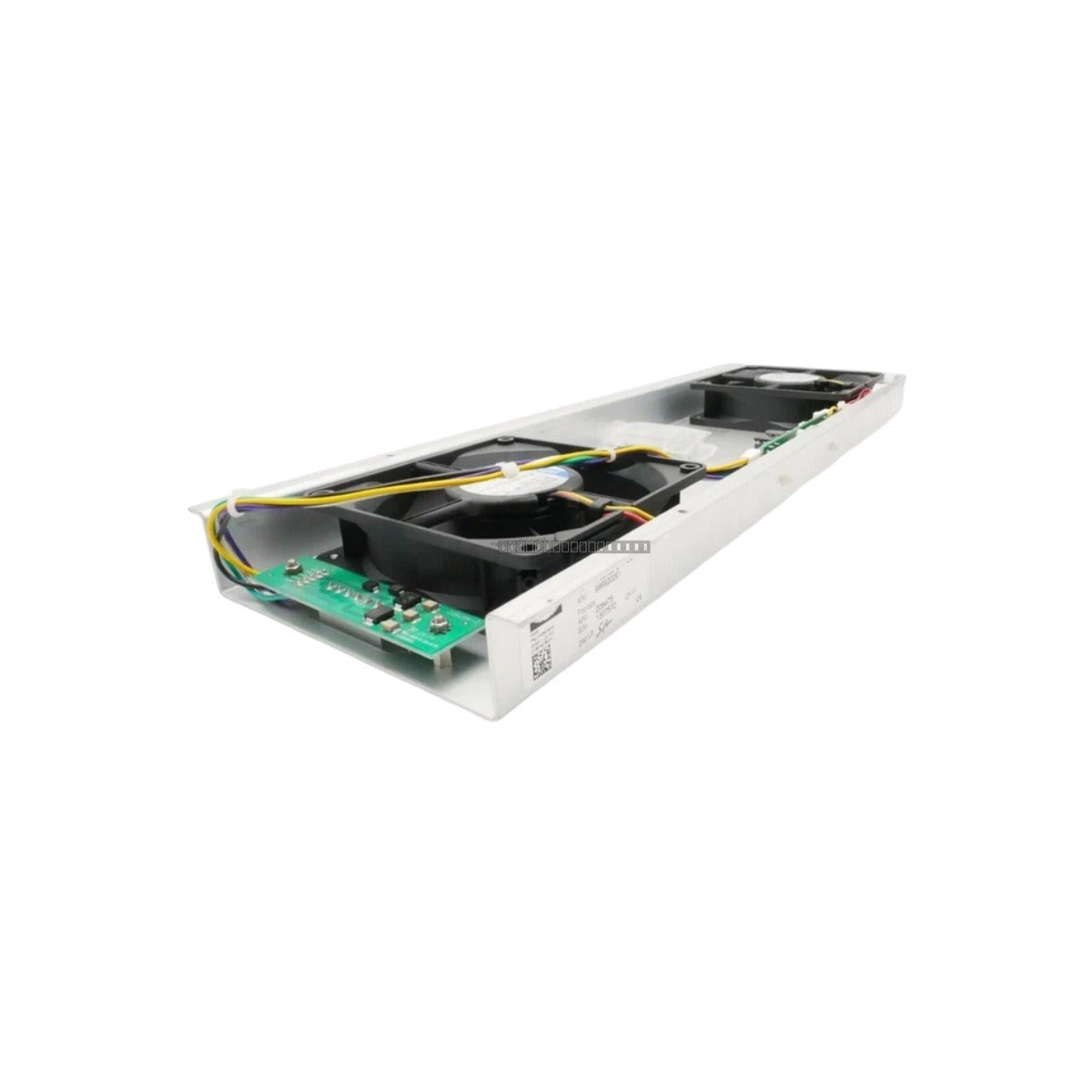

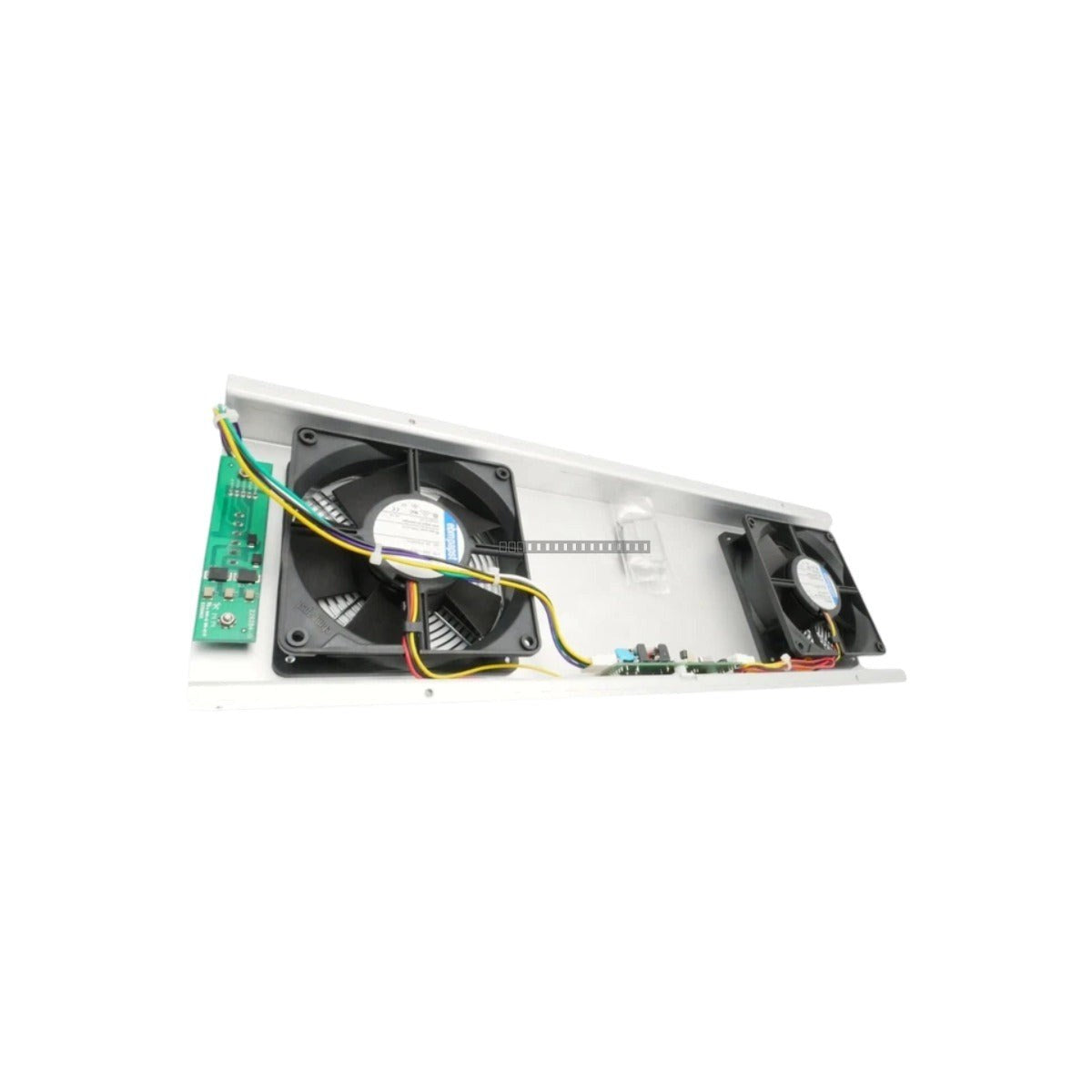

The HIMA K 9202B is a dedicated cabinet fan module designed for use within HIMA Himatrix control system enclosures. This unit serves as a critical component for thermal management, ensuring consistent airflow to maintain optimal operating temperatures for sensitive electronic modules and controllers housed within the cabinet. By facilitating active cooling, the K 9202B helps prevent thermal degradation and extends the service life of internal automation hardware.
Features
- Designed specifically for HIMA cabinet integration
- Supports efficient heat dissipation for high-density control systems
- Low-noise operation suitable for industrial control room environments
- Robust construction for long-term reliability in industrial settings
Technical Specifications
| Product Model |
K 9202B |
| Description |
4 Cabinet Fan Module |
| Supply Voltage |
24V DC |
| Power Consumption |
10 - 20 W (typical) |
| Noise Level |
< 50 dB(A) |
| Operating Temperature |
0 degC to +60 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Relative Humidity |
5 - 95% RH (non-condensing) |
Installation Guidelines
- Ensure the cabinet is powered down before installing or replacing the fan module to prevent electrical hazards.
- Verify that the airflow path is clear of obstructions, cables, or documentation that could impede cooling efficiency.
- Mount the module securely in the designated cabinet roof position to ensure proper ventilation flow.
- Check that the 24V DC supply wiring is correctly terminated and polarity is observed according to the cabinet wiring diagram.
- Regularly inspect the fan intake and exhaust for dust accumulation, which may require periodic cleaning to maintain performance.
FAQ
What is the primary function of the K 9202B?
The K 9202B is a cabinet roof fan module designed to provide active cooling for HIMA Himatrix cabinets, ensuring that internal components remain within their specified operating temperature ranges.
Can this module be used in non-HIMA cabinets?
The K 9202B is engineered specifically for HIMA cabinet dimensions and electrical standards. Use in other systems may require custom mounting or electrical adaptation and is not recommended.
