Description

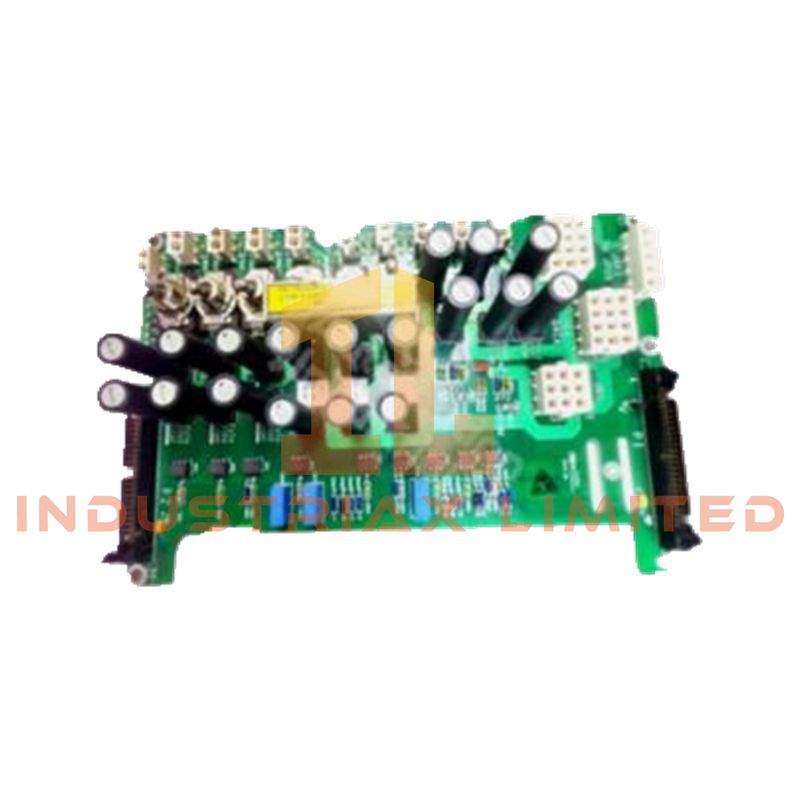

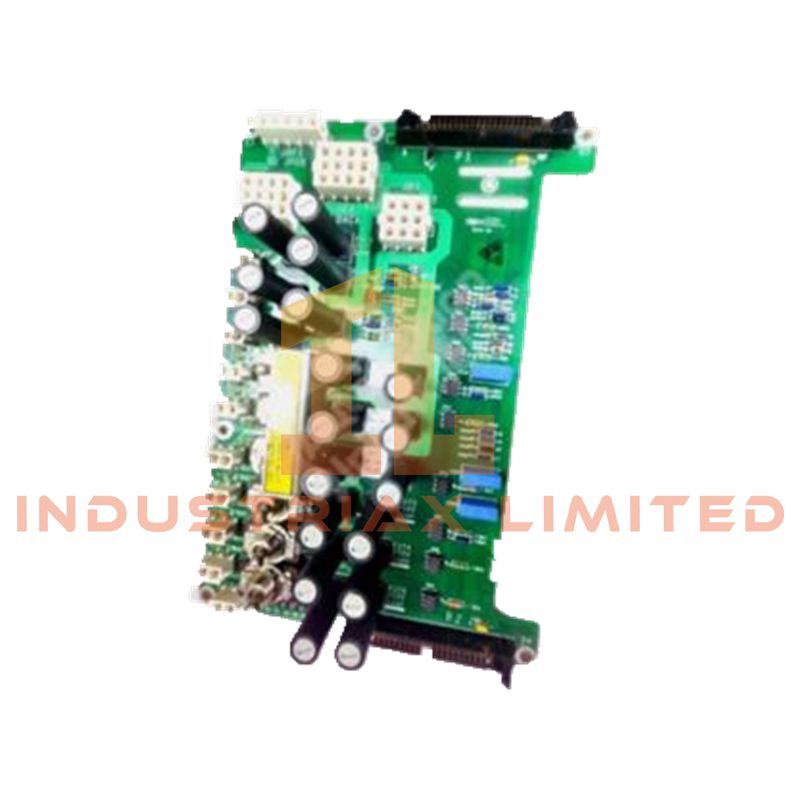

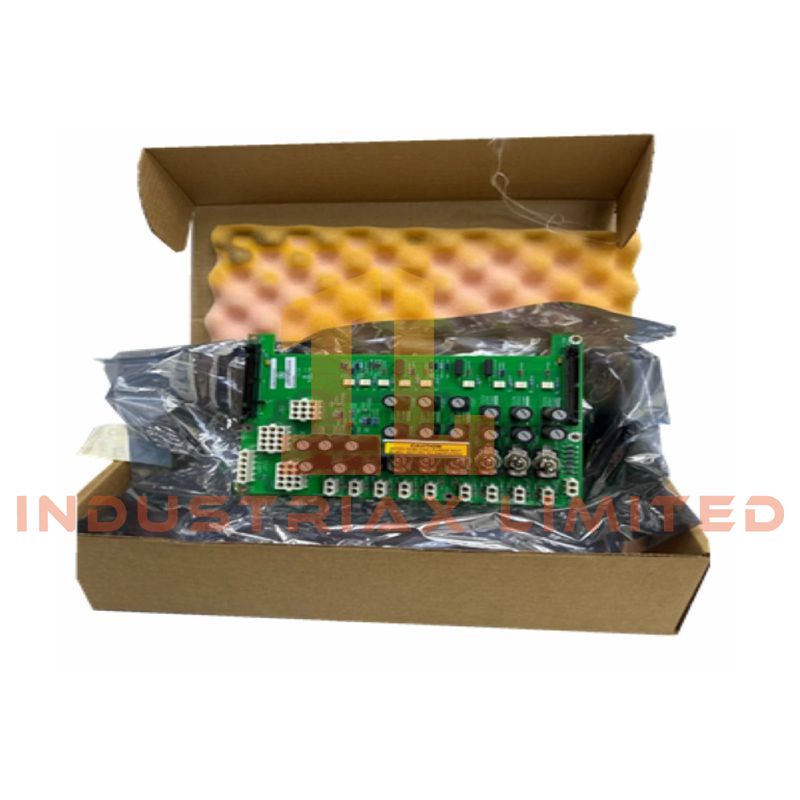

GE IS200JPDFG1A DC Power Distribution Module

The GE IS200JPDFG1A, also cataloged as the IS200JPDFG1A DC Power Distribution Module, operates as a dedicated hardware component for 125 V DC power distribution and monitoring within the GE Mark VI Speedtronic turbine control system. The module accepts redundant DC inputs and provides fused branch outputs with electrical isolation, circuit protection, and diagnostic feedback functions.

Hardware Specifications

Parameter	Specification
Model	IS200JPDFG1A
Brand	GE
Origin	United States
Weight	1.2 kg
Dimensions	240 x 250 x 55 mm
Operating Temp	-20 to +60 deg C
Power Consumption	Not specified; powered from 125 V DC redundant input bus
Product Type	DC Power Distribution Module
System Platform	Mark VI Speedtronic turbine control system
Power Input	Redundant 125 V DC, 30 A max per input, floating DC bus
Circuit Protection	Integrated 125 V DC 30 A input circuit breaker with filtering
Outputs	3 fused non-switched outputs and 6 fused switched outputs
Monitoring Functions	Bus magnitude, ground faults, excessive AC voltage, fused branch circuit presence
Fuses	18 individually rated fuses
Isolation	1500 V DC channel-to-channel and channel-to-ground
Connectors	14 plug connectors
Humidity Range	5% to 95% non-condensing
Certifications	UL 508, CSA C22.2 No.14, CE compliant

GE Mark VI DC Power Distribution and Protection Functions

The IS200JPDFG1A implements DC distribution management for Mark VI Speedtronic control architectures. The module accepts dual 125 V DC inputs and routes power through fused output branches for connected control hardware. Individual fuse monitoring and branch presence detection allow the controller system to identify distribution path conditions.

The module includes six toggle switches for switched output control, with three switches carrying caution labels for designated circuits. The integrated protection structure provides overcurrent interruption, short-circuit protection, and reverse polarity protection within the DC distribution path.

Frequently Asked Questions

Q: What input configuration does the IS200JPDFG1A support?
A: The module supports redundant 125 V DC inputs with a floating DC bus arrangement and a maximum current rating of 30 A per input.

Q: How many output circuits are available on this module?
A: The module provides three fused non-switched outputs and six fused switched outputs through individually protected branch circuits.

Q: What isolation capability is provided between channels and ground?
A: The module provides 1500 V DC isolation between channels and between channels and ground.

Field Installation Guidelines

Install the IS200JPDFG1A in the designated Mark VI Speedtronic control cabinet location with correct mechanical mounting and connector alignment. Verify that all DC input sources are isolated before wiring activities.

Use properly rated DC wiring for the 125 V DC power connections and maintain separation between power conductors and low-level signal cables. Connect cabinet grounding according to the control system grounding scheme. Confirm connector seating, fuse installation status, and branch circuit labeling before energizing the module.

For installations involving redundant DC supplies, verify polarity, input source condition, and distribution path continuity before system startup. Maintain appropriate cable routing practices to minimize electromagnetic interference coupling into control wiring.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
