Description

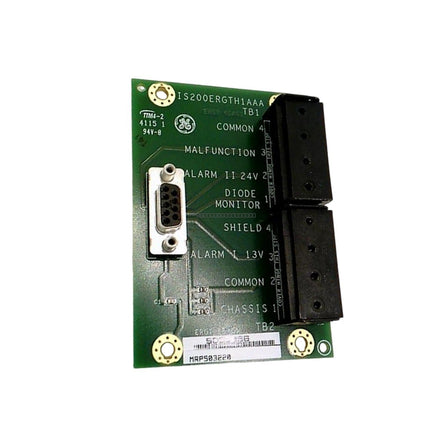

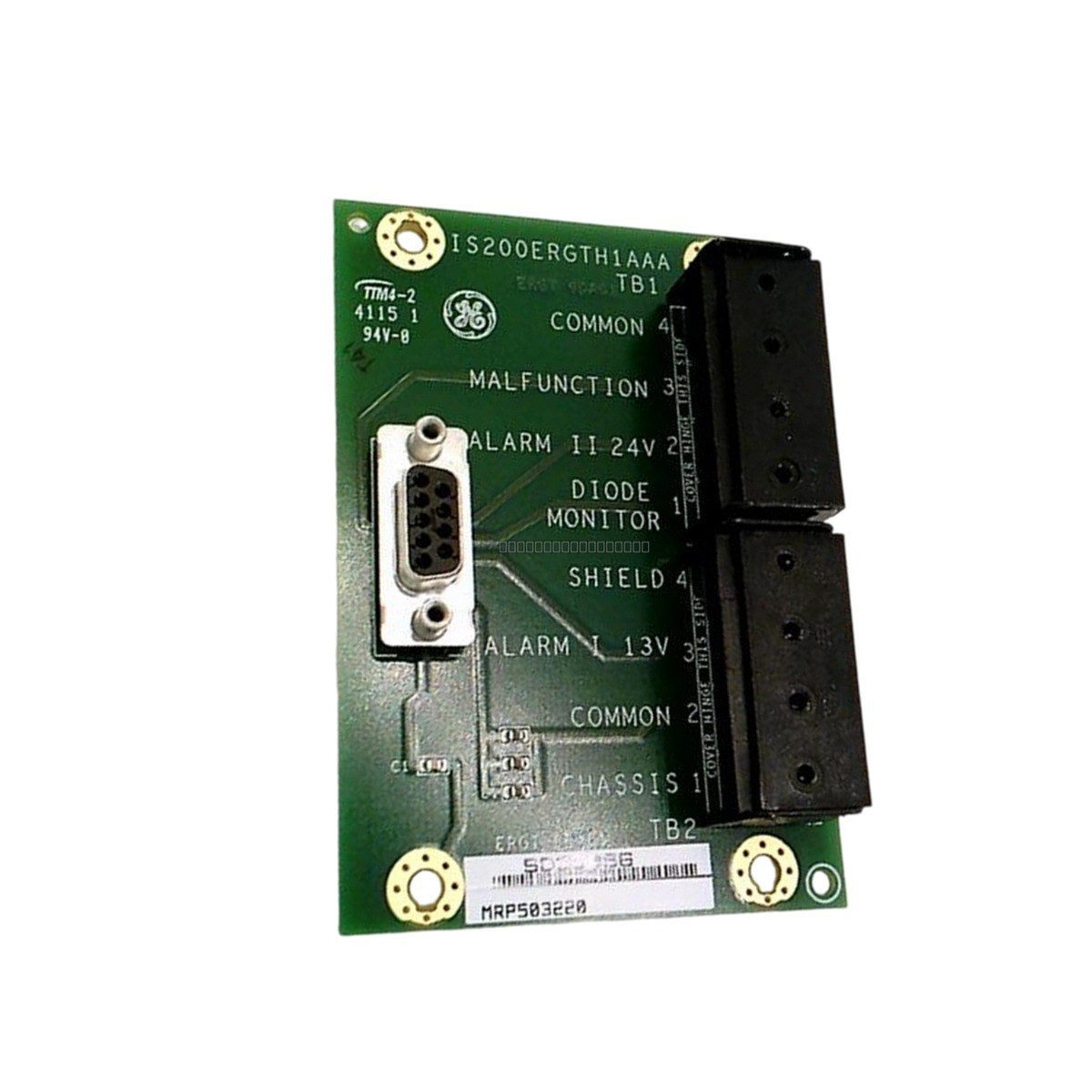

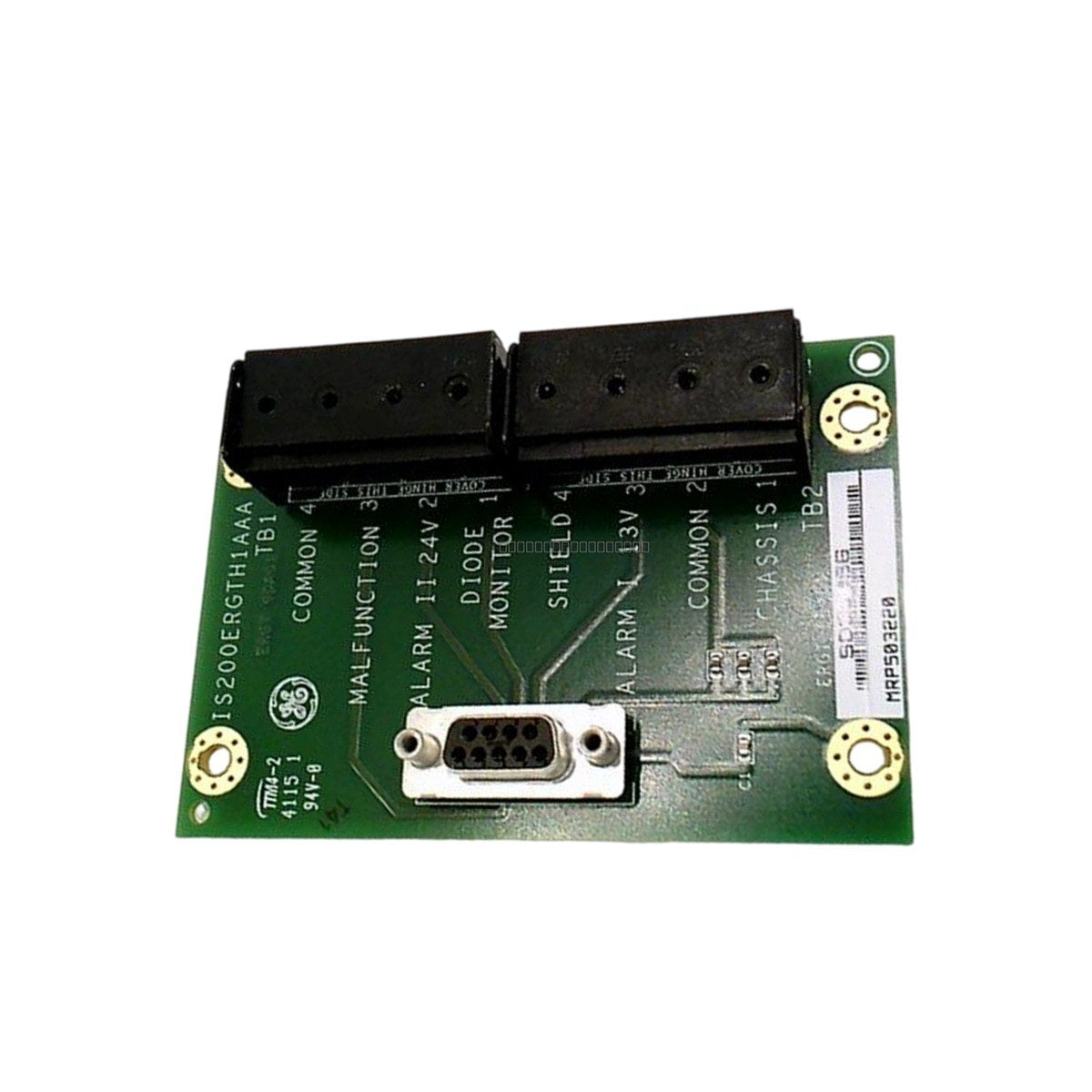

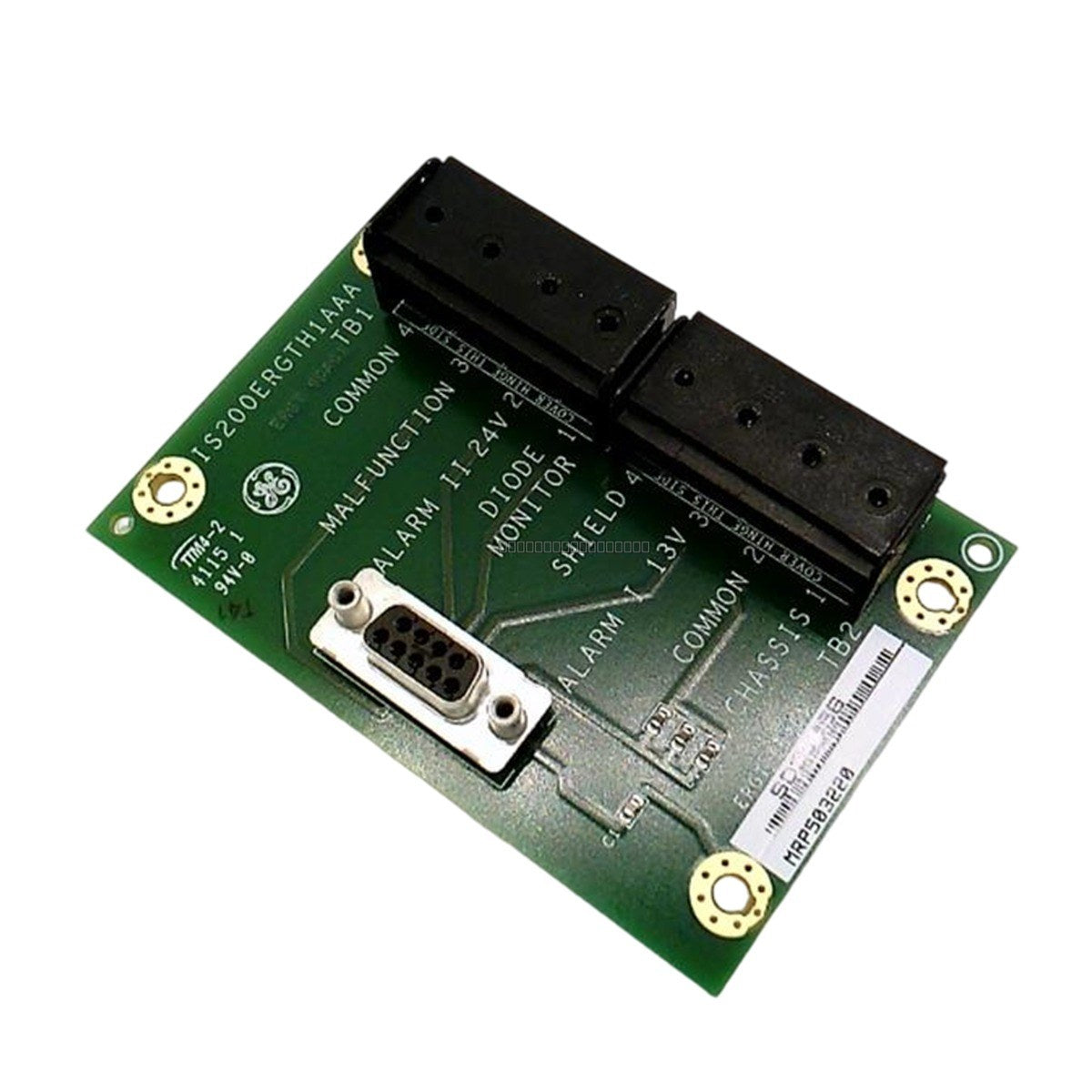

The IS200ERGTH1A is a specialized Ground Detector Board designed for the GE EX2100 Excitation Control Series. This module is engineered for critical power generation and utility applications, providing continuous monitoring of insulation integrity within excitation systems. It functions as a vital safety component by detecting potential ground faults in the field circuits of large synchronous generators and motors. By providing early warning of leakage currents, the IS200ERGTH1A helps prevent equipment damage and unplanned outages in power plants, hydroelectric facilities, and heavy industrial operations, ensuring electrical stability within the excitation loop.
Features
- High-impedance circuitry for accurate ground fault detection without introducing noise or instability.
- Direct interface with the EX2100 control backplane for seamless system integration.
- Real-time diagnostic communication for fault logging and protective tripping.
- Compact PCB design optimized for high-vibration environments such as turbine decks.
- Essential legacy spare part for maintaining EX2100 control lineups.
Applications
The IS200ERGTH1A is utilized in power generation and industrial control environments, specifically within GE EX2100 Excitation systems. It is commonly deployed in:
- Large synchronous generator excitation control.
- Industrial motor field circuit monitoring.
- Power plant and hydroelectric facility control systems.
- Heavy industrial mining power distribution.
Technical Specifications
| Model |
IS200ERGTH1A |
| Brand |
GE Fanuc (General Electric) |
| Product Line |
EX2100 Excitation Series |
| Module Type |
Ground Detector Board |
| Circuit Type |
High-Impedance Differential Sensing |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Cooling |
Passive Convection |
Installation Guidelines
- Ensure the EX2100 control system is powered down before inserting or removing the module.
- Handle the PCB using proper ESD (Electrostatic Discharge) protection practices to prevent component damage.
- Ensure the board is firmly seated in the designated EX2100 backplane slot.
- Verify that all system connections are secure and that the module is free from debris or moisture before commissioning.
- Maintain adequate airflow around the module to ensure effective passive convection cooling.
FAQ
What is the primary function of the IS200ERGTH1A?
The IS200ERGTH1A is a ground detector board that monitors the insulation integrity of excitation field circuits in the GE EX2100 system to detect and report ground faults.
Is this module compatible with other GE series?
No, this module is specifically engineered for the GE EX2100 Excitation Control Series.
How should I handle this board during installation?
Always use ESD-safe handling procedures and ensure the power is disconnected from the EX2100 rack before installation to protect the sensitive electronic components.
