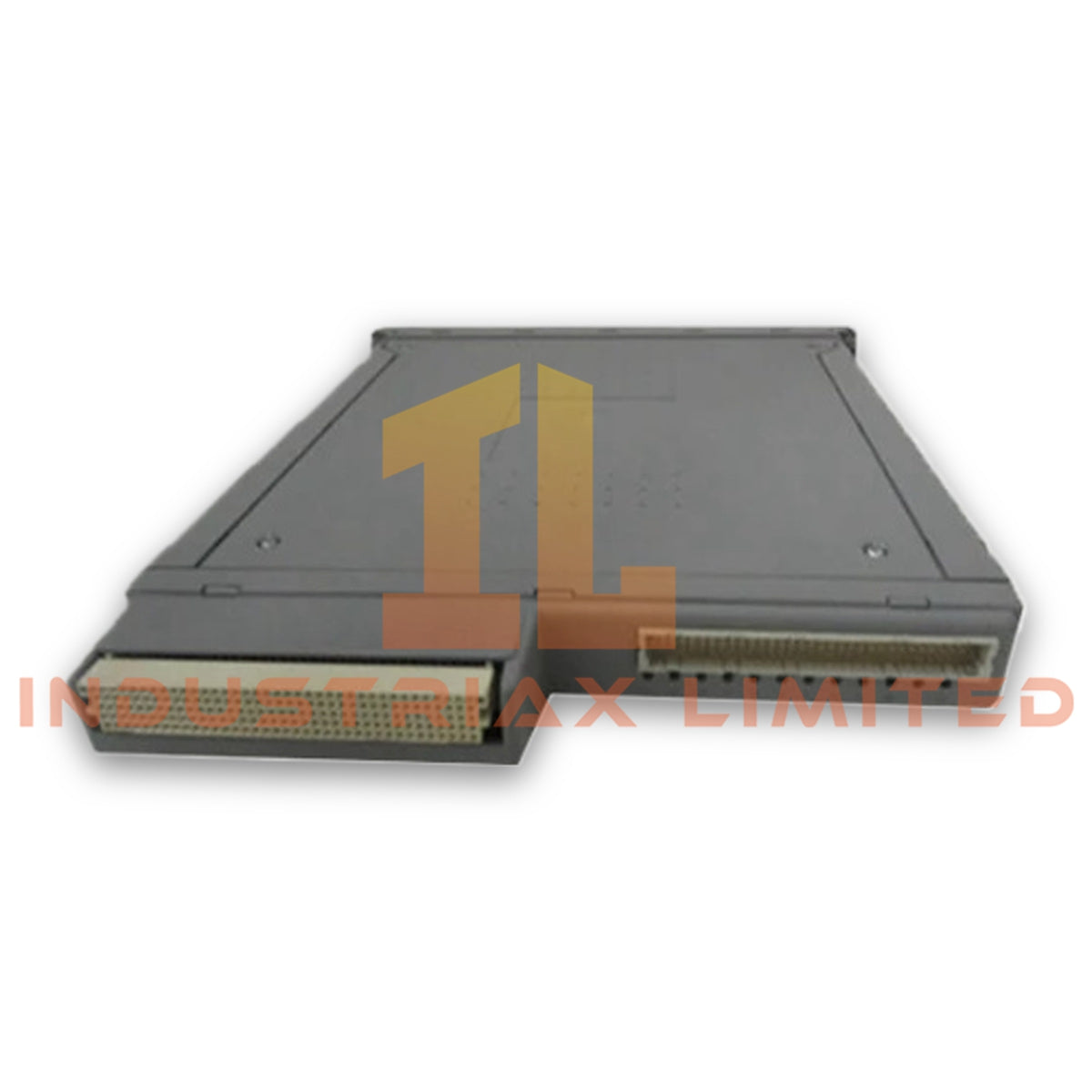

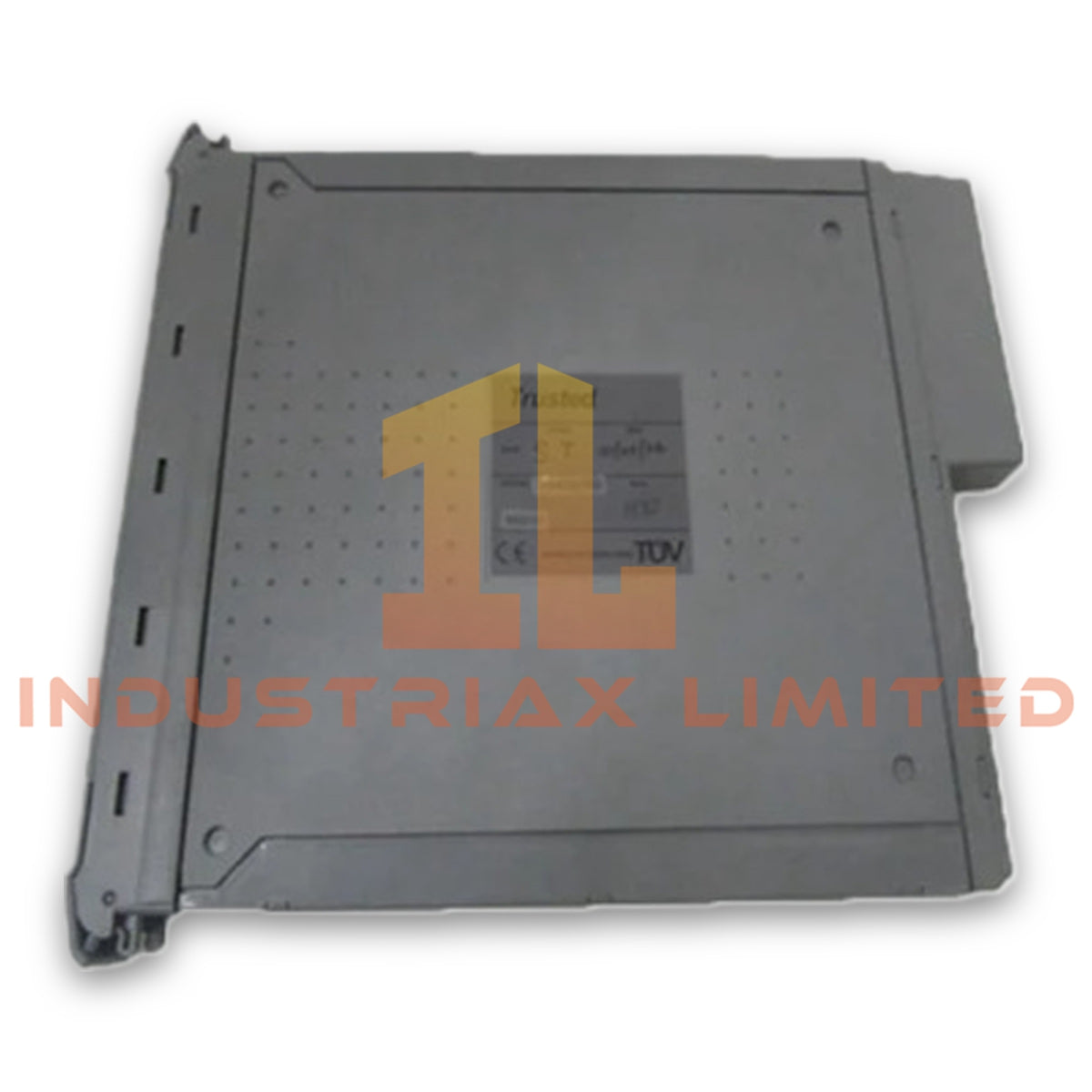

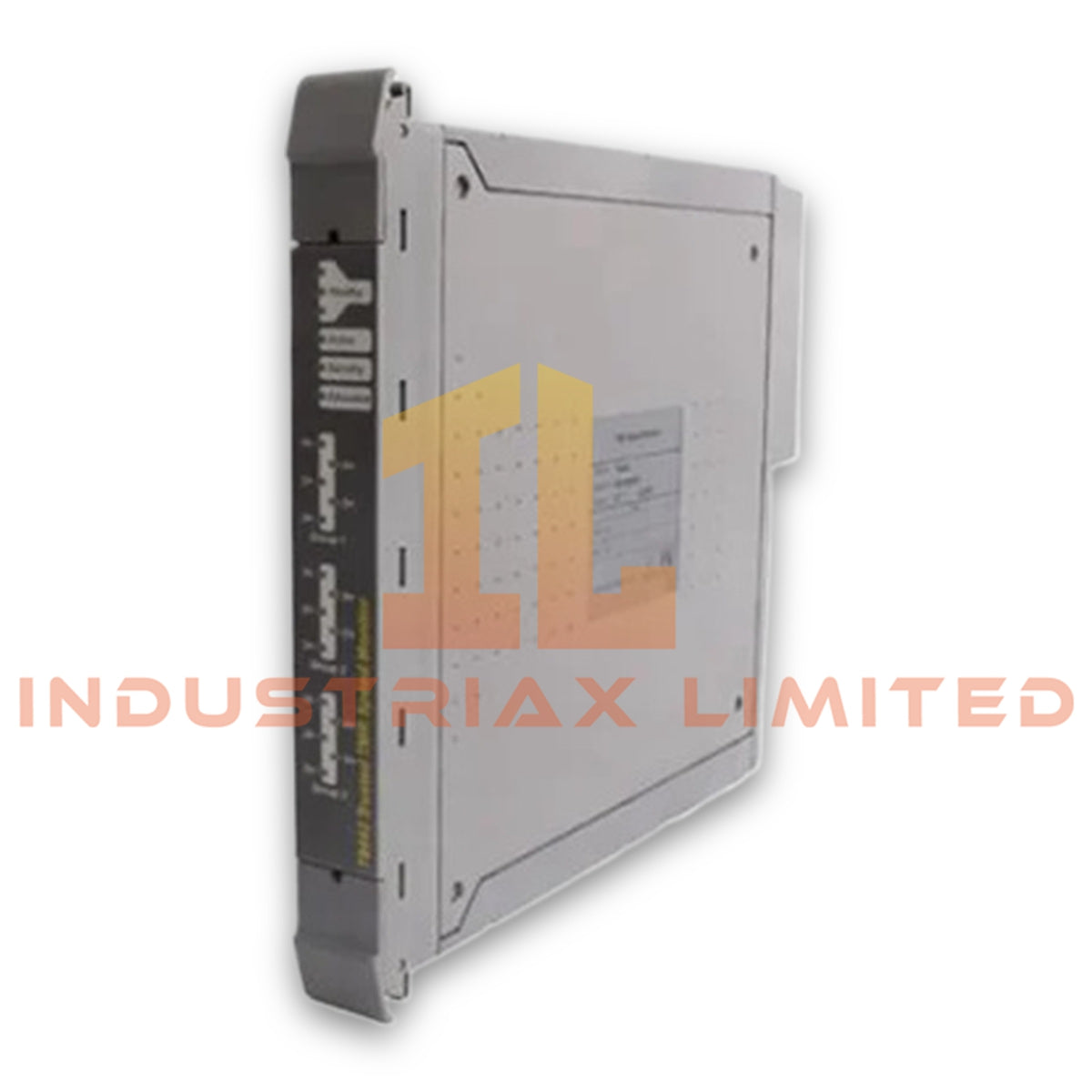

ICS Triplex T8431C Trusted Analog Input Module
Configured for analog signal acquisition in the Trusted TMR safety control system, the ICS Triplex T8431C (T8431 Analog Input Module) provides direct electrical execution. It accepts up to 40 analog input channels, conditions field signals for the Trusted backplane, and transfers sampled process data to the controller while maintaining electrical isolation characteristics required for safety system operation.
Suffix Breakdown & Model Matrix
The supplied documentation identifies T8431C as a fixed catalog model. No official suffix definition or model matrix is provided by the manufacturer; therefore, no suffix interpretation is included.
Hardware Specifications
| Parameter |
Specification |
| Model |
T8431C |
| Brand |
ICS Triplex |
| Product Type |
Analog Input Module |
| System Series |
Trusted TMR |
| Origin |
USA |
| Manufacturer |
ICS Triplex |
| Shipping Origin |
Xiamen, China |
| Weight |
1.1 kg |
| Dimensions |
3 x 30.3 x 26.5 cm |
| Operating Temp |
-5 deg C to 60 deg C |
| Storage Temp |
-25 deg C to 70 deg C |
| Temperature Change Rate |
0.5 deg C/min |
| Operating Humidity |
10 % to 95 % RH, non-condensing |
| System Supply Voltage |
20 to 32 VDC |
| Number of Inputs |
40 channels |
| Input Current Range |
0 to 22 mA |
| Input Voltage Range |
0 to 6 VDC |
| Sample Update Time |
0.5 ms |
| Maximum Withstanding Voltage |
+/- 2.5 kVDC |
| Channel-to-Channel Crosstalk |
-40 dB to -60 dB |
| Tariff Code |
8537101190 |
| Power Consumption |
Not specified |
Triple Modular Redundancy and Galvanic Isolation
The T8431C operates within the Trusted TMR architecture, where input data is processed by redundant hardware paths before system voting logic evaluates channel status. This architecture supports deterministic signal acquisition during normal operation.
The module withstands transient voltages up to +/- 2.5 kVDC. In addition, channel design minimizes electrical interference with specified channel-to-channel crosstalk between -40 dB and -60 dB. Consequently, adjacent analog circuits have reduced mutual influence during simultaneous signal acquisition.
Furthermore, the module accepts both voltage and current process signals. It samples all configured channels with a 0.5 ms update interval, allowing the controller to receive refreshed analog measurements with consistent timing.
Frequently Asked Questions
Q: Does the T8431C support hot replacement while the Trusted system is energized?
A: The supplied specifications do not state hot-swap capability. Follow the maintenance procedures specified for the Trusted platform before removing or installing the module.
Q: What analog signal ranges are accepted by the module?
A: The module accepts input currents from 0 to 22 mA and input voltages from 0 to 6 VDC across 40 input channels.
Q: Why is channel-to-channel crosstalk specified?
A: Crosstalk defines the electrical coupling between adjacent input channels. Lower coupling improves measurement integrity when multiple analog signals are acquired simultaneously.
Field Installation Guidelines
-
Verify that the system supply voltage remains within 20 to 32 VDC before installing the module.
-
Connect field wiring according to the designated terminal assignments for the Trusted system.
-
Route analog signal cables separately from high-current power conductors to reduce induced electrical noise.
-
Terminate cable shields according to the site's grounding practice and avoid creating multiple shield ground paths unless required by the control system design.
-
Confirm wiring polarity before energizing current loop and voltage input circuits.
-
Maintain ambient temperature and humidity within the specified operating limits during continuous service.
-
Inspect connectors and backplane interfaces for contamination or mechanical damage before insertion.
-
After installation, validate each input channel using calibrated field instrumentation before placing the module into operational service.
