Description

ICS Triplex T7420A Trusted Analog Input Module

Configured for analog signal acquisition and fault-tolerant processing in the Trusted TMR safety platform, the ICS Triplex T7420A (T7420A Analog Input Module) provides direct electrical interface for voltage input channels. It processes field analog signals using redundant voting logic, supports selectable voltage ranges, and exchanges validated data with the Trusted controller backplane while maintaining deterministic behavior during normal operation and fault conditions.

Suffix Breakdown & Model Matrix

The supplied documentation identifies a single hardware model:

Model	Description
T7420A	Trusted Analog Input Module
Module Electronics	Ytmr742010
Part Number	700234

No official suffix matrix or ordering code breakdown is specified in the available technical documentation.

Hardware Specifications

Parameter	Specification
Model	T7420A
Brand	ICS Triplex
Product Type	Trusted Analog Input Module
Platform	Trusted TMR Safety System
Origin	United States
Weight	Approx. 1.26 kg to 1.32 kg
Dimensions	Approx. 3.3 cm x 26.5 cm x 35.7 cm

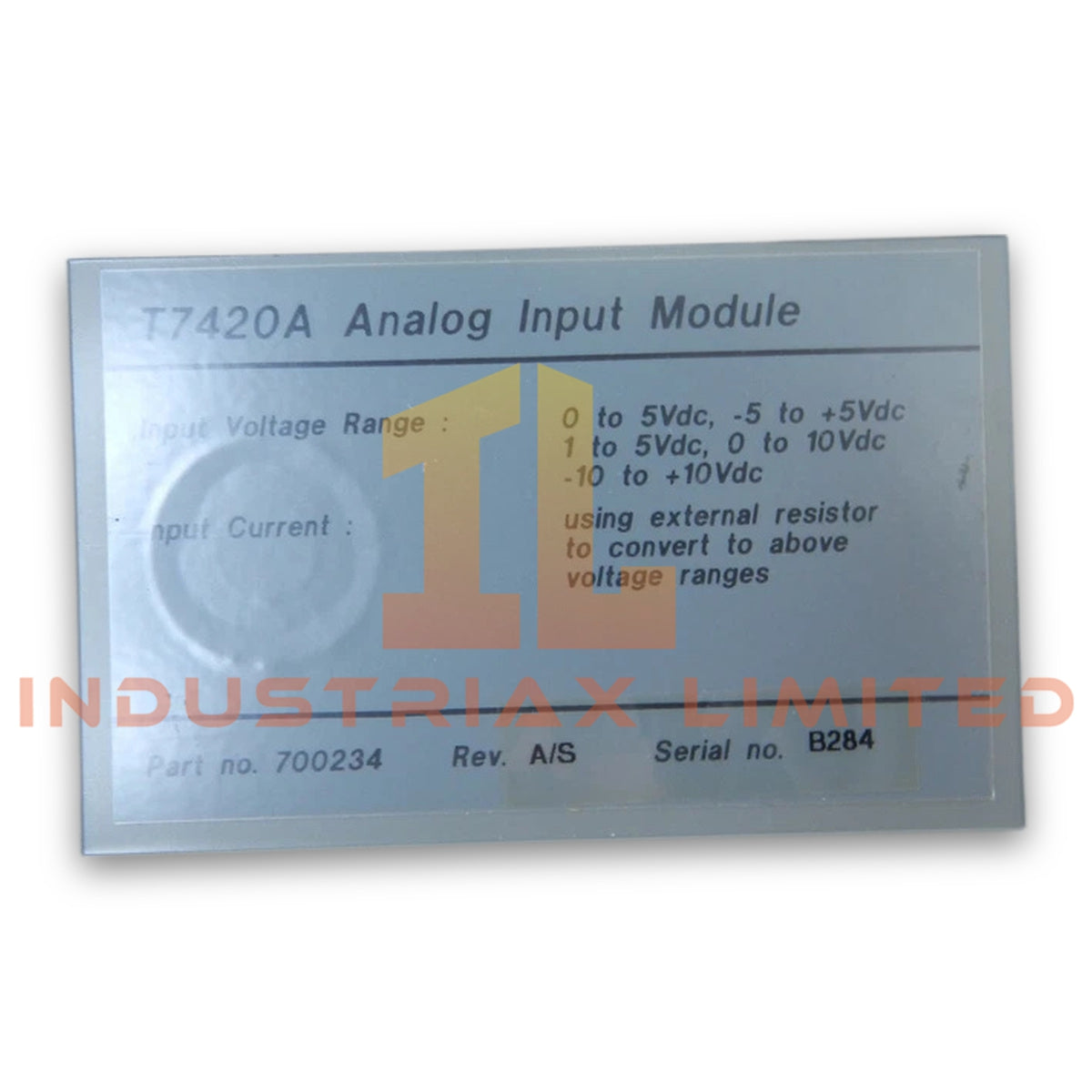

Input Signal Ranges	0-5 VDC, -5 to +5 VDC, 1-5 VDC, 0-10 VDC, -10 to +10 VDC
Voting Architecture	2oo3 with mid-value selection or dual configuration with high/low selection
Safety Integrity	Suitable for SIL 2 and SIL 3 applications
Diagnostics	Built-in continuous self-diagnostics
Hot Swap	Supported during system operation
Environmental Protection	Conformal-coated module electronics

Triple Modular Redundancy Architecture

The T7420A operates within the Trusted Triple Modular Redundancy (TMR) architecture. Three independent processing paths evaluate incoming analog signals, and the system performs 2oo3 voting with mid-value selection to validate measurement integrity. Consequently, a single channel fault does not prevent signal processing.

The module also supports dual-channel operating configurations when the application requires high or low value selection instead of TMR voting. Furthermore, built-in diagnostics continuously monitor internal electronics, communication paths, and processing integrity. If an internal fault is detected, diagnostic information is transferred to the Trusted controller while the configured fail-safe strategy remains under system control.

Frequently Asked Questions

Q: Does the T7420A support module replacement while the controller remains energized?

A: Yes. The supplied documentation specifies online hot-swap capability. However, replacement should follow the system maintenance procedure to preserve controller diagnostics and application integrity.

Q: Which analog voltage ranges can the module accept?

A: The module supports configurable voltage ranges of 0-5 VDC, -5 to +5 VDC, 1-5 VDC, 0-10 VDC, and -10 to +10 VDC.

Q: Does the module perform signal validation internally?

A: Yes. Within a Trusted TMR configuration, redundant processing channels participate in 2oo3 voting with mid-value selection. Therefore, the controller receives validated measurement data according to the configured architecture.

Field Installation Guidelines

• Install the module only in a compatible Trusted TMR chassis with the power removed unless the approved hot-swap procedure is being followed.
• Verify the configured voltage input range before connecting field wiring to prevent measurement errors.
• Route analog signal cables separately from high-current power conductors to reduce conducted electrical noise.
• Terminate cable shields according to the site grounding specification and avoid multiple shield grounding points unless required by the installation standard.
• Confirm that terminal assignments match the field termination assembly before energizing the system.
• After installation, review controller diagnostics to verify channel status, module communication, and self-test results before placing the loop into service.

Specifications

• Brand: ICS Triplex

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
