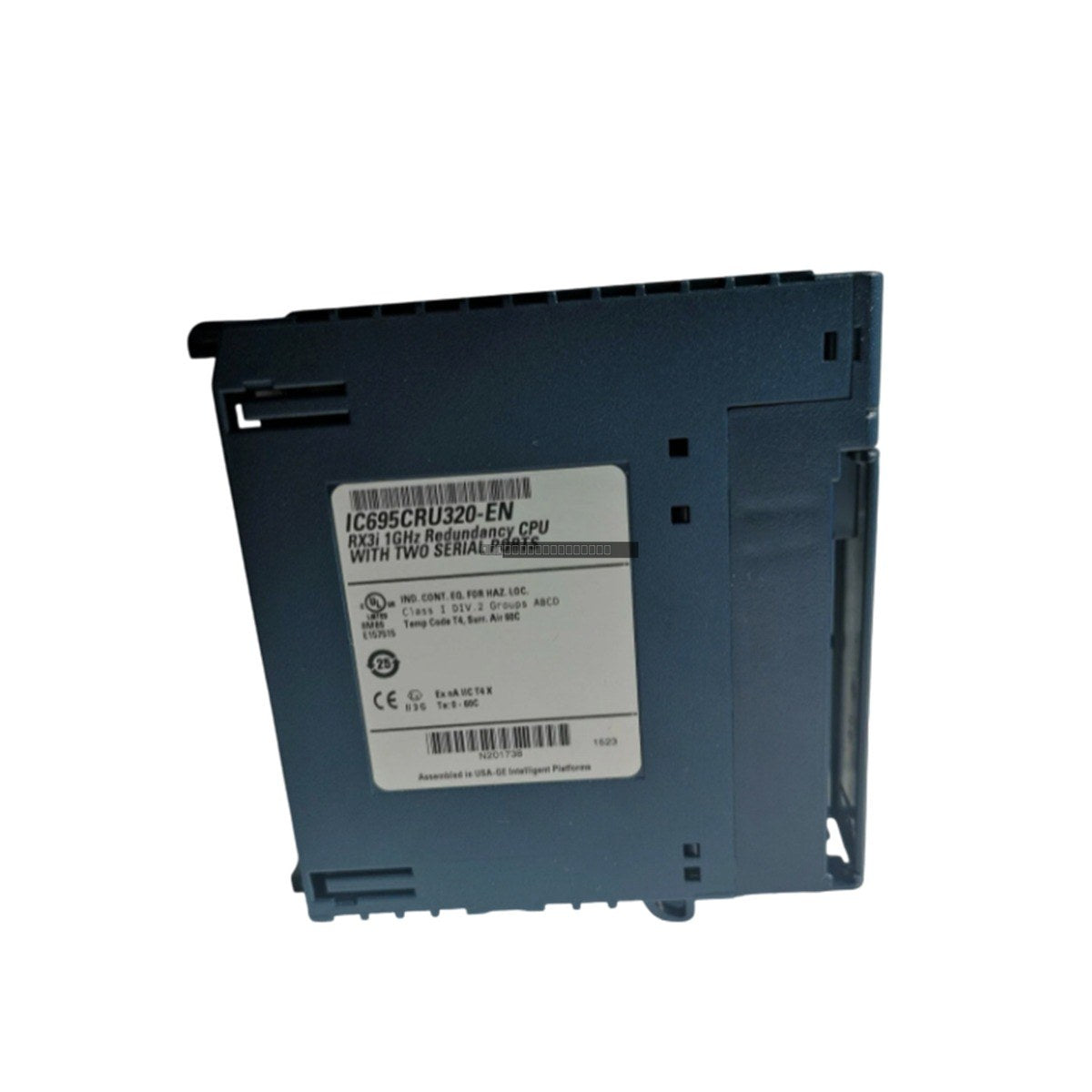

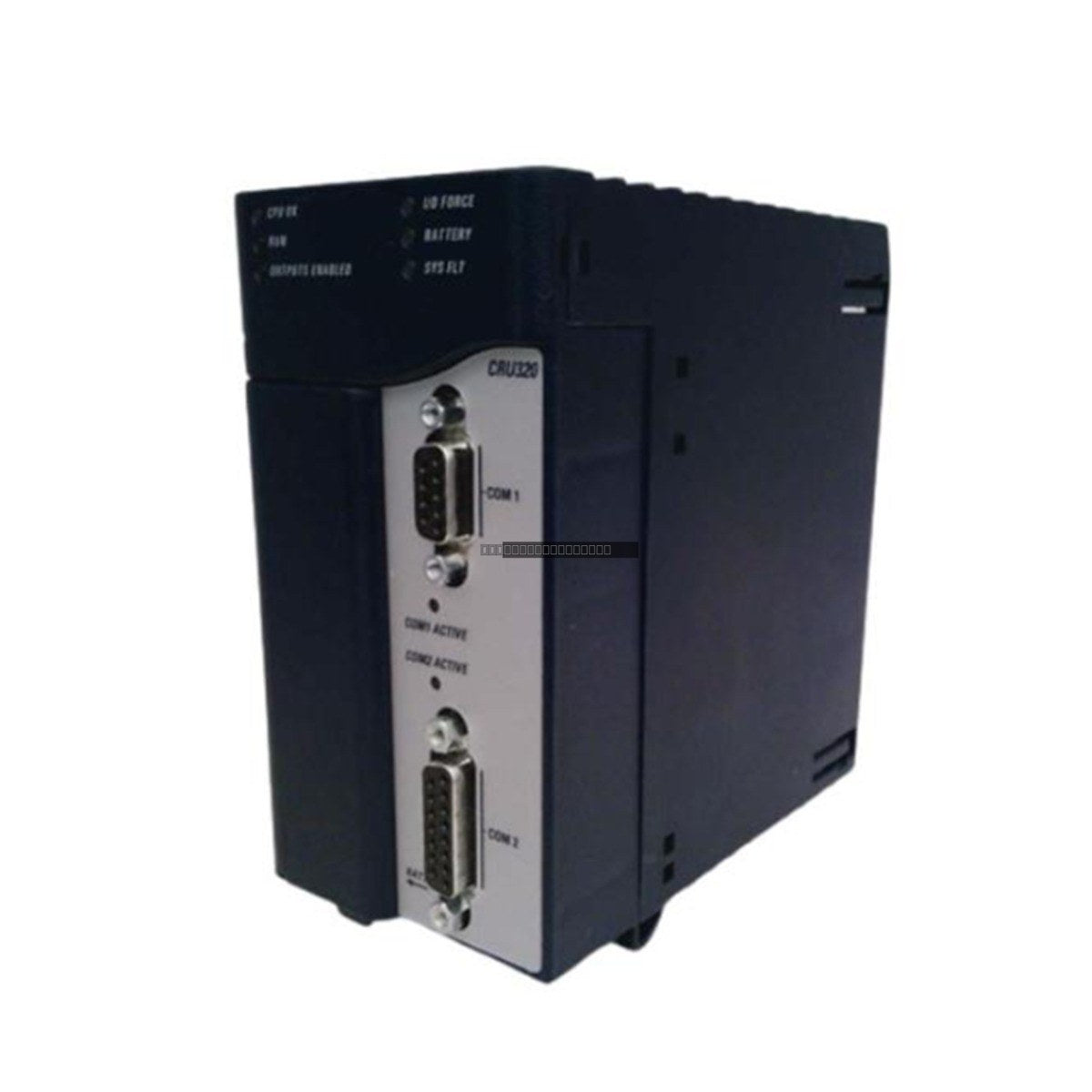

The General Electric IC695CRU320 is a high-performance Redundancy CPU processor module designed for the PACSystems RX3i platform. Engineered for critical industrial applications, this module facilitates hot-standby configurations, significantly increasing system availability. In a redundant setup, the IC695CRU320 manages the synchronization between two controller racks, allowing for an automatic, seamless transfer of control from a primary rack to a secondary rack in the event of a fault. This transition occurs in a maximum of one logic scan, with a minimum switchover time of 3.133 ms.
Features
-
Processor: Intel Celeron M at 1 GHz clock speed.
-
Memory: 64 MB of battery-backed RAM and 64 MB of non-volatile flash user memory.
-
Redundancy Support: Designed for hot-standby configurations; supports synchronization via IC695RMX128/228 modules.
-
Communication: Equipped with two serial ports supporting RS-232 and RS-485 standards.
-
Data Integrity: Features Error Checking and Correction (ECC) for RAM and read-only program protection during execution.
-
Diagnostics: Includes a dedicated System Fault (Sys Flt) LED and an I/O Force indicator for enhanced troubleshooting.
Applications
The IC695CRU320 is intended for large-scale, complex automation processes where downtime must be minimized. It is widely used in power generation, oil and gas, and large-scale manufacturing environments where redundant control logic is required to maintain operational continuity.
Technical Specifications
| Model |
IC695CRU320 |
| Processor |
Intel Celeron M (1 GHz) |
| User Memory |
64 MB RAM / 64 MB Flash |
| Slot Occupancy |
2 Slots |
| Serial Ports |
2 (RS-232/RS-485) |
| Switchover Time |
Max 1 logic scan (min 3.133 ms) |
| Power Requirements |
+3.3 VDC (1.0A) / +5 VDC (1.2A) |
| Operating Temp |
0 to 60 degC |
| Enclosure Rating |
IP20 (Requires NEMA/UL Type 1 enclosure) |
Installation Guidelines
-
Power: Ensure all power is disconnected from the rack before inserting or removing the module.
-

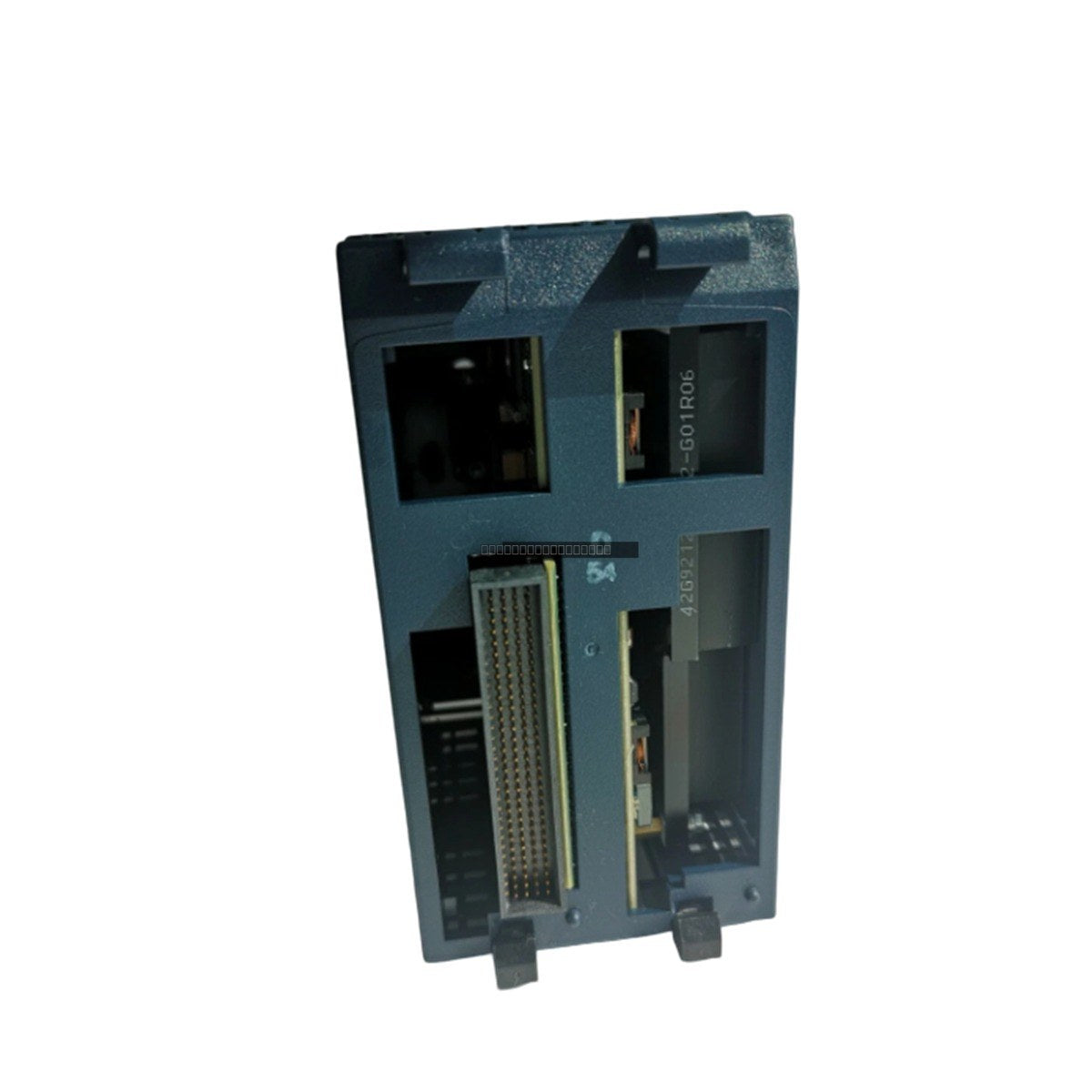

Mounting: This module occupies two slots in the RX3i rack. Ensure it is fully seated and secured using the integrated latches.
-
Environment: Install in a clean, dry, and protected NEMA/UL Type 1 enclosure to prevent exposure to dust, moisture, and corrosive elements.
-
Grounding: Follow standard industrial grounding practices for the RX3i backplane to ensure electrical noise immunity.
-
Battery: Requires an external high-capacity battery (IC693ACC302) to maintain RAM data during power loss.
FAQ
What is the primary purpose of the IC695CRU320?
It is a Redundancy CPU that allows a backup unit to take over automatically if the primary controller fails, ensuring minimal process disruption.
What hardware is required for the redundant IC695CRU320?
Each unit must be configured with a redundant memory exchange (RMX) module (IC695RMX128/228) to facilitate data synchronization.
What is the IC695CRU320 operating temperature?
The module is designed to operate in temperatures ranging from 0 to 60 degC (32 to 140 degF).
