Description

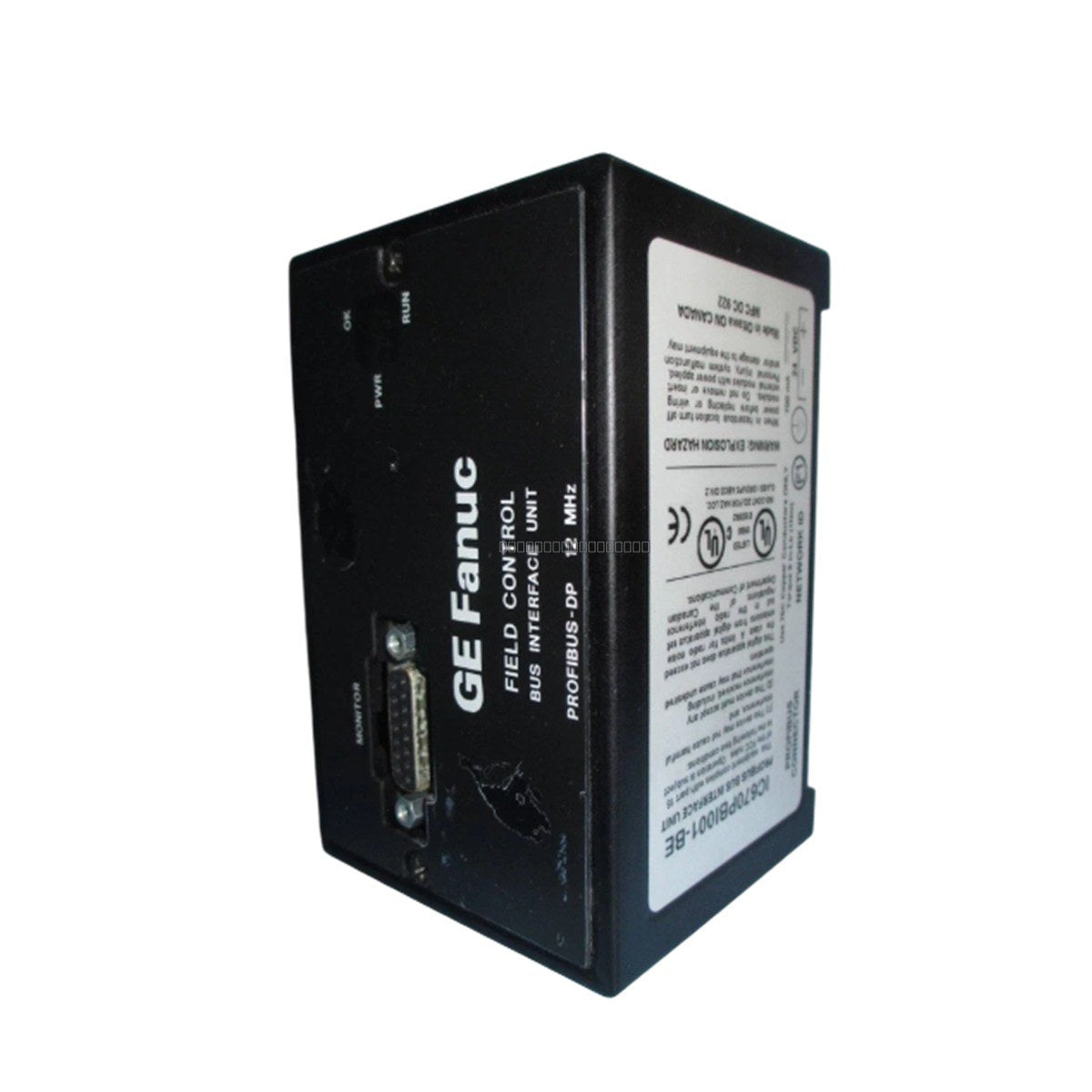

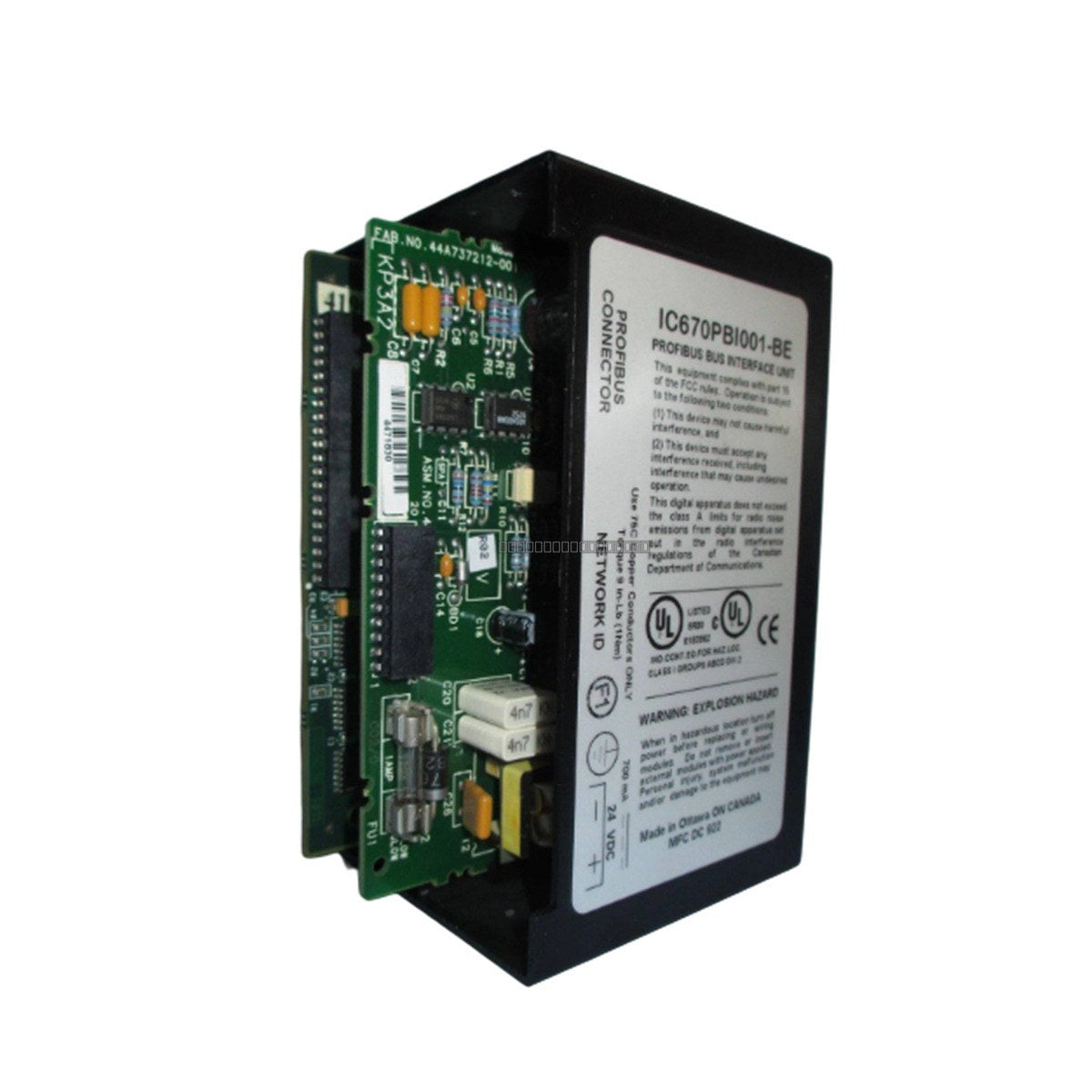

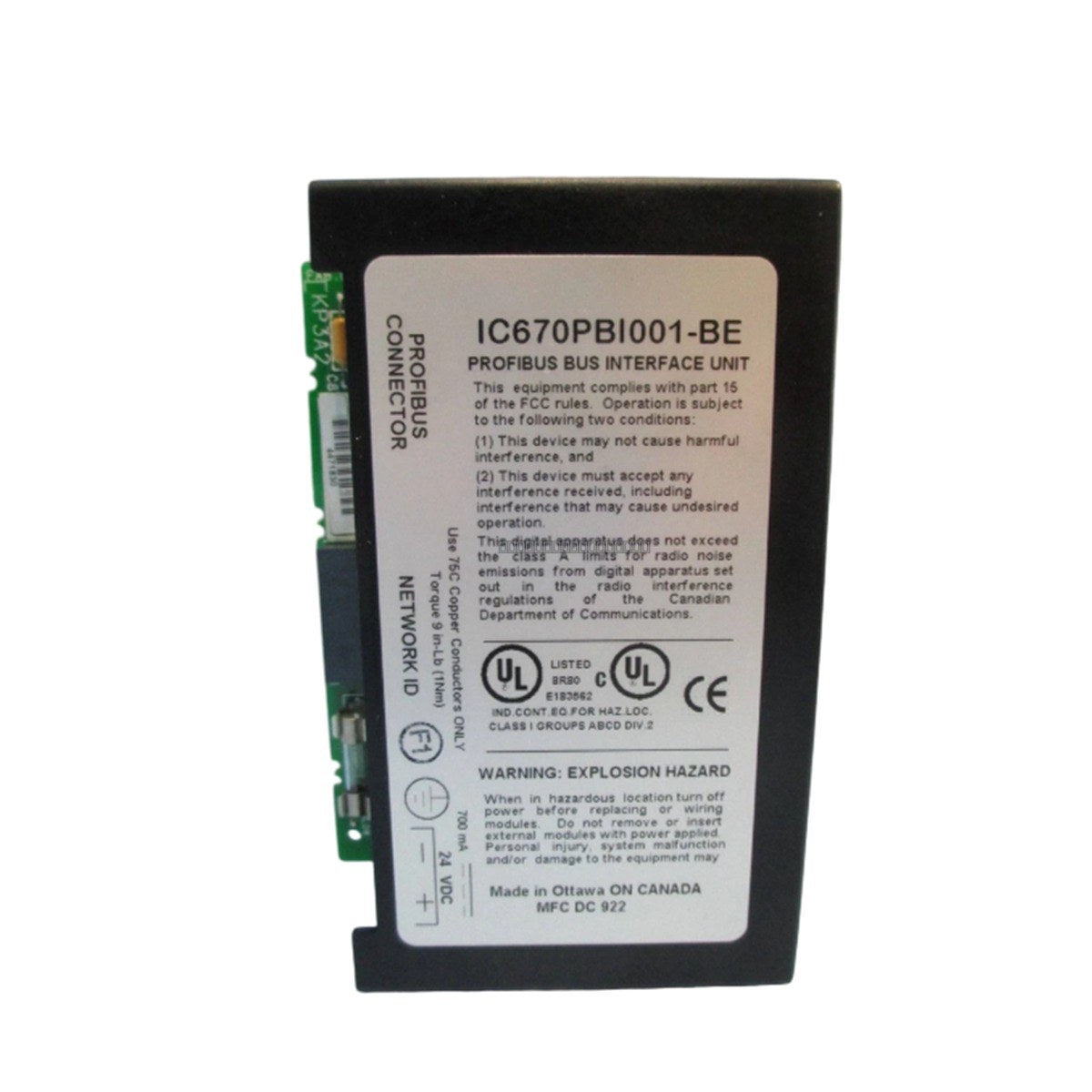

The IC670PBI001-BE is a high-performance Profibus Bus Interface Unit (BIU) designed for the GE Fanuc Field Control system. This module functions as a communication gateway, bridging the Profibus-DP network with localized Field Control I/O modules to enable decentralized control and efficient data exchange. Housed in a durable aluminum enclosure, it is suitable for demanding industrial environments, including power generation, oil and gas, and mining facilities. The unit supports advanced field-level processing, such as analog scaling and automated fault reporting, to reduce system downtime and streamline diagnostics.
Features
- Supports Profibus-DP communication protocol for seamless network integration.
- Integrated intelligent processing for independent analog range selection and I/O configuration.
- Front-mounted HHP connector for local configuration and rapid troubleshooting.
- Diagnostic LED indicators (PWR, OK, RUN) for real-time status monitoring.
- Rugged aluminum housing designed for space-constrained control panels and junction boxes.
- Supports both single and dual cable communication configurations.
Applications
This interface unit is typically deployed in distributed I/O architectures where remote data acquisition and control are required. It is commonly used in process automation, manufacturing, and utility infrastructure to connect field sensors and actuators to a centralized Profibus-DP master controller.
Technical Specifications
| Model |
IC670PBI001-BE |
| Brand |
GE Fanuc / Emerson |
| Module Type |
Profibus Bus Interface Unit |
| Input Voltage |
24 VDC |
| Power Protection |
1 Amp replaceable slow-blow fuse |
| Communication Protocol |
Profibus-DP |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Humidity |
5 to 95 percent non-condensing |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module to prevent electrical damage.
- Mount the unit in a clean, dry environment within a control panel or junction box, ensuring adequate airflow for cooling.
- Use shielded cables for Profibus-DP communication to minimize EMI interference.
- Verify that the 24 VDC power supply is correctly wired and within the specified range before operation.
- Handle the module using standard ESD precautions to protect internal circuitry.
FAQ
What does the IC670PBI001-BE do?
It acts as a communication bridge between a Profibus-DP network and the GE Fanuc Field Control I/O system, allowing the host controller to communicate with remote I/O modules.
Can I configure this unit locally?
Yes, the module features a front-facing HHP (Handheld Programmer) connector that allows for local configuration and diagnostic troubleshooting.
What do the LED indicators signify?
The PWR LED indicates power status, the OK LED indicates module health, and the RUN LED indicates that the module is actively communicating and running in the system.
