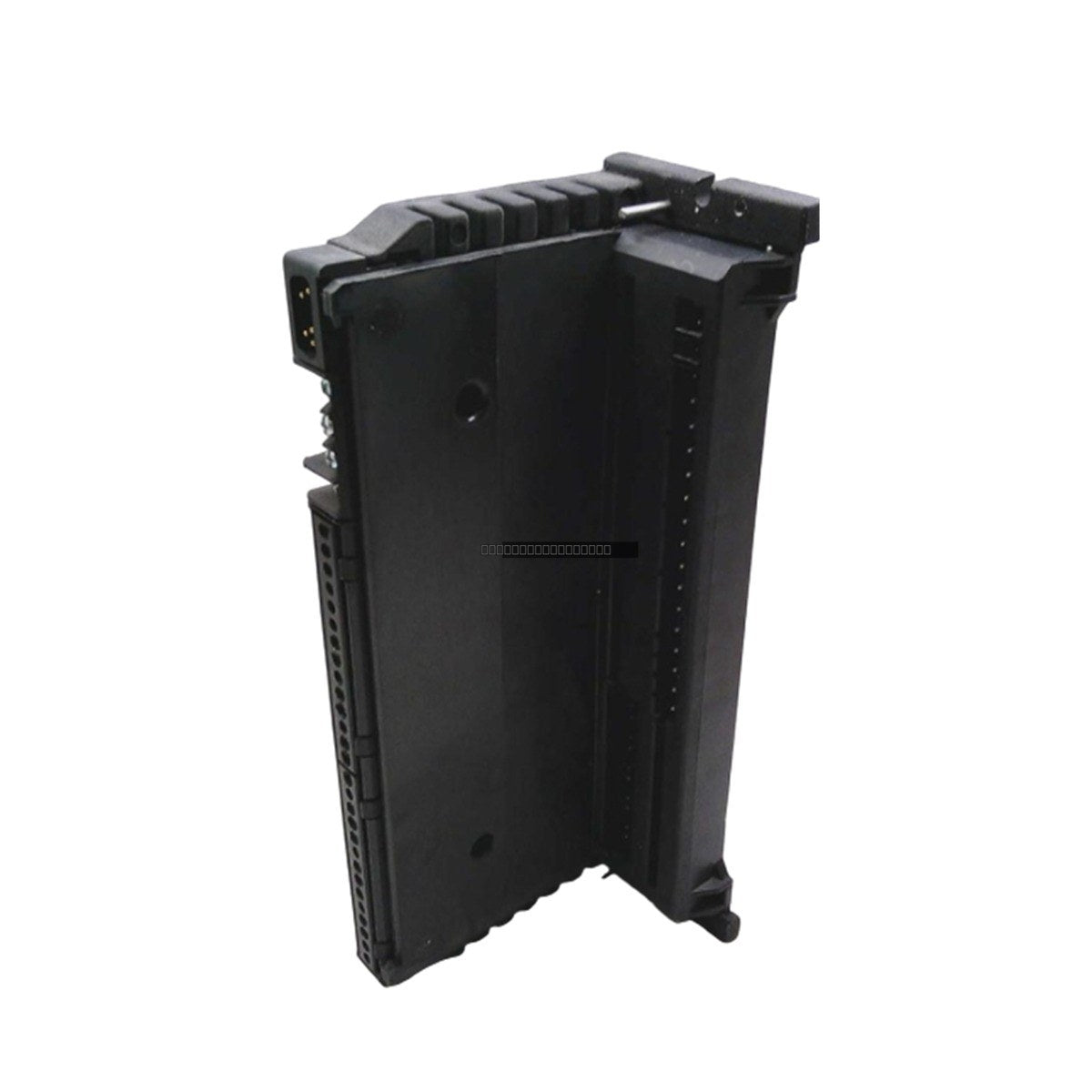

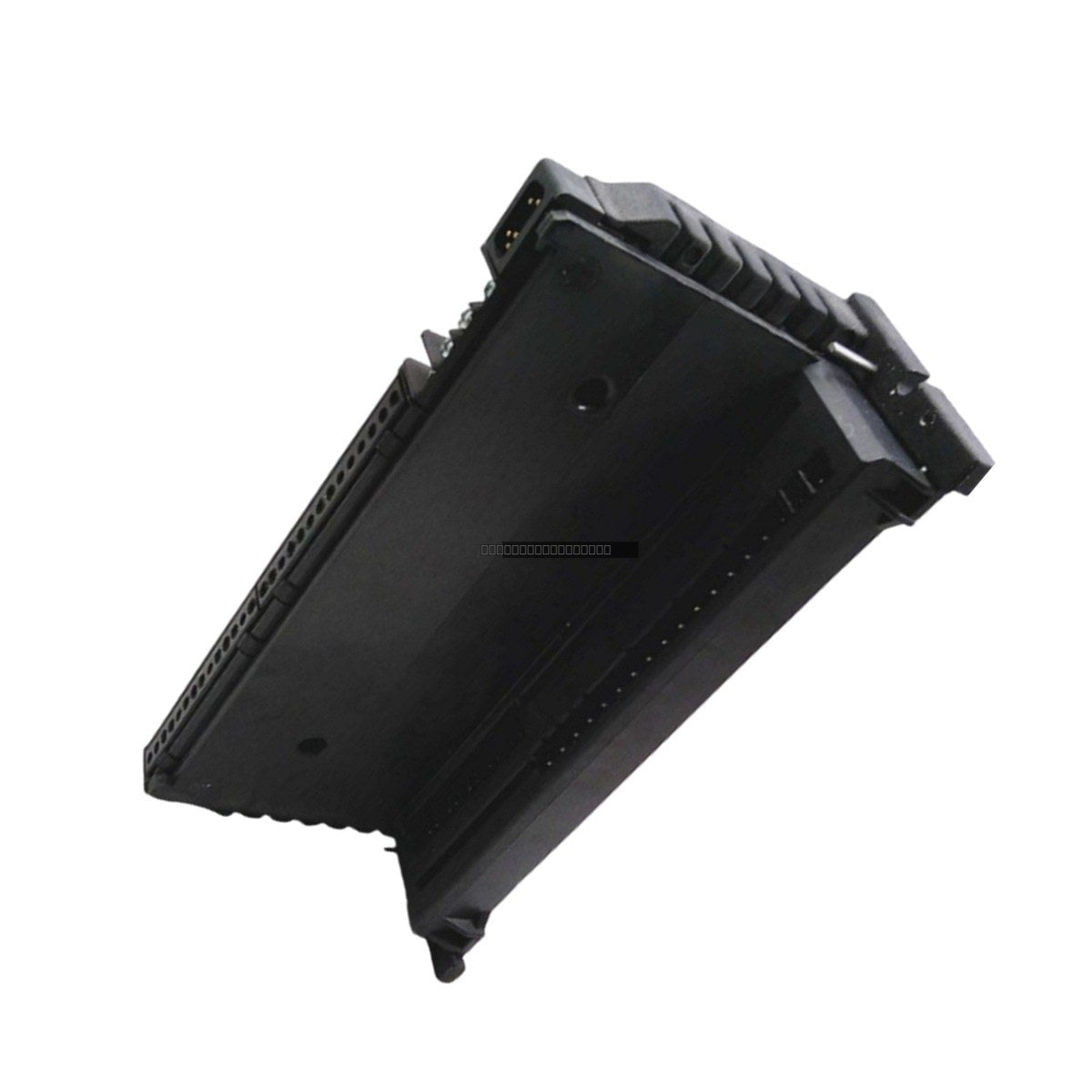

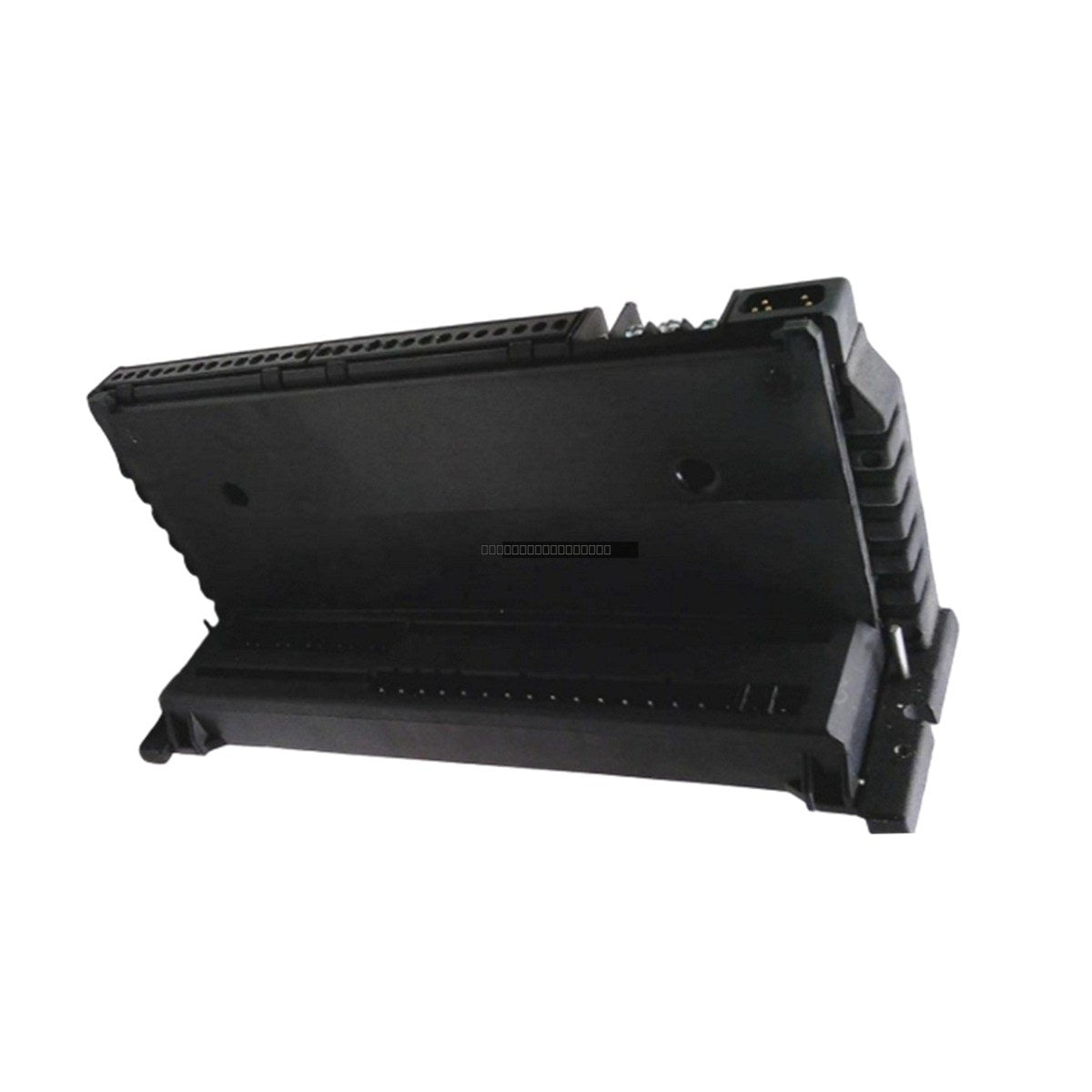

The IC660TBA024 is a terminal assembly component designed for the General Electric Genius I/O system. This assembly provides the necessary physical connection points for field wiring in industrial control applications, ensuring reliable signal distribution within the Genius I/O block architecture. It is engineered to support 24/48 VDC operations while maintaining high standards of electrical isolation between blocks and groups.
Features
- Designed for integration with the GE Genius I/O series.
- Supports 24/48 VDC power supply environments.
- Robust terminal design for secure field wiring connections.
- Provides 1500 V block-to-block electrical isolation.
- Includes 300 V RMS group-to-group isolation for enhanced noise immunity.
- Optimized for operation in standard industrial temperature ranges.
Technical Specifications
| Part Number |
IC660TBA024 |
| Manufacturer |
General Electric |
| Series |
Genius I/O |
| Voltage Rating |
24/48 VDC |
| Max Current Rating |
600 mA |
| Heat Dissipation |
12 Watts |
| Max Ripple |
10% |
| Operating Temperature |
0 to 60 degC |
| Block-to-Block Isolation |
1500 V |
| Group-to-Group Isolation |
300 V RMS |
Installation Guidelines
- Ensure all power is disconnected from the I/O block before installing or removing the terminal assembly to prevent electrical shock or equipment damage.
- Mount the terminal assembly in a clean, dry environment, ensuring adequate ventilation to accommodate the 12 W heat dissipation.
- Verify that all field wiring is properly secured to the terminals to prevent intermittent connections caused by industrial vibration.
- Maintain proper segregation between signal and power cabling to minimize electromagnetic interference (EMI).
- Handle the module with ESD-safe practices to protect internal components during installation.
FAQ
What is the primary function of the IC660TBA024?
The IC660TBA024 is a terminal assembly used within the GE Genius I/O system to provide a reliable interface for connecting field devices to the I/O block.
What is the voltage rating for this assembly?
This terminal assembly is designed for use with 24/48 VDC systems.
What are the environmental requirements for this module?
The unit is rated for operation in temperatures ranging from 0 to 60 degC. It should be installed in an enclosure that provides protection against dust and moisture.
