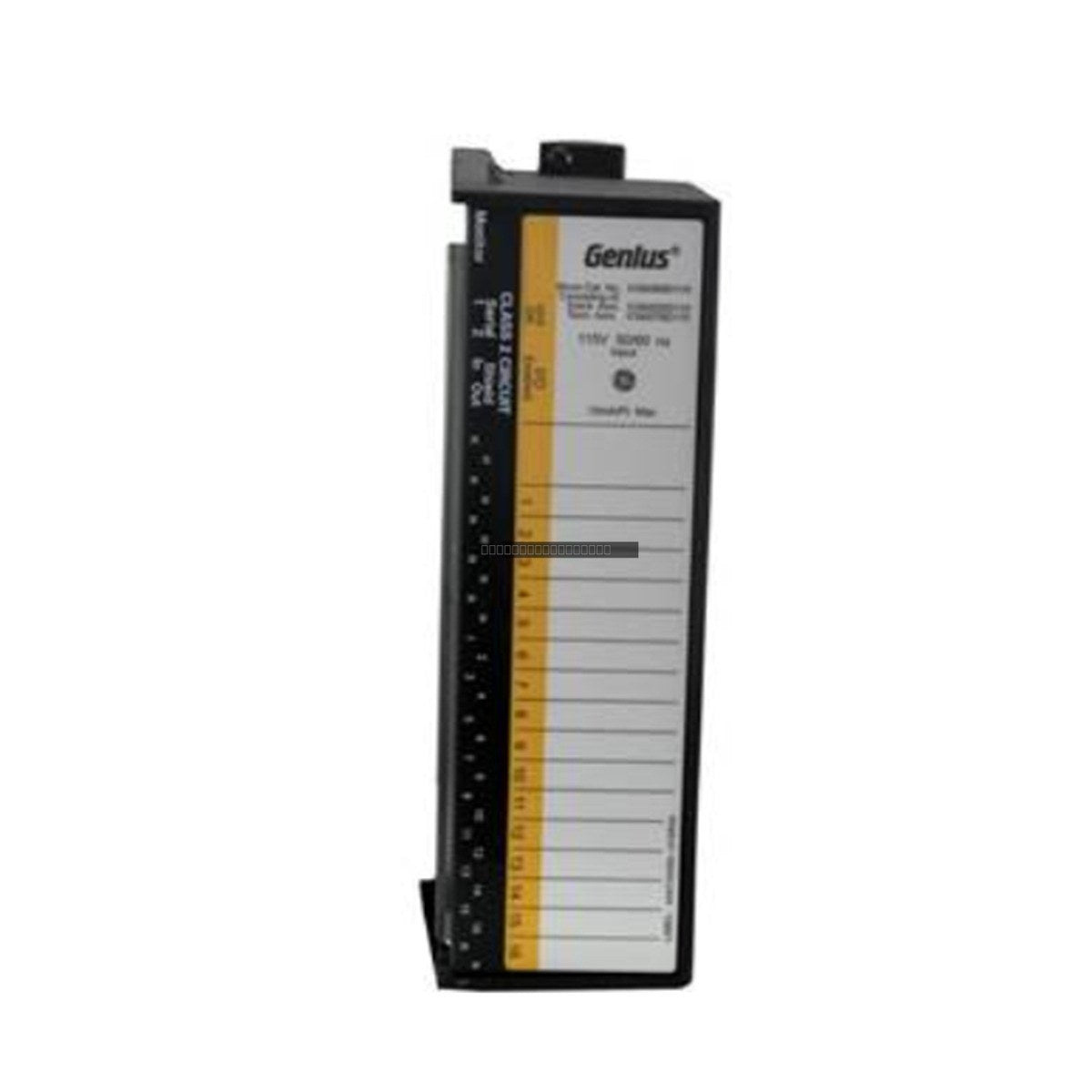

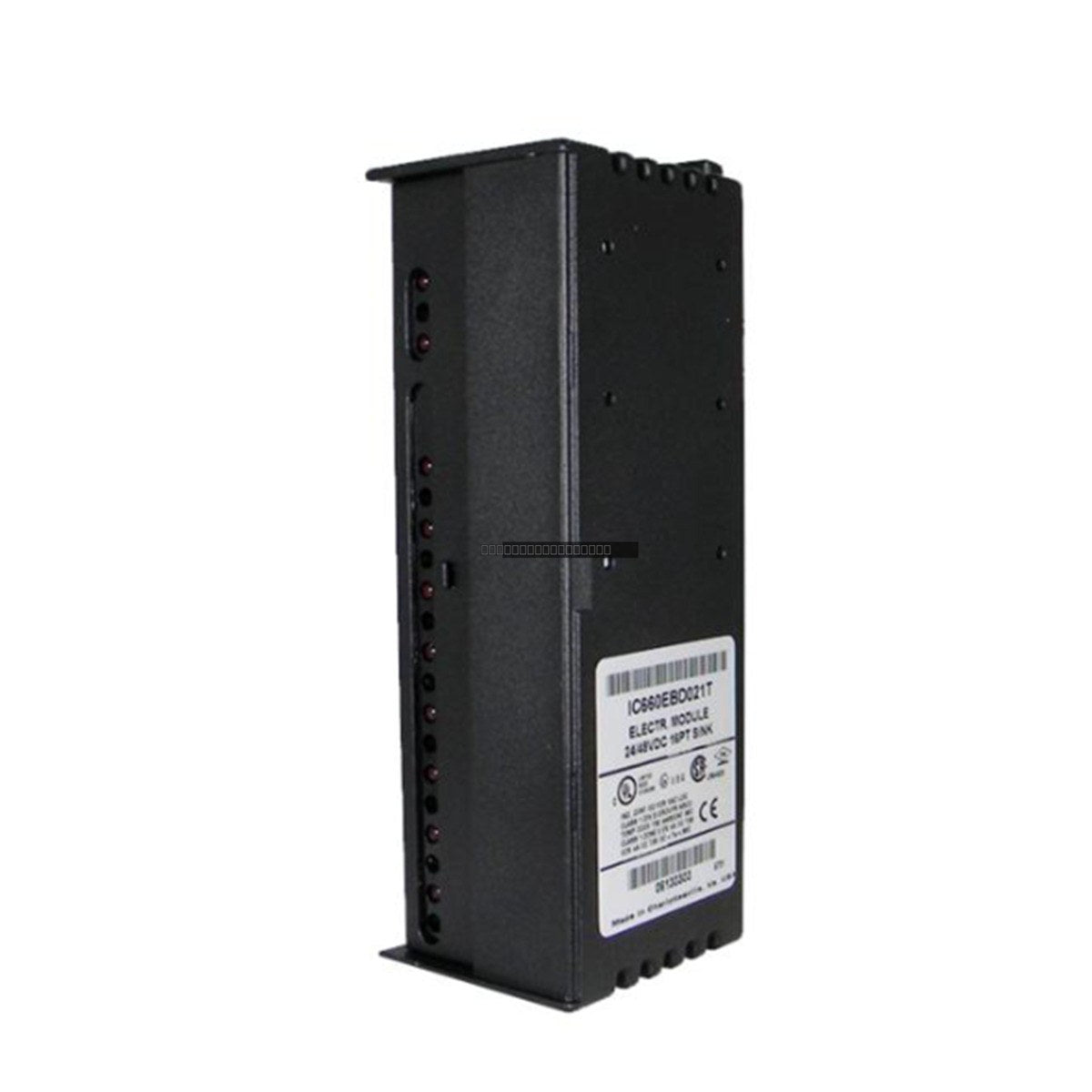

The General Electric IC660EBD021 is a high-performance Genius Block I/O module designed for industrial automation control systems. As part of the GE Genius I/O series, this electronic assembly provides reliable signal processing and distributed control capabilities. It is engineered to support discrete input and output operations, facilitating seamless communication between field devices and the primary controller.
Features
- Sixteen (16) configurable discrete inputs for versatile signal monitoring.
- Supports a wide nominal input voltage range of 24 VDC to 48 VDC (18-56 VDC operating range).
- Individual load-side circuit LEDs for real-time status monitoring and diagnostics.
- Robust block-to-block isolation of 1500 V to protect sensitive control electronics.
- High-efficiency power handling with a 10-microsecond power supply dropout time.
Applications
This module is widely utilized in industrial environments requiring distributed I/O, including manufacturing assembly lines, process control systems, and material handling equipment. Its ability to handle 2 Amps per circuit makes it suitable for driving various actuators, solenoid valves, and relay interfaces within a Genius I/O network.
Technical Specifications
| Parameter |
Specification |
| Product Model |
IC660EBD021 |
| Operating Voltage |
18 to 56 VDC |
| Discrete Inputs |
16 Configurable |
| Output Current (Steady State) |
2 Amps per circuit |
| Block Output Current |
15 Amps at 35 degC |
| Required DC Power |
300 mA (Max) |
| Operating Temperature |
0 to 60 degC |
| Storage Temperature |
-40 to 100 degC |
| Isolation |
1500 V (Block to Block) |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module from the I/O bus.
- Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures within the 0 to 60 degC range.
- Use shielded cabling for I/O signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Verify that all wiring connections are secure and follow local electrical codes for DC power distribution.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal components.
FAQ
What is the primary function of the IC660EBD021?
The IC660EBD021 is a Genius Block I/O module used to interface discrete field devices with a GE Genius I/O network, providing 16 configurable inputs and output switching capabilities.
What is the maximum output current for this module?
The module supports a steady-state output current of 2 Amps per circuit, with a total block output current capacity of 15 Amps at an ambient temperature of 35 degC.
