Description

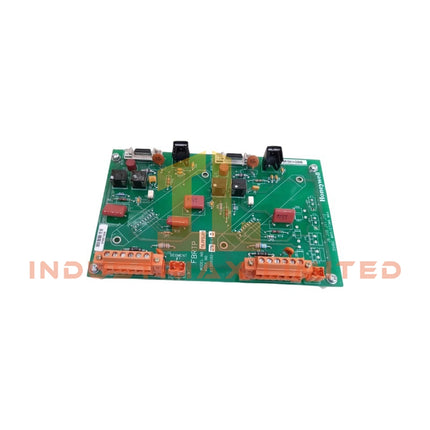

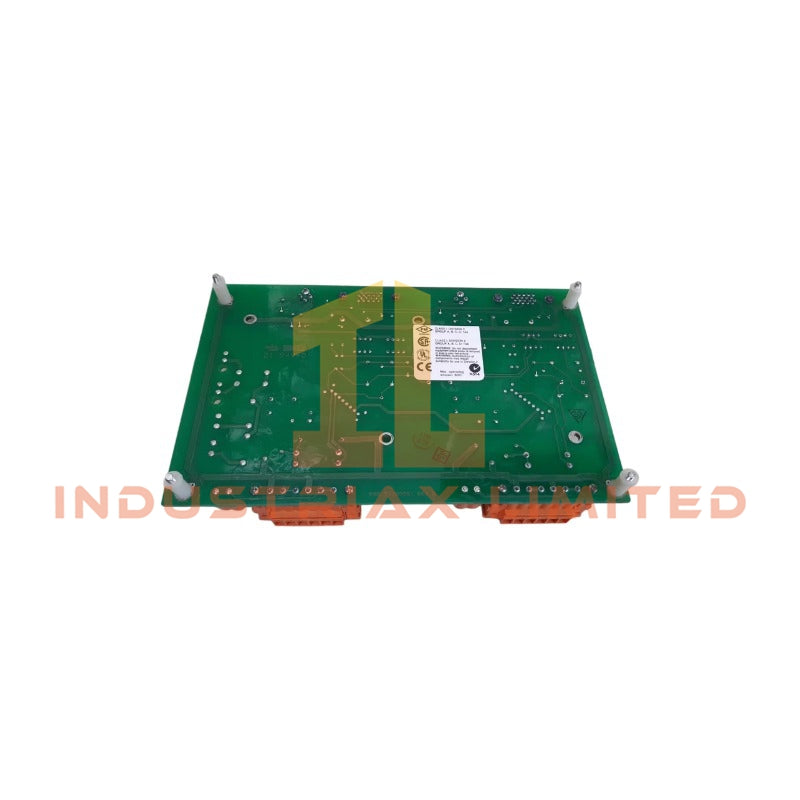

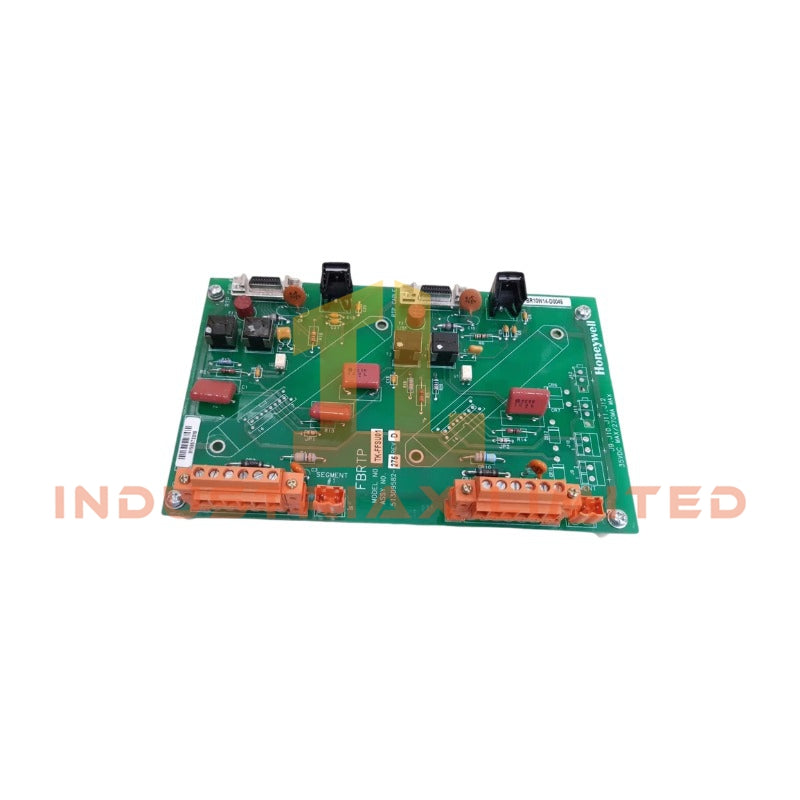

Honeywell TK-FFSU01 FOUNDATION Fieldbus H1 Power Supply Board

Configured for FOUNDATION Fieldbus H1 segment power conditioning in Honeywell Experion PKS and C300 Controller platforms, the Honeywell TK-FFSU01 51309582-275 (TK-FFSU01 FOUNDATION Fieldbus H1 Power Supply Board) provides direct physical power isolation and signal conditioning execution.

Hardware Specifications

Parameter	Specification
Model	TK-FFSU01
Brand	Honeywell
Origin	USA
Product Type	FOUNDATION Fieldbus H1 Power Supply / Signal Conditioning Board
Part Number	51309582-275 Rev D
Compatible Systems	Honeywell Experion PKS, C300 Controller, Series 8 I/O
Communication Protocol	FOUNDATION Fieldbus H1, 31.25 kbps
Network Function	Fieldbus segment power supply, signal conditioning, LAS support

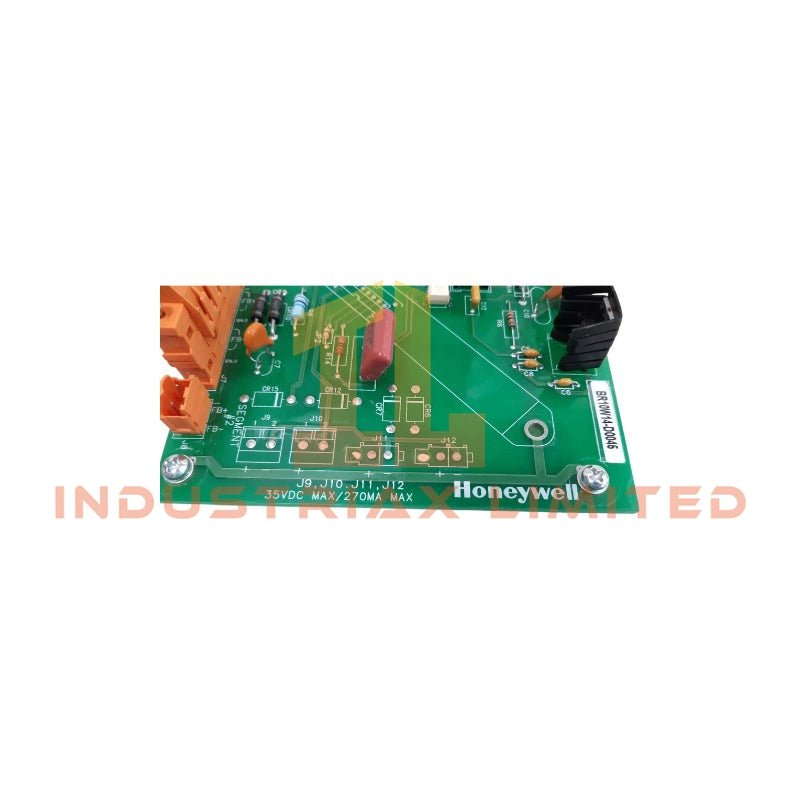

Maximum Voltage Rating	35 VDC Max
Maximum Current Rating	270 mA Max
Weight	Approx. 215 g
Dimensions	Compact plug-in board format; exact dimensions not specified
Operating Temp	Up to 60 deg C
Humidity Range	5% to 95% RH, non-condensing
Power Consumption	Derived from fieldbus segment supply load; maximum output rating 270 mA
Protection Functions	Short-circuit protection, surge suppression, galvanic isolation, noise filtering
Mounting Type	Chassis plug-in installation / redundant termination panel mounting
Flammability Rating	D1 94V-0
Hazardous Location Rating	Class I, Division 2, Groups A, B, C, D; Temperature Code T4A

FOUNDATION Fieldbus H1 Segment Power Conditioning

The TK-FFSU01 performs FOUNDATION Fieldbus H1 power conditioning by supplying regulated DC power to fieldbus segments while maintaining signal integrity. The module provides galvanic isolation between field wiring and system interfaces to reduce ground interference effects.

For process instrumentation networks, the module supports FOUNDATION Fieldbus H1 communication at 31.25 kbps and provides compatibility with Link Active Scheduler (LAS) functions. Moreover, the integrated filtering circuit reduces electrical noise coupling between field devices and the control system.

Honeywell process I/O architectures use this type of interface for instrument loops requiring stable DC supply characteristics, channel isolation, and controlled fieldbus segment loading. The module design supports redundant fieldbus power configurations where system architecture requires continuous segment availability.

Frequently Asked Questions

Q: What communication protocol is supported by the TK-FFSU01?
A: The TK-FFSU01 supports FOUNDATION Fieldbus H1 communication with a data rate of 31.25 kbps and provides fieldbus segment power conditioning.

Q: Does the TK-FFSU01 provide electrical isolation between field wiring and system electronics?
A: Yes. The module incorporates galvanic isolation, surge suppression, and filtering functions to control electrical interference between field devices and the automation system.

Q: Can the TK-FFSU01 be installed in redundant fieldbus power configurations?
A: The module supports redundant configuration architectures when installed within compatible Honeywell Experion PKS and Series 8 I/O system arrangements.

Field Installation Guidelines

• Install the module only in compatible Honeywell chassis or termination panel positions specified by the system hardware documentation.
• Verify fieldbus wiring polarity and segment power requirements before applying DC supply voltage.
• Maintain proper cable shielding and connect shield termination according to site grounding practices.
• Separate fieldbus communication wiring from high-current power cables to reduce electromagnetic interference.
• Confirm that hazardous area installation requirements match the applicable Class I, Division 2 certification conditions.
• Inspect connector seating and mechanical locking features before system startup.
• Verify fieldbus segment voltage levels and device current loading after installation.
