Description

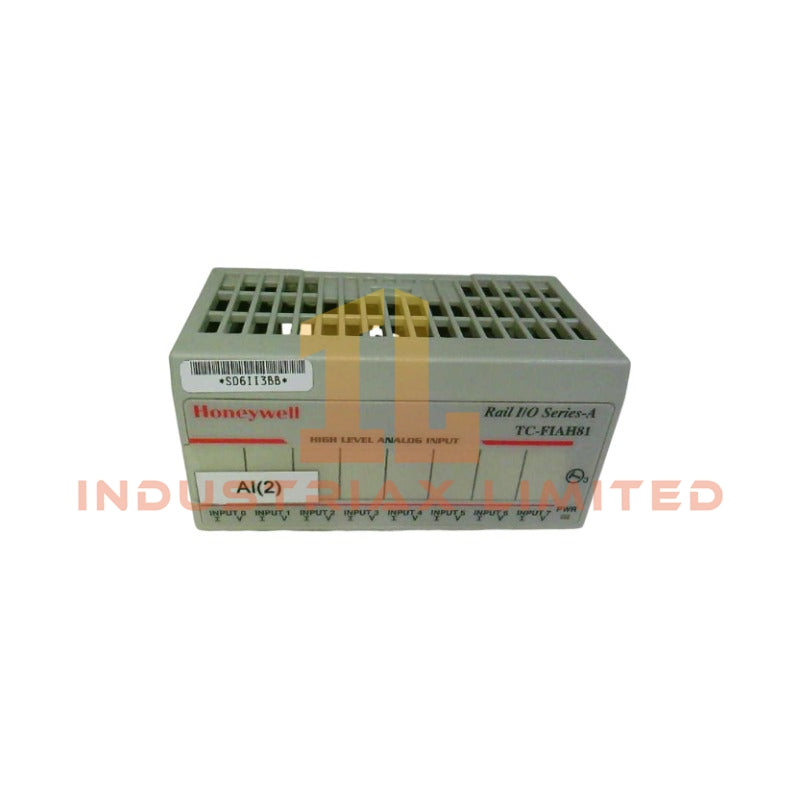

Honeywell TC-FIAH81 Analog Input Module

The Honeywell TC-FIAH81, also cataloged as the TC-FIAH81 analog input module, operates as a dedicated hardware component for multi-channel analog signal acquisition within Experion PKS I/O systems.

Suffix Breakdown & Model Matrix

No explicit suffix segmentation or functional variant encoding is defined for TC-FIAH81 in the provided technical dataset. The identifier is treated as a single fixed-order module designation.

Hardware Specifications

Parameter	Specification
Model	TC-FIAH81
Brand	Honeywell
Origin	USA
Weight	0.22 lbs
Dimensions	2.0 in x 7.0 in x 14.0 in
Operating Temp	Not specified
Power Consumption	Up to 3 W @ 31.2 VDC
Input Channels	8 analog input channels
Signal Ranges	+/- 10 V, 0-10 V, 0-20 mA, 4-20 mA
FlexBus Supply	5 VDC (15 mA), 24 VDC (60 mA)
System Isolation	850 VDC user-to-system

Honeywell Process I/O Electrical Interface Characteristics

The TC-FIAH81 is integrated into Honeywell Experion Rail I/O architectures using FlexBus backplane communication. The module processes industrial analog signals including 4-20 mA current loops and voltage inputs up to +/- 10 V. Signal acquisition is performed without channel-to-channel isolation, with isolation implemented at user-to-system level (850 VDC).

In DCS integration contexts, analog input scaling is aligned with standard process instrumentation loop conventions. The module supports direct interfacing with transmitter outputs commonly configured in 4-20 mA HART loop environments. Backplane communication is handled via FlexBus power and data distribution lines at 5 VDC and 24 VDC rails.

Frequently Asked Questions (FAQ)

Q: Does the TC-FIAH81 support channel-to-channel electrical isolation?
A: No. Isolation is implemented as user-to-system galvanic isolation only (850 VDC). Individual input channels are not isolated from each other.

Q: What signal types can be directly wired to the module inputs?
A: The module accepts voltage inputs (0-10 V, +/- 10 V) and current inputs (0-20 mA, 4-20 mA) without external conversion hardware.

Q: What is the backplane power dependency of the module?
A: The module requires FlexBus supply at 5 VDC (15 mA) and 24 VDC (60 mA) for internal operation and communication.

Field Installation Guidelines

• Install module on compatible Honeywell Rail I/O terminal base (commonly TC-FTB301 or equivalent).
• Ensure FlexBus connector seating is fully engaged to maintain backplane communication integrity.
• Maintain segregation between analog signal wiring and high-noise power conductors.
• Use shielded twisted pair cabling for 4-20 mA loops; terminate shield at single-point ground only.
• Verify field loop voltage does not exceed 30 V or 32 mA continuous overload limits.
• Do not hot-swap unless system architecture explicitly supports live module replacement with controller in maintenance mode.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
